02-04[01] - RADIATOR - MOUNTING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    8500084
    RADIATEURSLANG 48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1; Lower
  • 2
    1
    87325208

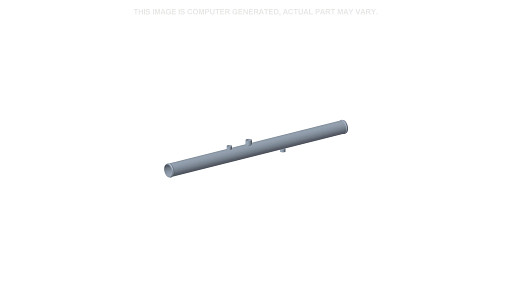

    LEIDING 57.20 mm DIA x 908 mm L; Coolant Lower
  • 2
    1
    87644927
    TUBE; Fertilizer
  • 3
    2
    381232A1
    HOSE 44.50 mm ID x 87.00 mm, SAE J20R4 Class D1; Elbow
  • 4
    1
    87446948

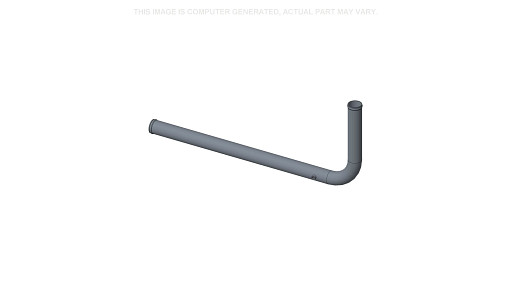

    TUBE 44.5 mm DIA x 734, 292 mm L; Coolant Upper
  • 4
    1
    87647485
    TUBE; Fertilizer
  • 5
    3
    L115548

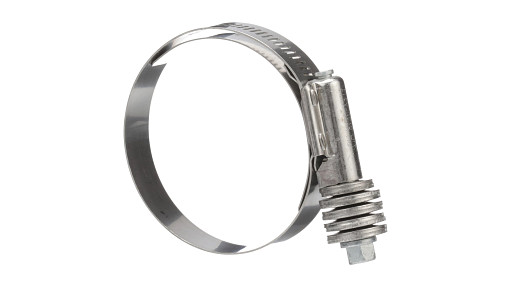

    BRIDE, FLEXIBLE 57.15mm - 79.38mm;
  • 6
    1

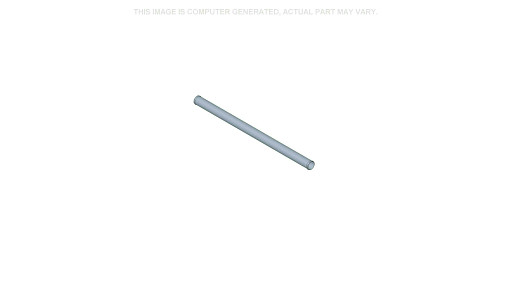

    87446950
    HYD TUBE 44.5 mm DIA x 767 mm L; Coolant Upper
  • 6
    1
    87644929
    TUBE; Fertilizer
  • 7
    2
    254026A1
    HOSE CLAMP 44.45mm - 66.67mm;
  • 8
    5
    214-1432
    BRIDE, FLEXIBLE #32, 1.56'' - 2.5'', Type F Worm;
  • 9
    2
    393632A1
    COLLIER;
  • 10
    3
    382189A1
    COLLIER;
  • 11
    1
    217-152
    FITTING 1/2'' Hose Barb x 3/8'' Male NPTF;
  • 12
    1
    87536091

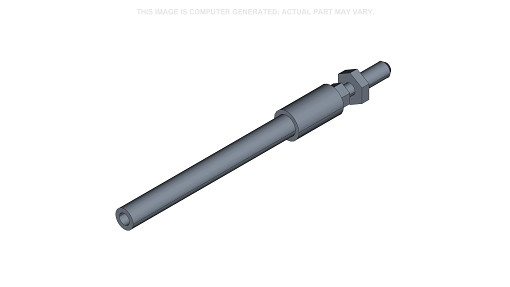

    HYDRAULIC HOSE; Coolant Drain (318mm)
  • 13
    1
    218-1255
    CONTRE-ECROU EN VRAC Blkhd, 3/4''-16;
  • 14
    1
    218-755
    CAPUCHON 37 Degree, 3/4''-16;
  • 15
    1
    214-1410

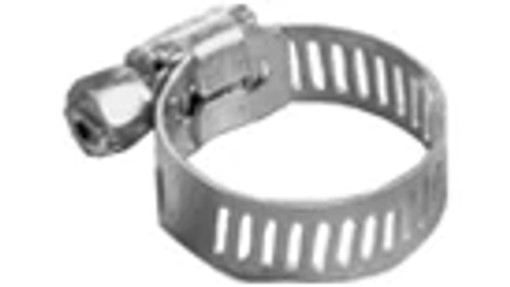

    BRIDE, FLEXIBLE #10, 0.56'' - 1.06'', Type F Worm;
  • 16
    1
    87635840
    CLAPET ANTI-RETOUR 1/2-14 NPTF to 1/4ID HOSE;
  • 16
    1
    J911901
    VALVE, CHECK;
  • 17
    1
    217-191

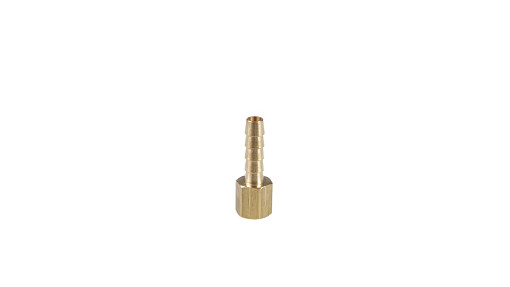

    RACCORD 1/4'' Hose Barb x 1/8'' Female NPTF;
  • 18
    1
    217-292
    FITTING 90 Degree Elbow, 1/4'' Hose Barb x 1/8'' Male NPTF;
  • 19
    1
    320374A1

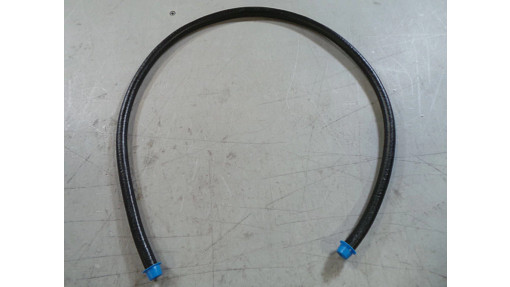

    HOSE; Coolant Breather, 925 mm ( 36 7/16 in.), Cut To Length From 31-1182 Bulk Hose
  • 19
    1
    87552499
    DURITE RADIATEUR 6.40 mm ID x 1150.00 mm; Coolant Breather
  • 20
    3
    L11541
    BRIDE DE CABLE 203.2mm L, Nylon;
  • 21
    2
    214-1704
    BRIDE, FLEXIBLE #04, 0.25'' - 0.62'', Type M Worm;
  • 22
    1
    217-1035
    RACCORD REDUCTEUR 1/2'' - 14 Male NPTF x 3/8'' - 18 Female NPTF;
  • 23
    1
    8500907
    DURITE RADIATEUR 57.20 mm ID x 300,275,95 mm, SAE 20 R4 CLASS D1; Lower
  • 24
    1
    8602421
    RADIATEUR;
  • 24
    1

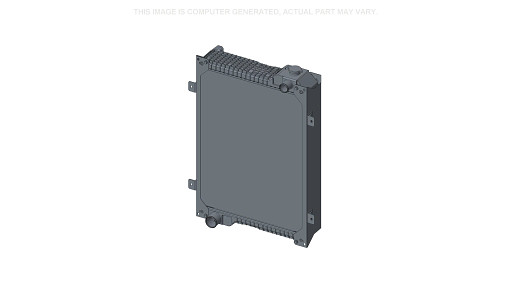

    87656415
    RADIATEUR; For Fertilizer Model
  • 25
    1
    515-22190

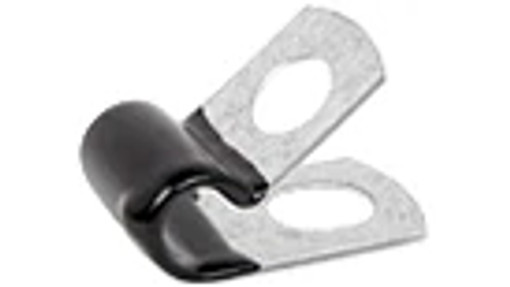

    CLAMP 3/4'', Insul, 5/16'' Bolt;
  • 26
    10
    892-11008
    RONDELLE FREIN 8mm ID;
  • 27
    1
    627-8025
    VIS Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd;
  • 28
    1
    419792A2
    CAPTEUR; Coolant Level
  • 29
    1
    8500083
    DURITE RADIATEUR 44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1; Upper
  • 30
    1
    87324042
    PLAQUE;
  • 30
    1
    87644930
    PLATE; For Fertilizer Model
  • 31
    2
    892-11008
    LOCK WASHER 8mm ID;
  • 32
    2
    627-8025
    BOLT Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd;
  • 33
    4
    832-10408
    LOCK NUT M8 x 1.25, Cl 8.8;
  • 34
    1
    627-8035
    BOLT Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd;
  • 35
    1
    A170241
    RADIATOR CAP;
