010 - REAR PTO ASSEMBLY, STANDARD
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    859336
    TUBE; Shielded Assy, Includes 2 thru 7
  • 2
    1
    859335
    TUBE 2.25'' OD x 41.00'' L; Assy., Inner
  • 2
    87414
    LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
  • 3
    2
    56760
    SNAP RING; Ring, Snap
  • 4
    2
    56801
    THRUST WASHER;
  • 5
    2
    850432
    BUSHING 52.88mm ID x 71.22mm OD x 9.53mm L;
  • 6
    1
    228147
    OUTER SHIELD; Tube Assy., Outer
  • 7
    1
    56800
    BEARING COVER; Support Bearing
  • 8
    1
    859334
    REAR PTO ASSY; Shielded Shaft Assy. Includes: Ref 3, 4, 5, 9 thru 15;Refs 16 & 17 Not Included With Shaft Assy
  • 9
    1
    228148
    SHIELD; Assy.
  • 10
    1
    859333
    PTO SHAFT; Yoke & Shaft Weld Assy.
  • 11
    1
    29214
    BEARING ASSY; & Bearing Assy.
  • 12
    1
    183442
    SNAP RING 1.653, Int, #165;
  • 13
    1
    44680
    BALL BEARING 20mm ID x 42mm OD x 12mm W; Bearing
  • 14
    1
    261342
    YOKE; Assy. Includes: Ref. 15
  • 15
    1
    184317

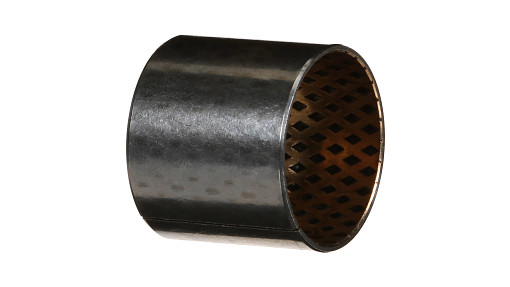

    BUSHING 34.88mm ID x 38.13mm OD x 33.3mm L;
  • 16
    2
    218527
    DOG; Clutch
  • 17
    2
    46789
    PIN 12.7mm OD x 41.27mm L; 1/2'' x 1-5/8''
