TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1CRANKCASE; engine, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, for service order J908031 crankshaft assembly, Ref. 1, Includes Ref 2, 3
-
1REMAN-CRANKSHAFT CRANKSHAFT; 8860, 8860HP BOTH EMISSIONS, Reman for New P/N JR908031 includes main bearings, thrust bearing & connecting rod bearings
-
-CORE-CRANKSHAFT CRANKSHAFT; Return Number
-
1CORE-CRANKSHAFT CRANKSHAFT; RETURN NUMBER use this part number to return crankshaft for credit when using a remanufactured assembly, Includes Ref: 2, 3
-
11CRANKSHAFT; ASSY. engine, Includes Ref: 2, 3
-
11CORE-CRANKSHAFT CRANKSHAFT; ASSY. engine, Includes Ref: 2, 3
-
11CRANKCASE; ASSY. engine, Includes Ref: 2, 3
-
1REMAN-CRANKSHAFT CRANKSHAFT; 8860, 8860HP BOTH EMISSIONS, Reman for New P/N J908031
-
-CORE-CRANKSHAFT CRANKSHAFT; Return Number
-
21PINION; GEAR crankshaft
-
31PIN 6.01mm OD x 8mm L; dowel
-
41NOT SOLD SEPARAT; SEAL oil, crankshaft front, order Ref. 13, A77889 kit
-
51PULLEY 181.25mm OD; crankshaft vibration damper
-
61ADAPTER; FLANGE adapter, pulley
-
74FLANGE BOLT Hex, M12 x 1.25 x 36mm; hex flange, special, 12-1.25 x 36 mm
-
81REAR COVER; RETAINER seal, Replaces: J921043
-
96FLANGE BOLT Hvy Hex, M6 x 15mm, Cl 8.8; Heavy
-
101GASKET; rear cover retainer
-
114BEARING SET Std; main, standard, upper and lower set, 4-390 engine
-
114CRANKSHAFT BEARING Std; main, standard, upper and lower set, 4T-390 engine
-
114BEARING SET 0.25 mm undersize; main, undersize, upper and lower set, 0.25 mm
-
114BEARING SET 0.5 mm undersize; main, undersize, upper and lower set, 0.50 mm
-
114BEARING SET 0.75 mm undersize; main, undersize, upper and lower set, 0.75 mm
-
114BEARING SET 1.0 mm undersize; main, undersize, upper and lower set, 1.00 mm
-
121THRUST BEARING KIT; main thrust, standard, upper and lower set, 4-390 engine
-
121BEARING SET Std; main thrust, standard, upper and lower set, 4T-390 engine
-
121THRUST BEARING 0.25 mm undersize; main, undersize, upper and lower set, 0.25 mm
-
121THRUST BEARING 0.5 mm undersize; main, undersize, upper and lower set, 0.50 mm
-
121THRUST BEARING 0.75 mm undersize; main, undersize, upper and lower set, 0.75 mm
-
121THRUST BEARING 1.0 mm undersize; main, undersize, upper and lower set, 1.00 mm
-
121THRUST BEARING 0.50mm undersize; main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize
-
121THRUST BEARING 1.0mm undersize; main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize
-
131KIT; oil, crankshaft front, Includes Ref: 14-17
-
141NOT SOLD SEPARAT; SEAL oil, front
-
151NOT SOLD SEPARAT; TOOL installation
-
161NOT SOLD SEPARAT; TOOL installation
-
171NOT SOLD SEPARAT; SHIELD dust
-
181KIT; oil, crankshaft front, Includes: wear sleeve, Includes Ref: 19-22
-
191NOT SOLD SEPARAT; SEAL oil, front
-
201NOT SOLD SEPARAT; SLEEVE wear, not shown
-
211NOT SOLD SEPARAT; TOOL installation
-
221NOT SOLD SEPARAT; SHIELD dust
-
231SERVICE KIT 129.36mm ID x 150.33mm OD; KIT oil, crankshaft rear, replaces A77809, Includes Ref: 24, 25
-
241NOT SOLD SEPARAT; TOOL installation
-
241NOT SOLD SEPARAT; TOOL installation
-
251NOT SOLD SEPARAT; SEAL oil, rear
-
261SERVICE KIT 132.89mm ID x 150.32mm OD; oil, crankshaft rear, Includes: wear sleeve, Includes Ref: 27, 28
-
271NOT SOLD SEPARAT; SLEEVE wear
-
281NOT SOLD SEPARAT; SEAL oil, rear, oversize
Select All
Select
Ref.
Qty
1Availability
Part #
JR908031Description
CRANKCASE; engine, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, for service order J908031 crankshaft assembly, Ref. 1, Includes Ref 2, 3Img
Alts
Select
Ref.
Qty
1Availability
Part #

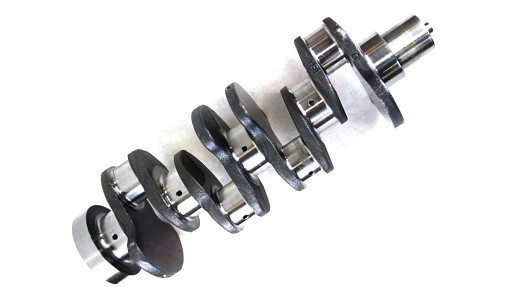

J929036RDescription
REMAN-CRANKSHAFT CRANKSHAFT; 8860, 8860HP BOTH EMISSIONS, Reman for New P/N JR908031 includes main bearings, thrust bearing & connecting rod bearingsImg
Alts
Select
Ref.
Qty
-Availability
Part #
J929036CDescription
CORE-CRANKSHAFT CRANKSHAFT; Return NumberImg
Alts
Select
Ref.
Qty
1Availability
Part #
JC908031Description
CORE-CRANKSHAFT CRANKSHAFT; RETURN NUMBER use this part number to return crankshaft for credit when using a remanufactured assembly, Includes Ref: 2, 3Img
Alts
Select
Ref.
1Qty
1Availability
Part #
J908031Description
CRANKSHAFT; ASSY. engine, Includes Ref: 2, 3Img
Alts
Select
Ref.
1Qty
1Availability
Part #
JC908031Description
CORE-CRANKSHAFT CRANKSHAFT; ASSY. engine, Includes Ref: 2, 3Img
Alts
Select
Ref.
1Qty
1Availability
Part #
JR908031Description
CRANKCASE; ASSY. engine, Includes Ref: 2, 3Img
Alts
Select
Ref.
Qty
1Availability
Part #
J929036RDescription
REMAN-CRANKSHAFT CRANKSHAFT; 8860, 8860HP BOTH EMISSIONS, Reman for New P/N J908031Img
Alts
Select
Ref.
Qty
-Availability
Part #
J929036CDescription
CORE-CRANKSHAFT CRANKSHAFT; Return NumberImg
Alts
Select
Ref.
4Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SEAL oil, crankshaft front, order Ref. 13, A77889 kitImg
Alts
Select
Ref.
5Qty
1Availability
Part #
J914494Description
PULLEY 181.25mm OD; crankshaft vibration damperImg
Alts
Select
Ref.
6Qty
1Availability
Part #

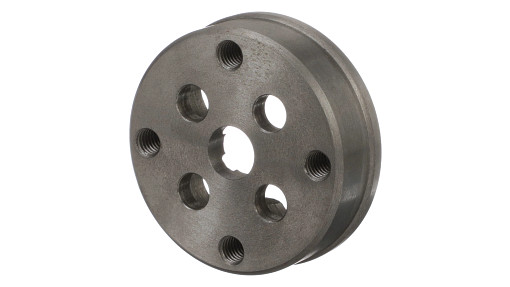

J903829Description
ADAPTER; FLANGE adapter, pulleyImg
Alts
Select
Ref.
7Qty
4Availability
Part #
J903857Description
FLANGE BOLT Hex, M12 x 1.25 x 36mm; hex flange, special, 12-1.25 x 36 mmImg
Alts
Select
Ref.
8Qty
1Availability
Part #
J936260Description
REAR COVER; RETAINER seal, Replaces: J921043Img
Alts
Select
Ref.
9Qty
6Availability
Part #
845-6015Description
FLANGE BOLT Hvy Hex, M6 x 15mm, Cl 8.8; HeavyImg
Alts
Select
Ref.
11Qty
4Availability
Part #
J804940Description
BEARING SET Std; main, standard, upper and lower set, 4-390 engineImg
Alts
Select
Ref.
11Qty
4Availability
Part #
A77405Description
CRANKSHAFT BEARING Std; main, standard, upper and lower set, 4T-390 engineImg
Alts
Select
Ref.
11Qty
4Availability
Part #
A77472Description
BEARING SET 0.25 mm undersize; main, undersize, upper and lower set, 0.25 mmImg
Alts
Select
Ref.
11Qty
4Availability
Part #
A77474Description
BEARING SET 0.5 mm undersize; main, undersize, upper and lower set, 0.50 mmImg
Alts
Select
Ref.
11Qty
4Availability
Part #
A77476Description
BEARING SET 0.75 mm undersize; main, undersize, upper and lower set, 0.75 mmImg
Alts
Select
Ref.
11Qty
4Availability
Part #
A77478Description
BEARING SET 1.0 mm undersize; main, undersize, upper and lower set, 1.00 mmImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77895Description
THRUST BEARING KIT; main thrust, standard, upper and lower set, 4-390 engineImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77896Description
BEARING SET Std; main thrust, standard, upper and lower set, 4T-390 engineImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77473Description
THRUST BEARING 0.25 mm undersize; main, undersize, upper and lower set, 0.25 mmImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77475Description
THRUST BEARING 0.5 mm undersize; main, undersize, upper and lower set, 0.50 mmImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77477Description
THRUST BEARING 0.75 mm undersize; main, undersize, upper and lower set, 0.75 mmImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77479Description
THRUST BEARING 1.0 mm undersize; main, undersize, upper and lower set, 1.00 mmImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77841Description
THRUST BEARING 0.50mm undersize; main, upper and lower set, 0.50 mm undersize, 0.50 mm oversizeImg
Alts
Select
Ref.
12Qty
1Availability
Part #
A77840Description
THRUST BEARING 1.0mm undersize; main, upper and lower set, 1.00 mm undersize, 1.00 mm oversizeImg
Alts
Select
Ref.
13Qty
1Availability
Part #

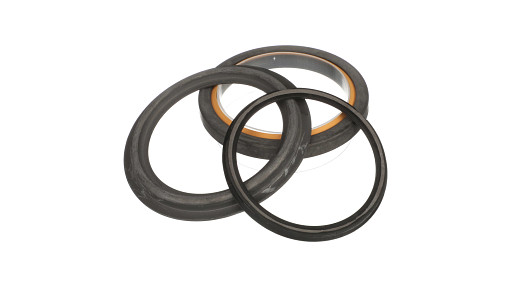

A77889Description
KIT; oil, crankshaft front, Includes Ref: 14-17Img
Alts
Select
Ref.
15Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; TOOL installationImg
Alts
Select
Ref.
16Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; TOOL installationImg
Alts
Select
Ref.
18Qty
1Availability
Part #

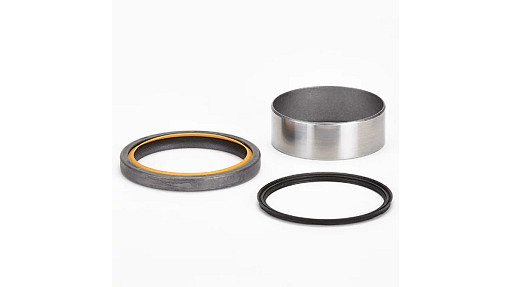

A77890Description
KIT; oil, crankshaft front, Includes: wear sleeve, Includes Ref: 19-22Img
Alts
Select
Ref.
20Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SLEEVE wear, not shownImg
Alts
Select
Ref.
21Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; TOOL installationImg
Alts
Select
Ref.
23Qty
1Availability
Part #
J934486Description
SERVICE KIT 129.36mm ID x 150.33mm OD; KIT oil, crankshaft rear, replaces A77809, Includes Ref: 24, 25Img
Alts
Select
Ref.
24Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; TOOL installationImg
Alts
Select
Ref.
24Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; TOOL installationImg
Alts
Select
Ref.
26Qty
1Availability
Part #

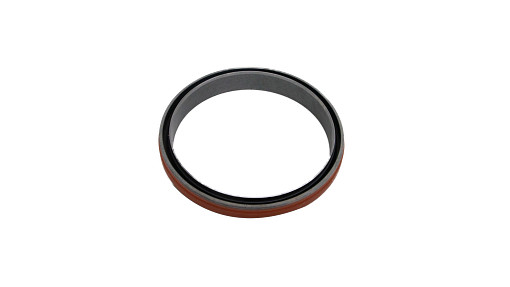

A77810Description
SERVICE KIT 132.89mm ID x 150.32mm OD; oil, crankshaft rear, Includes: wear sleeve, Includes Ref: 27, 28Img
Alts
Select
Ref.
28Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SEAL oil, rear, oversizeImg
Alts
