02-17 - CYLINDER HEAD AND VALVE MECHANISM - 4T-390 EMISSIONS CERTIFIED ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    JR938660
    REMAN-CYLINDER HEAD; N.A. Only, Replaces JR927330
  • 1
    JC938660
    CORE-CYLINDER HEAD; Return Number, Replaces JC927330
  • 1
    J938660
    ГОЛОВКА БЛОКА ЦИЛИНД; With Valves, Incl. 1, 2, 5 - 11, Replaces J927330
  • 1
    1
    NSS
    НЕ ПРОДАНА ОТДЕЛЬНАЯ; Without Valves
  • 2
    3
    A77783
    ПРОБКА; 21 mm OD
  • 3
    5
    217-466
    СЛИВНАЯ ПРОБКА Sq Soc, 1/2'' - 14, NTPF;
  • 4
    2
    J906619
    ПРОБКА 1/8'' - 27; 1/8 PT
  • 5
    16
    CASJ900250
    ФИКСАТОР;
  • 6
    8
    J935038
    ФИКСАТОР;
  • 7
    8
    J932453
    ПРУЖИНА; Replaces J926700
  • 8
    4
    J921640
    УПЛОТНИТЕЛЬНОЕ КОЛЬЦ;
  • 8A
    4
    J921640
    УПЛОТНИТЕЛЬНОЕ КОЛЬЦ;
  • 9
    4
    J920867
    КЛАПАН;
  • 10
    4
    J920868
    КЛАПАН;
  • 11
    X
    J910412
    ФРИКЦИОННАЯ НАКЛАДКА; Service Repair Only
  • 12
    4
    J906854
    СЕДЛО КЛАПАНА 37.9mm ID x 47mm OD x 6.9mm W; Intake, Service Repair Only
  • 13
    4

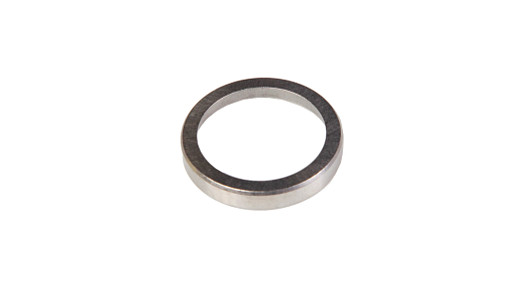

    J904105
    СЕДЛО КЛАПАНА; Exhaust, Service Repair Only
  • 14
    4
    J904408
    НАПРАВЛЯЮЩАЯ; 14 mm OD, Intake, Service Repair Only
  • 15
    4
    J904409
    НАПРАВЛЯЮЩАЯ; 14 mm OD, Exhaust, Service Repair Only
  • 16
    8
    J906206
    НАПРАВЛЯЮЩАЯ; 11 mm OD, Intake And Exhaust, Service Repair Only
  • 17
    4

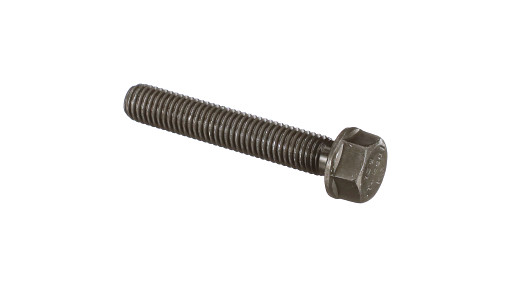

    J920779
    БОЛТ Flng, M12 x 1.75 x 70mm, Cl 12.9; 70 mm
  • 17
    10

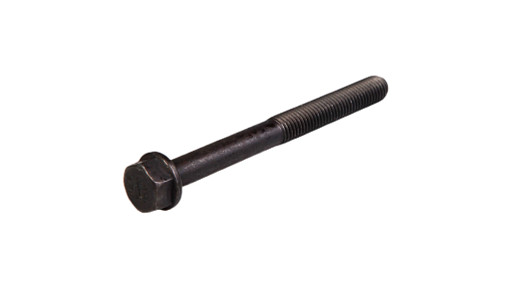

    J920780
    BOLT Flng, M12 x 1.75 x 120mm, Cl 12.9; 120 mm
  • 18
    4
    J922488
    SUPPORT;
  • 19
    8
    J900242
    SNAP RING;
  • 20
    8
    J900245
    WASHER;
  • 21
    4
    J910811
    ROCKER; Intake, Incl. 22 -24
  • 22
    1
    NSS
    NOT SOLD SEPARAT; Insert
  • 23
    1
    J934086
    ADJUSTMENT SCREW 3/8'' - 24 x 29.85mm;
  • 24
    1

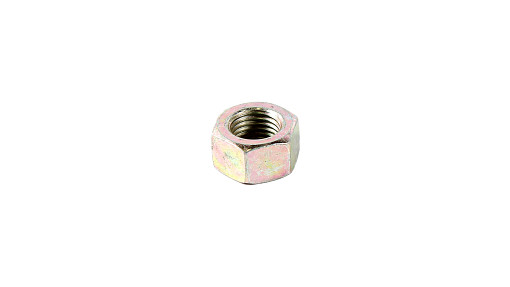

    A77902
    NUT 3/8'' - 24 UNF - 2B; 3/8 NF
  • 25
    4
    J910810
    ROCKER; Exhaust, Incl. 26 - 28
  • 26
    1
    NSS
    NOT SOLD SEPARAT; Insert
  • 27
    1
    J934086
    ADJUSTMENT SCREW 3/8'' - 24 x 29.85mm;
  • 28
    1
    A77902
    NUT 3/8'' - 24 UNF - 2B; 3/8 NF
  • 29
    4
    J901221
    BOLT; M8 x 75
  • 30
    4

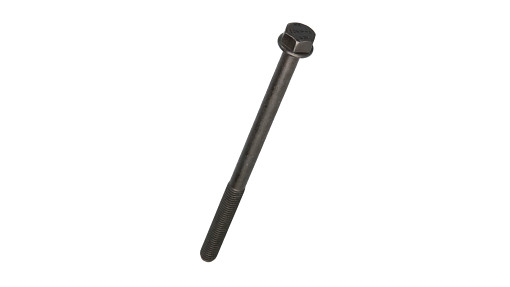

    J920781
    BOLT Flng, M12 x 1.75 x 180mm, Cl 12.9; 180 mm
  • 31
    8
    J284377
    PUSH ROD;
  • 32
    8
    J931623
    ТОЛКАТЕЛИ 16mm OD x 60mm H;
  • 33
    1
    87404692
    ПРИБОР ИЗМЕРИТЕЛЬНЫЙ; Cylinder Head Bolt Length, Not Illustrated
