046 - ''STUFFER'' CLUTCH CONTROL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

700112872

Description

ARM; Arm w/a-trip


Alts

Select

Ref.

2

Qty

1

Availability

Part #

706179832

Description

SPACER; Spacer


Alts

Select

Ref.

3

Qty

1

Availability

Part #

70921565

Description

SCREW; Screw, 3/8-16 x 1-1/2 C


Alts

Select

Ref.

4

Qty

4

Availability

Part #

140016

Description

WASHER M8 x 16mm OD x 1.6mm Thk;


Alts

Select

Ref.

5

Qty

3

Availability

Part #

700705038

Description

WASHER; Washer, 3/8 L


Alts

Select

Ref.

6

Qty

5

Availability

Part #

700704023

Description

NUT; Nut, 3/8-16 H


Alts

Select

Ref.

7

Qty

1

Availability

Part #

700061978

Description

KEY; Gib key


Alts

Select

Ref.

8

Qty

1

Availability

Part #

706524946

Description

ARM; Arm w/a-door


Alts

Select

Ref.

9

Qty

1

Availability

Part #

10797801

Description

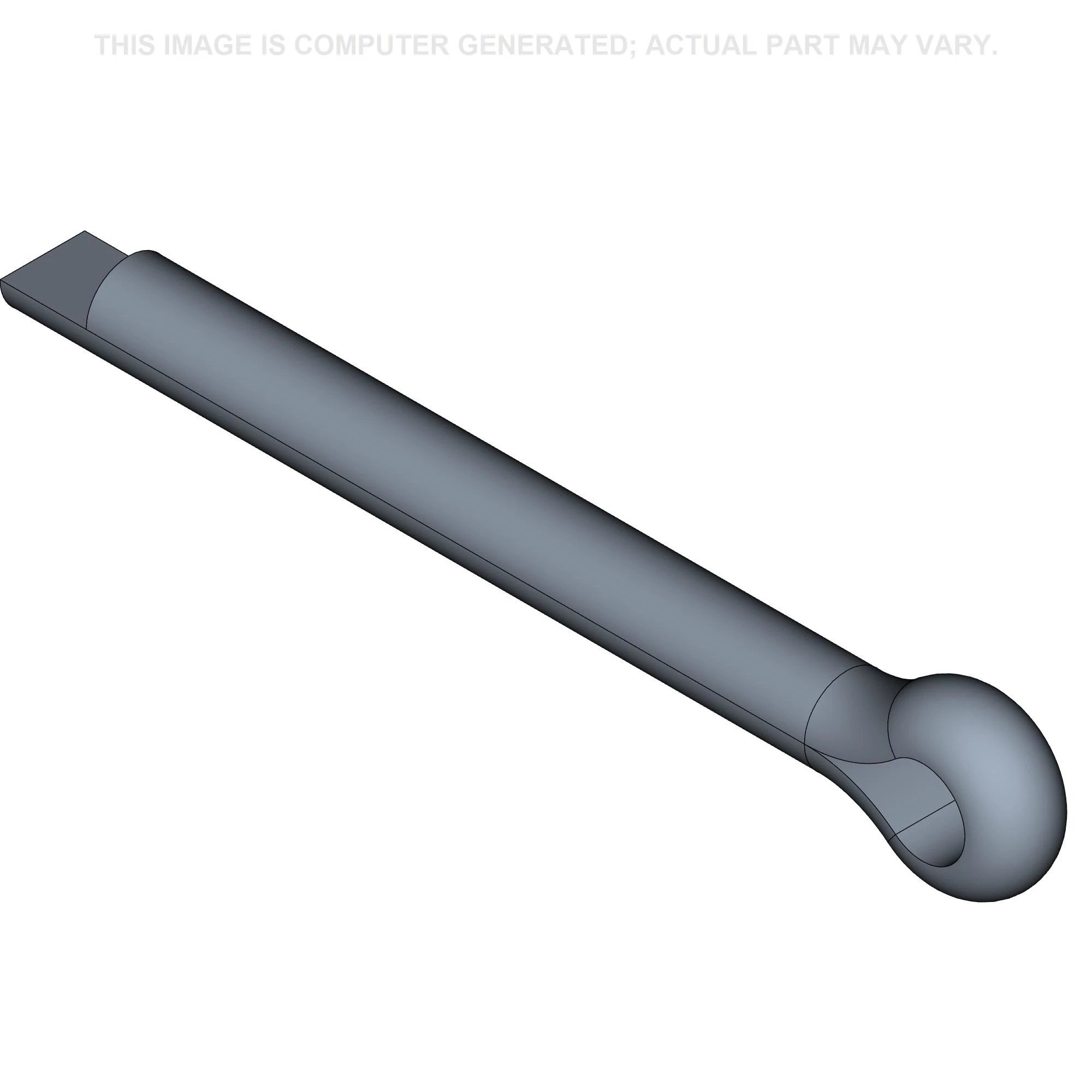

COTTER PIN M6.3 x 50.00mm;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

700112869

Description

STOP; Stop w/a


Alts

Select

Ref.

11

Qty

1

Availability

Part #

700858308

Description

SPRING; Spring-extension


Alts

Select

Ref.

12

Qty

1

Availability

Part #

700766485

Description

BANJO BOLT; 3/8 x 5 Eye bolt


Alts

Select

Ref.

13

Qty

2

Availability

Part #

700700054

Description

SCREW; Screw, 3/8-16 x 1-1/4 RHSNB


Alts

Select

Ref.

14

Qty

1

Availability

Part #

700063685

Description

SPINDLE; Clevis pin


Alts

Select

Ref.

15

Qty

1

Availability

Part #

700066183

Description

CLEVIS; Clevis


Alts

Select

Ref.

16

Qty

1

Availability

Part #

700704031

Description

NUT; Nut, 1/2-13 H


Alts

Select

Ref.

17

Qty

1

Availability

Part #

700062083

Description

COTTER PIN; 1/8 x 1 Cotter pin


Alts

Select

Ref.

18

Qty

1

Availability

Part #

700077065

Description

LUBE NIPPLE; 1/8-27 Zerk - Non-centralised Lube only


Alts

Select

Ref.

19

Qty

1

Availability

Part #

700112882

Description

ROD; Rod w/a


Alts

Select

Ref.

20

Qty

2

Availability

Part #

700705574

Description

WASHER; 1 Hardened plain washer


Alts

Select

Ref.

21

Qty

2

Availability

Part #

700852533

Description

CIRCLIP; Ring-retaining, ext


Alts

Select

Ref.

22

Qty

1

Availability

Part #

706525042

Description

ROLLER; Roller


Alts

Select

Ref.

23

Qty

1

Availability

Part #

10735001

Description

COTTER PIN M5 x 45; 3/16 x 1-1/2 Cotter pin


Alts

Select

Ref.

24

Qty

1

Availability

Part #

10797201

Description

COTTER PIN M5 x 25; 3/16 x 1 Cotter pin


Alts

Select

Ref.

25

Qty

1

Availability

Part #

706524870

Description

BEARING ASSY; Roller


Alts

Select

Ref.

26

Qty

1

Availability

Part #

700705541

Description

WASHER; 1/2 Hardened plain washer


Alts

Select

Ref.

27

Qty

1

Availability

Part #

700112866

Description

ARM; Arm w/a


Alts
