02-16 - THROTTLE, LINKAGE AND MOUNTING ASSEMBLY
TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Fenêtre N° de série
Date de construction
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
Sélectionner Tout

Select

Ref.

1

Qté

1

Disponibilité

N° de pièce

700133969

Description

ENTRETOISE;


Alts

Select

Ref.

2

Qté

2

Disponibilité

N° de pièce

7772155

Description

VIS; SCREW cap, hex, M6 x 1.0 x 16


Alts

Select

Ref.

3

Qté

4

Disponibilité

N° de pièce

496-11028

Description

RONDELLE 9/32'' x 5/8'' x .065, HDN; plain, hardened, 1/4''


Alts

Select

Ref.

4

Qté

2

Disponibilité

N° de pièce

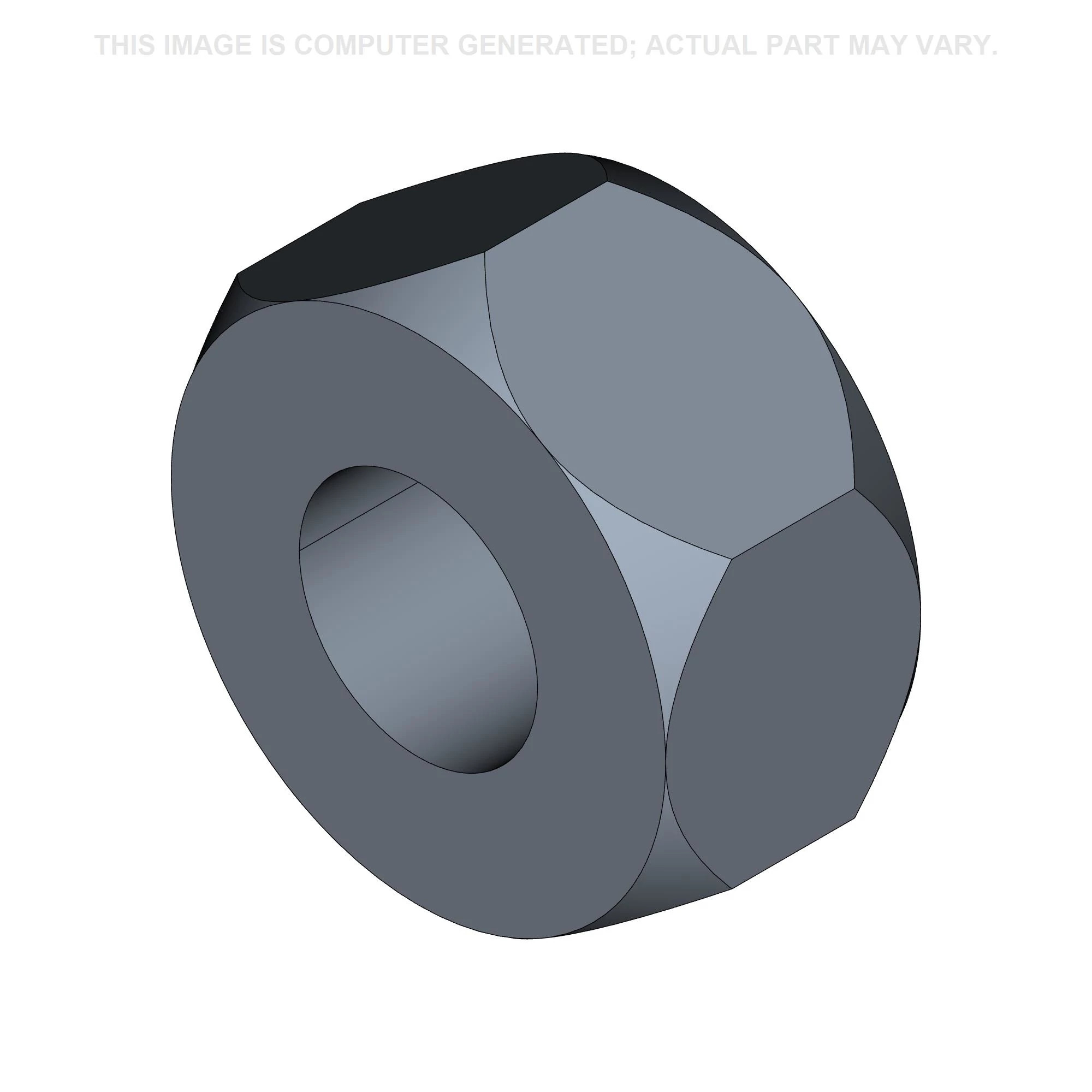

425-114

Description

ECROU 1/4''-28, G5;


Alts

Select

Ref.

5

Qté

1

Disponibilité

N° de pièce

700133953

Description

BRAS; throttle


Alts

Select

Ref.

6

Qté

2

Disponibilité

N° de pièce

A76747

Description

JOINT A ROTULE #10 -32 x 7/8'' L; ball


Alts

Select

Ref.

7

Qté

1

Disponibilité

N° de pièce

225-14210

Description

ECROU #10-32;


Alts

Select

Ref.

8

Qté

1

Disponibilité

N° de pièce

700134323

Description

SUPPORT; throttle


Alts

Select

Ref.

9

Qté

1

Disponibilité

N° de pièce

700117552

Description

RONDELLE;


Alts

Select

Ref.

10

Qté

1

Disponibilité

N° de pièce

D52276

Description

ISOLANT 10.16mm ID x 28.07mm OD x mm L; MOUNTING


Alts

Select

Ref.

11

Qté

1

Disponibilité

N° de pièce

413-628

Description

VIS Hex, 3/8'' - 16 x 1-3/4'', Gr 5;


Alts

Select

Ref.

12

Qté

1

Disponibilité

N° de pièce

232-5316

Description

ECROU A EMBASE Flg, 3/8''-16; lock, hex flange top, GR/G, 3/8''-16


Alts

Select

Ref.

13

Qté

1

Disponibilité

N° de pièce

496-81010

Description

RONDELLE 15/32 x 1 x 7/64; plain, wide, hardened, 3/8''


Alts

Select

Ref.

14

Qté

1

Disponibilité

N° de pièce

231-5348

Description

ECROU A EMBASE Flg, 1/2''-13; lock, hex flange top, GR/G, 1/2''-13


Alts

Select

Ref.

15

Qté

1

Disponibilité

N° de pièce

58024

Description

RESSORT; compression


Alts

Select

Ref.

16

Qté

1

Disponibilité

N° de pièce

700133461

Description

SUPPORT; throttle


Alts

Select

Ref.

17

Qté

1

Disponibilité

N° de pièce

700711026

Description

DISQUE; friction


Alts

Select

Ref.

18

Qté

1

Disponibilité

N° de pièce

700715796

Description

CABLE; throttle


Alts

Select

Ref.

19

Qté

1

Disponibilité

N° de pièce

700133483

Description

COLLIER-DE-FIXATION; throttle


Alts

Select

Ref.

20

Qté

1

Disponibilité

N° de pièce

700133480

Description

LEVIER; WA throttle


Alts

Select

Ref.

21

Qté

1

Disponibilité

N° de pièce

492-11025

Description

RONDELLE FREIN 1/4'';


Alts

Select

Ref.

22

Qté

1

Disponibilité

N° de pièce

700715314

Description

BOUTON;


Alts

Select

Ref.

23

Qté

7

Disponibilité

N° de pièce

7883275

Description

VIS Hex Washer, 1/4'' - 20 x 3/4''; machine, hex washer head, 1/4''-20 x 3/4''


Alts

Select

Ref.

24

Qté

7

Disponibilité

N° de pièce

1703354

Description

ECROU; lock, hex flange top, GR/G, 1/4''-20


Alts
