05.100.04[01] - PIÈCES POUR L'ENTRETIEN - FILTRES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87683000
    AIR FILTER Safety, 108.5mm OD x 403.1mm L; Secondary Cartridge, Every 1200 hours or 2 years
  • 2
    1
    82028977
    AIR FILTER; Primary Cartridge, Every 600 hours
  • 3
    2
    87726675
    CAB FILTER Fresh Air, 550mm x 100mm x 64mm, Paper; Heating, Conditioning, w/High Profile Roof, Every 1200 hours or annually
  • 4
    1
    87638772
    CARTRIDGE 165mm L; Air Brakes, Every 1200 hours or every 2 years; (Var) 332727129, 332737129, 332739131
  • 5
    1
    84408141
    ACCUMULATOR 60mm OD x 142.5mm L, 9/16-18 FILTER RESONATOR; Transmission, Every 600 hours; (Var) 331331106, 331331107, 332351101, 332351103, 391223101, 391223103
  • 6
    2
    87726699
    CAB FILTER Fresh Air, 380mm x 130mm x 49mm, Paper; Inner Thick Cartridge, Recirculation, Every 1200 hours or annually
  • 7
    2
    87726695
    CAB FILTER Fresh Air, 380mm x 130mm x 49mm, Paper; Heating, Conditioning, w/Low Profile Roof, Every 1200 hours or annually
  • 8
    1
    47901601
    ELEMENT; Radiator, Condenser
  • 9
    2
    87726696
    CAB FILTER 359mm L x 109mm W x 10mm Thk; Inner Thin Cartridge, Every 1200 hours or annually
  • 10
    1
    87708150
    HYDRAULIC OIL FILTER 301.5mm L, 32 Micron, Filter & Seal; Suction, 32 Micron, Every 1200 hours or annually; (Var) 332351101, 332351103, 391223101, 391223103
  • 11
    1
    87588814
    HYDRAULIC OIL FILTER Spin-on, 94mm OD x 151mm L, 1 3/8IN - 12 UNF; Transmission/Pump, Every 600 hours; (Var) 333247103, 333247104, 333247105, 333247106, 339245103, 339245104, 339245105, 339245106, 396247103, 396247104, 396247105, 396247106
  • 12
    1
    47364243
    FILTER, DEF; DeNOx2, Every 3600 hours or every 2 years
  • 13
    1
    84228488
    ENGINE OIL FILTER 95mm OD x 171mm L, M27x2-6H; Engine Oil, Spin-On, Every 300 hours
  • 14
    1
    47760847
    ELEMENT, FILTER BLOW BY; Remote Closed Crankcase Ventilation, Every 300 hours
  • 15
    1
    47509565
    FUEL FILTER M14 x 2; Primary,Spin-on, Water Separator, Every 600 hours
  • 16
    1
    84412164
    FUEL FILTER 94mm OD x 192mm L, M20 x 1.5, 10 Microns, 12 Pack Qty; Secondary, Every 600 hours
  • 17
    1
    84328598
    FUEL FILTER Cleanable, 40mm OD x 109mm L, M14 x 1.5, 350 Microns; Pre-Cleaner, Every 600 hours

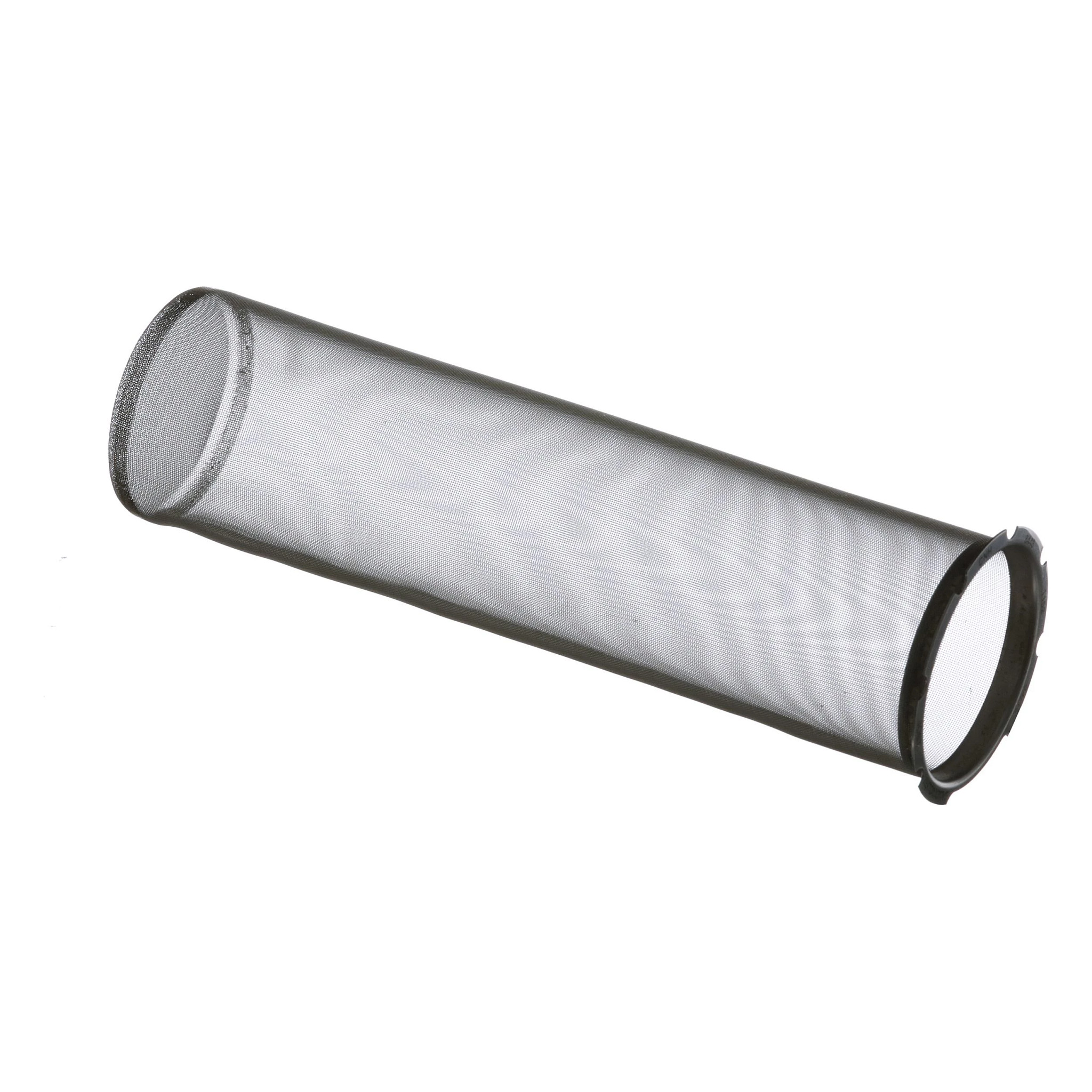

  • 18
    1
    84481152
    SCREEN; Fuel Tank
  • 19
    1
    47657024
    FILTER, DEF 100 Micron; ADBLUE/DEF Tank, Every 3600 hours or every 2 years
  • 20
    1
    87491693
    FILTER; Brake Fluid Tank, Every 1200 hours or every 2 years; (Var) 335209100, 335209101, 335209102, 335209103, 335211100, 335211101, 335211102, 335211103, 335212100, 335212101, 335212102, 335212103, 335213100, 335214100, 335216100, 335217100, 335217101, 335217102, 335219100, 335219101, 335219102, 335220100, 335220101, 335220102
  • 21
    1
    47549546
    FILTER; Hydraulic steering, Every 600 hours; (Var) 331331106, 331331107, 332351101, 332351103, 391223101, 391223103
  • 22
    1
    84417139
    HYDRAULIC OIL FILTER 267.5mm L, 11 Micron; Transmission/Pump, Every 600 hours;C9934 Before Date 15 May 2018;AFTER THE FIRST 50 HOURS, ORDER ALSO: PN 84417137 - Housing / PN 84550359 - O-Ring, FOR OTHER TIME, ORDER ALSO: PN 84550359 - O-Ring; (Prod Date) Up to 14-May-2018

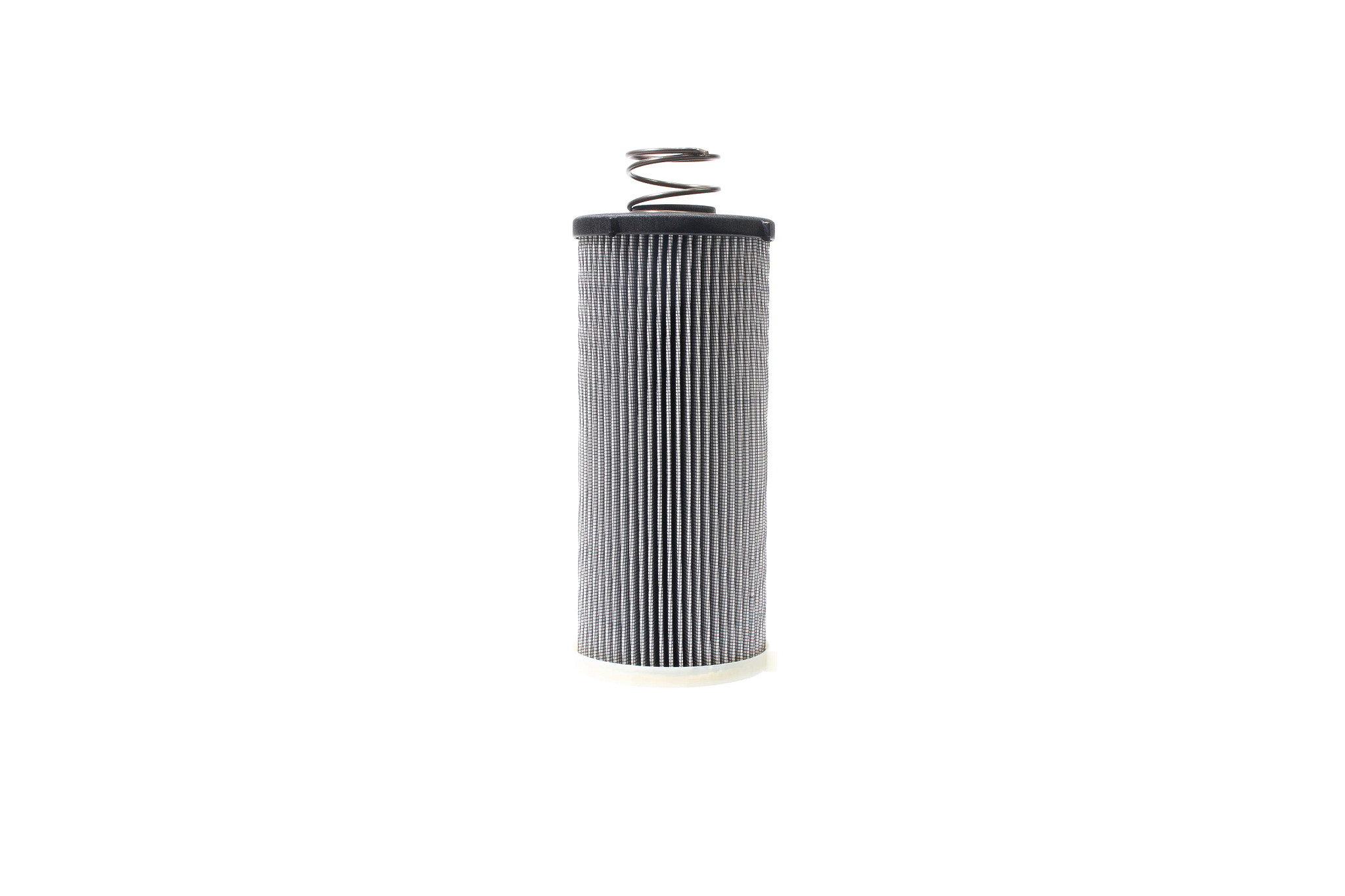

  • 22
    1
    48132435
    HYDRAULIC OIL FILTER 267.5mm L, 8 Micron; Transmission/Pump, After first 50 Hours, then every 600 Hours or Annually;D9934 After Date 14 May 2018; (Prod Date) From 15-May-2018
  • 23
    2
    87726694
    CAB FILTER 527mm x 77mm x 10mm; Heating, Conditioning, Every 1200 hours or annually
