48093128 - 30' Header Transport Kit - NEW HOLLAND AGRICULTURE

Part # 48093128

Check if this Part Fits Your Equipment

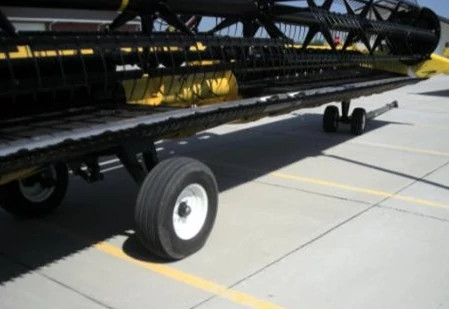

Header Transport Kit #48093128 provides an optional integrated low-speed transport system. It uses hydraulically foldable wheels that allow you to tow the header from field to field.

• Fold-down wheels controlled from the cab
• Attach the hitch by hand after disconnecting the hydraulic and electrical connectors
• Complete with brake lights and turn signals that can be plugged into the combine
• Tongue conveniently extends up to 10" and stores on the left side of the header

What used to require two drivers, a header trailer and a tow vehicle, now requires just one operator. Save time and money, reduce costs and maximize efficiency and production.

Package Length:
  • 0 mm
Package Width:
  • 0 mm
Package Height:
  • 0 mm
Package Quantity
  • 1

Header Transport Kit #48093128 provides an optional integrated low-speed transport system. It uses hydraulically foldable wheels that allow you to tow the header from field to field.

• Fold-down wheels controlled from the cab
• Attach the hitch by hand after disconnecting the hydraulic and electrical connectors
• Complete with brake lights and turn signals that can be plugged into the combine
• Tongue conveniently extends up to 10" and stores on the left side of the header

What used to require two drivers, a header trailer and a tow vehicle, now requires just one operator. Save time and money, reduce costs and maximize efficiency and production.

This Kit includes the following parts:

Part Number
Description
Quantity

This Kit includes the following parts:

  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3

This Kit includes the following parts:

  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3
  • Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    Quantity
    3

This Kit includes the following parts:

Type
Part Number
Description

This Kit includes the following parts:

  • Type
    Kit
    Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Type
    Kit
    Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Type
    Kit
    Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Type
    Kit
    Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Type
    Kit
    Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Type
    Kit
    Part Number
    #XXXXXX
    Description
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.

There are no fitments for this product.

    Check fitment and access technical drawings #48093128

  • Model Name
  • EQUIPMENT FITMENT
  • Product Type
  • Product Line

Designed to guarantee top performance in all weather conditions, choose Alternator #84141452 for your tractor and harvesting equipment

High Power
  • New generation able to supply high eleltrical demand
  • optimal charging speed at all temperatures
Maintenance Free
  • Superior design to ensure long lifespan with zero maintenance
High Power
  • New generation able to supply high eleltrical demand
  • optimal charging speed at all temperatures
Maintenance Free
  • Superior design to ensure long lifespan with zero maintenance

Header Transport Kit #48093128 provides an optional integrated low-speed transport system. It uses hydraulically foldable wheels that allow you to tow the header from field to field.

• Fold-down wheels controlled from the cab
• Attach the hitch by hand after disconnecting the hydraulic and electrical connectors
• Complete with brake lights and turn signals that can be plugged into the combine
• Tongue conveniently extends up to 10" and stores on the left side of the header

What used to require two drivers, a header trailer and a tow vehicle, now requires just one operator. Save time and money, reduce costs and maximize efficiency and production.

Package Length:
  • 0 mm
Package Width:
  • 0 mm
Package Height:
  • 0 mm
Package Quantity
  • 1

This Kit includes the following parts:

Part Number
Description
Quantity
  • #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    3
  • #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    3
  • #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    3
  • #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    3
  • #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    3
  • #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
    3

This Kit includes the following parts:

  • Part Number
    140048
    Description
    Belleville Washer - 32 mm OD x 2.8 mm Thk.
    Quantity
    20
  • Part Number
    140045
    Description
    Belleville Lock Washer - 10mm ID x 22mm OD x 1.6mm Thick.
    Quantity
    5
  • Part Number
    140046
    Description
    Belleville Washer - 27 mm OD x 1.8 mm Thk.
    Quantity
    24
  • Part Number
    16044731
    Description
    BOLT.
    Quantity
    1
  • Part Number
    190003800038
    Description
    SCREW.
    Quantity
    1
  • Part Number
    100020
    Description
    Hex Nut - Cl 8 - M16 x 2.
    Quantity
    1
  • Part Number
    100016
    Description
    Hex Nut - M10 x 1.5.
    Quantity
    3
  • Part Number
    100038
    Description
    Hex Lock Nut - M12 x 1.75.
    Quantity
    10
  • Part Number
    10520204
    Description
    Washer - 16.4 mm ID x 28 mm OD x 3 mm Thk.
    Quantity
    2
  • Part Number
    11030421
    Description
    BOLT.
    Quantity
    3
  • Part Number
    11120734
    Description
    SCREW.
    Quantity
    1
  • Part Number
    270184
    Description
    Linch Pin - Self-Locking - 6.35 mm OD.
    Quantity
    3
  • Part Number
    120061
    Description
    Hex Bolt - M8 x 60 mm L.
    Quantity
    1
  • Part Number
    120090
    Description
    BOLT.
    Quantity
    3
  • Part Number
    120093
    Description
    Hex Screw - Cl 8.8 - M16.
    Quantity
    2
  • Part Number
    300388
    Description
    Hex Bolt - M12 x 1.75 x 25 mm L.
    Quantity
    2
  • Part Number
    308369
    Description
    WING NUT.
    Quantity
    2
  • Part Number
    47459883
    Description
    FRAME.
    Quantity
    1
  • Part Number
    47461241
    Description
    ROD.
    Quantity
    1
  • Part Number
    47461243
    Description
    SPACER.
    Quantity
    3
  • Part Number
    782673
    Description
    ANTI-SKID STRIP.
    Quantity
    1
  • Part Number
    47489326
    Description
    FRAME.
    Quantity
    1
  • Part Number
    47489397
    Description
    LOCK.
    Quantity
    1
  • Part Number
    86507486
    Description
    Carriage Bolt - M8 x 1.25.
    Quantity
    3
  • Part Number
    86508568
    Description
    Hex Bolt - Cl 8.8 - M6 x 1 x 16.
    Quantity
    5
  • Part Number
    86508581
    Description
    Hex Bolt - Cl 8.8 - M12 x 90.
    Quantity
    4
  • Part Number
    86509354
    Description
    Plate - 9/32" ID x 3/4" W x 2" L.
    Quantity
    2
  • Part Number
    9628065
    Description
    BOLT.
    Quantity
    4
  • Part Number
    47515859
    Description
    ARM.
    Quantity
    1
  • Part Number
    47515911
    Description
    BRACKET.
    Quantity
    1
  • Part Number
    9706685
    Description
    Hex Nut - 12 mm D.
    Quantity
    22
  • Part Number
    9706687
    Description
    Hex Bolt - Full Thread - M12 x 1.75 x 30 mm L.
    Quantity
    4
  • Part Number
    9706693
    Description
    Hex Bolt - M12 x 1.75 x 60 mm L.
    Quantity
    8
  • Part Number
    9706717
    Description
    Boulon à tête hexagonale - filetage complet - M12 x 1,75 x 70 mm L.
    Quantity
    2
  • Part Number
    9706748
    Description
    Collier de serrage de type P - Enrobé - 15,9 mm (l).
    Quantity
    1
  • Part Number
    47519010
    Description
    BAGUE.
    Quantity
    2
  • Part Number
    9804277
    Description
    FLANGE NUT.
    Quantity
    3
  • Part Number
    86529976
    Description
    Hex Bolt - M16 x 35.
    Quantity
    8
  • Part Number
    80679
    Description
    Lock Washer.
    Quantity
    4
  • Part Number
    80756
    Description
    Cotter Pin - 3.17 mm OD x 19.05 mm L.
    Quantity
    2
  • Part Number
    322357
    Description
    Belleville Washer - 14 mm OD x 1.3 mm Thk.
    Quantity
    23
  • Part Number
    32383
    Description
    Bolt - Grade 5 - 1/2"-20 x 13/16".
    Quantity
    12
  • Part Number
    86547710
    Description
    SMV Sign.
    Quantity
    1
  • Part Number
    84340750
    Description
    LINKAGE.
    Quantity
    1
  • Part Number
    84341110
    Description
    MAILLON DE RACCORD.
    Quantity
    2
  • Part Number
    86577946
    Description
    Boulon hexagonal - Cl 10,9 - M16 x 2 x 80.
    Quantity
    2
  • Part Number
    48080145
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    48080152
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    48080273
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    48080522
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    34019
    Description
    Ressort de compression.
    Quantity
    1
  • Part Number
    86592702
    Description
    RONDELLE.
    Quantity
    2
  • Part Number
    86595832
    Description
    VIS A TETE BOMBEE.
    Quantity
    1
  • Part Number
    9993143
    Description
    Connecteur hydraulique #9993143.
    Quantity
    10
  • Part Number
    47582596
    Description
    VERIN HYDRAULIQUE.
    Quantity
    1
  • Part Number
    47582600
    Description
    VERIN HYDRAULIQUE.
    Quantity
    1
  • Part Number
    47582604
    Description
    VERIN HYDRAULIQUE.
    Quantity
    1
  • Part Number
    84371164
    Description
    AXE DE CHAPE.
    Quantity
    1
  • Part Number
    350616
    Description
    VIS.
    Quantity
    4
  • Part Number
    48107109
    Description
    ESSIEU.
    Quantity
    1
  • Part Number
    353308
    Description
    Contre-écrou hexagonal - M6 x 1.
    Quantity
    13
  • Part Number
    82012730
    Description
    BRIDE, FLEXIBLE.
    Quantity
    1
  • Part Number
    86625266
    Description
    Rondelle - Acier trempé - 17.5 mm (DI) x 30 mm (DE) x 4 mm d'ép..
    Quantity
    2
  • Part Number
    86628557
    Description
    Boulon de roue hexagonal fraisé de 9/16 po - 18 x 1 1/8 po.
    Quantity
    12
  • Part Number
    86629541
    Description
    Boulon à tête hexagonale - filetage complet - M12 x 1,75 x 40 mm L.
    Quantity
    14
  • Part Number
    86629542
    Description
    Contre-écrou hexagonal - Cl 8,8 - M8 x 1,25.
    Quantity
    4
  • Part Number
    640682
    Description
    ENTRETOISE.
    Quantity
    1
  • Part Number
    86633356
    Description
    VIS A TETE BOMBEE.
    Quantity
    3
  • Part Number
    84390792
    Description
    COUDE A 90°.
    Quantity
    4
  • Part Number
    86637780
    Description
    PASSE-FIL.
    Quantity
    4
  • Part Number
    374835
    Description
    Boulon hexagonal - Cl 10,9 - Filetage complet - M16 x 2 x 40.
    Quantity
    2
  • Part Number
    374889
    Description
    VIS.
    Quantity
    2
  • Part Number
    378245
    Description
    Rondelle - 13 mm (DI) x 28,5 mm (DE) x 2,7 mm d'épaisseur.
    Quantity
    2
  • Part Number
    86979747
    Description
    GOUPILLE DE RELEVAGE.
    Quantity
    1
  • Part Number
    84420215
    Description
    Bague - Zingué - 38 mm (De) x 17 mm (Di) x 50 mm (L).
    Quantity
    2
  • Part Number
    84420754
    Description
    PIN.
    Quantity
    2
  • Part Number
    84420765
    Description
    Bushing - Zinc-Plated - 31 mm OD x 17 mm ID x 13 mm L.
    Quantity
    2
  • Part Number
    84420770
    Description
    PIN.
    Quantity
    1
  • Part Number
    84421031
    Description
    PLATE.
    Quantity
    2
  • Part Number
    84421041
    Description
    TUBE.
    Quantity
    1
  • Part Number
    84421044
    Description
    TUBE.
    Quantity
    1
  • Part Number
    84422047
    Description
    LINK.
    Quantity
    1
  • Part Number
    84422137
    Description
    PLAQUE.
    Quantity
    1
  • Part Number
    84422653
    Description
    LOQUET.
    Quantity
    2
  • Part Number
    84422658
    Description
    Entretoise plaquée en zinc.
    Quantity
    2
  • Part Number
    84423777
    Description
    BROCHE.
    Quantity
    1
  • Part Number
    84423856
    Description
    BROCHE.
    Quantity
    3
  • Part Number
    84424348
    Description
    Tuyau de réglage de la tête de coupe.
    Quantity
    4
  • Part Number
    87000148
    Description
    COLLIER.
    Quantity
    5
  • Part Number
    87000159
    Description
    COLLIER.
    Quantity
    1
  • Part Number
    84431546
    Description
    UNION.
    Quantity
    17
  • Part Number
    87016608
    Description
    RONDELLE.
    Quantity
    3
  • Part Number
    83918746
    Description
    WASHER.
    Quantity
    2
  • Part Number
    84465299
    Description
    FLANGE BOLT.
    Quantity
    6
  • Part Number
    87613265
    Description
    WASHER.
    Quantity
    16
  • Part Number
    84469776
    Description
    Hydraulic Line Tube - Draper Transport.
    Quantity
    1
  • Part Number
    84469778
    Description
    Hydraulic Line Tube - Draper Transport.
    Quantity
    1
  • Part Number
    84469780
    Description
    Hydraulic Line Tube - Draper Transport.
    Quantity
    1
  • Part Number
    84469782
    Description
    Hydraulic Line Tube - Draper Transport.
    Quantity
    1
  • Part Number
    87035867
    Description
    GROMMET.
    Quantity
    1
  • Part Number
    84474381
    Description
    Bushing - Zinc-Plated - 25 mm OD x 12 mm ID x 36 mm L.
    Quantity
    8
  • Part Number
    84476406
    Description
    Bushing - Zinc-Plated - 32 mm OD x 16 mm ID x 63 mm L.
    Quantity
    2
  • Part Number
    412215
    Description
    BOLT.
    Quantity
    1
  • Part Number
    412687
    Description
    COTTER PIN.
    Quantity
    6
  • Part Number
    84039008
    Description
    CLEVIS PIN.
    Quantity
    1
  • Part Number
    84482397
    Description
    TUBE.
    Quantity
    1
  • Part Number
    84484194
    Description
    Hydraulic Line Tube - Draper Transport.
    Quantity
    1
  • Part Number
    84484717
    Description
    Flexible de transport du tablier – SAE 100R16 – 9,53 mm de diam. int. x 690 mm de long.
    Quantity
    4
  • Part Number
    84484721
    Description
    COLLIER.
    Quantity
    9
  • Part Number
    84494092
    Description
    FAISCEAU ELECTRIQUE.
    Quantity
    1
  • Part Number
    84494107
    Description
    FAISCEAU ELECTRIQUE.
    Quantity
    1
  • Part Number
    84494109
    Description
    FAISCEAU ELECTRIQUE.
    Quantity
    1
  • Part Number
    728-24125
    Description
    AXE DE CHAPE.
    Quantity
    2
  • Part Number
    425885A1
    Description
    GOUPILLE DE RELEVAGE.
    Quantity
    1
  • Part Number
    430357
    Description
    Collier de serrage - 42 mm L x 20 mm l x 12 mm H.
    Quantity
    18
  • Part Number
    43130
    Description
    Boulon à tête hexagonale - CI 8.8 - M8 x 50.
    Quantity
    1
  • Part Number
    43138
    Description
    Boulon à tête hexagonale - filetage complet - M10 x 1,75 x 20 mm L.
    Quantity
    2
  • Part Number
    43168
    Description
    Boulon à tête hexagonale - Cl 8.8 - Filetage complet - M16 x 2 x 40.
    Quantity
    1
  • Part Number
    431941
    Description
    Support - 21 mm L x 20 mm l x 49 mm H x 3 mm d'ép..
    Quantity
    9
  • Part Number
    87299410
    Description
    Clavette de 25,4 mm (De) - 7/16 po.
    Quantity
    1
  • Part Number
    87668737
    Description
    Serre-câble - Noir - 3,2 mm L.
    Quantity
    7
  • Part Number
    84542187
    Description
    BRACKET.
    Quantity
    1
  • Part Number
    87672176
    Description
    Connecteur hydraulique #87672176.
    Quantity
    2
  • Part Number
    84545714
    Description
    PLAQUE.
    Quantity
    4
  • Part Number
    87681210
    Description
    Écrou à bride hexagonale - Cl 10 - M8 x 1,25.
    Quantity
    6
  • Part Number
    87317695
    Description
    VIS.
    Quantity
    5
  • Part Number
    84600435
    Description
    HITCH.
    Quantity
    1
  • Part Number
    84600443
    Description
    LANGUETTE.
    Quantity
    1
  • Part Number
    84600974
    Description
    Flèche.
    Quantity
    1
  • Part Number
    84600981
    Description
    LANGUETTE.
    Quantity
    1
  • Part Number
    84601763
    Description
    Poignée à languette de transport pour collecteur - 80 mm L x 25 mm H x 36 mm l.
    Quantity
    2
  • Part Number
    84602517
    Description
    COUVERCLE.
    Quantity
    1
  • Part Number
    51430204
    Description
    SERRURE.
    Quantity
    1
  • Part Number
    84603246
    Description
    ESSIEU.
    Quantity
    1
  • Part Number
    84604135
    Description
    PLAQUE.
    Quantity
    1
  • Part Number
    47357613
    Description
    Tuyau de réglage de la tête de coupe.
    Quantity
    1
  • Part Number
    47357615
    Description
    Tuyau de réglage de la tête de coupe.
    Quantity
    1
  • Part Number
    84230386
    Description
    ARBRE.
    Quantity
    1
  • Part Number
    51500091
    Description
    MOYEU.
    Quantity
    2
  • Part Number
    47919623
    Description
    LAMPE.
    Quantity
    2
  • Part Number
    47375923
    Description
    BRACKET.
    Quantity
    1
  • Part Number
    47384036
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    47384038
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    47384040
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    47384042
    Description
    Tuyau pour conduit hydraulique - Transport du tablier.
    Quantity
    1
  • Part Number
    47384043
    Description
    Ensemble de tuyau hydraulique.
    Quantity
    2
  • Part Number
    47388203
    Description
    TUYAU HYDRAULIQUE.
    Quantity
    1
  • Part Number
    47388205
    Description
    TUYAU HYDRAULIQUE.
    Quantity
    1
  • Part Number
    47388253
    Description
    Tuyau pour conduit hydraulique de 30 pi.
    Quantity
    2
  • Part Number
    87399
    Description
    Goupille fendue - 4,76 mm (De) x 44,45 mm (L).
    Quantity
    1
  • Part Number
    47941385
    Description
    MONTAGE.
    Quantity
    1
  • Part Number
    47941387
    Description
    MONTAGE.
    Quantity
    1
  • Part Number
    47396072
    Description
    BRACKET.
    Quantity
    3
  • Part Number
    858956
    Description
    COLLIER.
    Quantity
    2
  • Part Number
    86000109
    Description
    Goupille fendue - 4,5 mm (De) x 82,5 mm (L).
    Quantity
    1
  • Part Number
    86000441
    Description
    Contre-écrou hexagonal - M16 x 2.
    Quantity
    6
  • Part Number
    86500688
    Description
    Écrou hexagonal - M6 x 1.0.
    Quantity
    6
  • Part Number
    86505841
    Description
    Boulon - M6 x 100.
    Quantity
    2
  • Part Number
    51430810
    Description
    CROCHET.
    Quantity
    1
  • Part Number
    51638707
    Description
    COLLECTEUR HYDRAULIQ.
    Quantity
    1
  • Part Number
    84485417
    Description
    ROUE COMPLETE.
    Quantity
    2
  • Part Number
    48092639
    Description
    INSTRUCTION.
    Quantity
    1
  • Part Number
    84496909
    Description
    GUIDE.
    Quantity
    1
  • Part Number
    87696832
    Description
    PNEUMATIQUE.
    Quantity
    2

This Kit includes the following parts:

Type
Part Number
Description
  • Kit
    #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Kit
    #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Kit
    #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Kit
    #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Kit
    #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.
  • Kit
    #XXXXXX
    Lorem, ipsum dolor sit amet consectetur adipisicing elit.

This Kit includes the following parts:

There are no fitments for this product.

    Check fitment and access technical drawings #48093128

DELIVERY INFO

Select a dealer to see delivery options

Qty

1
ADD TO CART
