0.14.0/01[01] - FUEL SYSTEM - INJECTION PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

4

Availability

Part #

4780612

Description

BRACKET;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

10205810

Description

WOODRUFF KEY 4mm x 6.5mm x 15.72mm;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

4851923

Description

GASKET 0.8mm Thk;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

4607646

Description

SPACER 50mm ID x 116.05mm OD x 6mm L;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

98400782

Description

GASKET 0.8mm Thk;


Alts

Select

Ref.

6

Qty

3

Availability

Part #

12647121

Description

WASHER 8.15mm ID x 20mm OD x 3mm Thk;


Alts

Select

Ref.

7

Qty

3

Availability

Part #

11193874

Description

WASHER M8 Bolt Size x 16mm OD x 1.4mm Thk;


Alts

Select

Ref.

8

Qty

3

Availability

Part #

43362

Description

NUT Hex, M8 x 1.25, Cl 10, ZND;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

17037721

Description

NUT; M5


Alts

Select

Ref.

10

Qty

1

Availability

Part #

11199271

Description

LOCK WASHER; D=5mm


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504041416

Description

FUEL INJECTION PUMP;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504041416R

Description

REMAN-FUEL INJ PUMP REMAN-INJECTION PUMP; Remanufactured Fuel Injection Pump


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504041416C

Description

CORE-INJECTION PUMP CORE-INJECTION PUMP; Return Number


Alts

Select

Ref.

12

Qty

4

Availability

Part #

504054021

Description

FUEL SYSTEM INJECTOR; - AssY


Alts

Select

Ref.

12

Qty

1

Availability

Part #

504054021C

Description

CORE-FUEL INJECTOR; Core Return


Alts

Select

Ref.

12

Qty

4

Availability

Part #

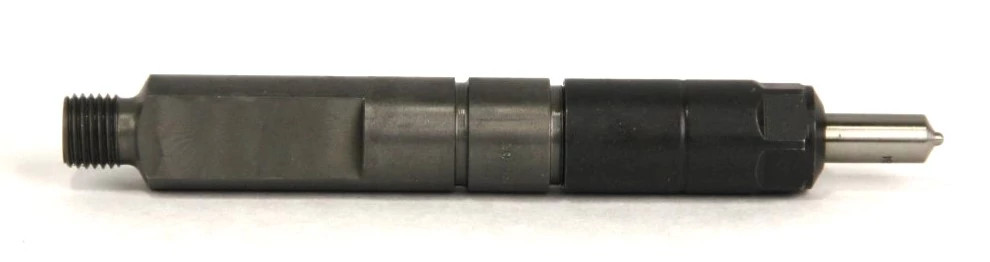

504054021R

Description

REMAN-FUEL INJECTOR; Reman - AssY


Alts

Select

Ref.

13

Qty

4

Availability

Part #

504051747

Description

NOZZLE;


Alts

Select

Ref.

14

Qty

4

Availability

Part #

66297

Description

O-RING 18.8mm ID x 1.78mm Thk, NBR;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

99449006

Description

HOSE KIT;


Alts

Select

Ref.

16

Qty

8

Availability

Part #

17042531

Description

ECROU;


Alts

Select

Ref.

17

Qty

8

Availability

Part #

771326

Description

RONDELLE 8.40mm ID; D=8mm


Alts

Select

Ref.

Qty

1

Availability

Part #

9971792

Description

SOLENOIDE; Fuel shut-off


Alts
