1AXLE; ASSEMBLY - front, GKN No. RP10.10H-10133-00307, Includes: Ref. 1 - 43;See Figure 6-56 for identification and service information.
-
1AXLE HOUSING; AXLE ASSEMBLY - rear, GKN No. RP10.10H-10133-00306, Includes: Ref. 1 - 43;See Figure 6-56 for identification and service information.
-
1AXLE; ASSEMBLY - rear, GKN No. RP10.10-309, Includes: Ref. 1 - 43;See Figure 6-56 for identification and service information.
-
1AXLE HOUSING; AXLE ASSEMBLY - rear, GKN No. RP10.10-314, Includes: Ref. 1 - 43;See Figure 6-56 for identification and service information.
-
11HOUSING; - axle
-
21BREATHER; - axle
-
31PLUG; - housing
-
42SPINDLE; - rear axle original production, order N7769 kit
-
2KIT; - spindle, front or rear axle, Includes: Ref. 4 - 8
-
41SPINDLE; - front axle original production
-
51WASHER; THRUST WASHER - spindle
-
61VALVE SPRING; RETAINING RING - spring
-
72RING; - spring, Includes: Ref. 12A - 14
-
81LOCK NUT; - locking
-
914BOLT Hex, M20 x 2.5 x 80mm, Cl 10.9; - hex, self-locking, 20 - 2.5 x 80 mm, class 10.9
-
1014WASHER; - flat
-
1114BOLT Hex, M20 x 2.5 x 55mm, Cl 10.9; - hex, self-locking, 20 - 2.5 x 55 mm, class 10.9
-
122OIL SEAL; SEAL - spindle, one piece, 102 mm ID, if used
-
2SLEEVE; KIT - seal, spindle, used with D77567 spindle, includes 8-30240 installation instructions, Includes: Ref. 12A - 14
-
1SLEEVE; ASSEMBLY - wear
-
1SEAL RETAINER; SEAL ASSEMBLY - spindle, two piece, if used
-
12A1NOT SOLD SEPARAT; OIL SEAL - spindle, 110 mm ID
-
131NOT SOLD SEPARAT; RETAINER - oil seal
-
141NOT SOLD SEPARAT; SLEEVE - wear
-
152BEARING CUP; CUP - bearing, inner
-
162BEARING, ROLLER, CYL 3.375'' ID x 1.172''; BEARING - tapered roller
-
1720NUT; - lock
-
1820WASHER; - flat
-
1920STUD; - hub
-
202DISC; - brake
-
212HUB; - wheel
-
2224STUD; BOLT - press in
-
2324WHEEL NUT; - hex
-
242BEARING ASSY; CUP - bearing, outer
-
252ROLLER BEARING; BEARING - tapered roller
-
261SHAFT; - axle, left-hand front and right-hand rear, 39.724 inch (1009 mm) long
-
261SHAFT; - axle, right-hand front and left-hand rear, 42.008 inch (1067 mm) long
-
272GEAR; SUN GEAR - planetary, used with L60900 and L78001 axles
-
272SUN GEAR; - planetary, used with L113585 and L118130 axles;If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
-
282SNAP RING; SNAP RING - sun gear
-
292GEAR; RING GEAR - planetary, used with L60900 and L78001 axles
-
292SLEWING RING; RING GEAR - planetary, used with L113585 and L118130 axles;If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
-
302GEAR; HUB - ring gear, used with L60900 and L78001 axles
-
302RING, FLYWHEEL; HUB - ring gear, used with L113585 and L118130 axles;If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
-
312RING; SNAP RING - ring gear
-
322COVER; SPIDER - planetary
-
332PLUG; BUTTON - thrust
-
346SET SCREW M10 x 1.5 x 1.50mm, Gr 8.8; SET SCREW - spider
-

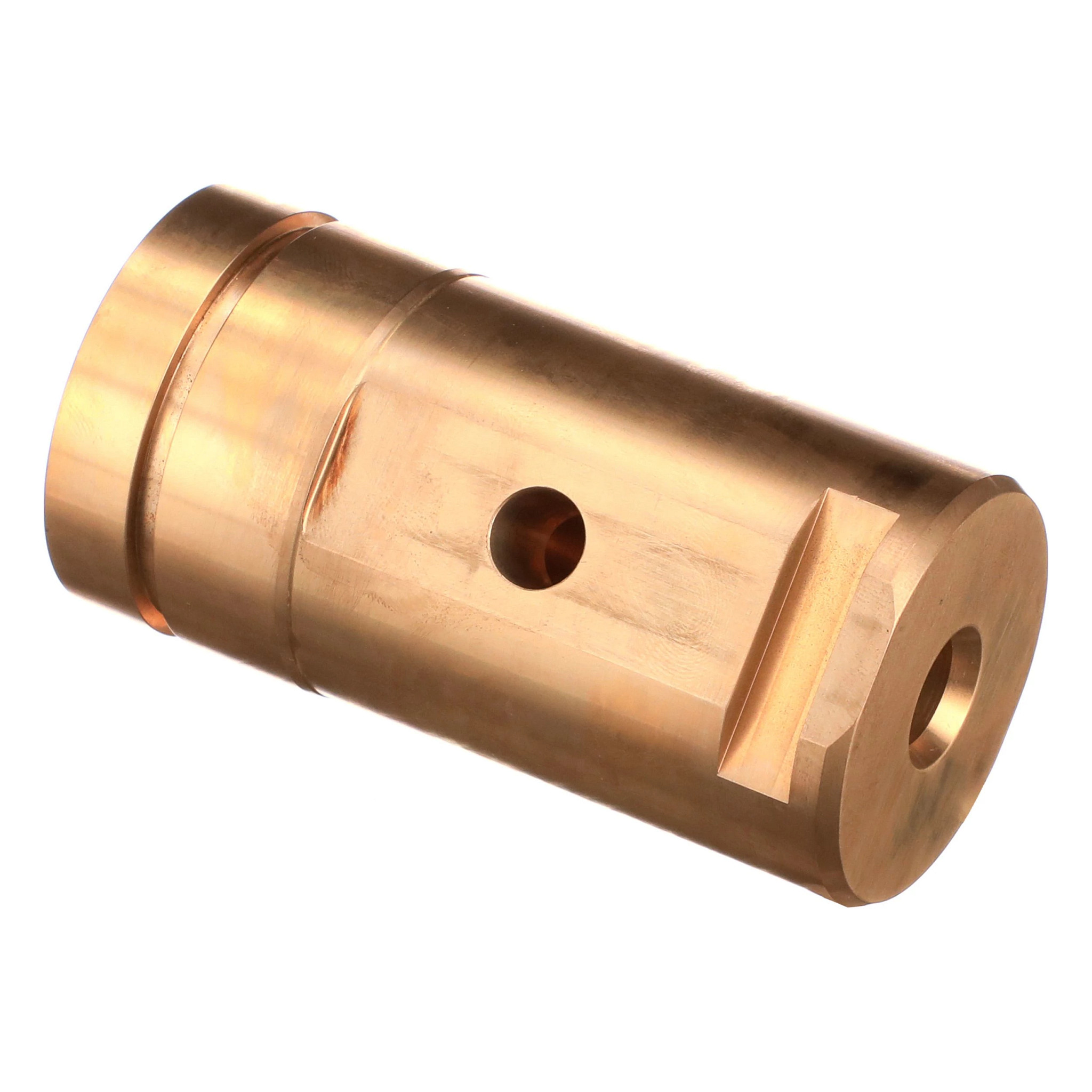

356SHAFT; - pinion
-
366O-RING 41.6 mm ID; - shaft seal
-
376PINION; GEAR - planetary, used with L60900 and L78001 axles
-
376GEAR; PINION GEAR - planetary, used with L113585 and L118130 axles;If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
-
382PLUG; - oil fill, spider
-
3946BOLT Hex, M12 x 1.75 x 35mm, Cl 10.9; - hex, self-locking, 12 - 1.75 x 35 mm, class 10.9
-
4046WASHER; - flat, special
-
412BOLT Hex, M14 x 2 x 35mm, Cl 10.9; - hex, self-locking, 14 - 2 x 35 mm, class 10.9, oil drain
-
422WASHER; - flat, special
-
432PLATE; PLATE - caliper mount
-
4424BOLT Hex, 3/4'' - 10 x 2-1/2'', Gr 8; - hex, 3/4 NC x 2-1/2 inch, grade 8, brake caliper mounting to plate
-
4524WASHER; - flat, special
