11MOWER DECK; Deck Assy
-
21DECAL;
-
31NOT SOLD SEPARAT; Plate, Name
-
41DECAL;
-
53ROLLER;
-
62COLLAR;
-
71SHAFT;
-
82LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10
-
92NUT; Cap, M10
-
101SHAFT;
-
111WASHER 10.5mm ID x 20mm OD x 2mm Thk; M10
-

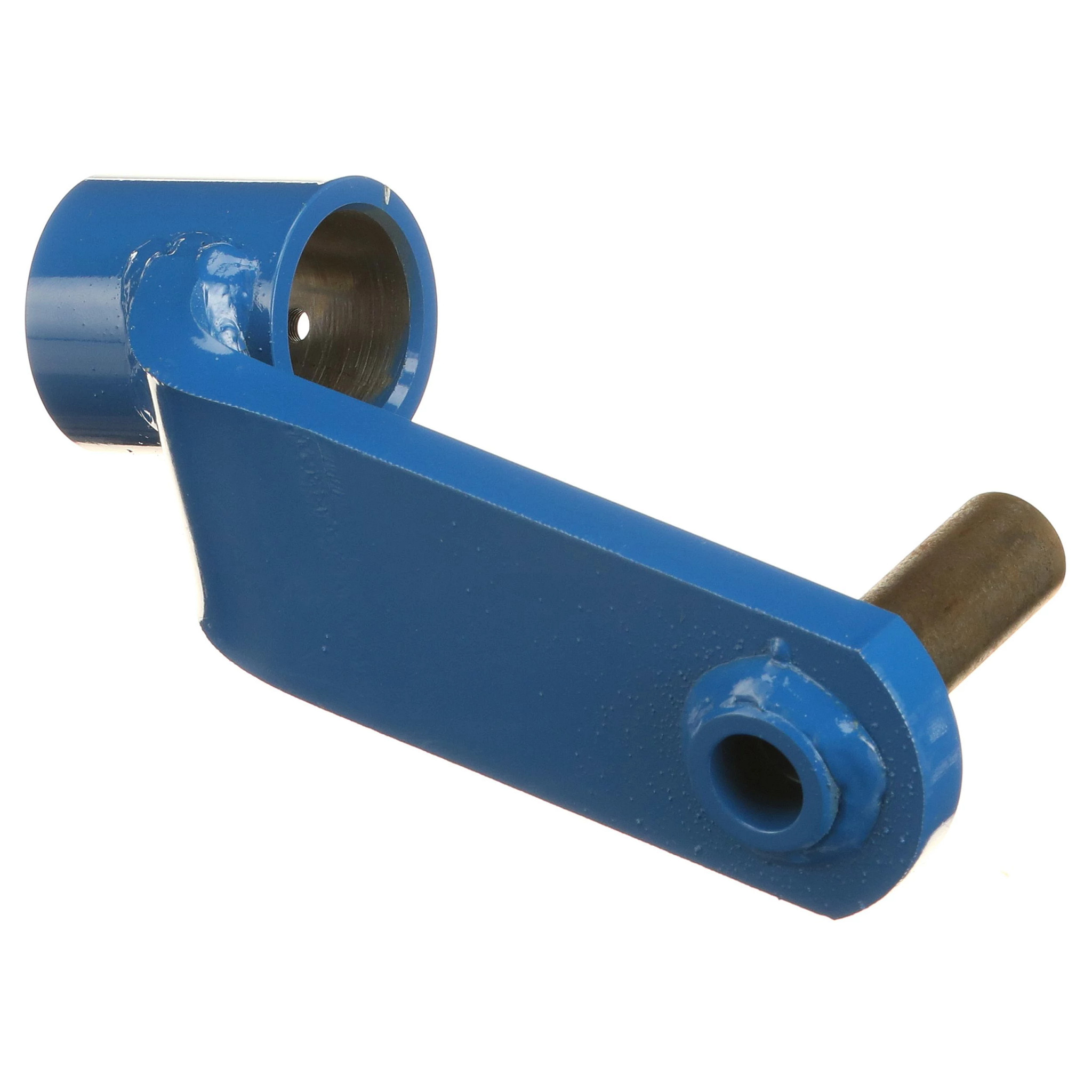

121ARM; Gauge Wheel, R.H.
-

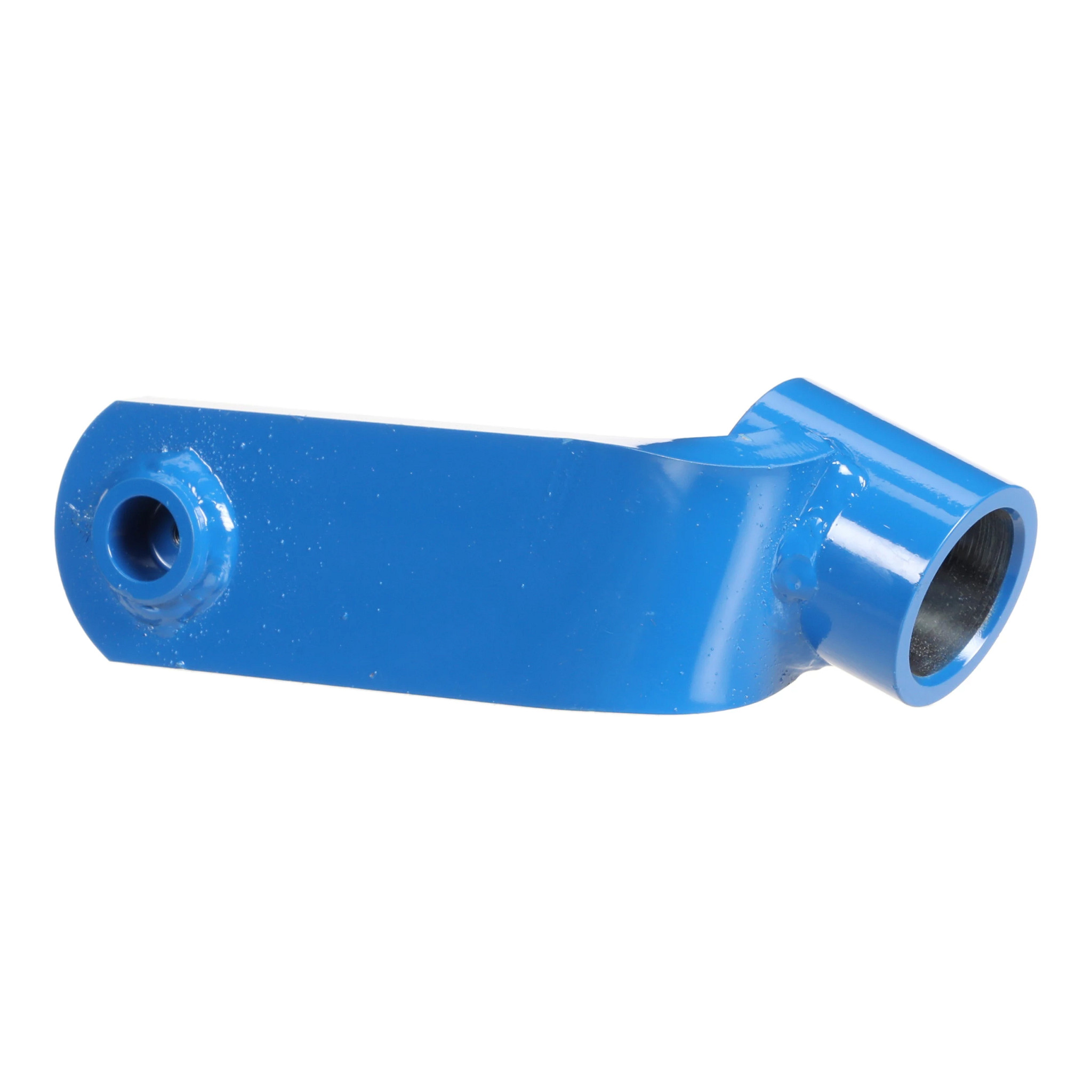

131ARM; Gauge Wheel, L.H.
-
142DECAL; L.H.
-
152DECAL; R.H.
-

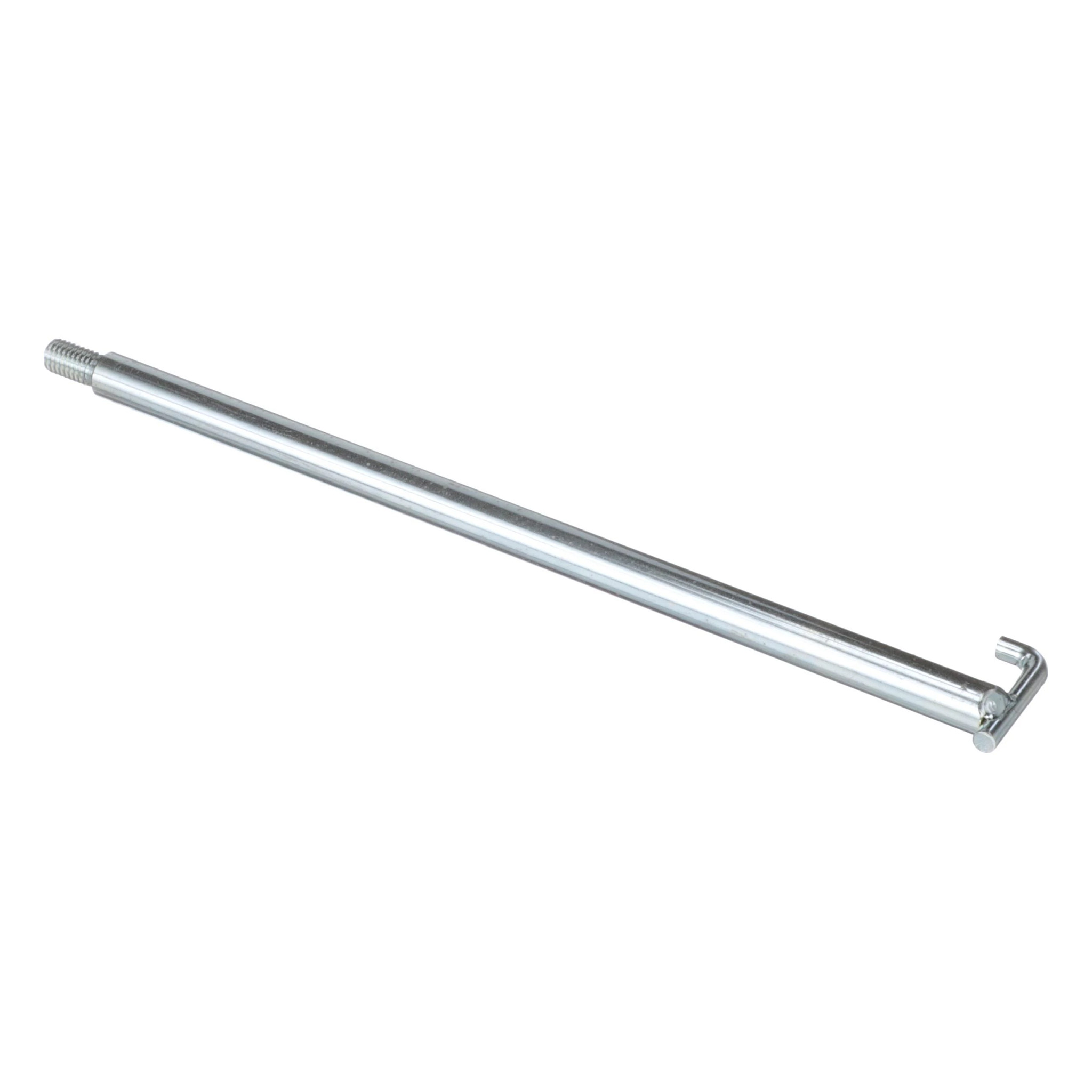

162SHAFT;
-

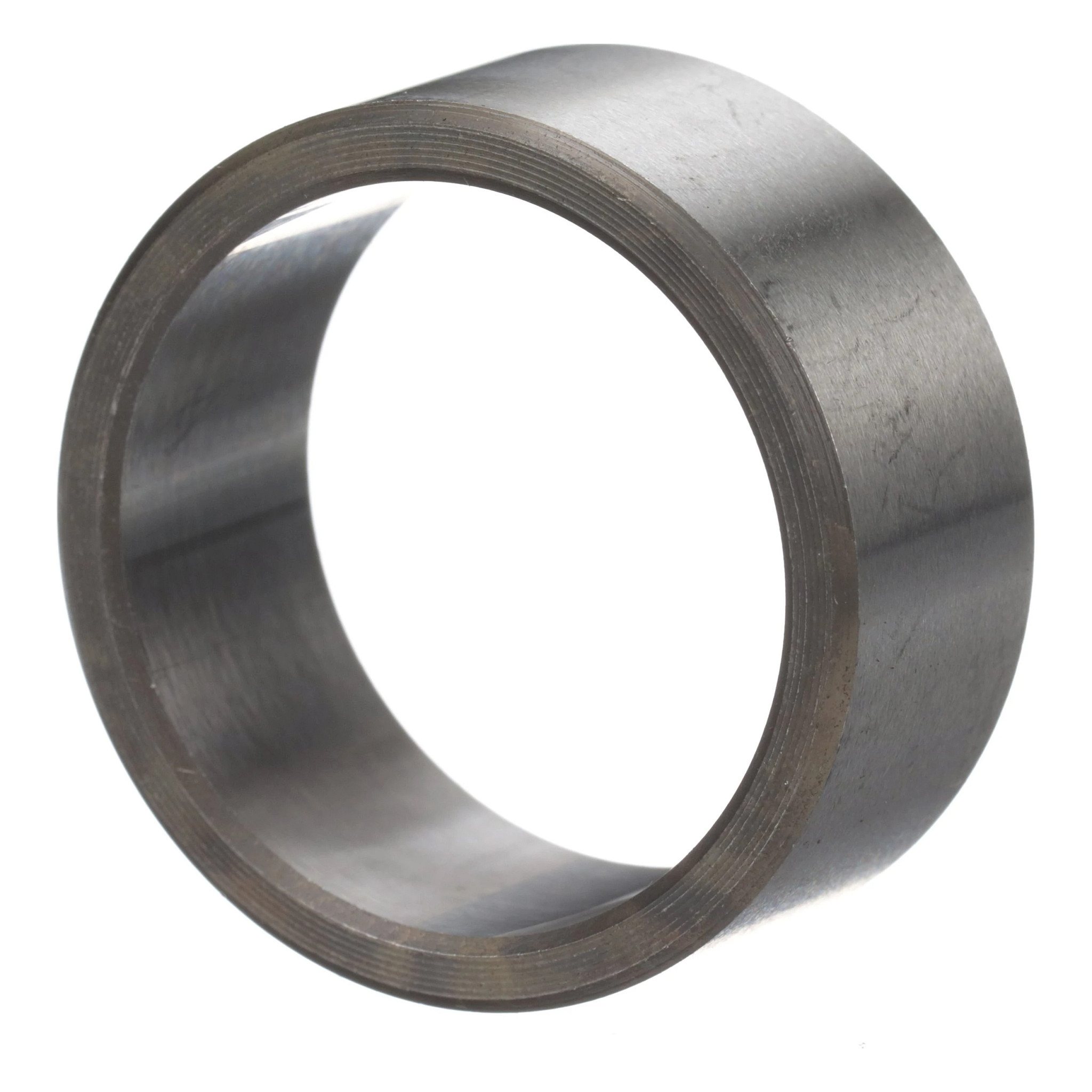

174DRIVE BUSHING; Bushing
-
186LUBE NIPPLE M6 x .075; NIPPLE, LUBE, M6 x .075
-
192THRUST WASHER; Washer;NH-E Only
-
192WASHER; NHNA Only
-
202SNAP RING; Ring, Snap
-
214WASHER 21mm ID x 37mm OD x 3mm Thk, CST, ZND; M20 x 37 x 3
-
224WHEEL; Assy.
-
2427LOCK WASHER M8; Washer, Lock, M8
-
254SPACER;
-
264BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20
-

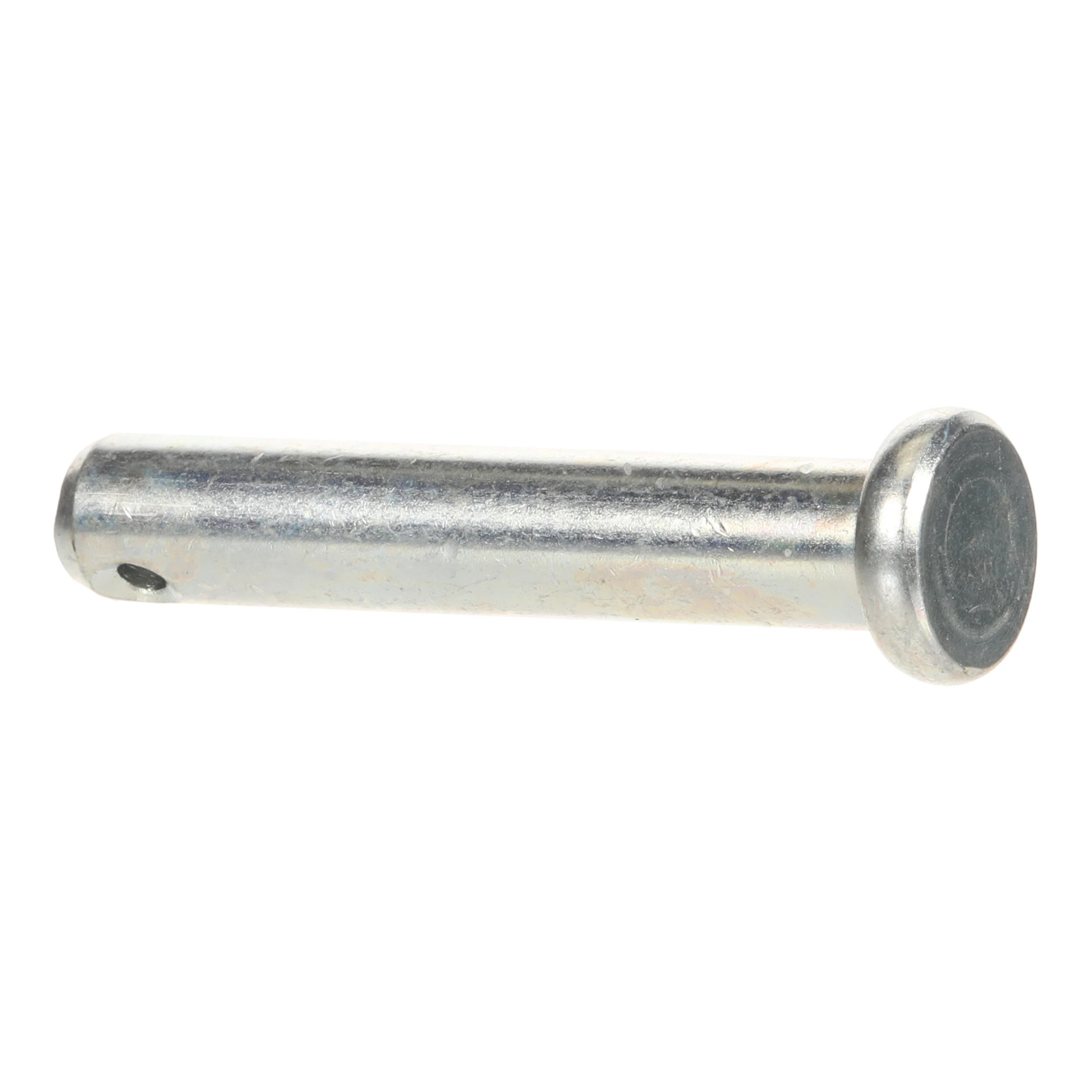

274PIN; Flat Hd.
-
284COTTER PIN 0.148'' OD x 2.75'' OAL, Internal; PIN, SPLIT (COTTER), , Hair Int, 7/32'' x 2.75'' x 0.148''
-
291ARM; Gauge Wheel, R.H.
-
301ARM; Gauge Wheel, L.H.
-
312PIN;
-
322SPRING;
-
334LOCK PIN M4 x 30, Slotted; PIN, M4 x 30, Slotted
-
342PIN;
-
352PIN 4mm OD x 36mm L, Slotted; Pin, Spring, 4 x 35
-
362SPRING;
-
371COVER; Assy.
-
381SPRING;
-
391SHAFT;
-
402SLOTTED PIN 10mm OD x 30mm L, Slotted; PIN, SLOTTED, M4 x 20
-
411BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd; BOLT, Hex, M8 x 30, 8.8
-
4221NUT M8 x 1.25, Cl 8;
-
432PLATE;
-
441COVER; Belt, R.H.
-
451COVER; Belt, L.H.
-
463PLUG;
-
471FELT SEAL; Felt
-
481FELT SEAL; Felt
-
491FELT SEAL; Felt
-
502BOLT Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd; HH, CL 8.8, M8 x 1.25 x 12, Full Thd
-
5119WASHER 8.4mm ID x 16mm OD x 1.8mm Thk;
-
521DECAL; Ford
-
521DECAL; Newholland
-
531DECAL; 914
-
531DECAL; 914
-
541DECAL;
-
551PIN;
Select All
Select
Ref.
8Qty
2Availability
Part #
140028Description
LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10Img
Alts
Select
Ref.
11Qty
1Availability
Part #
86511323Description
WASHER 10.5mm ID x 20mm OD x 2mm Thk; M10Img
Alts
Select
Ref.
18Qty
6Availability
Part #
SBA060610000Description
LUBE NIPPLE M6 x .075; NIPPLE, LUBE, M6 x .075Img
Alts
Select
Ref.
19Qty
2Availability
Part #
SBA499211670Description
THRUST WASHER; Washer;NH-E OnlyImg
Alts
Select
Ref.
21Qty
4Availability
Part #
86511327Description

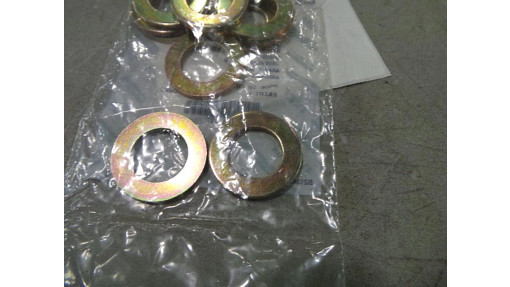

WASHER 21mm ID x 37mm OD x 3mm Thk, CST, ZND; M20 x 37 x 3Img
Alts
Select
Ref.
24Qty
27Availability
Part #
87016617Description
LOCK WASHER M8; Washer, Lock, M8Img
Alts
Select
Ref.
26Qty
4Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20Img
Alts
Select
Ref.
28Qty
4Availability
Part #
86627125Description
COTTER PIN 0.148'' OD x 2.75'' OAL, Internal; PIN, SPLIT (COTTER), , Hair Int, 7/32'' x 2.75'' x 0.148''Img
Alts
Select
Ref.
33Qty
4Availability
Part #
14164370Description

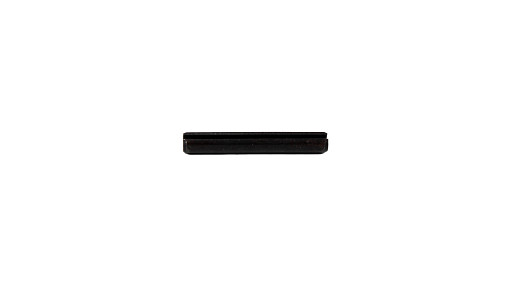

LOCK PIN M4 x 30, Slotted; PIN, M4 x 30, SlottedImg
Alts
Select
Ref.
35Qty
2Availability
Part #
9510330Description
PIN 4mm OD x 36mm L, Slotted; Pin, Spring, 4 x 35Img
Alts
Select
Ref.
40Qty
2Availability
Part #
9511933Description
SLOTTED PIN 10mm OD x 30mm L, Slotted; PIN, SLOTTED, M4 x 20Img
Alts
Select
Ref.
41Qty
1Availability
Part #
43128Description
BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd; BOLT, Hex, M8 x 30, 8.8Img
Alts
Select
Ref.
50Qty
2Availability
Part #
336199Description
BOLT Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd; HH, CL 8.8, M8 x 1.25 x 12, Full ThdImg
Alts
Select
Ref.
51Qty
19Availability
Part #
86511315Description
WASHER 8.4mm ID x 16mm OD x 1.8mm Thk;Img
Alts
