19.04 - MOWER DECK, BELTS, BLADES & PULLEYS, 60'' & 72''
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    AUB163512
    MOWER DECK; Includes Decals;Used With 715667016 (60'');NHNA Only
  • 1
    1
    AUB164260
    MOWER DECK; Includes Decals;NH-E Only;Used With 715667026 (60'')
  • 1
    1
    AUB163513
    MOWER DECK; Includes Decals;Used With 716738006 (72'');NHNA Only
  • 1
    1
    AUB164270
    MOWER DECK; Includes Decals;NH-E Only;Used With 716738016 (72'')
  • 2
    1
    AUB163176
    PIN 12.7mm OD x 177.8mm L;
  • 3
    1
    AUB163181
    ROLLER; Front Anti-Scalp
  • 4
    2

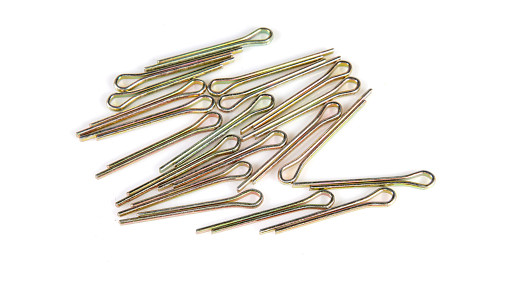

    88350
    COTTER PIN 5/32'' x 1-1/2''; 1/8'' x 1-1/2''
  • 5
    1
    AUB163021
    SHIELD;
  • 5
    1
    AUB163572
    TOP COVER; NH-E Only;Used With 715667026 (60'');Used With 716738016 (72'');Used On & ASN A2CA006 & A2BZ006
  • 6
    4
    AUB960045
    BOLT; 3/8''-16 x 3/4''
  • 7
    1
    AUB140430
    HUB; W/Bolts
  • 8
    1
    AUB161210
    PULLEY; Gearbox;Used With 715667016 (60'');Used With 715667026 (60'')
  • 8
    1

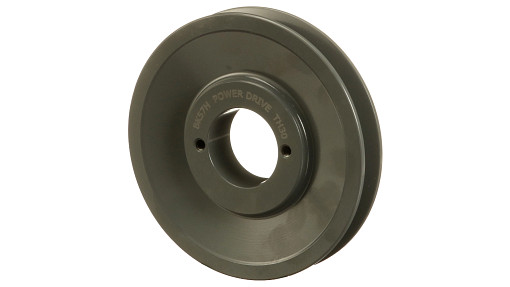

    AUB160114
    PULLEY; Gearbox;Used With 716738006 (72'');Used With 716738016 (72'')
  • 9
    4
    87477
    KEY; 1/4'' Sq x 1''
  • 10
    1
    AUB163334
    PLATE; Gearbox Mount LH;Used With 715667016 (60'');Used With 715667026 (60'')
  • 10
    1
    AUB164280
    PLATE; Gearbox Mount LH;NH-E Only;Used With 715667026 (60'');Used On & ASN A2CA006 & A2BZ006
  • 10
    1
    AUB164283
    PLATE; Gearbox Mount LH;NH-E Only;Used With 716738016 (72'');Used On & ASN A2CA006 & A2BZ006
  • 10
    1
    AUB163375
    PLATE; Gearbox Mount LH;Used With 716738006 (72'');Used With 716738016 (72'')
  • 11
    1
    AUB161198
    GEARBOX; NH-E Only;Used With 715667026 (60'');Used With 716738016 (72'');Used On & ASN A2CA006 & A2BZ006
  • 12
    1
    AUB163337
    SHIELD; Front
  • 12
    1
    AUB164284
    SHIELD; Front;NH-E Only;Used With 715667026 (60'');Used With 716738016 (72'');Used On & ASN A2CA006 & A2BZ006
  • 13
    3
    AUB964022
    NUT; Lock, 3/8''
  • 14
    1
    AUB163333
    PLATE; Gearbox Mount RH;Used With 715667016 (60'');Used With 715667026 (60'')
  • 14
    1
    AUB164281
    PLATE; Gearbox Mount RH;NH-E Only;Used With 715667026 (60'');Used On & ASN A2CA006 & A2BZ006
  • 14
    1
    AUB164282
    PLATE; Gearbox Mount RH;NH-E Only;Used With 716738016 (72'');Used On & ASN A2CA006 & A2BZ006
  • 14
    1
    AUB163374
    PLATE; Gearbox Mount RH;Used With 716738006 (72'');Used With 716738016 (72'')
  • 15
    4
    AUB960602
    WASHER; Lock, 3/8''
  • 16
    8
    AUB960047
    BOLT; 3/8''-16 x 1-1/4''
  • 17
    4
    9707580
    BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5, Full Thd;
  • 18
    4
    AUB960600
    LOCK WASHER; Lock, 1/4''
  • 19
    1
    AUB163508
    SHIELD; Belt, RH W/Decal;Used With 715667016 (60'');Used With 715667026 (60'')
  • 19
    1
    AUB163509
    SHIELD; Belt, RH W/Decal;Used With 716738006 (72'');Used With 716738016 (72'')
  • 20
    1
    AUB163335
    PLATE; Belt, LH;Used With 715667016 (60'');Used With 715667026 (60'')
  • 20
    1
    AUB163377
    SHIELD; Belt, LH;Used With 716738006 (72'');Used With 716738016 (72'')
  • 21
    7
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 22
    7
    AUB230831
    KNOB;
  • 23
    2
    CSE162146
    POULIE; Idler
  • 24
    3
    84279392
    POULIE; Spindle
  • 25
    1
    605529
    V-BELT V-Belt, 17 mm W x 3730 mm L; B-144;Used With 716738006 (72'');Used With 716738016 (72'')
  • 25
    1

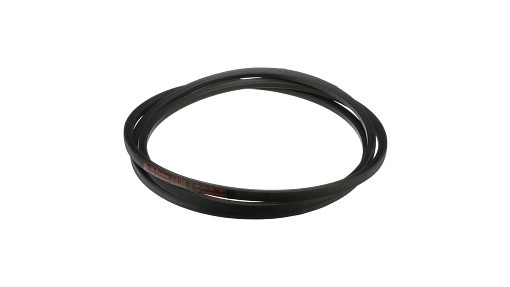

    AUB145516
    COURROIE; B-128;Used With 715667016 (60'');Used With 715667026 (60'')
  • 26
    3
    AUB964500
    RONDELLE; Flat, 3/4''
  • 27
    3
    AUB964024
    CONTRE-ECROU; 3/4''-16
  • 28
    2
    AUB964032
    ECROU; Lock, 5/8''-11
  • 29
    2
    AUB960705
    RONDELLE; Flat, 5/8''
  • 30
    1
    AUB140340
    TIGE; Belt Adjust
  • 31
    2

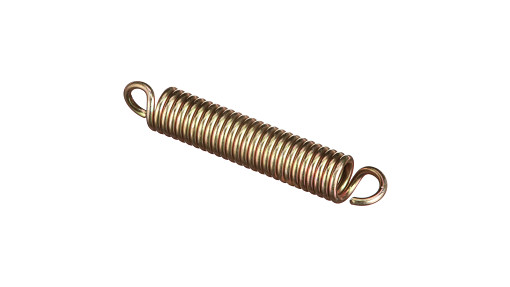

    AUB162801
    RESSORT; Tension, Other Spring is Shown Between Ref. 41 & 42
  • 32
    1
    AUB163332
    BRAS; Idler
  • 33
    1
    AUB163339
    BARRE; Spring Tension
  • 34
    1

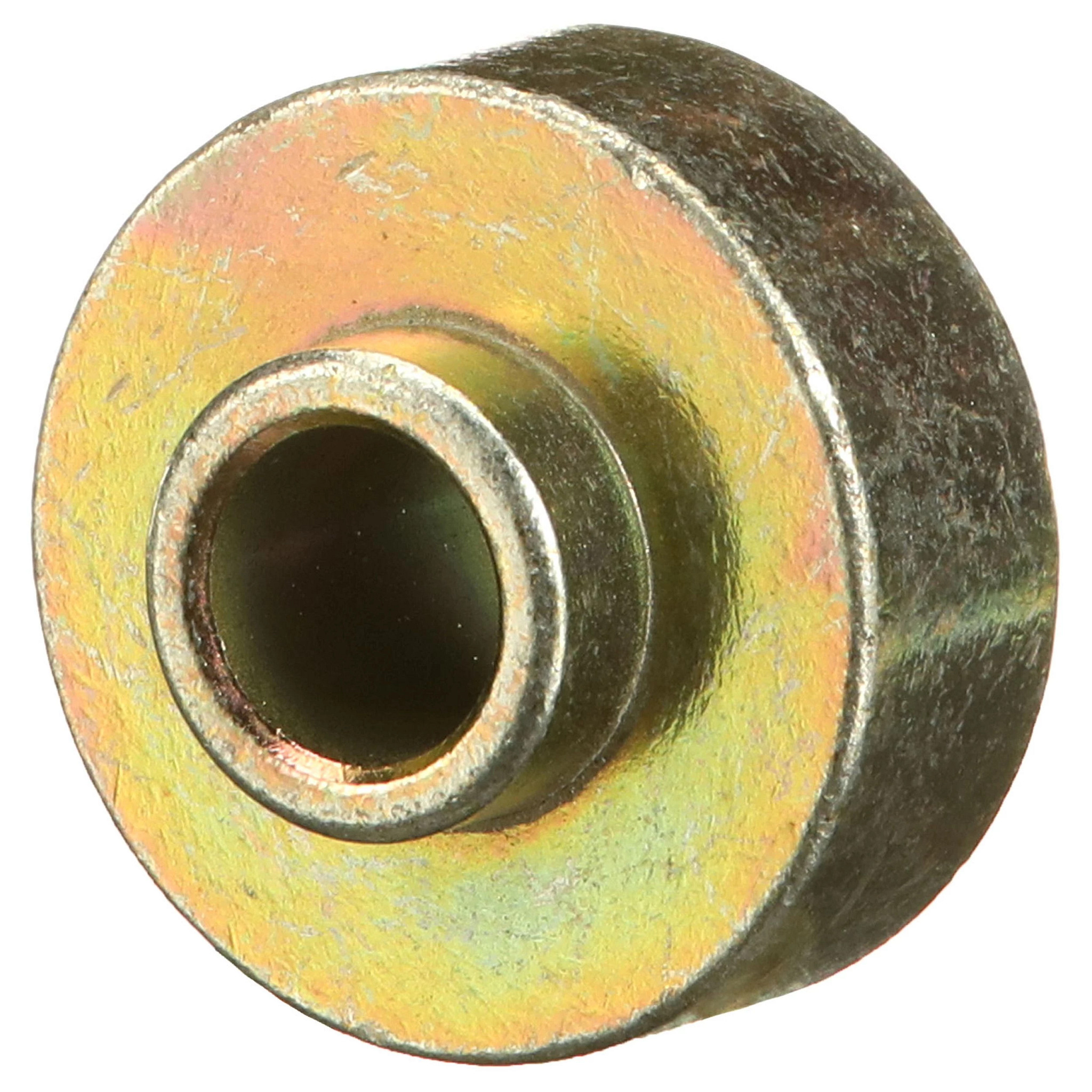

    AUB160100
    ENTRETOISE; Idler Arm
  • 35
    1
    AUB160024
    SPACER; Idler
  • 36
    3
    AUB960704
    WASHER; Flat, 1/2''
  • 37
    1
    AUB960115
    BOLT; 1/2''-13 x 1-3/4''
  • 38
    1
    AUB960157
    BOLT; 5/8''-11 x 2''
  • 39
    2
    AUB960502
    NUT; 3/8''-16
  • 40
    12
    AUB964005
    ECROU; 7/16''-20
  • 41
    1
    AUB163510
    SHIELD; Discharge, W/Decal;Used With 715667016 (60'');NHNA Only
  • 41
    1
    AUB164261
    SHIELD; Discharge, W/Decal;NH-E Only;Used With 715667026 (60'')
  • 41
    1
    AUB163511
    SHIELD; Discharge, W/Decal;Used With 716738006 (72'');NHNA Only
  • 41
    1
    AUB164271
    SHIELD; Discharge, W/Decal;NH-E Only;Used With 716738016 (72'')
  • 42
    1
    AUB160058
    PIN; Shield
  • 43
    2
    AUB967155
    PIN; 5/32'' x 1
  • 44
    3
    AUB163392
    SPINDLE;
  • 45
    2
    80715
    CHAIN; Fitting, Lube, Straight, 1/4'' - 60''
  • 45
    3
    80715
    CHAIN; Fitting, Lube, Straight, 1/4'' - 72''
  • 46
    3
    AUB162779
    SPACER; Spindle
  • 47
    3
    AUB162284
    SPACER 14.27mm ID x 22.23mm OD x 9.53mm L; Blade
  • 48
    3
    AUB163324
    LAME DE VENTILATEUR; BLADE 60''
  • 48
    3

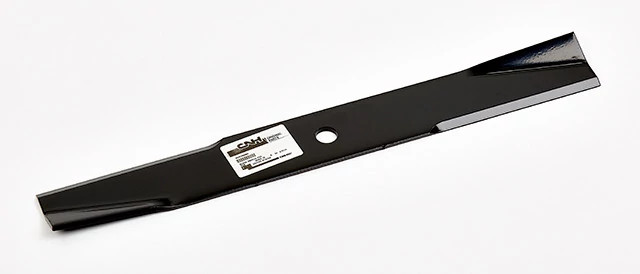

    AUB163380
    LAME DE COUTEAU; BLADE 72''
  • 49
    3
    AUB967187
    VIS; 9/16''-12 x 1-3/4''
  • 50
    1
    AUB959994
    GRAISSEUR; 60''
  • 51
    4
    AUB147885
    ROUE; Anti-Scalp
  • 52
    1
    AUB960161
    BOLT; 5/8''-11 x 3''
  • 53
    2
    AUB960128
    BOLT; 1/2''-13 x 5''
  • 54
    3
    AUB964000
    NUT; 1/2''
  • 55
    1
    AUB960046
    BOLT; 3/8''-16 x 1''
