C02[07] - WATER RADIATOR, M11
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

377936A1

Description

RADIATOR; Radiator


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87233367

Description

COOLER; Tank


Alts

Select

Ref.

3

Qty

1

Availability

Part #

00180923

Description

RADIATOR CAP;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

86308718

Description

TUBE;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

00134540

Description

CLAMP; CLIP


Alts

Select

Ref.

6

Qty

8

Availability

Part #

FA108025

Description

BOLT;


Alts

Select

Ref.

7

Qty

8

Availability

Part #

WB080000

Description

WASHER;


Alts

Select

Ref.

8

Qty

8

Availability

Part #

WA080000

Description

WASHER;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

00400188

Description

HYD CONNECTOR; Elbow


Alts

Select

Ref.

10

Qty

1

Availability

Part #

82743000

Description

HOSE; HOSE


Alts

Select

Ref.

11

Qty

2

Availability

Part #

00400162

Description

HYD CONNECTOR; Nipple


Alts

Select

Ref.

12

Qty

1

Availability

Part #

87247940

Description

HOSE;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

00400070

Description

HYD CONNECTOR; Nipple


Alts

Select

Ref.

14

Qty

1

Availability

Part #

86327400

Description

HOSE;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

00400160

Description

HYD CONNECTOR; Nipple


Alts

Select

Ref.

17

Qty

3

Availability

Part #

86311778

Description

HOSE 3.75'';


Alts

Select

Ref.

16

Qty

6

Availability

Part #

00152127

Description

HOSE CLAMP;


Alts

Select

Ref.

17

Qty

3

Availability

Part #

86311778

Description

HOSE 3.75'';


Alts

Select

Ref.

18

Qty

1

Availability

Part #

87233975

Description

TUBE 21.40 mm ID x 25.40 mm OD; Top


Alts

Select

Ref.

19

Qty

1

Availability

Part #

87233976

Description

TUBE; Bottom


Alts

Select

Ref.

20

Qty

1

Availability

Part #

00408538

Description

HYD CONNECTOR; Hosetail


Alts

Select

Ref.

21

Qty

4

Availability

Part #

00180629

Description

HOSE CLAMP;


Alts

Select

Ref.

22

Qty

2

Availability

Part #

87242726

Description

HOSE 63.50 mm ID x 110.00 mm, SAE J20R1;


Alts

Select

Ref.

23

Qty

1

Availability

Part #

87233630

Description

PIPE; Tube, Top


Alts

Select

Ref.

24

Qty

2

Availability

Part #

00180450

Description

CLAMP;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

82349500

Description

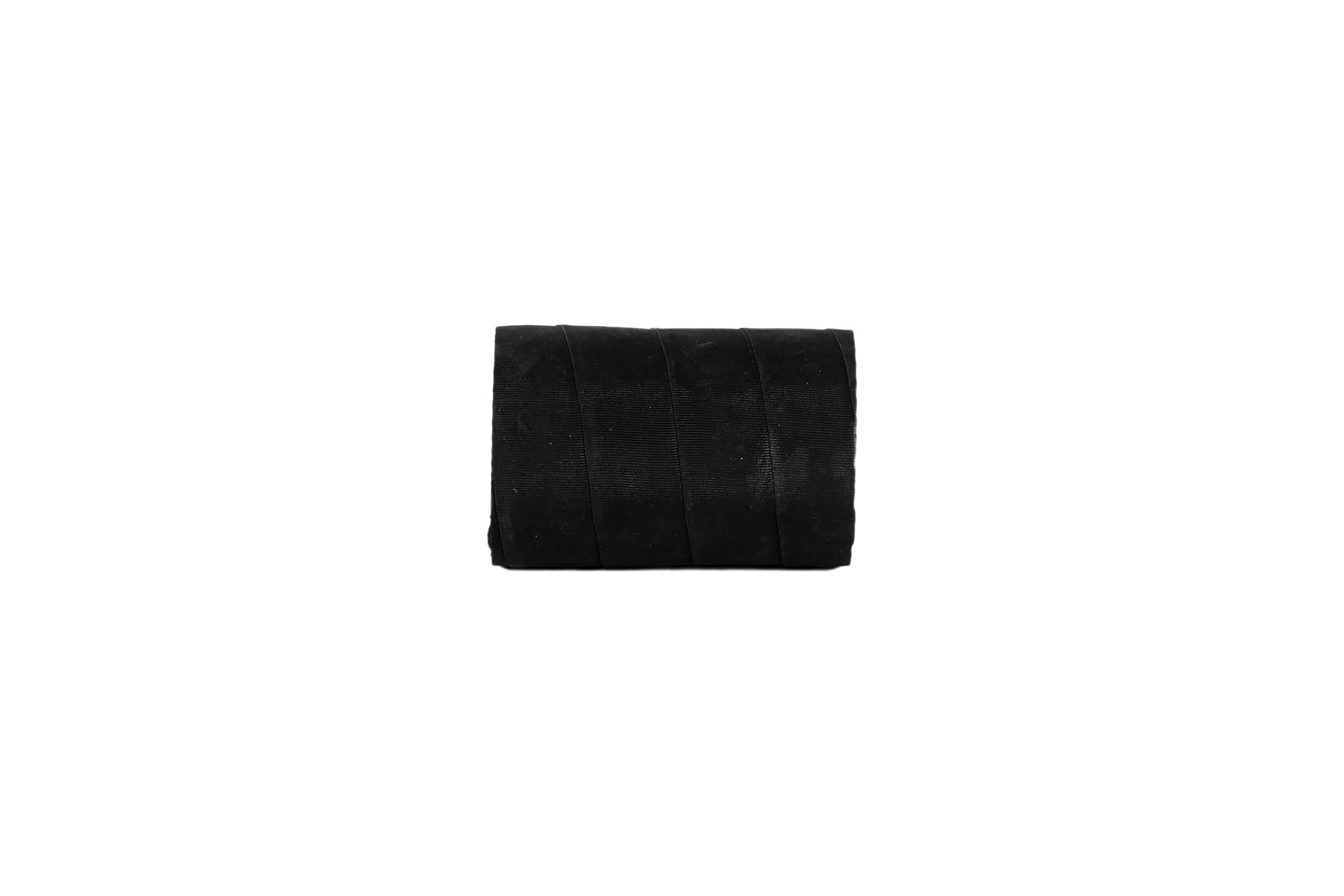

HOSE 57.2mm ID x 100mm L, SAE 20R1;


Alts

Select

Ref.

26

Qty

1

Availability

Part #

87233631

Description

PIPE 63.50 mm OD x 610 mm L; Tube, Bottom


Alts
