03C02 - POMPE DE DIRECTION ASSISTÉE & RÉSERVOIR - 2100, 2110, 3100, 4100, 4110, 5100, 7100 (10-68/)
TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Fenêtre N° de série
Date de construction
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
  • 1
    1
    E6NN3K514DA
    PETITE POMPE; Pump & Reservoir Assy., 650 PSI, 2.74 U.S. Gal at 1000 RPM, 2100, 2110, 3100, 4110, Includes: Ref. 1 thru 27; (Prod Date) From 01-Oct-1968
  • 1
    1
    E6NN3K514EA99M
    POMPE HYDROSTATIQUE; Pump & Reservoir Assy., 1100 PSI, 2.74 U.S. Gal at 1000 RPM, 5100, (Replaces C9NN-3A674-E), Includes: Ref. 1 thru 27; (Prod Date) Between 01-Oct-1968 and 30-Jun-1970
  • 1
    1
    E6NN3K514FA
    PETITE POMPE; Pump Utilizes Seperate Reservoir; (Prod Date) Between 01-Oct-1968 and 30-Jun-1970
  • 1
    1
    E6NN3K514CA
    PETITE POMPE; Pump & Reservoir Assy., 850 PSI, 2.74 U.S. Gal at 1000 RPM, Red, 4100, Includes: Ref. 1 thru 27; (Prod Date) Between 01-Apr-1973 and 30-Sep-1976
  • 1
    1
    E6NN3K514EA99M
    POMPE HYDROSTATIQUE; Pump & Reservoir Assy., 1100 PSI, 2.74 U.S. Gal at 1000 RPM, 4100 (Replaces C9NN-3A674-D), Includes: Ref. 1 thru 27; (Prod Date) From 01-Apr-1970
  • 1
    1
    E6NN3K514EA99M
    POMPE HYDROSTATIQUE; Pump & Reservoir Assy., 1100 PSI, 2.74 U.S. Gal at 1000 RPM, 5100, 7100, Includes: Ref. 1 thru 27; (Prod Date) From 01-Jul-1970
  • 1A
    1
    NSS
    PAS VENDU SÉPARÉMENT; Body, Pump;NHNA Only.; (Prod Date) From 01-Oct-1968
  • 2
    2
    C5NN3N560A
    ROULEMENT; Bearing & Bushing Assy., Pump;No Longer Serviced.; (Prod Date) From 01-Oct-1968
  • 3
    1
    NSS
    PAS VENDU SÉPARÉMENT; Gear Set, Pump, Includes: (1) Drive & (1) Drive Gear;NHNA Only.; (Prod Date) From 01-Oct-1968
  • 4
    2
    C5NN3N532A
    CHEMISE; Drive Gear Seal; (Prod Date) From 01-Oct-1968
  • 5
    1
    D2NN3R542A
    JOINT TORIQUE 0.103'' Thk x 2.55'' ID, -145, Cl 6, 90 Duro; Seal, Pump Outer, 2.55'', 64.77mm Dia., Replaces C7NN-3R542-A; (Prod Date) From 01-Oct-1968
  • 6
    1
    D2NN3R543A
    JOINT TORIQUE 0.103'' Thk x 1.862'' ID, -134, Cl 6, 90 Duro; Ring, Seal, Pump, Inner, Replaces C7NN-3R543-A; (Prod Date) From 01-Oct-1968
  • 7
    1
    E0NN3C535AA
    BRIDE; Pump, Excludes 5200, 7200; (Prod Date) From 01-Oct-1968
  • 7
    1
    E0NN3C535AA
    BRIDE; Pump; (Prod Date) From 01-Apr-1973
  • 8
    1
    E0NN3N529AA
    SEAL; Seal;See Service Bulletin 3/84-T4; (Prod Date) From 01-Oct-1968
  • 9
    1
    CAR40181
    ANNEAU D'ARRET; Ring, Pump Drive Gear Seal, Snap; (Prod Date) From 01-Oct-1968
  • 10
    1
    D2NN3R656A
    BAGUE D'ETANCHEITE 84.4mm ID x 88.76mm OD x 2.87mm Thk; Seal, Pump Cover; (Prod Date) From 01-Oct-1968
  • 11
    1
    E6NN3B681AA
    COUVERCLE; Pump; (Prod Date) From 01-Oct-1968
  • 12
    4
    34807S36
    RONDELLE FREIN; Washer, Lock, 3/8''; (Prod Date) From 01-Oct-1968
  • 13
    4
    9637240
    VIS Hex, 3/8'' - 16 x 3 1/4'', Gr 5; Pump Hex, 3/8''-16 x 3 1/4'', G5; (Prod Date) From 01-Oct-1968
  • 13A
    4
    49861
    JOINT TORIQUE 9.2mm ID x 2.62mm Thk, NBR; .362'' ID x .103'' Thk, Body Thru Bolt Hole; (Prod Date) From 01-Jul-1969
  • 13A
    1
    49861
    JOINT TORIQUE 9.2mm ID x 2.62mm Thk, NBR; .362'' ID x .103'' Thk, Pump Body Cover, 5200, 7200; (Prod Date) From 01-Apr-1973
  • 14
    1
    C7NN3B604C
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 650 PSI, 2100, 2110, 3100, 4110, Includes: Ref. 15 thru 22; (Prod Date) From 01-Oct-1968
  • 14
    1
    C7NN3B604C
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 850 PSI, 4100, Includes: Ref. 15 thru 22; (Prod Date) Between 01-Oct-1968 and 30-Sep-1969
  • 14
    1
    C7NN3B604B
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 1100 PSI, Includes Hi-Clear, 5100, 7100, Includes: Ref. 15 thru 22; (Prod Date) From 01-Oct-1968
  • 14
    1
    C7NN3B604B
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 1250 PSI, Includes Hi-Clear, 4100, Includes: Ref. 15 thru 22; (Prod Date) From 01-Oct-1969
  • 14
    1
    C7NN3B604B
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 1250 PSI, Includes Hi-Clear, 3500, 3550, 4400, Includes: Ref. 15 thru 22; (Prod Date) From 01-May-1970
  • 14
    1
    D2NN3B604C
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 1100 PSI, 5200, 7200, Includes: Ref. 15 thru 22; (Prod Date) From 01-Apr-1973
  • 15
    1
    81818754
    RESSORT; Relief Valve, 5100, 7100, & Hi-Clearance; (Prod Date) From 01-Oct-1968
  • 15
    1
    81818754
    RESSORT; Relief Valve, 4100, 4500; (Prod Date) From 01-Oct-1969
  • 15
    1
    81818754
    RESSORT; Relief Valve, 5200, 7200; (Prod Date) From 01-Apr-1973
  • 15
    1
    81818754
    RESSORT; Relief Valve, 3500,3550,4400; (Prod Date) From 01-May-1970
  • 15
    1
    C7NN3B608B
    RESSORT; Relief Valve, 2100, 2110, 3100, 4110;No Longer Serviced NH-E.; (Prod Date) From 01-Oct-1968
  • 15
    1
    C7NN3B608B
    RESSORT; Relief Valve, 4100; (Prod Date) Between 01-Oct-1968 and 30-Sep-1969
  • 15
    1
    C7NN3B608B
    RESSORT; Relief Valve, 3400, 4140, 4410; (Prod Date) From 01-May-1970
  • 16
    AR
    C7NNN627A
    CALE; .010'' Thick; (Prod Date) From 01-Oct-1968
  • 16
    AR
    C7NNN627B
    CALE; .015'' Thick; (Prod Date) From 01-Oct-1968
  • 17
    1
    81818761
    SIEGE DE SOUPAPE; Seat, Relief Valve; (Prod Date) From 01-Oct-1968
  • 18
    1
    C7NNN626A
    SOUPAPE HYDRAULIQUE; Head, Relief Valve; (Prod Date) From 01-Oct-1968
  • 19
    1
    C7NNG963A
    BROCHE; Guide, Relief Valve Spring; (Prod Date) From 01-Oct-1968
  • 20
    1
    C7NNG964A
    JOINT TORIQUE; Seal, Relief Valve; (Prod Date) From 01-Oct-1968
  • 21
    1
    87035S95
    JOINT TORIQUE 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro; 90 Duro, .625'' ID x .103'' Thk, Relief Valve, Excludes: 5200, 7200; (Prod Date) From 01-Oct-1968
  • 21
    1
    D2NN3R723A
    JOINT TORIQUE 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro; Relief Valve, 5200, 7200; (Prod Date) From 01-Apr-1973
  • 22
    1
    D7NN3D587A
    JOINT TORIQUE; Reservoir Seal 2000, 3000; (Prod Date) From 01-Oct-1968
  • 23
    1
    EDPN3K758A
    ELEMENT; Filter Assy., Pump Reservoir; (Prod Date) From 01-Oct-1968
  • 24
    1
    D7NN3R700A
    TANK; Reservoir & Cap Assy., 2100, 2110, 3100, 4100, 4110, U.K.- Antwerp, Includes: Reservoir & Ref. 24A thru 24D;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.; (Prod Date) From 01-Oct-1968
  • 24
    1
    D7NN3R700A
    TANK; Reservoir & Cap Assy., Replaces C9NN-3531-C, 3400, 3500, 3550, 4140, 4410, Includes: Reservoir & Ref. 24A thru 24D;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.; (Prod Date) From 01-May-1970
  • 24
    1
    D7NN3R700A
    TANK; Reservoir & Cap Assy., 4500, 5100, 7100, Includes: Reservoir & Ref. 24A thru 24D;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.; (Prod Date) From 01-Jul-1970
  • 24
    1
    D7NN3R700A
    TANK; Reservoir & Cap Assy., 4400, Includes: Reservoir & Ref. 24A thru 24D;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.; (Prod Date) From 01-May-1970
  • 24
    1
    D4NN3R700A
    TANK; Reservoir & Cap Assy., 5100, Replaces D2NN-3R700-B, Includes: Reservoir & Ref. 24A thru 24D;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.; (Prod Date) Between 01-Oct-1968 and 30-Jun-1970
  • 24
    1
    D4NN3R700A
    TANK; Reservoir & Cap Assy., 4400, Replaces D2NN-3R700-B, Includes: Reservoir & Ref. 24A thru 24D;Use P/N E6NN-3531-DA(83959539), Reservoir, P/N EDPN-3K758-A(83936985) & P/N D2NN-3A006-B(81827222), Cap Assy.; (Prod Date) From 01-May-1970
  • 24
    1
    E6NN3531FA
    TANK; Reservoir Assy., 5200, 7200, Includes: Filter & Filler Cap; (Prod Date) From 01-Apr-1973
  • 24
    1
    E6NN3531GA
    TANK; Reservoir Assy., Use W/E6NN-3K514-CA, Includes: Reservoir & Ref. 24A thru 24D; (Prod Date) From 01-Apr-1970
  • 24A
    1
    D0NN3R680A
    SOUPAPE HYDRAULIQUE; Reservoir Vent Valve Assy., Includes: Valve & Ref. 24B; (Prod Date) From 01-Oct-1968
  • 24B
    1
    D2NN3R677A
    JOINT TORIQUE 1.86mm Thk x 4.47mm ID; Seal, Vent Valve; (Prod Date) From 01-Oct-1968
  • 24C
    1
    D0NN3R678A
    RESSORT; Reservoir Vent; (Prod Date) From 01-Oct-1968
  • 24D
    1
    97407S
    ANNEAU D'ARRET; Ring, Snap, Ext, .1875''; (Prod Date) From 01-Oct-1968
  • 25
    1

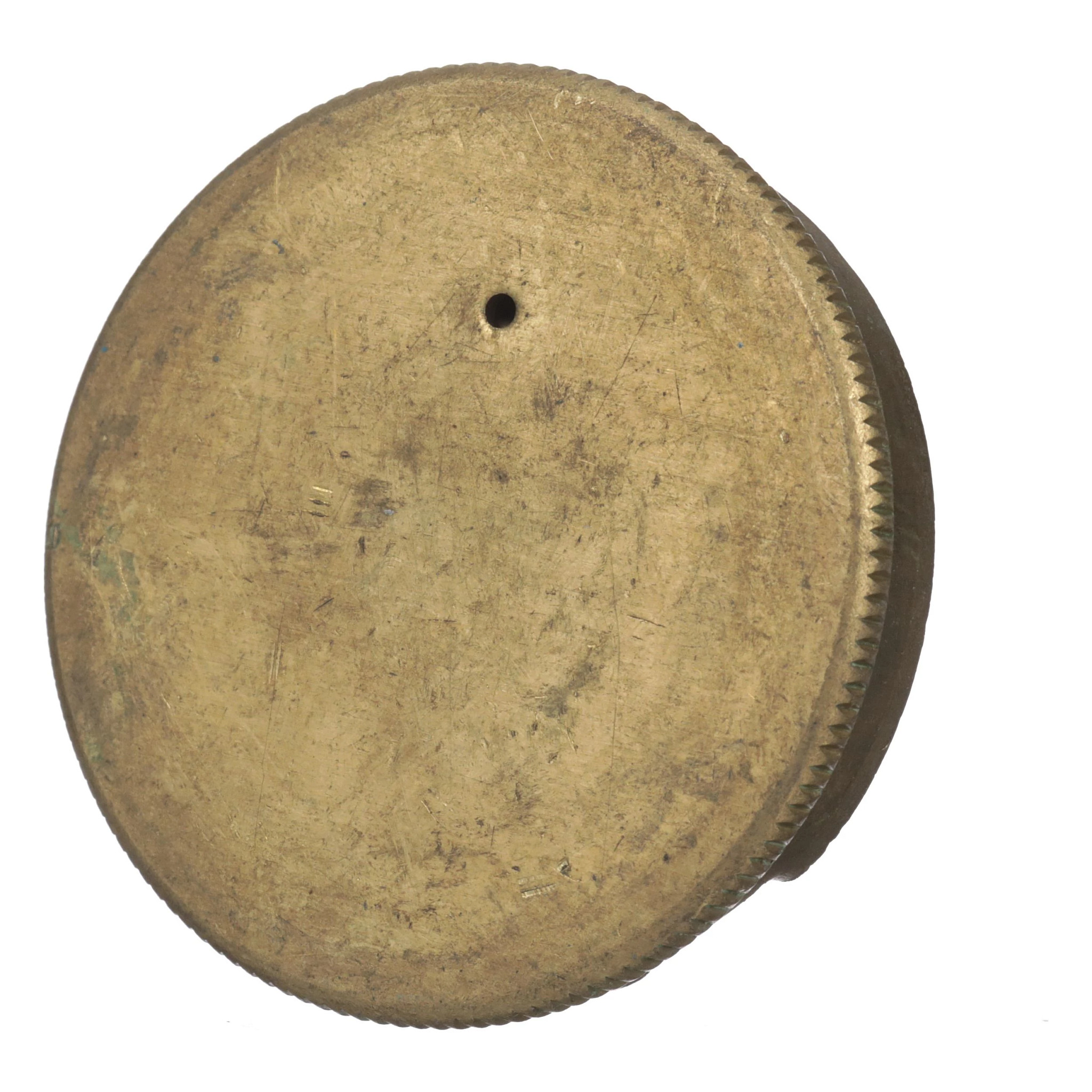

    C7NN3D588A
    COUVERCLE; Cap, Filler, Vented, Excludes 5200, 7200; (Prod Date) Between 01-Oct-1968 and 30-Sep-1969
  • 25
    1
    D2NN3A006B
    COUVERCLE; Cap, Filler, Replaces C9NN-3D588-A; (Prod Date) From 01-Oct-1968
  • 26
    1
    E84GF9
    JOINT D'HUILE 8.18mm ID x 13.46mm OD x 2.13mm Thk; Ring, Drive Gear Seal; (Prod Date) From 01-Oct-1968
  • 27
    1
    E6NN3R655CA
    VIS; Reservoir, 5/16''-18 x 2.650, Replaces C7NN-3R655-AB; (Prod Date) From 01-Apr-1987
  • 28
    1
    C5NN3A742A
    PIGNON; Power Steering, Main Drive;No Longer Serviced NH-E.; (Prod Date) From 01-Oct-1968
  • 29
    1
    84071
    CLAVETTE SPECIALE #5, 1/8'' x 5/8''; Key, Woodruff , Drive Gear, Excludes 5200, 7200 #5, 1/8'' x 5/8''; (Prod Date) From 01-Oct-1968
  • 29
    1
    84071
    CLAVETTE SPECIALE #5, 1/8'' x 5/8''; Key, Woodruff , Drive Gear, 5200, 7200 #5, 1/8'' x 5/8''; (Prod Date) From 01-Apr-1973
  • 30
    1
    957E994633
    RONDELLE; Washer, Lock, 7/16'', Retaining Tab; (Prod Date) From 01-Oct-1968
  • 31
    1
    87891
    CONTRE-ECROU EN VRAC Jam, 7/16''-20, G2; Jam, G2, 7/16''-20; (Prod Date) From 01-Oct-1968
  • 33
    2
    34807S36
    RONDELLE FREIN; Washer, Lock, 3/8''; (Prod Date) From 01-Oct-1968
  • 33
    2
    380844S36
    VIS; HH, G8, 3/8''-16 x 2-1/2'', Reservoir & Gear to Engine, Excludes 5200, 7200; (Prod Date) From 01-Oct-1968
  • 34
    1
    P0301634
    VIS; Screw, Cap, Flg Hd, G5, 3/8''-16 x 2-1/2'', 5200, 7200; (Prod Date) From 01-Apr-1973
  • 35
    1

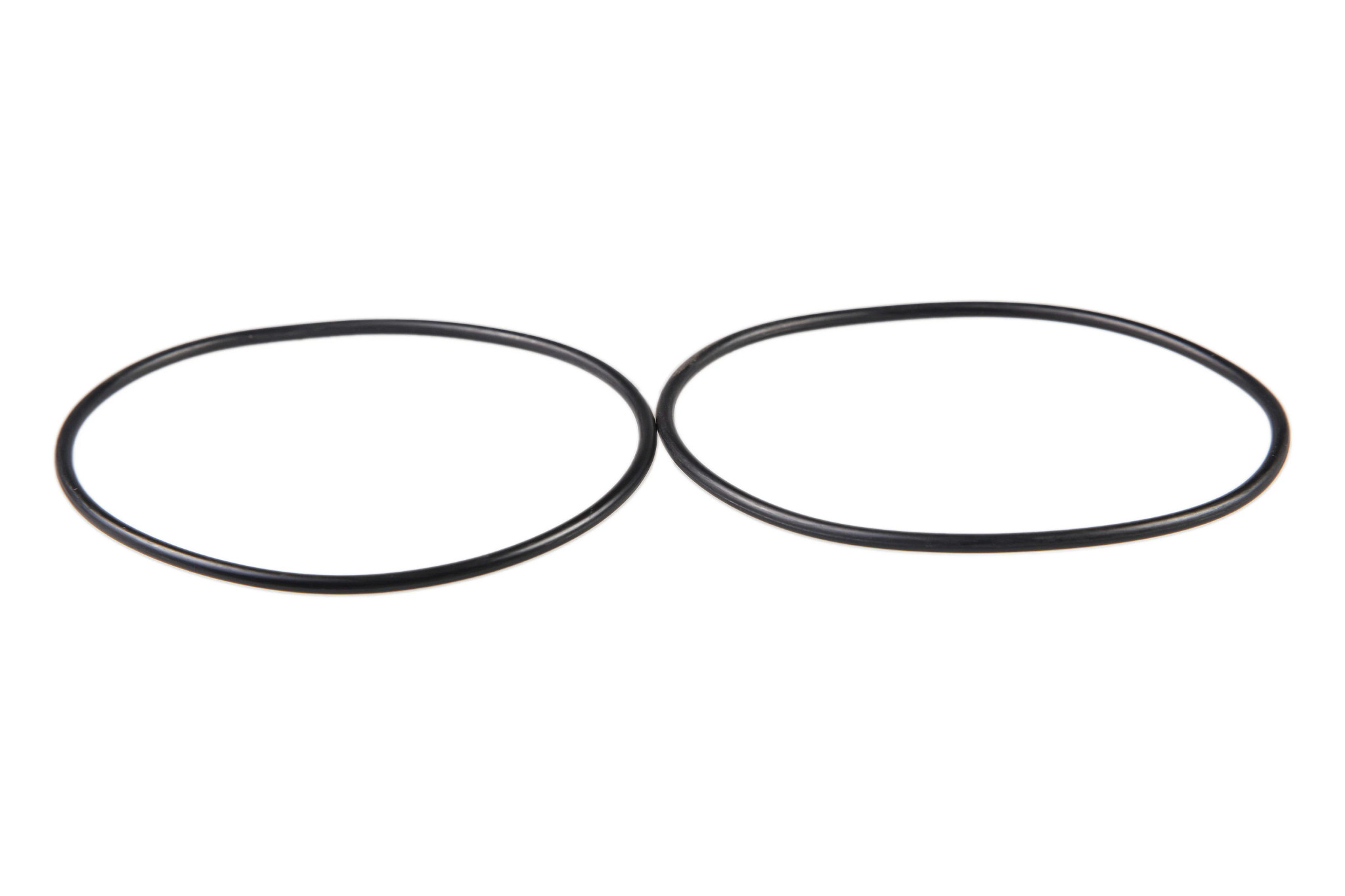

    379275S94
    JOINT TORIQUE 0.103'' Thk x 3.237'' ID, -152, Cl 5, 75 Duro; Pump to Engine; (Prod Date) From 01-Oct-1968
  • 36
    1
    9617873
    JOINT TORIQUE 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, Pump Elbow, Excludes 5200, 7200; (Prod Date) From 01-Oct-1968
  • 37
    1
    81803217
    COUDE 5/8'' - 18 x 9/16'' - 18 ORB; Assy., Pump Outlet; (Prod Date) From 01-Oct-1968
  • 37
    1
    76344
    COUDE A 90° 9/16'' - 18 JIC x 9/16'' - 18 ORB; 90?, Male 37? FL - Male, W/O-Ring, 3/8'' Tube, Pump, U.S., 5200, 7200; (Prod Date) From 01-Apr-1973
  • 37
    1
    382342S7
    COUDE 9/16'' - 18 ORB x 9/16'' - 18 JIC; Assy., 3/8''- 18, U.S. 5200, 7200;No Longer Serviced.; (Prod Date) From 01-Apr-1973
  • 1
    C5NN3531C
    RESERVOIR D'HUILE HYDR.; Reservoir Assy.
  • 1
    D3NN3A562G
    TUYAU RIGIDE; Tube, Pressure
  • 1
    C7NN3A563B
    TUBE; Leak-off
  • 1
    D3NN3A563D
    TUYAU RIGIDE; Tube, Return
  • 1
    D3NN3R563A
    TIGE;
  • 1
    C7NN3N573A
    COLLIER;
  • 1
    C7NN3C633C
    TUBE; Inlet
  • 1
    C5NN3N656A
    COLLIER;
  • 1
    C7NN3A674F
    POMPE HYDRAULIQUE; Pump Assy.
  • 1
    80681
    RONDELLE FREIN 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 3
    80680
    RONDELLE FREIN 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 2
    9628503
    ECROU 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 1
    76344
    COUDE A 90° 9/16'' - 18 JIC x 9/16'' - 18 ORB; 90?, Male 37? FL - Male, W/O-Ring, 3/8'' Tube
  • 2
    280161
    VIS Hex, 3/8'' - 16 x 3'', Gr 5;
  • 1
    88434
    VIS Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''
  • 1
    9635884
    VIS Hex, 5/16'' - 18 1'', Full Thd, Gr 5;
  • 1
    9617873
    JOINT TORIQUE 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk
  • 4
    82012719
    COLLIER 15mm - 24mm, Worm Gear;
  • 1
    379275S94
    JOINT TORIQUE 0.103'' Thk x 3.237'' ID, -152, Cl 5, 75 Duro; Seal, 3-237 I.D.
  • 1
    DHPN3A674B
    KIT DE JOINTS; Kit, Power Steering Pump Seal, Includes: Parts Listed Below; (Prod Date) From 01-Oct-1968
  • 1
    D2NN3R542A
    JOINT TORIQUE 0.103'' Thk x 2.55'' ID, -145, Cl 6, 90 Duro; Seal
  • 1
    D2NN3R543A
    JOINT TORIQUE 0.103'' Thk x 1.862'' ID, -134, Cl 6, 90 Duro; Seal
  • 1
    E0NN3N529AA
    SEAL; Seal
  • 3
    E0NN3N529AA
    SEAL; Seal, Row Crop Only;No Longer Serviced.
  • 1
    379275S94
    JOINT TORIQUE 0.103'' Thk x 3.237'' ID, -152, Cl 5, 75 Duro;
  • 1
    9617873
    JOINT TORIQUE 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk
  • 1
    D2NN3R656A
    BAGUE D'ETANCHEITE 84.4mm ID x 88.76mm OD x 2.87mm Thk; Seal
  • 4
    49861
    JOINT TORIQUE 9.2mm ID x 2.62mm Thk, NBR; .362'' ID x .103'' Thk
  • 1
    D2NN3R723A
    JOINT TORIQUE 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro;
  • 1
    D7NN3D587A
    JOINT TORIQUE;
  • 14
    1
    C9NN3B604A
    SOUPAPE HYDRAULIQUE; Valve Assy., P.S. Pump Relief, 1250 PSI, 4500, Includes: Ref. 15 thru 22; (Prod Date) From 01-Nov-1970
  • 24
    1
    D7NN3R700A
    TANK; Reservoir & Cap Assy., 4500, U.K.-Antwerp, Includes: Reservoir & Ref. 24A thru 24D; (Prod Date) From 01-Nov-1970
  • 24
    1
    D7NN3R700A
    TANK; Reservoir & Cap Assy., 4500, U.S., Includes: Reservoir & Ref. 24A thru 24D; (Prod Date) Between 01-Nov-1970 and 31-Mar-1975
  • 1
    D3NN3C618A
    KIT DE CONVERSION; Kit, Pump Conversion, Integral Pump & Reservoir Assy. to Separate Pump & Reservoir, Service Only, Order Components, 4500, Includes: Parts Listed Below; (Prod Date) From 01-Nov-1970
