17B - RADIATOR SUPPORT AND ROTARY SCREEN
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    89514465
    HOUSING;
  • 2
    1
    89835415
    SCHUTZABDECKUNG; Plate
  • 3
    1
    89831507
    STÜTZE;
  • 4
    1
    322358
    TELLERFEDER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 5
    2
    9817867
    SERRURE; Clamp
  • 6
    4
    321803
    SCHRAUBE Cross Pan Hd, M4 x 10; Bolt
  • 7
    4
    322355
    BELLEVILLE WASHER M4 Bolt Size x 10mm OD x 0.9mm Thk;
  • 8
    4
    100012
    NUT Hex, M4 x 0.7, Cl 8, ZND;
  • 10
    6
    100016
    MUTTER Hex, M10 x 1.5, Cl 8, ZND;
  • 11
    1
    89509340
    WELLE;
  • 12
    3
    9818383
    KOMMUTATORBÜRSTE;
  • 13
    1
    89514481
    COPERCHIO; Plate
  • 14
    1
    25953
    CUSCINETTO A SFERE 35mm ID x 72mm OD x 17mm W; Ball bearing
  • 15
    1
    89594723
    RIEMENSCHEIBE; Sheave
  • 15
    1
    89833171
    RIEMENSCHEIBE; Sheave For L516 Hydrostatic only;See model notes for code 0700 for S/N information
  • 16
    3
    80120099
    BOLT Hex, M6 x 16, 8.8;
  • 17
    2
    120201
    BOLT Hex, M10 x 35mm, Cl 8.8, Full Thd;
  • 18
    1
    89811109
    FAN;
  • 18
    1
    84023004
    FAN 6 Blades, 812.8mm OD; For L413-416 only;See model notes for code 1100 for S/N information
  • 18
    1
    9815487
    FAN; 30'', 6 blade - For L516 Hydrostatic only;See model notes for code 0700 for S/N information
  • 18
    1
    84014797
    GEBLÄSE 8 Blades, 762mm OD; 30'', 8 blade - For L516 Hydrostatic only;See model notes for code 1500 for S/N information
  • 19
    1
    9502873
    RADBAUGRUPPE; Wheel Includes figs.
  • 20
    1
    397101
    LAGERGEHÄUSE;

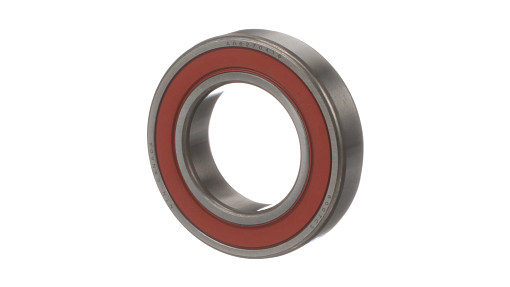

  • 21
    3
    364908
    KUGELLAGER 35mm ID x 62mm OD x 14mm W;
  • 22
    1
    9502870
    HUB; Hub

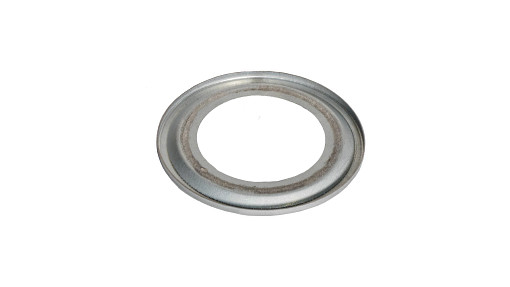

  • 23
    2
    391472
    SEALING RING 35mm ID x 57mm OD x 0.3mm Thk; SEALRING Seal ring
  • 24
    36
    9502867
    SPEICHE;
  • 25
    36
    9502866
    STOPFEN;
  • 26
    1
    396766
    RING; Bushing
  • 27
    1
    43127
    SCHRAUBE Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;
  • 28
    1
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 29
    1
    89509672
    SCREEN; Dust Includes fig. 30
  • 30
    1
    441584
    SEAL; Seal strip
  • 31
    1
    753576
    SUPPORT;

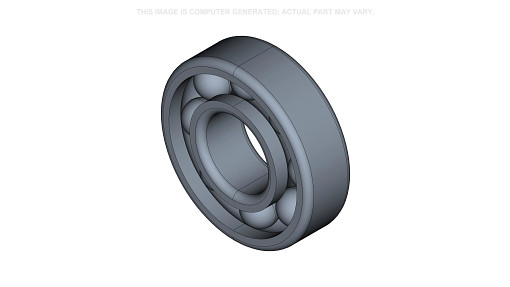

  • 33
    1
    362804
    BALL BEARING 17mm ID x 40mm OD x 12mm W;
  • 34
    1
    365018
    BEARING HOUSING;

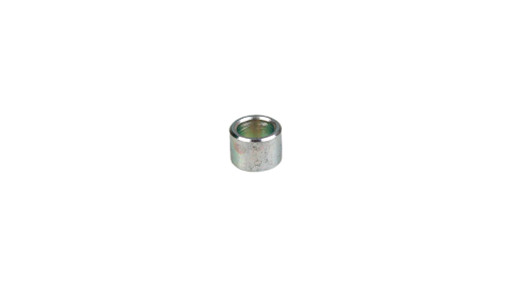

  • 35
    1
    434182
    BUSHING 12mm ID x 17mm OD x 12.1mm L;
  • 36
    1
    120122
    SCHRAUBE 12mm Dia, 50mm L;
  • 37
    1
    89508836
    GITTER, ABSCHIRMUNG; Drum
  • 38
    6
    140045
    TELLERFEDER 10mm ID x 22mm OD x 1.6mm Thk;
  • 40
    3
    15896221
    MUTTER Hex, M6 x 1, Cl 10, ZND;
  • 41
    3
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 32
    1
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 39
    6
    11106231
    BOLT Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd;
  • 9
    4
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;
