05.100.04[14] - MAINTENANCE PARTS, THRESHING, SMALL GRAIN ROTORS & BEATER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    66497
    BALL BEARING 34.9mm ID x 80mm OD x 38.1mm W; ONLY WITH DYNAMIC FEEDROLL
  • 1
    2
    66497
    BALL BEARING 34.9mm ID x 80mm OD x 38.1mm W; NOT FOR DYNAMIC FEEDROLL
  • 2
    2
    84571955
    BEARING HOUSING; NOT FOR DYNAMIC FEEDROLL
  • 2
    2
    84571955
    BEARING HOUSING; ONLY WITH DYNAMIC FEEDROLL
  • 3
    2
    84597804
    SHAFT;
  • 3
    2
    84597804
    SHAFT;
  • 4
    4
    84138391

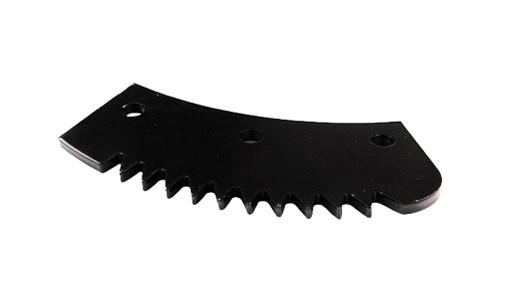

    LUG; RH;FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 4
    2
    86584738

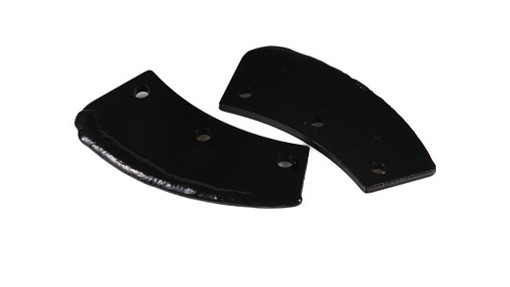

    LUG; RH, Set of 2 : 4 plates required
  • 4
    2
    86584738
    LUG; RH, Set of 2 : 4 plates required
  • 5
    2
    86584737

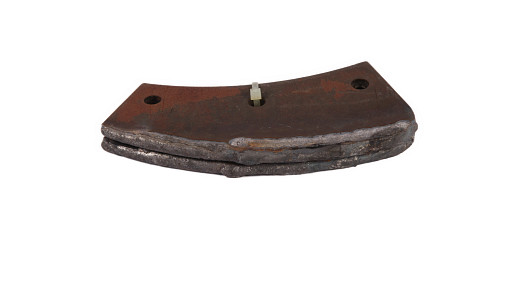

    LUG; LH, Set of 2 : 4 plates required
  • 5
    2
    86584737
    LUG; LH, Set of 2 : 4 plates required
  • 5
    4

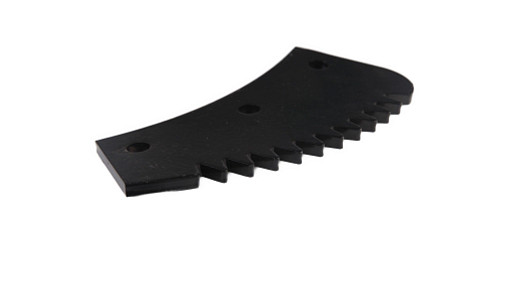

    84138306
    LUG; LH;FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 6
    2

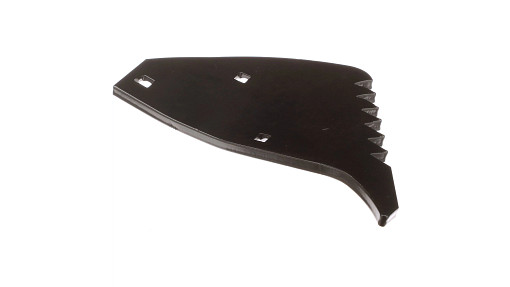

    84138305
    LUG; RH;FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 6
    1
    86584740

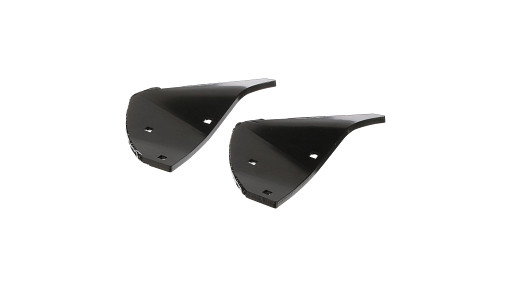

    PLATE Set, RH Rotor; RH, Set of 2 : 2 plates required
  • 6
    1
    86584740
    PLATE Set, RH Rotor; RH, Set of 2 : 2 plates required
  • 7
    2
    84138393

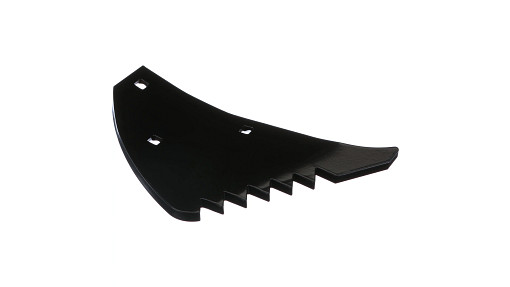

    LUG; LH;FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 7
    1
    86584739

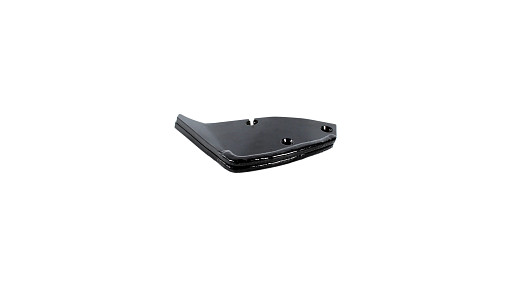

    PLATE Set, LH Rotor; LH, Set of 2 : 2 plates required
  • 7
    1
    86584739
    PLATE Set, LH Rotor; LH, Set of 2 : 2 plates required
  • 8
    24
    281004

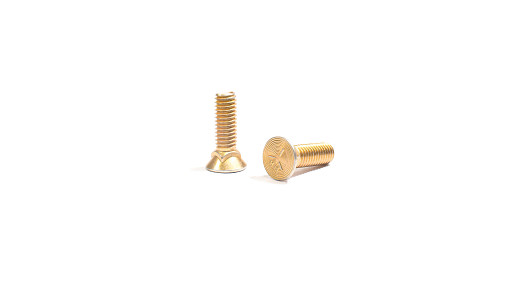

    PLOW BOLT #3, 3/8'' - 16 x 1 1/4'', Gr 5, Full Thd; FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 8
    24
    47609004

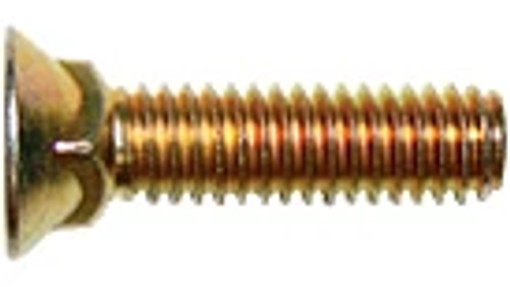

    PLOW BOLT Plow, 3/8 - 16 x 1.25, Gr 8;
  • 8
    24
    47609004
    PLOW BOLT Plow, 3/8 - 16 x 1.25, Gr 8;
  • 9
    24
    84183813
    NUT;
  • 9
    24
    84183813
    NUT;
  • 9
    12
    9637692
    NUT 3/8'' - 16, Gr B; FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 10
    12
    281005

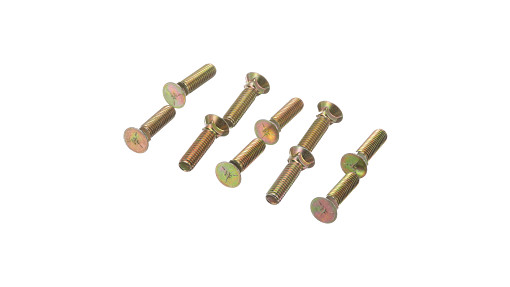

    PLOW BOLT #3, 3/8'' - 16 x 1 1/2'', Gr 5; FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 10
    12

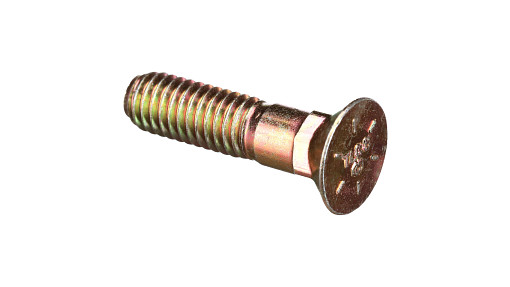

    47704282
    PLOW BOLT Plow, 3/8 - 16 x 1.5, Gr 8;
  • 10
    12
    47704282
    PLOW BOLT Plow, 3/8 - 16 x 1.5, Gr 8;
  • 11
    12
    394629
    WASHER 10.5mm ID x 24mm OD x 3mm Thk; FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 11
    36

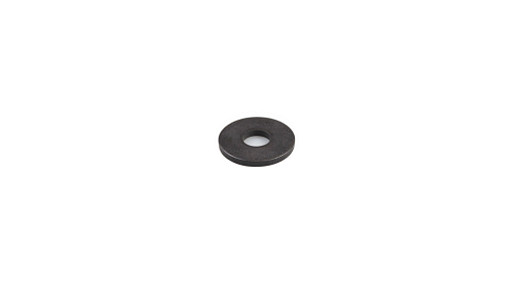

    87613288
    WASHER 0.41'' ID x 1.12'' OD x 0.13'' Thk;
  • 11
    36
    87613288
    WASHER 0.41'' ID x 1.12'' OD x 0.13'' Thk;
  • 12
    12
    84183813
    NUT;
  • 12
    12
    84183813
    NUT;
  • 12
    12

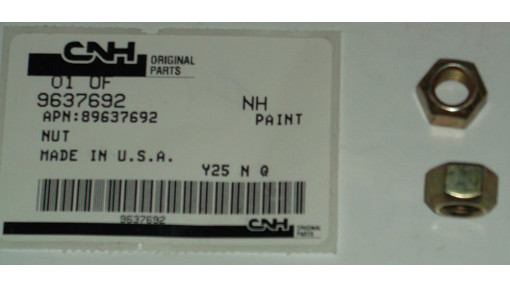

    9637692
    NUT 3/8'' - 16, Gr B;
  • 12
    12
    9637692
    NUT 3/8'' - 16, Gr B;
  • 12
    24
    9637692
    NUT 3/8'' - 16, Gr B; FOR SERRATED AUGER LUGS AND WIFFLES ONLY
  • 13
    3
    86503256

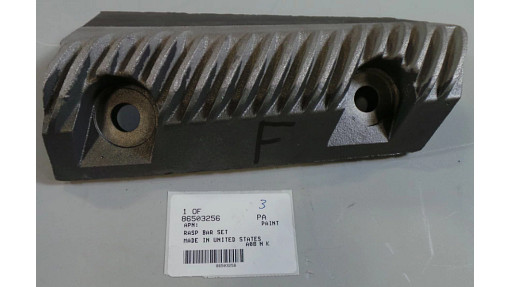

    RASP BAR SET; RH, Incl 15, Set of 2 : 6 plates required
  • 13
    3
    86503256
    RASP BAR SET; RH, Incl 15, Set of 2 : 6 plates required
  • 14
    3
    86503255
    RASP BAR SET; LH, Incl 15, Set of 2 : 6 plates required
  • 14
    3
    86503255
    RASP BAR SET; LH, Incl 15, Set of 2 : 6 plates required
  • 15
    8
    9503097
    BOLT Hex, M14 x 1.5 x 35mm, Cl 8.8;
  • 15
    8
    9503097
    BOLT Hex, M14 x 1.5 x 35mm, Cl 8.8;
  • 16
    48
    9802757

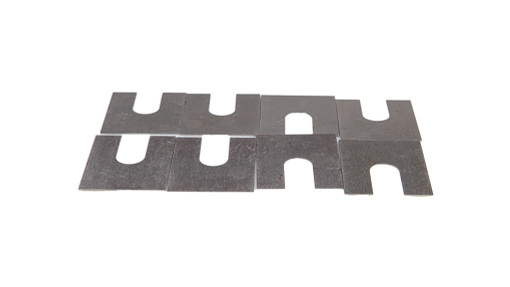

    SHIM 41mm OD x 0.43mm Thk;
  • 16
    48
    9802757
    SHIM 41mm OD x 0.43mm Thk;
  • 17
    24
    87037846

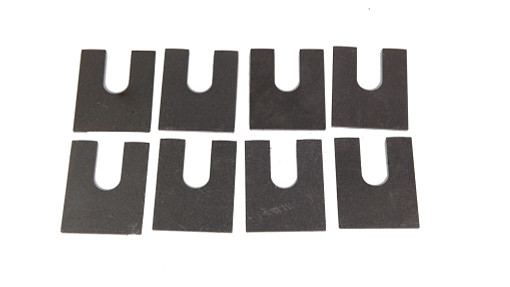

    SHIM 41.1mm OD x 1.7mm Thk;
  • 17
    24
    87037846
    SHIM 41.1mm OD x 1.7mm Thk;
  • 18
    12
    87011610
    SET OF BLADES; ( Set of 3 )
  • 18
    12
    87011610
    SET OF BLADES; ( Set of 3 )
  • 18
    12
    87011610R

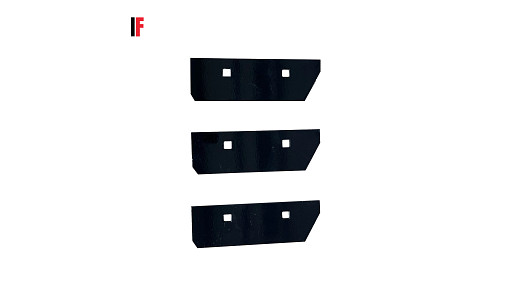

    SET OF BLADES REMAN SET OF BLADES (3) AND BOLT KIT; Reman ( Set of 3 )
  • 18
    12
    87011610C
    SET OF BLADES; Core Return
  • 19
    72
    87742357

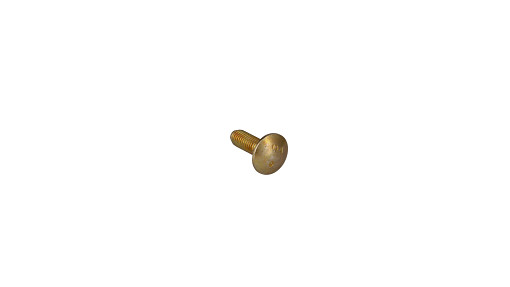

    CARRIAGE BOLT Sq Nk, M8 x 25mm, Cl 10.9;
  • 19
    72
    87742357
    CARRIAGE BOLT Sq Nk, M8 x 25mm, Cl 10.9;
  • 20
    72
    87681210

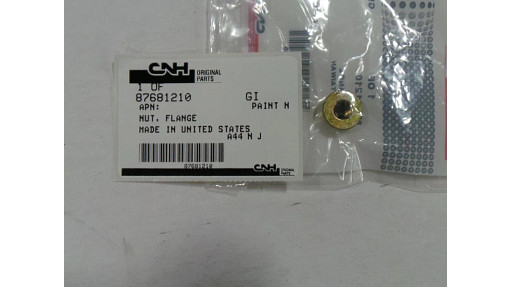

    FLANGE NUT M8 x 1.25, Cl 10;
  • 20
    72
    87681210
    FLANGE NUT M8 x 1.25, Cl 10;
  • 21
    8
    84050517

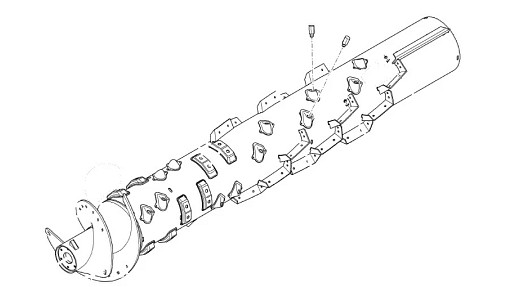

    DIA KIT, HARVESTER; Set of 3, 57MM Length : 24 short fingers required
  • 21
    8
    84050517
    DIA KIT, HARVESTER; Set of 3, 57MM Length : 24 short fingers required
  • 22
    10
    87011974
    BEATER;
  • 23
    2
    NSS
    NOT SOLD SEPARAT;
  • 24
    2
    9800346

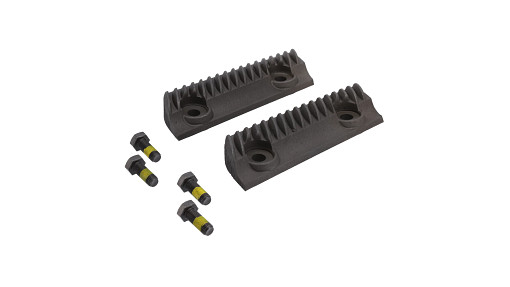

    RASP BAR SET; RH, Set of 2: 6 rasp bars required, Incl 28;HARD THRESHING
  • 25
    2
    9800347

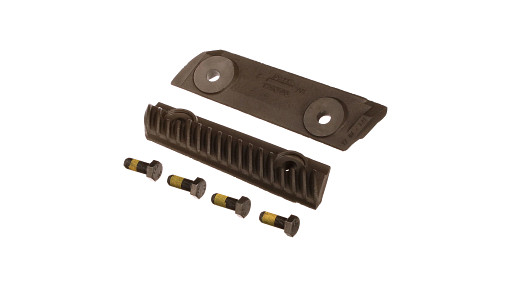

    RASP BAR SET; LH, Set of 2: 6 rasp bars required, Incl 28;HARD THRESHING
  • 26
    1
    86512697

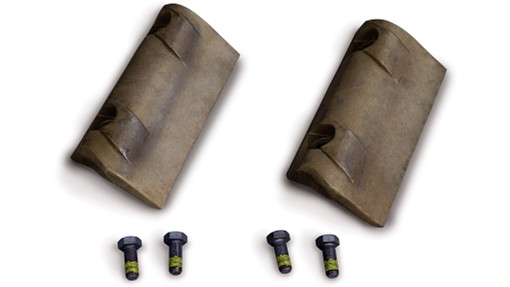

    RASP BAR SET; LH, Set of 2: 2 rasp bars required, Incl 33;FOR SMOOTH VERSION ONLY
  • 27
    1
    86512698

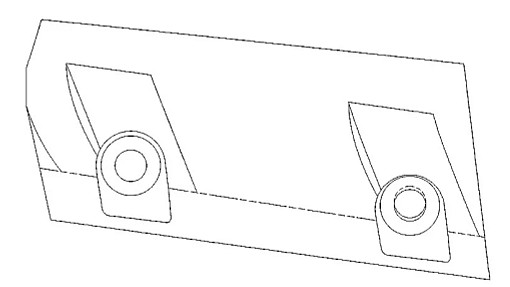

    RASP BAR SET; RH, Set of 2: 2 rasp bars required, Incl 33;FOR SMOOTH VERSION ONLY
  • 28
    4
    87742345

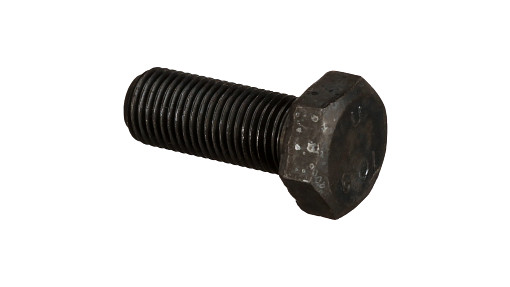

    BOLT Hex, M14 x 1.5 x 35mm, Cl 10.9, Full Thd; 24 bolts required;HARD THRESHING
  • 29
    12
    87037846
    SHIM 41.1mm OD x 1.7mm Thk; HARD THRESHING
  • 30
    24
    87742345
    BOLT Hex, M14 x 1.5 x 35mm, Cl 10.9, Full Thd;
  • 30
    24
    87742345
    BOLT Hex, M14 x 1.5 x 35mm, Cl 10.9, Full Thd;
  • 32
    24
    87742345
    BOLT Hex, M14 x 1.5 x 35mm, Cl 10.9, Full Thd; HARD THRESHING
  • 33
    8
    89503097

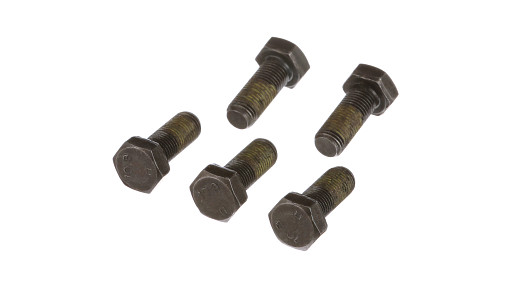

    BOLT Hex, M14 x 1.5 x 35mm, Cl 10.9; FOR SMOOTH VERSION ONLY
  • 34
    24
    9802757
    SHIM 41mm OD x 0.43mm Thk; HARD THRESHING
