05F01 - WATER PUMP, L565, LX565 & SL45B
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

SBA145017730R

Description

POMPE A EAU RENOVEE WATER PUMP; Assy., Includes: Ref. 2 thru 5


Alts

Select

Ref.

1

Qty

1

Availability

Part #

SBA145017730C

Description

CORE-WATER PUMP WATER PUMP; Assy., Includes: Ref. 2 thru 5


Alts

Select

Ref.

1

Qty

1

Availability

Part #

SBA145017730

Description

WATER PUMP; Assy., Includes: Ref. 2 thru 5


Alts

Select

Ref.

2

Qty

1

Availability

Part #

SBA145146320

Description

PLATE;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA145996680

Description

GASKET;


Alts

Select

Ref.

4

Qty

2

Availability

Part #

SBA064500030

Description

PLUG 3/8'';


Alts

Select

Ref.

5

Qty

5

Availability

Part #

SBA015300614

Description

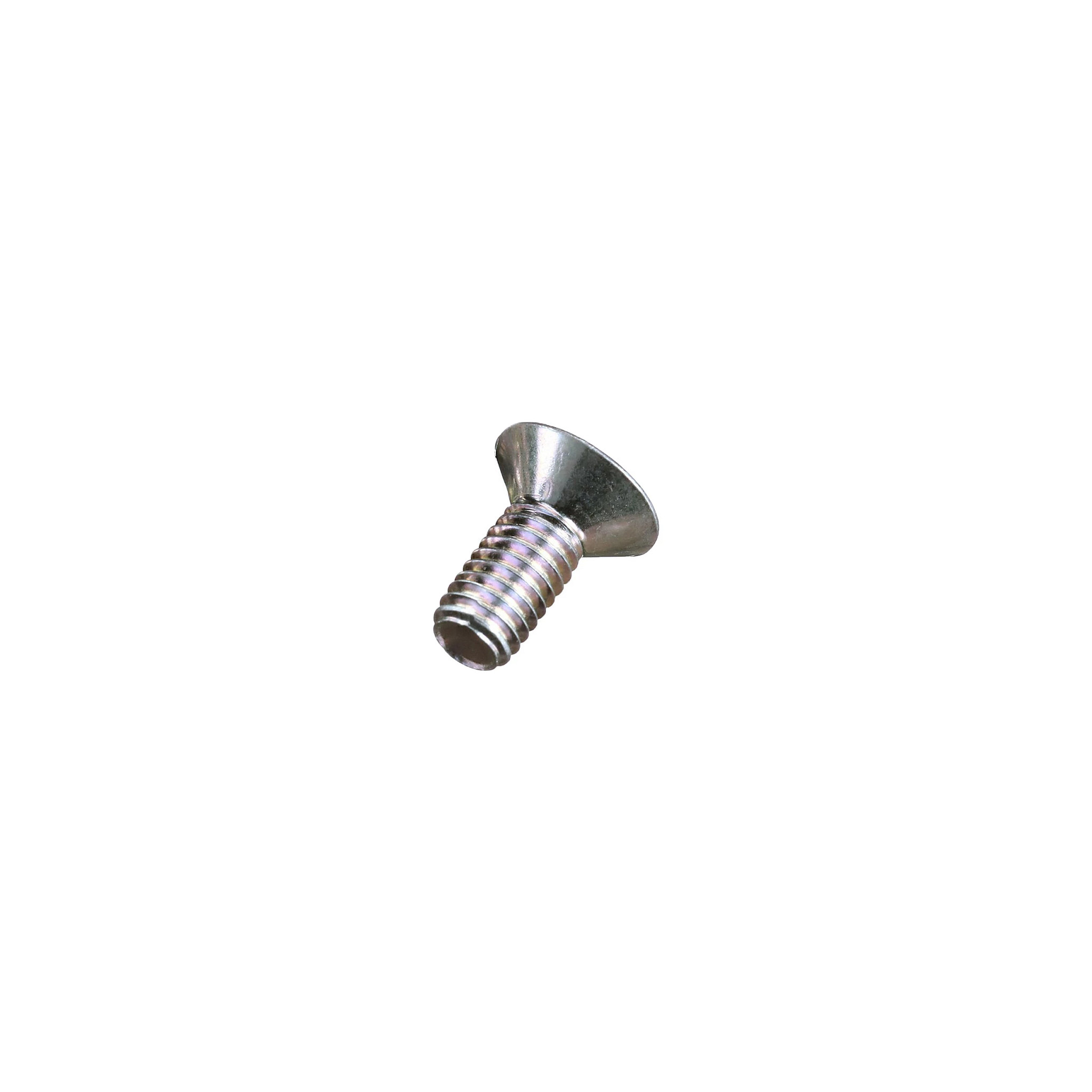

SCREW;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

SBA145996670

Description

GASKET;


Alts

Select

Ref.

7

Qty

4

Availability

Part #

SBA011310635

Description

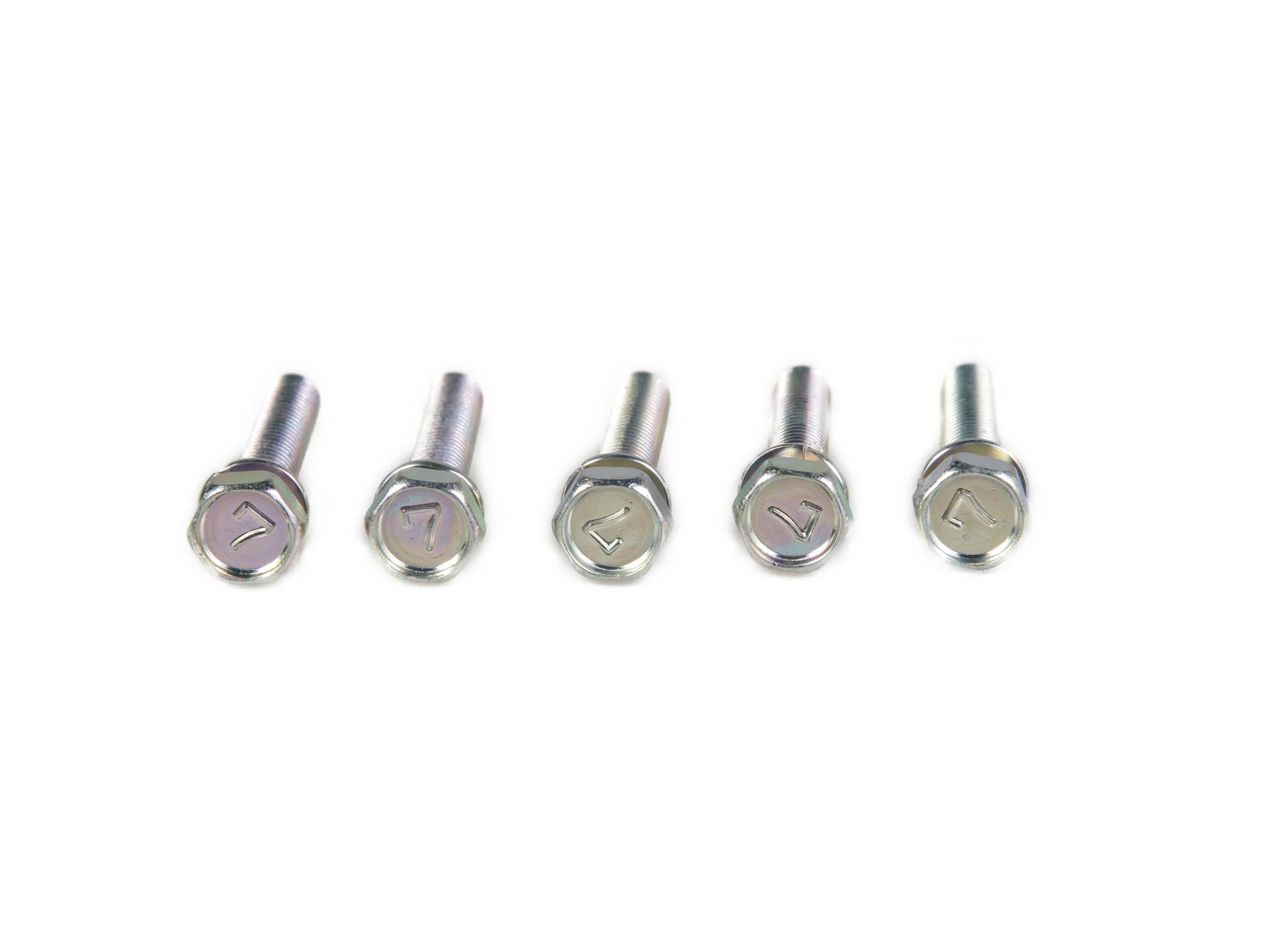

CAPTIVE WASHER SCREW Hex, M6 x 35, Cl 8.8; SCREW, CAPTIVE WASHER, Hex, M6 x 35, Cl 8.8


Alts

Select

Ref.

8

Qty

3

Availability

Part #

9804276

Description

FLANGE NUT Hex, M6 x 1, Cl 8;


Alts

Select

Ref.

9

Qty

2

Availability

Part #

SBA011310645

Description

CAPTIVE WASHER SCREW Hex, M6 x 45, Cl 8.8; SCREW, CAPTIVE WASHER, HH, CL8.8, M6 x 1 x 45


Alts

Select

Ref.

10

Qty

1

Availability

Part #

SBA145996710

Description

GASKET;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

SBA145206182

Description

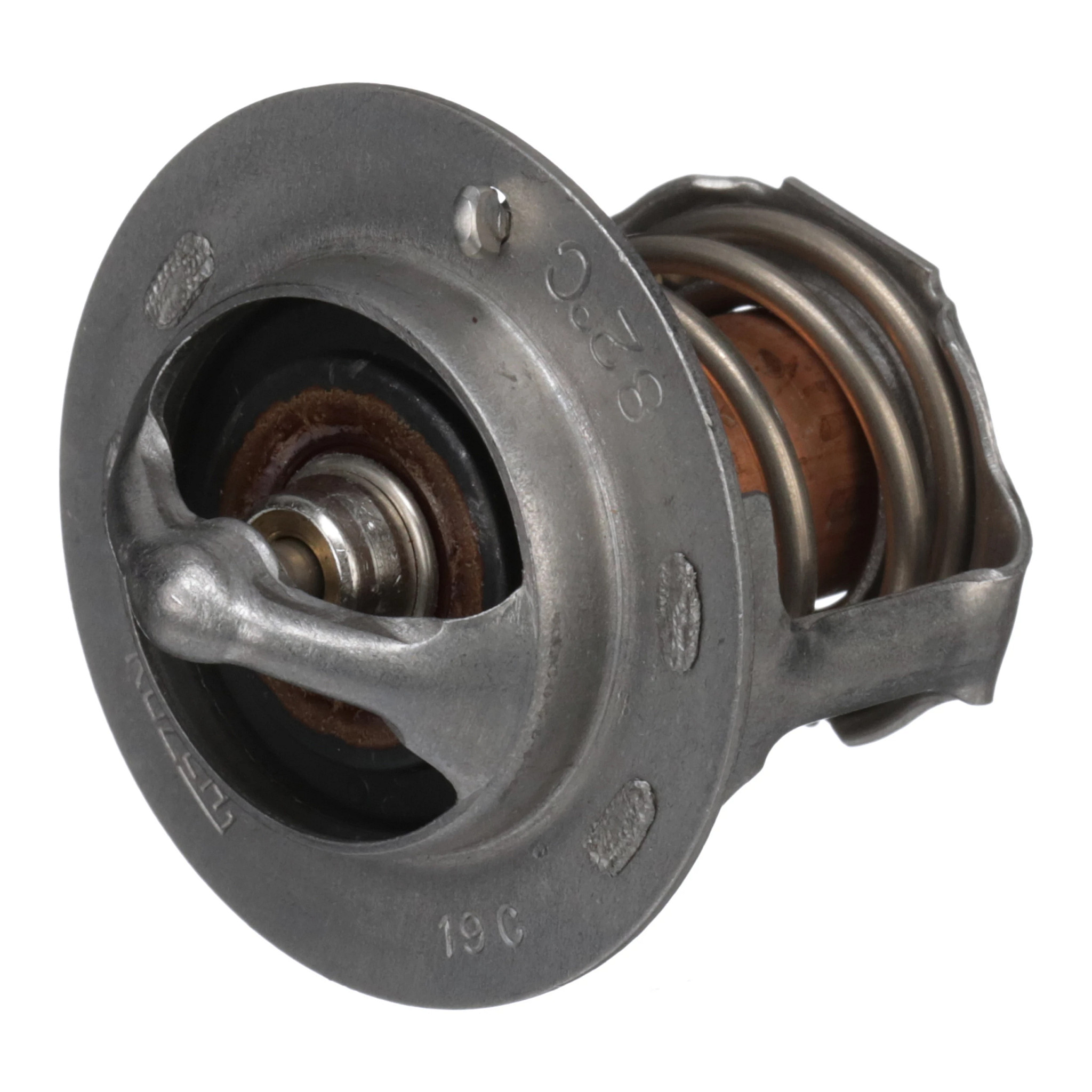

THERMOSTAT 82 Degrees C (180 Degrees F);


Alts

Select

Ref.

12

Qty

1

Availability

Part #

SBA145216470

Description

HOUSING; Thermostat


Alts

Select

Ref.

13

Qty

2

Availability

Part #

SBA012110645

Description

STUD; M6 x 45


Alts

Select

Ref.

14

Qty

1

Availability

Part #

SBA145536050

Description

FLEXIBLE; Rubber


Alts

Select

Ref.

15

Qty

2

Availability

Part #

SBA067100022

Description

BRIDE, FLEXIBLE; Clamp, Hose


Alts

Select

Ref.

16

Qty

1

Availability

Part #

SBA145226340

Description

COUVERCLE;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

SBA145996051

Description

GASKET;


Alts

Select

Ref.

18

Qty

2

Availability

Part #

SBA011510820

Description

CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5


Alts
