Ref.
Qty
Part #
Alts
Description
-

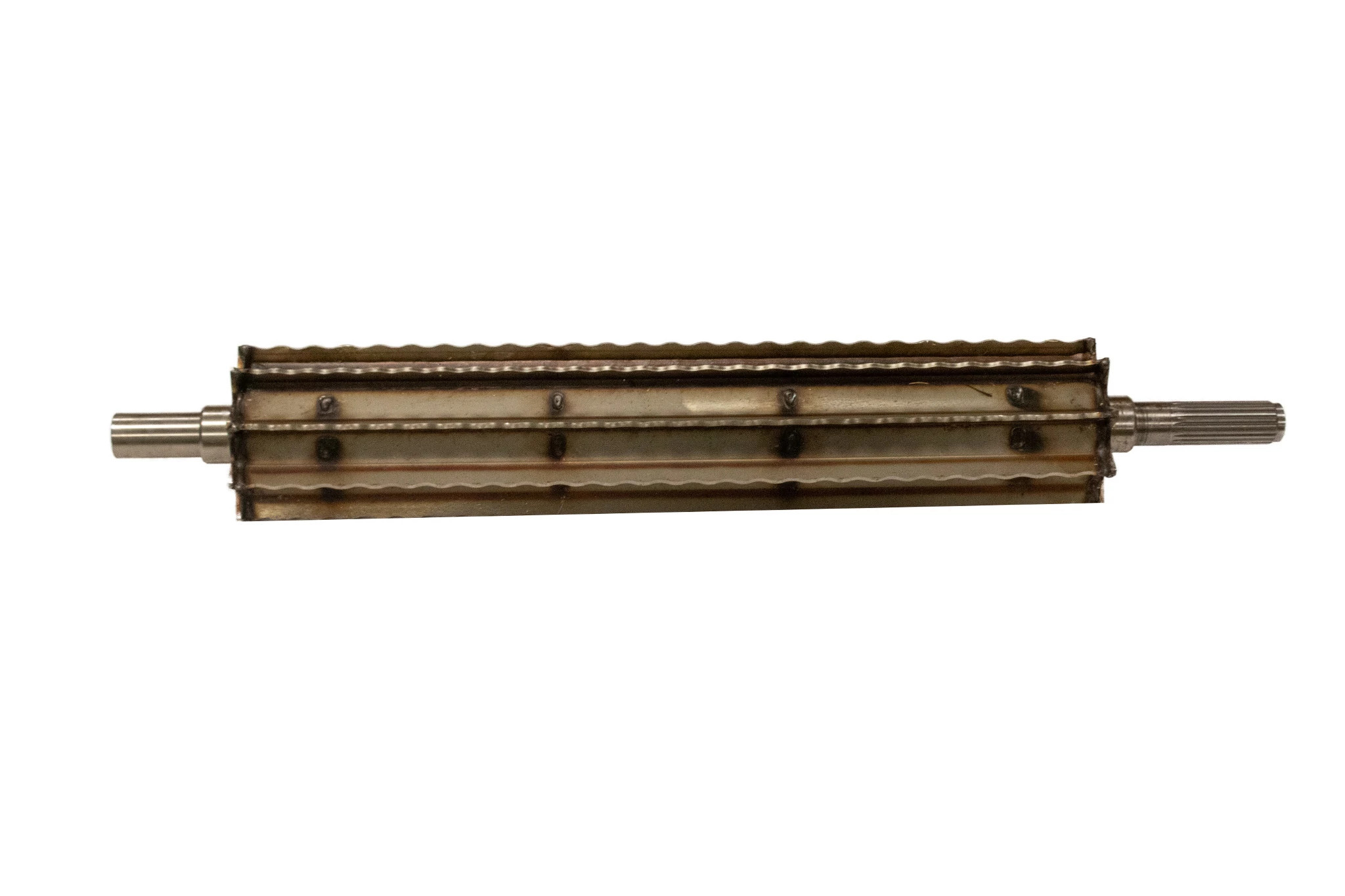

11FEED ROLLER;
-
22SPACER;
-
32O-RING 2mm Thk x 58mm ID, 70 Duro;
-
41RING;
-
51RING;
-
62SEALING WASHER 58mm ID x 80mm OD x 8mm Thk;
-
71O-RING 2mm Thk x 90mm ID, 70 Duro;
-
82SPACER;
-
94SEALING WASHER 58mm ID x 80mm OD x 8mm Thk;
-
105RING;
-
113SPHERICAL BEARING 45mm ID x 85mm OD x 23mm W;
-
122BUSHING 45mm ID x 50mm OD x 50mm L;
-
131ROLLER 325.7mm OD x 1159mm L; (SN Break) Up to C833
-
131ROLLER 324.7mm OD x 1167mm L; (SN Break) From D834
-

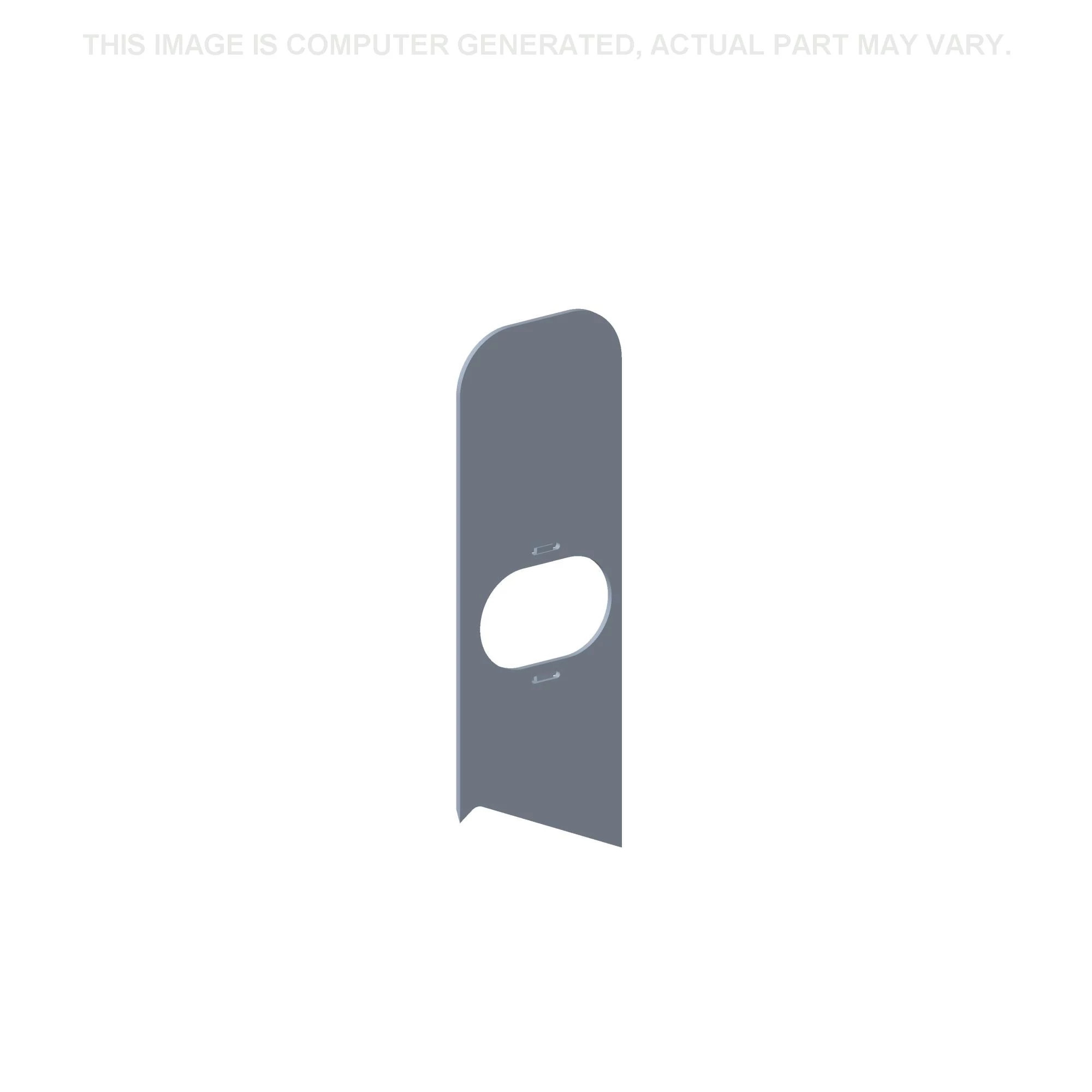

141PLATE;
-

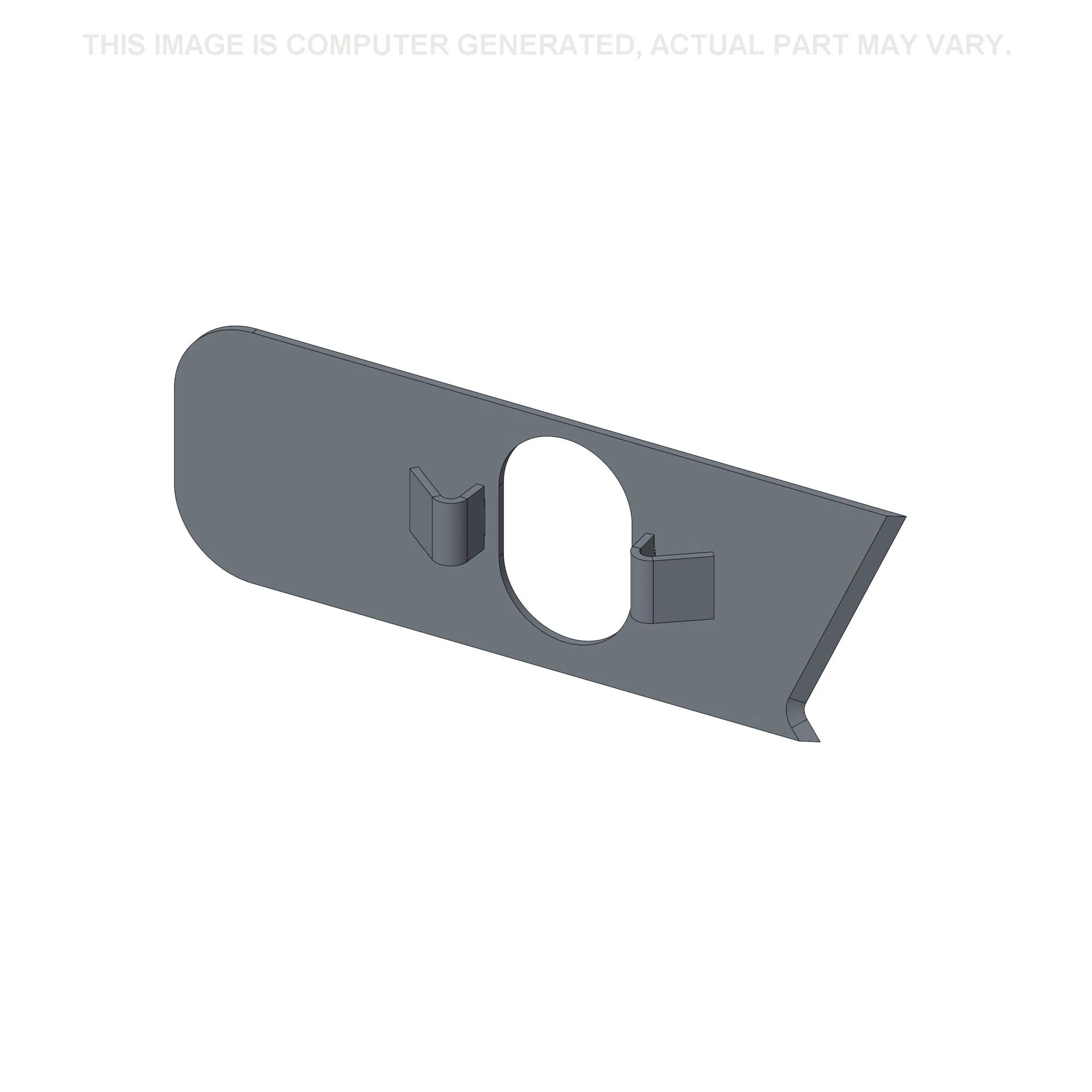

151PLATE;
-

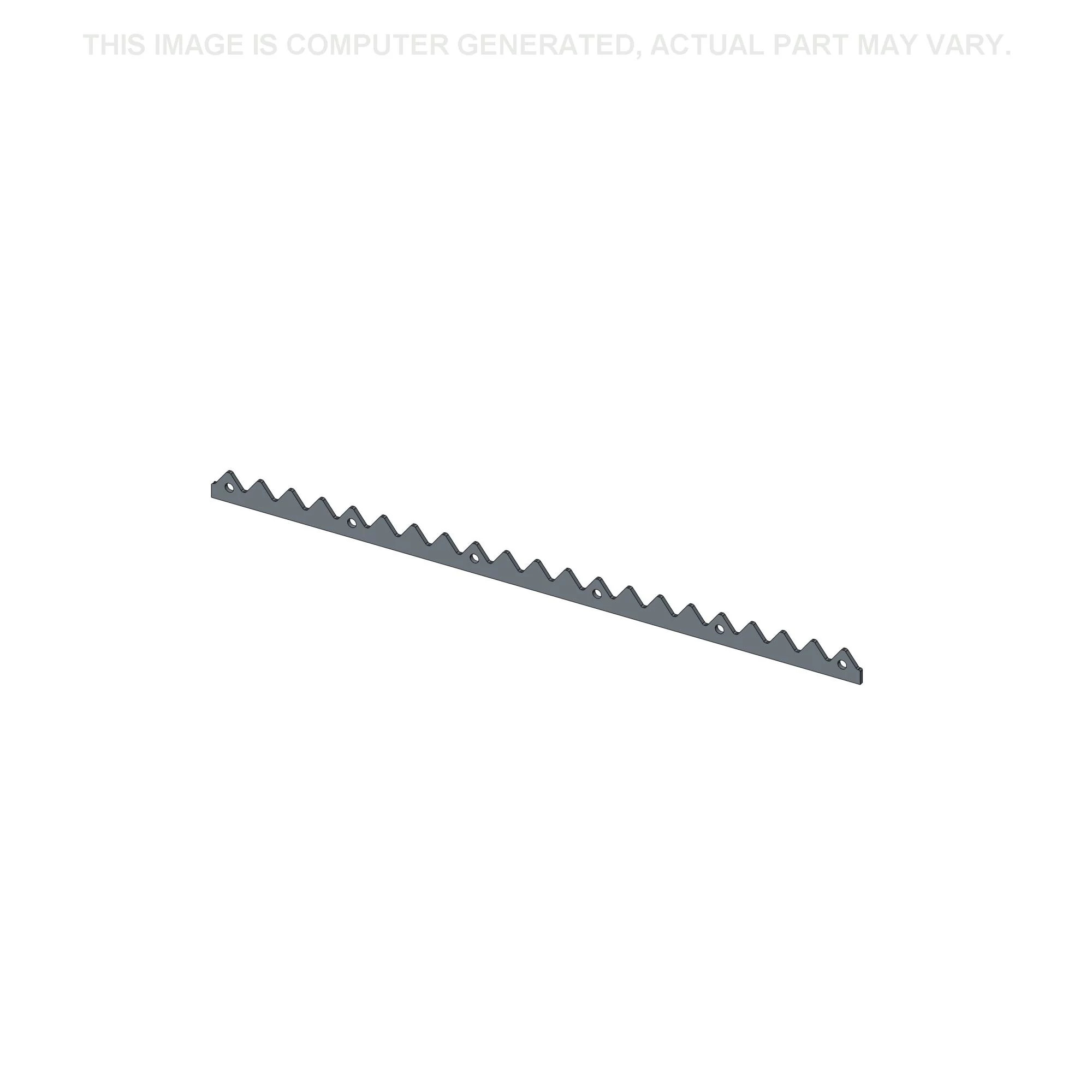

1610LATH;
-
1760NUT;
-
1760NUT M10, Cl 8.8;
-

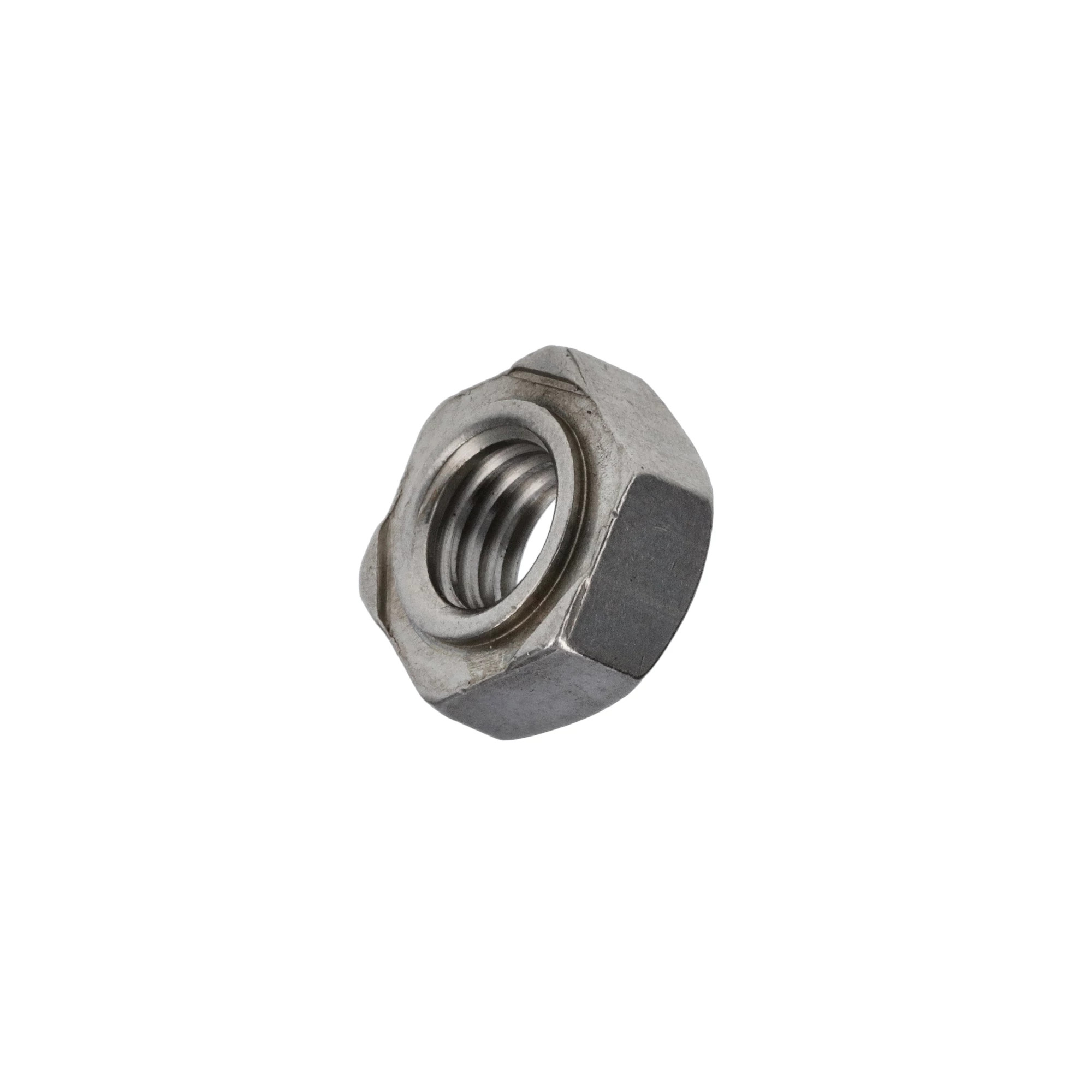

1760NUT Weld, M10;
-
1860BOLT Hex, M10 x 50mm, SST;
-
1860SCREW Hex, M10 x 45mm, SST;
-
1860BOLT Hex, M10 x 40mm, SST;
-
1910SLAT;
-
1910LATH;
-
2060NUT M10, Cl 8.8;
-
2060NUT Weld, M10;
-
2160SCREW M10 x 25mm;
-
2160SCREW Hex, M10 x 45mm, SST;
-
221SEALING RING 68mm ID x 85mm OD x 10mm Thk;
-
231BALL BEARING 55mm ID x 100mm OD x 21mm W; (SN Break) Up to C821
-
231BALL BEARING 55mm ID x 100mm OD x 21mm W; (SN Break) From D822
-
241CIRCLIP M55, Ext, PHC;
-
251SEALING RING;
Select All
Ref.
6Qty
2Availability
Part #
87351064Description
SEALING WASHER 58mm ID x 80mm OD x 8mm Thk;Img
Alts
Ref.
9Qty
4Availability
Part #
87351064Description
SEALING WASHER 58mm ID x 80mm OD x 8mm Thk;Img
Alts
Ref.
11Qty
3Availability
Part #
84007335Description
SPHERICAL BEARING 45mm ID x 85mm OD x 23mm W;Img
Alts
Ref.
13Qty
1Availability
Part #
87352797Description
ROLLER 325.7mm OD x 1159mm L; (SN Break) Up to C833Img
Alts
Ref.
13Qty
1Availability
Part #
84580385Description
ROLLER 324.7mm OD x 1167mm L; (SN Break) From D834Img
Alts
Ref.
22Qty
1Availability
Part #
84443163Description
SEALING RING 68mm ID x 85mm OD x 10mm Thk;Img
Alts
Ref.
23Qty
1Availability
Part #
327910Description

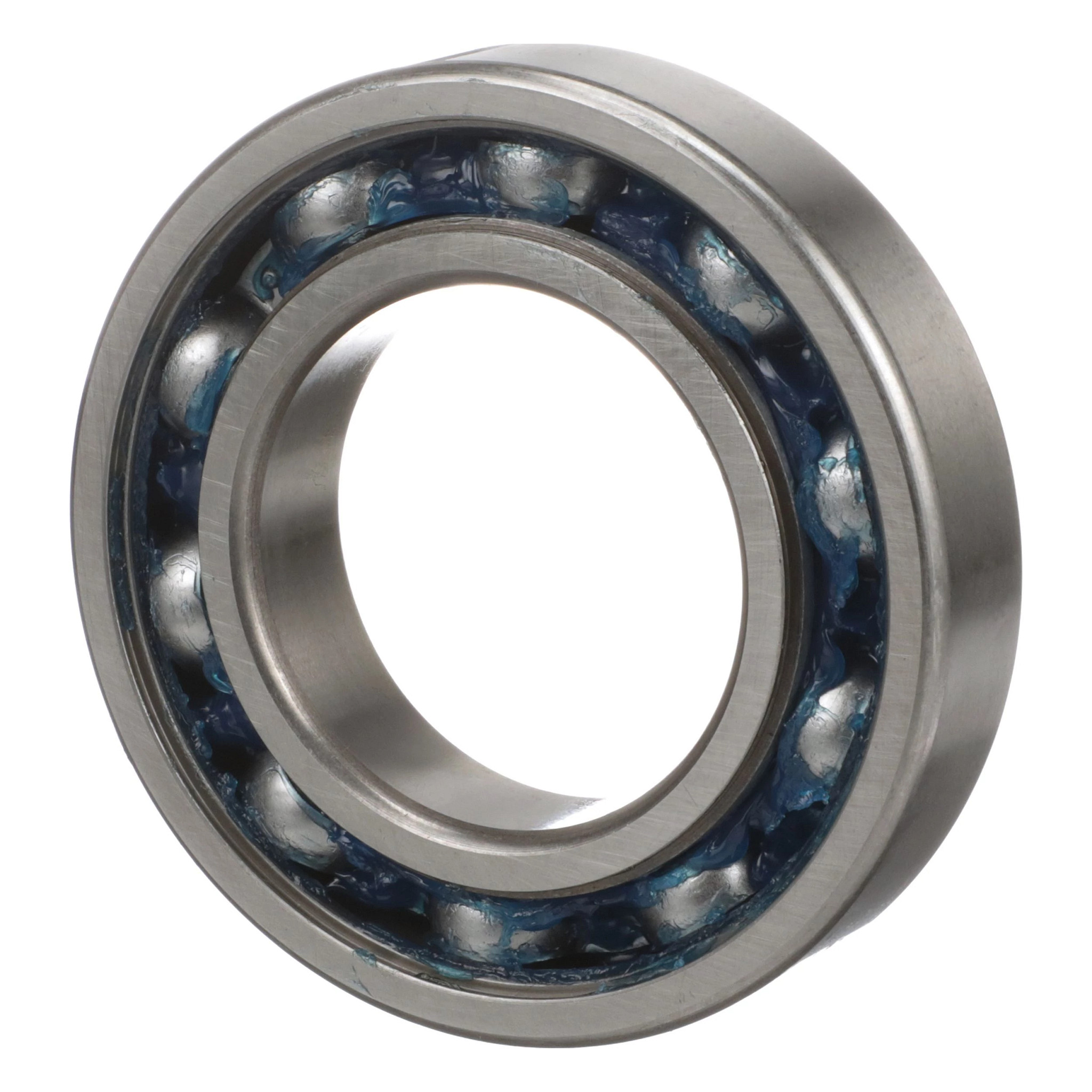

BALL BEARING 55mm ID x 100mm OD x 21mm W; (SN Break) Up to C821Img
Alts
Ref.
23Qty
1Availability
Part #
87562562Description
BALL BEARING 55mm ID x 100mm OD x 21mm W; (SN Break) From D822Img
Alts
