038 - MOWER GEARBOX & BLADES 44'' - 9607256 & 48'' - 9607257, 09SA1448 48'' U.S., 09SA4888 48'' U.K.
TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Fenêtre N° de série
Date de construction
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
  • 1
    1
    SBA610000330
    BOITE DE VITESSES; ASSEMBLY, Complete Includes: Ref. 2-32; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 2
    1
    SBA610460041
    CARTER; ( NO SNAP RING GROOVE ); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 3
    4
    N602550S36
    VIS M8 x 1.25 x 25mm; Screw, HH, W/Washer, CL 8.8, M8 x 1.25 x 25; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 4
    1
    SBA610600010
    COUVERCLE; Housing; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 4A
    1
    AUB141220
    ASPIRATEUR; BREATHER
  • 5
    1
    SBA610990160
    GASKET; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 6
    1
    370001
    CIRCLIP M22, Ext, PHC; RING, SNAP, M22, Ext; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 7
    1
    80037203
    ROULEMENT; Bearing, Ball; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 8
    1
    SBA613310060
    PIGNON; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 9
    AR
    SBA499280290
    CALE; t0.1; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 10
    AR
    SBA499280300
    CALE; t0.2; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 11
    1
    370018
    ANNEAU D'ARRET M72, Int, PHC; RING, SNAP, M72, Int; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 12
    1
    SBA198450531
    BOUCHON DE VIDANGE; ASSY.; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 13
    1
    SBA052100180
    JOINT TORIQUE; O- ring
  • 14
    3
    33915
    ANNEAU D'ARRET 2.062'', Int, #206; Ring, Snap, 2.062'', Int, #206; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 15
    1
    SBA025100010
    RONDELLE D'ETANCHEIT 9.2mm ID x 17mm OD x 1.8mm Thk; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 16
    1
    SBA064600010
    BOUCHON; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 17
    3
    210041
    ROULEMENT A BILLES 25mm ID x 52mm OD x 15mm W; Bearing, Ball; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

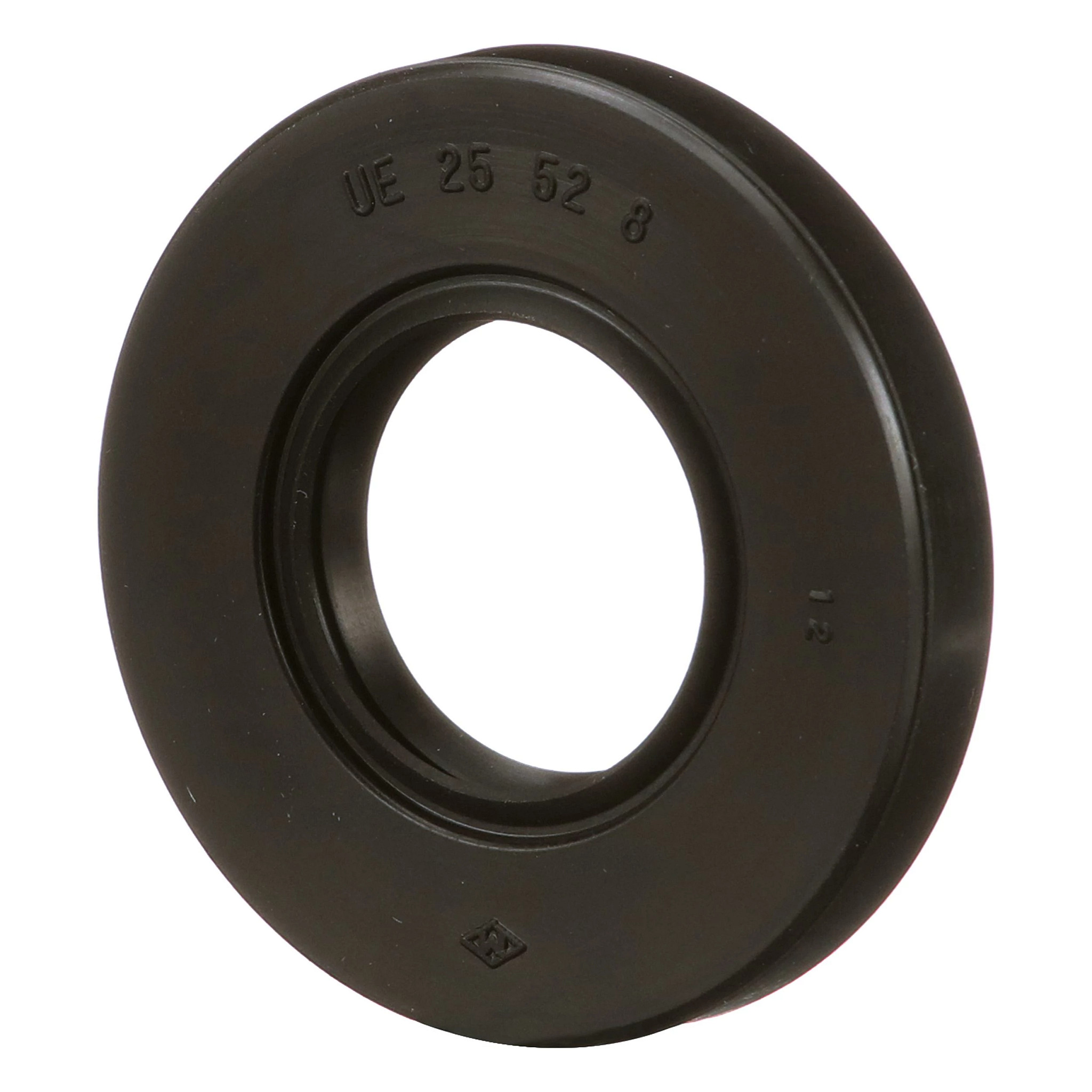

  • 18
    2
    SBA050209037
    SEAL; Oil; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 19
    1
    370002
    CIRCLIP M25, Ext, PHC; Ring, Snap, Ext, M25; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

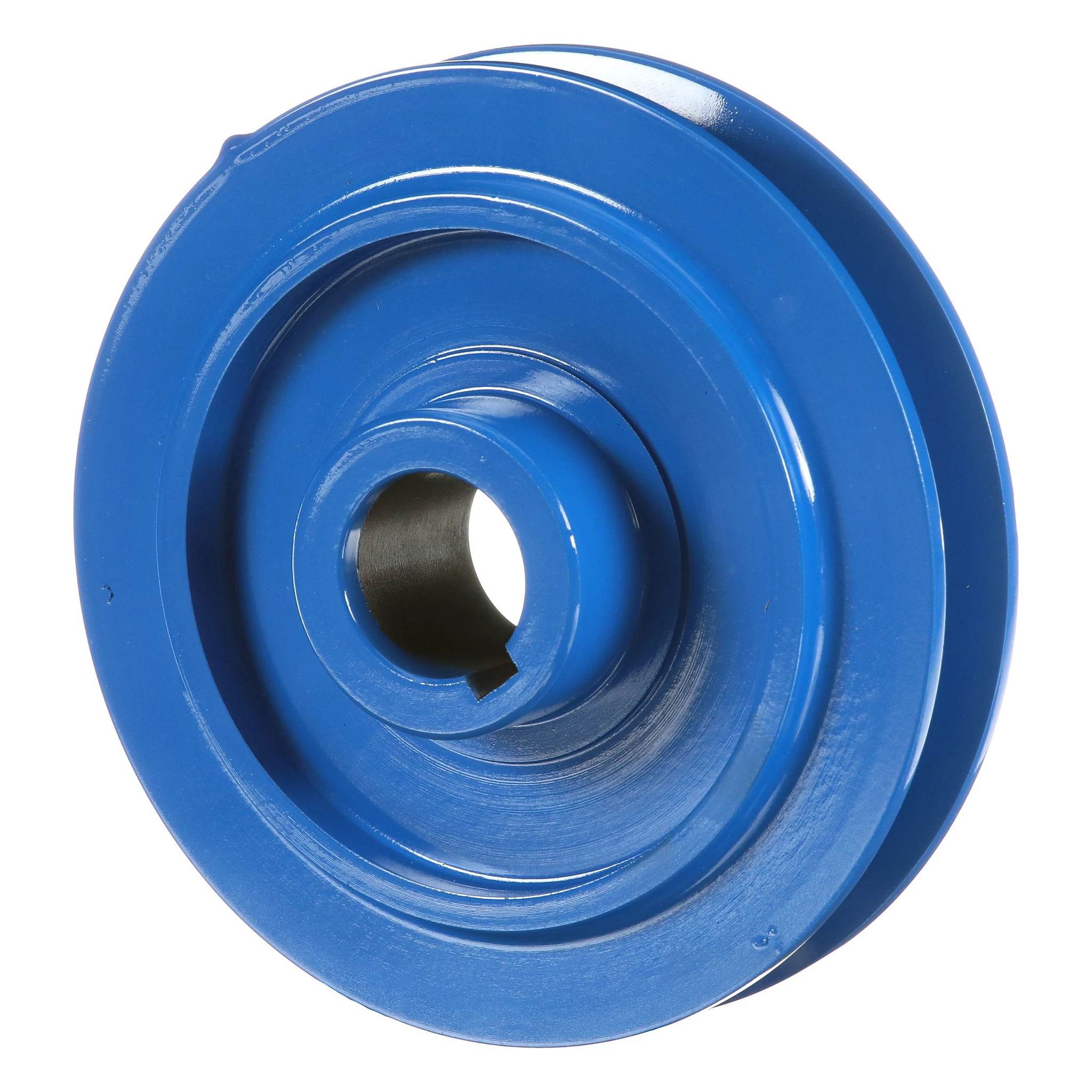

  • 20
    1
    SBA630110210
    POULIE; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 21
    3
    SBA040116008
    ROULEMENT 39.99mm ID x 68mm OD x 15mm W; BEARING, Ball; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 22
    3
    28042460
    ROULEMENT A BILLES 30mm ID x 55mm OD x 13mm W; BEARING, BALL; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 23
    3
    SBA499211550
    COLLIER; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 24
    1
    SBA610210080
    CARTER; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 25
    1
    SBA060639801
    GRAISSEUR; NIPPLE, Grease; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 26
    1
    SBA011310610
    VIS; M6 x 10; (Prod Date) From 01-Jan-1987
  • 27
    1
    SBA638360020
    COUVERCLE; PIPE; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 28
    1
    SBA613460200
    ARBRE; - 9''; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 29
    3
    SBA034109803
    CLE; 7 x 28; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 30
    1
    SBA613270222
    ARBRE; - 4.68''; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

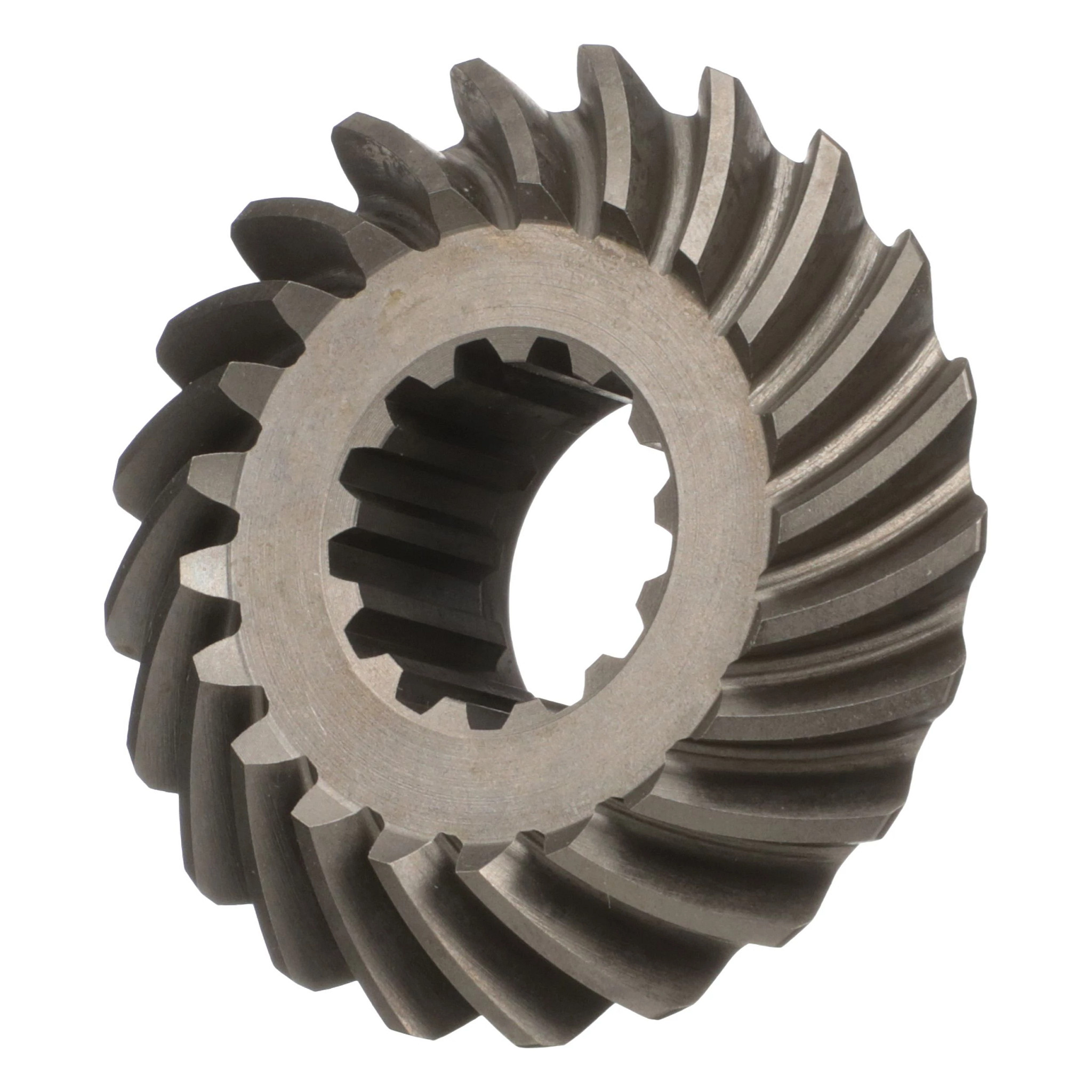

  • 31
    1
    SBA613310070
    PIGNON; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 32
    3
    SBA050209828
    PROTECTION DE JOINT; SEAL, Oil; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 33
    1
    SBA030102520
    GOUPILLE FENDUE; PIN, Cotter 2.5 x 20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 34
    1
    86511315
    RONDELLE 8.4mm ID x 16mm OD x 1.8mm Thk; - 48'' Mower M8 x 16 x 1.6; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 35
    1
    SBA030102516
    GOUPILLE FENDUE; PIN, Split 2.5x15 - 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 36
    1
    SBA010109897
    VIS; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 37
    1
    SBA031319827
    GOUPILLE FENDUE; PIN - 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 38
    1
    SBA697600040
    PRISE DE FORCE; JOINT, Universal Includes: Ref. 39-43; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 38A
    1
    SBA697600040
    PRISE DE FORCE; JOINT, Universal (PTO Shaft) Includes: Ref. 39-43, 76-80, 84-85;44'' - 87/, 48'' - 11-87/; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

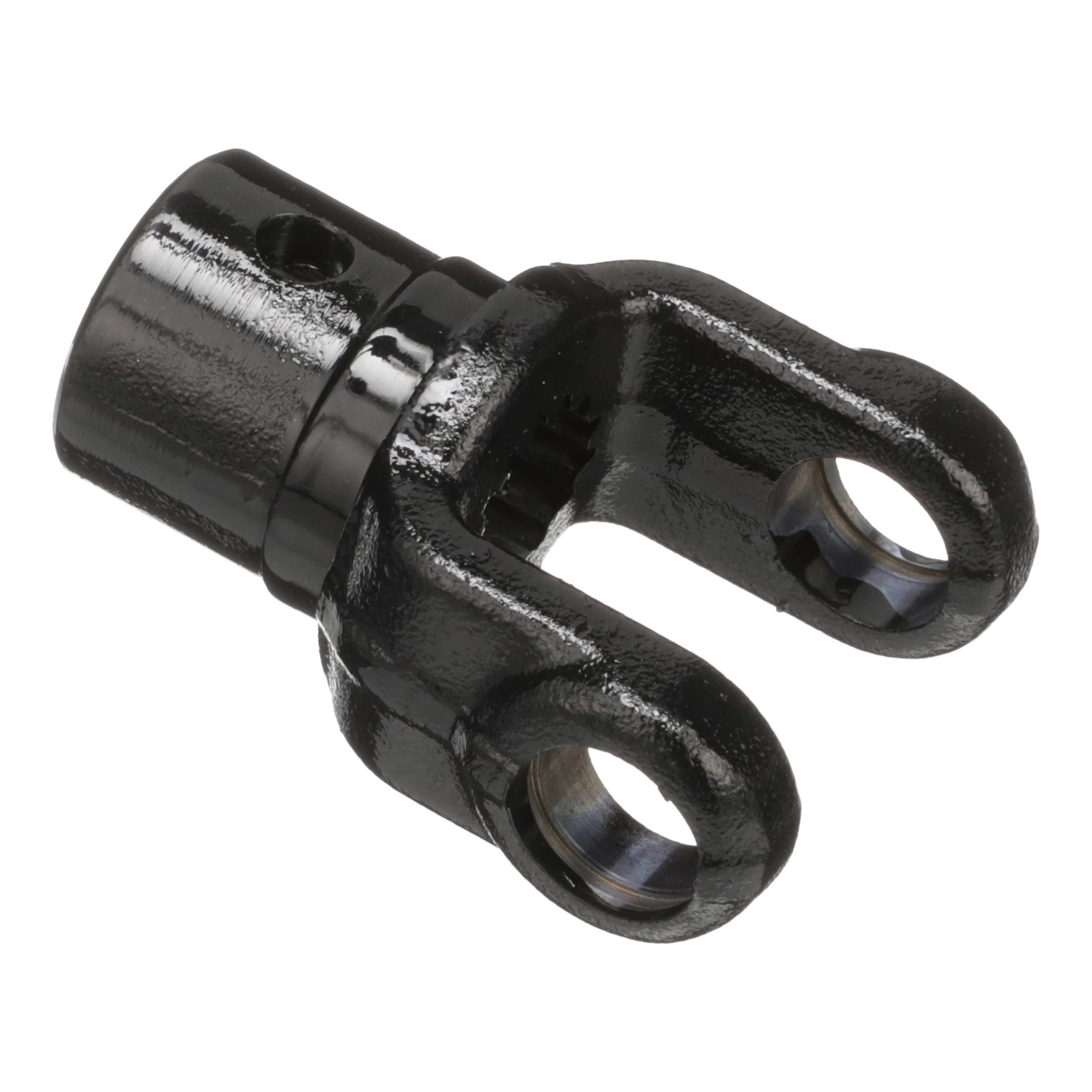

  • 39
    2
    SBA697710010
    CHAPE; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 40
    8
    505712
    ANNEAU D'ARRET M20, Int; Ring, Retaining, M20 D; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

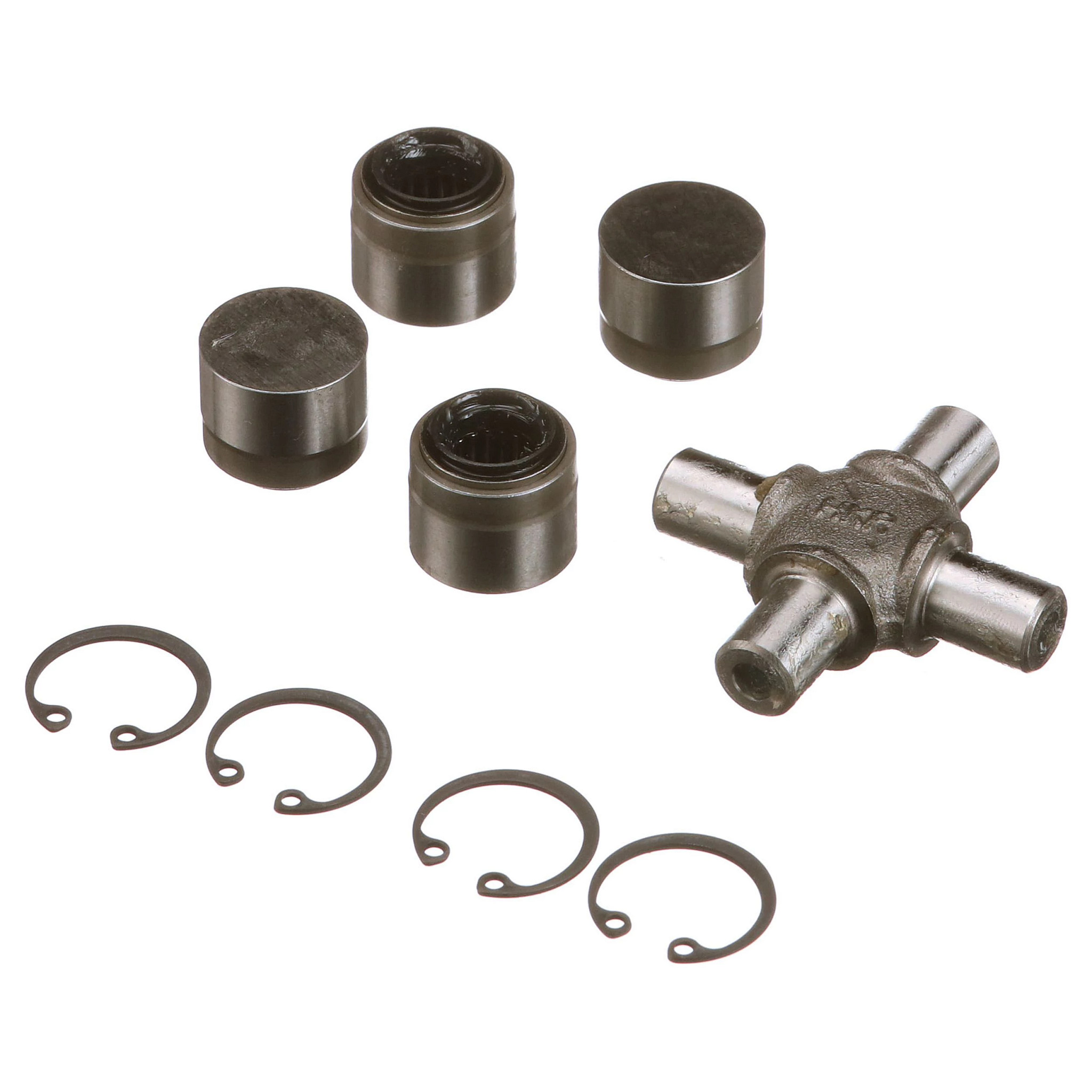

  • 41
    2
    SBA518120120
    CROISILLON; CROSS KIT; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 42
    1
    SBA697710120
    TUBE 142 mm L; ASSEMBLY - 48'' Mower, 142mm;When Replacing These Parts In OLD Style Universal Joint, (SBA-697600010) w/New Style Universal Joint, P/N SBA-697600010, W/New Style Universal Joint, P/N SBA-697600011, Ref. 42 & 43 must both be replaced.; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 42
    1
    SBA697710100
    TUBE 142 mm L; ASSEMBLY, 95mm;44'' - 87/, 48'' - 11-87/; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 43
    1
    SBA697710021
    CHAPE; SHAFT ASSEMBLY - 48'' Mower;When Replacing These Parts In OLD Style Universal Joint, (SBA-697600010) w/New Style Universal Joint, P/N SBA-697600010, W/New Style Universal Joint, P/N SBA-697600011, Ref. 42 & 43 must both be replaced.; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 43
    1
    SBA697710090
    CHAPE; SHAFT ASSEMBLY;44'' - 87/, 48'' - 11-87/; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 44
    1
    SBA697760041
    JOINT EN FEUTRE; FELT; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 45
    1
    SBA697760070
    JOINT EN FEUTRE; FELT; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 46
    1
    SBA697760051
    JOINT EN FEUTRE; FELT; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 47
    1
    SBA630250110
    COUVERCLE; Belt L.H. - 44'' Mower; (Prod Date) Between 01-Jan-1987 and 30-Nov-1987
  • 47
    1
    SBA630250191
    COUVERCLE; Belt, LH - 44'' Mower; (Prod Date) Between 01-Dec-1987 and 31-Dec-1991
  • 47
    1
    SBA630250070
    COUVERCLE; Belt L.H. - 48'' Mower; (Prod Date) Between 01-Jan-1987 and 30-Nov-1987
  • 47
    1
    SBA630250150
    COUVERCLE; Belt - L.H. - 48'' Mower; (Prod Date) Between 01-Dec-1987 and 31-Dec-1991
  • 48
    13
    86511315
    RONDELLE 8.4mm ID x 16mm OD x 1.8mm Thk; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 49
    15
    80681
    RONDELLE FREIN 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 50
    12
    120104
    VIS Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20, 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 50A
    13
    89706690
    ECROU M8 x 1.25, Cl 8; 44'' - 87/, 48'' - 11-87/; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 51
    4
    43151
    VIS Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 52
    8
    412123
    RONDELLE FREIN 13.1mm ID x 21.1mm OD x 2.55mm Thk; WASHER, LOCK, M12 x 21 x 2.6 Thk; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

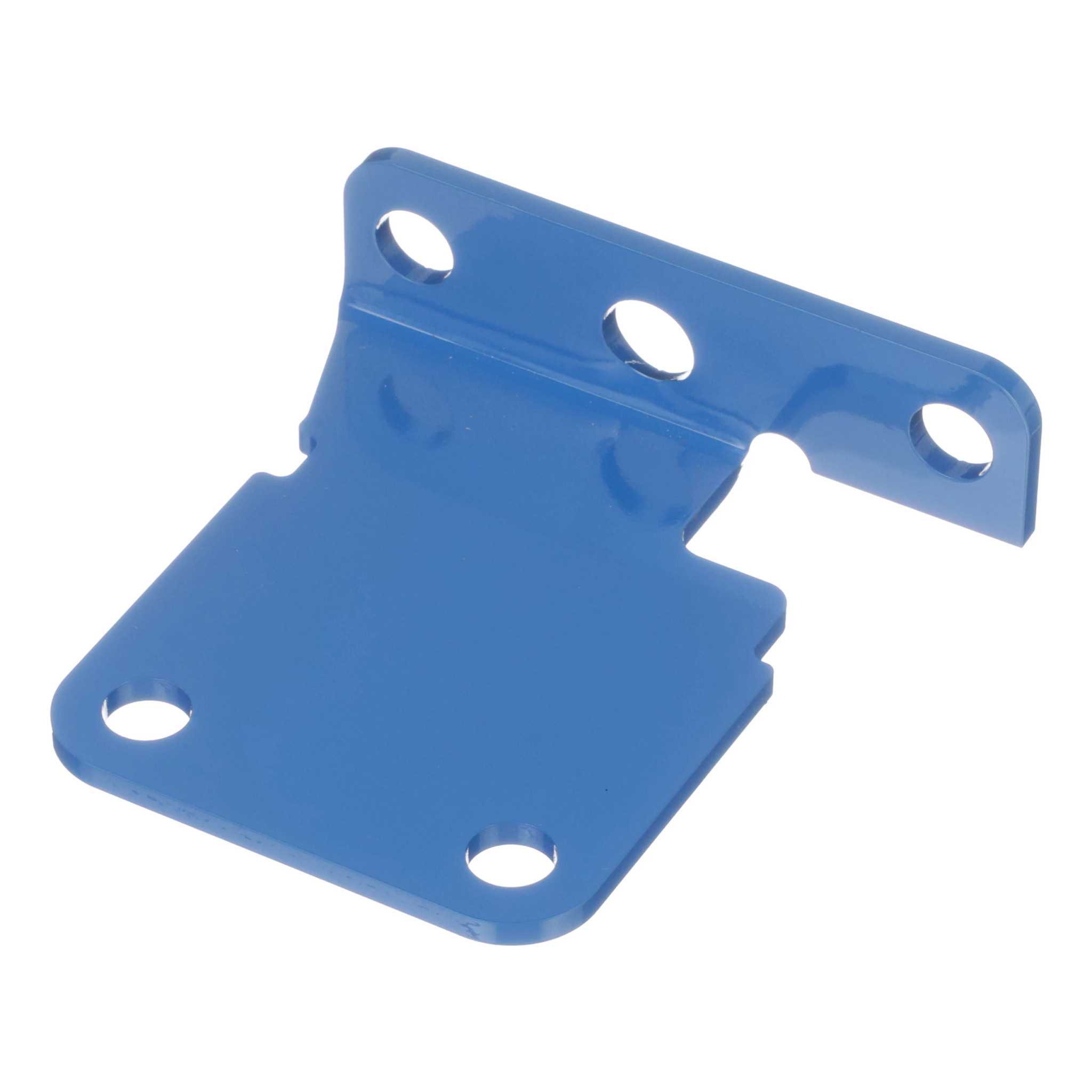

  • 53
    1
    SBA610560220
    PLAQUE; L.H.; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 54
    1
    SBA610560230
    PLAQUE; L.H.; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 55
    2
    SBA060620000
    GRAISSEUR; Fitting, Nipple, Lube, 1/8''; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 56
    2
    SBA020409801
    ECROU; M20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 57
    2
    SBA027109801
    RONDELLE FREIN; WASHER, Spring 20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 58
    2
    86511327
    RONDELLE 21mm ID x 37mm OD x 3mm Thk, CST, ZND; M20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 59
    2
    SBA630110220
    POULIE; ''B''; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 60
    1
    86514565
    V-BELT V-Belt, 0.66in W x 90.8in L; 44'' Mower, 91'' Overall Length; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 60
    1
    SBA080520093
    COURROIE; V-BELT - 48'' Mower, 93'' Overall Length;Dimension Of Previous ISM Part (080520093): 2362mm Long - 16.5mm Wide - 9.2mm Thick - 40<198> ''V''; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 61
    -
    100016
    ECROU Hex, M10 x 1.5, Cl 8, ZND; 48'' Mower M10, Cl 8; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 62
    1
    SBA638380010
    PLAQUE; - 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 62
    1
    SBA638300210
    PLAQUE; 44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 63
    11
    140028
    RONDELLE FREIN 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 64
    8
    BER43139
    VIS; HH, CL 8.8, M10 x 1.5 x 25; (Prod Date) From 01-Jan-1987
  • 65
    3
    43138
    VIS Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd; Hex, M10 x 20, 8.8, Full Thd, 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Oct-1987
  • 65
    3
    16043224
    VIS Hex, M8 x 16mm, Cl 8.8; BOLT, Hex, M8 x 16, 8.8, Full Thd;44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 66
    2
    SBA610210091
    CARTER; Spindle; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 67
    1
    SBA022100008
    ECROU; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 68
    2
    SBA613460210
    ARBRE; Spindle w/Key Way; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 69
    3
    SBA645310201
    LAME DE LABOURAGE; Blade, Mower, 44'';Refer to Component Index; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 69
    3
    9624502
    LAME DE VENTILATEUR; BLADE, 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 69
    3
    SBA645310130
    LAME DE LABOURAGE; BLADE, Low Lift (Use for Sandy Areas), 48'' MOWER;Refer to Component Index; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 71
    3
    SBA027100018
    RONDELLE; Spring 18, 48'' Mower
  • 70
    3
    SBA499212020
    ENTRETOISE; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

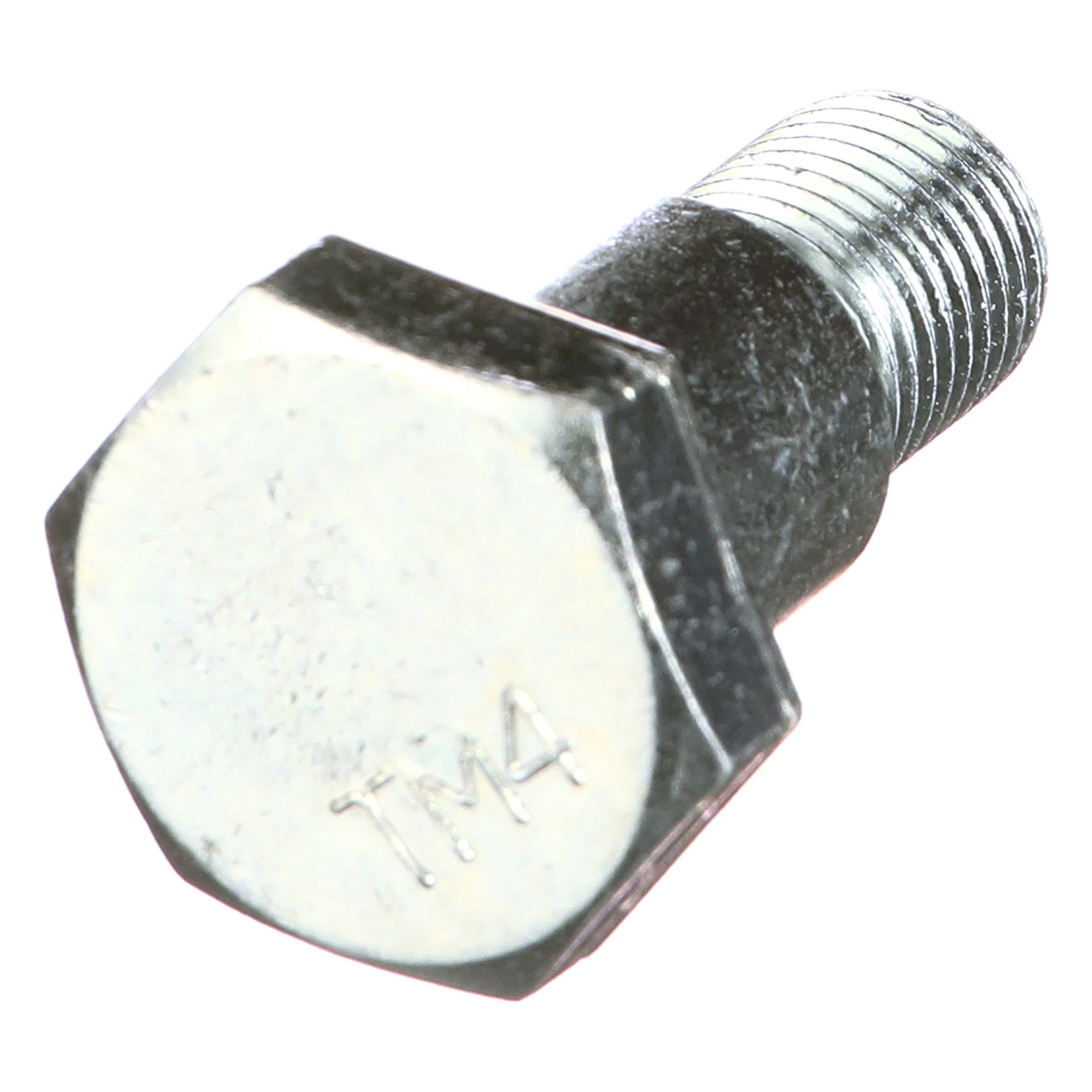

  • 72
    3
    SBA499430882
    VIS; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 73
    4
    86629541
    VIS Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd; HH, CL 8.8, M12 x 1.75 x 40; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 74
    2
    SBA498430160
    BOUCHON; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 75
    1
    SBA697760060
    JOINT EN FEUTRE; FELT; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 76
    1
    SBA697710110
    CHAPE; 44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 77
    2
    SBA048100012
    BILLE; Steel;44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 78
    1
    SBA498211420
    RESSORT; 44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 79
    1
    SBA499234160
    COLLIER; 44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 80
    1
    SBA036200040
    ANNEAU D'ARRET; RING, Snap;44'' (87/), 48'' (11-87/); (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 81
    1
    SBA697760031
    JOINT EN FEUTRE; FELT; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991

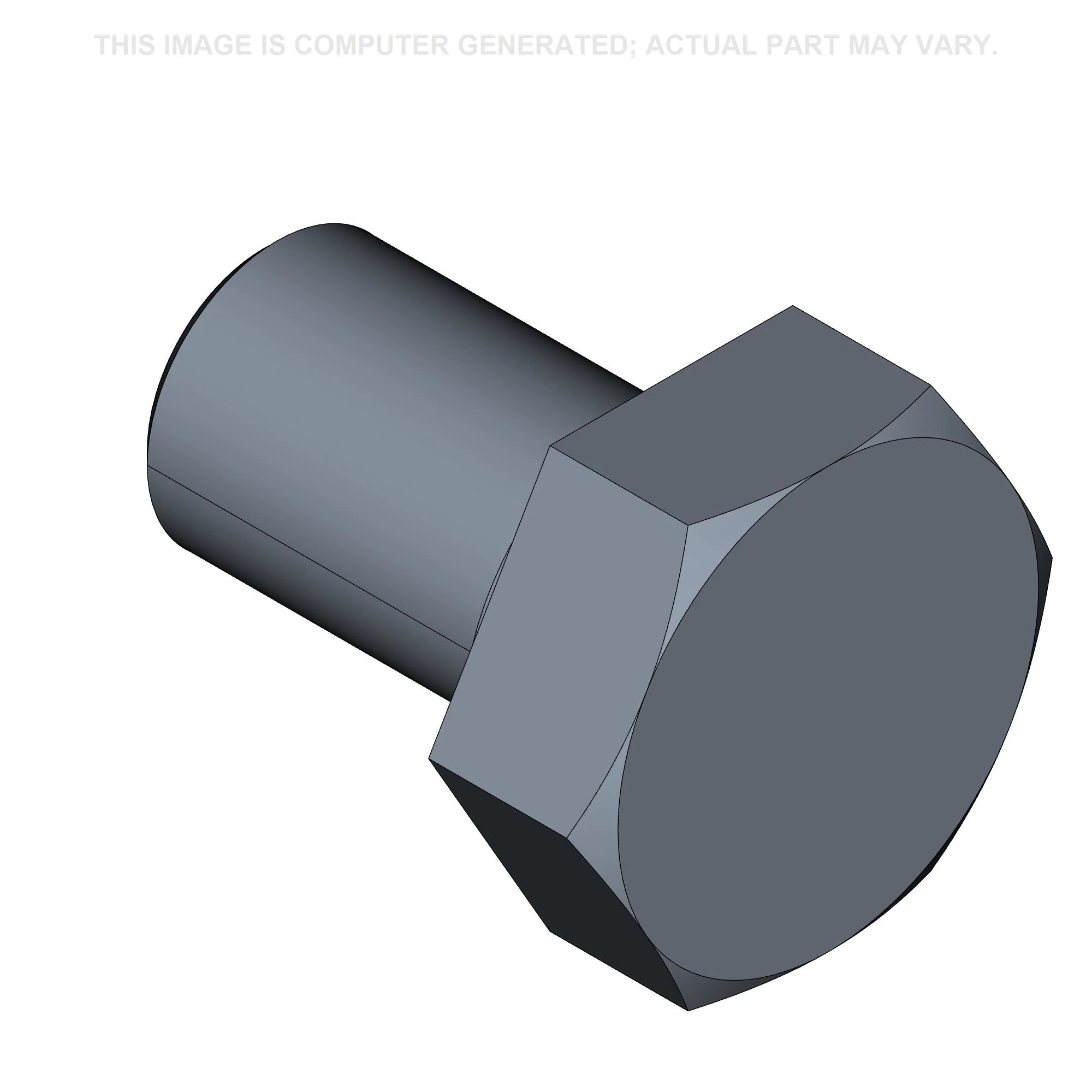

  • 82
    1
    336199
    VIS Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd; HH, CL 8.8, M8 x 1.25 x 12, Full Thd; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 83
    1
    SBA630250120
    COUVERCLE; Belt R.H. - 44'' Mower; (Prod Date) Between 01-Jan-1987 and 30-Nov-1987
  • 83
    1
    SBA630250200
    COUVERCLE; Belt R.H. - 44'' Mower; (Prod Date) Between 01-Dec-1987 and 31-Dec-1991
  • 83
    1
    SBA630250160
    COUVERCLE; Belt R.H. - 48'' Mower; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 84
    1
    SBA697600070
    JOINT UNIVERSEL; JOINT, F Includes: Ref. 40 thru 42, 76 thru 80; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
  • 85
    1
    SBA697600060
    JOINT UNIVERSEL; JOINT, R Includes: Ref. 39 thru 41 & 43; (Prod Date) Between 01-Jan-1987 and 31-Dec-1991
