A10 - ENGINE, INJECTION PUMP AND FUEL SYSTEM, 1210 AND 1212 TRACTORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1A
    1
    K942174
    PUMP; INJECTION PUMP, (Simms P5169 SPGE 4M 90S 250/1150) (1212)
  • 1B
    1
    K947199
    PUMP; INJECTION PUMP, (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 38
    1
    K946856
    ADAPTER; ADAPTOR, injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 39
    1
    K947354
    STRAP; ANCHOR BRACKET, stop control spring (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 40
    1
    K624926
    RESSORT; stop control (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 41
    4
    K600403
    VIS; 3/8 UNC x 1-3/8 in., adaptor to injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 4
    K19472
    WASHER; 3/8 in., adaptor to injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 4
    K19482
    SPRING WASHER; SPRING WASHER, 3/8 in., adaptor to injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 42
    3
    K608219
    STUD; 3/8 UNC x 1-1/4 in., adaptor to carrier plate (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 3
    280136
    NUT 3/8''-16, G8; Adaptor to carrier plate (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump) 3/8''-16, G8
  • 3
    K19482
    SPRING WASHER; SPRING WASHER, 3/8 in., adaptor to carrier plate (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 43
    1
    K947076
    FITTING; UNION, 14 mm x 1/2 UNF (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
  • 1
    K626891
    WASHER; SEALING WASHER
  • 1C
    1
    K922691
    SPARE PART; INJECTION PUMP, (Simms P5009/2 SPGE 4M 80S 250/1150) (1210)
  • 2
    1
    K11262
    KEY; Woodruff No. 505, pump gear
  • 3
    1
    K626429
    WASHER; TABWASHER, pump gear
  • 1
    K947197
    NUT; LOCKNUT, 14mm, pump gear (Bosch pump)
  • 1
    425-158

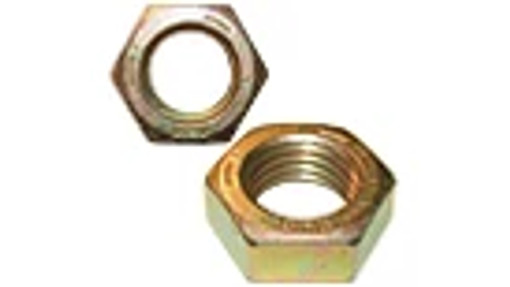

    JAM NUT Jam, 1/2''-20, G5; LOCKNUT, 1/2 UNF, Pump gear (Simms pump)
  • 4A
    1
    K946857
    GASKET; pump to carrier plate (Bosch pump)
  • 4B
    1
    K912485
    GASKET; pump to carrier plate (Simms pump)
  • 5
    3
    K608137
    GOUJON; 5/16 UNC x 1-7/8 in., pump to carrier plate
  • 3
    9635082
    NUT 5/16'' - 18, Gr 5; 5/16 UNC, pump to carrier plate
  • 3
    K19481
    SPRING WASHER; SPRING WASHER, 5/16 in., pump to carrier plate
  • 3
    K19471
    WASHER; 5/16 in., pump to carrier plate
  • 6
    4
    K942175
    NOZZLE CAP; INJECTOR, Includes: Ref. 7
  • 1
    K904261
    NOZZLE CAP; HOLDER, (CAV BKBL 97S 5152)
  • 1
    K942176
    NOZZLE CAP; NOZZLE, (CAV BDLL 140S 6592)
  • 7
    1
    K901092
    WASHER; COPPER WASHER
  • 8
    1
    K947123
    PIPE; FUEL PIPE, injection pump to No. 1 cylinder (Bosch pump)
  • 9
    1
    K947124
    PIPE; FUEL PIPE, injection pump to No. 2 cylinder (Bosch pump)
  • 10
    1
    K947125
    PIPE; FUEL PIPE, injection pump to No. 3 cylinder (Bosch pump)
  • 11
    1
    K947126
    PIPE; FUEL PIPE, injection pump to No. 4 cylinder (Bosch pump)
  • 8A
    1
    K914624
    PIPE; FUEL PIPE, injection pump to No. 1 cylinder (Simms pump)
  • 9A
    1
    K914626
    PIPE; FUEL PIPE, injection pump to No. 2 cylinder (Simms pump)
  • 10A
    1
    K914628
    PIPE; FUEL PIPE, injection pump to No. 3 cylinder (Simms pump)
  • 11A
    1
    K914630
    PIPE; FUEL PIPE, injection pump to No. 4 cylinder (Simms pump)
  • 8
    K900845
    NUT; UNION NUT, injector pipes
  • 8
    K947203
    FERRULE; OLIVE, 0.218 in., injector pipes (to suit pipe diameter)
  • 8
    K900846
    FERRULE; OLIVE, 0.228 in., injector pipes (to suit pipe diameter)
  • 12
    4
    K14673
    CLIP; injector pipes
  • 13
    4
    K12217
    SCREW 0.185'' x 5/8''; 2BA x 5/8 in., injector pipes
  • 4
    K11109
    NUT; 2 BA, injector pipes
  • 4
    K19488
    SPRING WASHER; SPRING WASHER, 3/16 in., injector pipes
  • 14
    1
    K906708
    FILTER; FUEL FILTER, complete (Purolator APF62900), Includes: Ref. 15 - 48 and aluminum washer
  • 1
    K962263
    COVER; FILTER HEAD
  • 15
    2
    K960911
    FILTRE A CARBURANT Single pkg qty. For multi pkg [qty.10] order K960911MP; ELEMENT
  • 16
    4
    K960936
    ANNEAU; SEALING WASHER, (supplied with element)
  • 50
    2
    K600360
    VIS; 5/16 UNC x 4-3/4 in.
  • 2
    K963409
    RING; SEAL, 5/16 in.
  • 17
    2
    K960937
    O-RING; 'O' RING, 1/2 in. internal dia.
  • 47
    2
    K962264
    COVER; BASE
  • 48
    1
    K962348
    SCREW; VENT PLUG, 5/16 BSF
  • 1
    K14734
    WASHER; ALUMINUM WASHER, replaces K626856
  • 49
    1
    K619541
    PLUG; 1/2 UNF, fuel filter;Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 1
    K15735
    WASHER; SEALING WASHER, 1/2 in., fuel filter;Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 18
    2
    K600406
    BOLT; 3/8 UNC x 1-3/4 in., filter to cylinder head
  • 2
    K19482
    SPRING WASHER; SPRING WASHER, 3/8 in., filter to cylinder head
  • 19
    2
    K627042
    BUSHING; DISTANCE PIECE, filter to cylinder head
  • 20A
    1
    K944997
    PUMP; FUEL FEED PUMP, (AC-Delco E/FP63154/B), Includes: Ref. 21 - 22 and diaphragm;Used on model 1210, S/N 725855 and after;Used on model 1212, S/N 1002822 and after
  • 20B
    1
    K909944
    POMPE; FUEL FEED PUMP, (AC-Delco E/FP63154/A) (K944997 will be supplied in lieu), Includes: Ref. 21 - 22 and diaphragm;Used on model 1210, up to S/N 725855;Used on model 1212, up to S/N 1002822
  • 1
    K961675
    FILTER SCREEN; FILTER GAUZE
  • 21
    1
    K66442
    FILTER BOWL;
  • 1
    K961674
    SEAL; GASKET
  • 22
    1
    K961676
    BAIL; STIRRUP AND SCREW
  • 1
    K911917
    DIAPHRAGM; Bosch Fuel Pumps see P B 14-79;K956796. K956797, K964855.;Bleed Off Screw for this Fuel System is part number K962348.
  • 23
    1
    K902136
    GASKET; feed pump to cylinder block
  • 24
    2
    K602807
    SCREW; SETSCREW, 5/16 UNC x 1-1/4 in., feed pump to cylinder block
  • 2
    K14988
    WASHER; COPPER-ASBESTOS WASHER, 5/16 in., feed pump to cylinder block
  • 2
    K19471
    WASHER; 5/16 in., feed pump to cylinder block
  • 25
    1
    K911928
    PUSH ROD 9.51mm OD x 35.99mm L; PUSH ROD, feed pump
  • 26
    1
    K947127
    PIPE; FUEL PIPE, filter to injection pump (Bosch pump)
  • 26A
    1
    K912488
    PIPE; FUEL PIPE, filter to injection pump (Simms pump)
  • 27A
    1
    K944999
    FUEL TUBE 0.25'' OD x 14.531, 6.562'' L; FUEL PIPE, feed pump to filter, use with K944997;Used on model 1210, S/N 725855 and after;Used on model 1212, S/N 1002822 and after
  • 27B
    1
    K909952
    PIPE; FUEL PIPE, feed pump to filter, use with K909944;Used on model 1210, up to S/N 725855;Used on model 1212, up to S/N 1002822
  • 28
    1
    K621603
    CLIP; fuel pipe to manifold stud
  • 29A
    1
    K944998
    PIPE; FUEL PIPE, tank to feed pump;Used on model 1210, S/N 725855 and after;Used on model 1212, S/N 1002822 and after
  • 29B
    1
    K917153
    PIPE; FUEL PIPE, tank to feed pump;Used on model 1210, up to S/N 725855;Used on model 1212, up to S/N 1002822
  • 30
    1
    K907037
    FITTING; FUEL PIPE;Used on model 1210, up to S/N E25389;Used on model 1210 (Bosch), up to S/N E24079;Used on model 1212, up to S/N E18025
  • 31A
    1
    K947870
    PIPE; LEAK-OFF PIPE, injectors;31a is shown in the book.;Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 44A
    1
    K947871
    PIPE; FUEL PIPE, pump leak-off to injector leak-off (Simms);Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 45A
    1
    K626068
    FITTING; UNION, 1/8 BSP x 8mm x 1mm, fuel pump (Simms)
  • 1
    K15734
    WASHER; 5/16 in. (Simms)
  • 46A
    1
    K621707
    CLIP; PIPE CLIP, manifold (Simms)
  • 44B
    1
    K947868
    PIPE; FUEL PIPE, pump leak-off to injector leak-off (Bosch);Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 45B
    1
    K947869
    FITTING; UNION, 14mm x 1/8 BSP (Bosch)
  • 1
    K626891
    WASHER; (Bosch)
  • 46B
    1
    K621610
    CLIP; PIPE CLIP, manifold (Bosch)
  • 31B
    1
    K915815
    PIPE; LEAK-OFF PIPE, injectors;Used on model 1210, up to S/N E25389;Used on model 1210 (Bosch), up to S/N E24079;Used on model 1212, up to S/N E18025
  • 32A
    1
    K947872
    PIPE; FUEL PIPE;Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 1
    K618901
    ADAPTER; ADAPTOR, 3/8 UNF, use with K947872;Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 1
    K19504
    WASHER 9.92mm ID x 14.29mm OD x 2mm Thk; FIBRE WASHER, 3/8 in.;Used on model 1210, S/N E25389 and after;Used on model 1210 (Bosch), S/N E24079 and after;Used on model 1212, S/N E18025 and after
  • 32B
    1
    K923667
    PIPE; FUEL PIPE;Used on model 1210, up to S/N E25389;Used on model 1210 (Bosch), up to S/N E24079;Used on model 1212, up to S/N E18025
  • 33A
    1
    K948061
    PIPE; LEAK-OFF PIPE, pump, plastic (Bosch, Steel pipe and fittings no longer supplied);Used on model 1210 (Bosch), S/N E23274 and after
  • 34A
    1
    K948114
    BOLT; BANJO BOLT, 10mm (Bosch, Steel pipe and fittings no longer supplied);Used on model 1210 (Bosch), S/N E23274 and after
  • 1
    K621687
    CLIP; (Steel pipe and fittings no longer supplied)
  • 2
    K948115
    WASHER; (Steel pipe and fittings no longer supplied)
  • 33B
    1
    K915350
    PIPE; LEAK-OFF PIPE, pump, steel (Simms)
  • 34B
    1
    K921095
    BANJO BOLT; BANJO BOLT, 5/16 UNF (Simms)
  • 2
    K36374
    WASHER; SEALING WASHER, 5/16 in.
  • 35
    1
    K622061
    VALVE; FUEL TAP (optional equipment)
  • 36
    1
    K626076
    FITTING; UNION, 1/2 UNF, replaces K626024 (optional equipment)
  • 1
    K626950
    WASHER; FIBRE WASHER, 1/2 in. (optional equipment)
  • 37
    1
    K14573
    O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 6, 90 Duro; 'O' RING, 5/16 internal dia. (optional equipment)
  • 1
    K951062
    EXTENSION; fuel tap
