TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11GEAR, BEVEL; BEVEL GEAR SHAFT, with drive bevel gear
-
24RING NUT;
-
32WASHER; WASHER
-
41SPACER; version without speed reducer
-
51TAPERED BEARING; version with speed reducer 20%
-
61CIRCLIP; RING retaining
-
71SNAP RING; RING SNAP retaining
-
8ARSPACER; 7.4 mm
-
8ARSPACER; 7.6 mm
-
8ARSPACER; 7.8 mm
-
8ARSPACER; 8.0 mm
-
8ARSPACER; 8.2 mm
-
91SPLINED COUPLING;
-
104NEEDLE BEARING 65mm ID x 70mm OD x 19.8mm W;
-
104BEARING, NEEDLE; optional
-
111SPACER;
-
121PINION; GEAR, road range, 27 teeth
-
131SYNCHRONIZER; ZF
-
131SYNCHRONIZER; Graziani, models 743XL and 745XL
-
141SPACER;
-
151PINION; GEAR, field range, 50 teeth
-
161SYNCHRONIZER; ZF
-
161SYNCHRONIZER; Graziani, optional
-
171NEEDLE BEARING 65mm ID x 70mm OD x 29.8mm W;
-
181PINION; GEAR, reverse range, 37 teeth
-
191BUSHING; SLEEVE, version without ground speed PTO
-
201GEAR; ground speed PTO, for 4 wheel drive tractors, 54 teeth
-
21ARSHIM; 0.1 mm
-
21ARSHIM; 0.3 mm
-
21ARSHIM; 0.5 mm
-
21ARSHIM; 1.00 mm
-
221BEARING, ROLLER, CYL 55 mm ID x 127 mm OD x 45.5 mm;
-
221BEARING, ROLLER, CYL 55 mm ID x 127 mm OD x 45.5 mm; roller, optional
-
232SNAP RING; RING SNAP retaining
-
241WASHER;
-
251TAPERED BEARING; version with speed reducer
-
252TAPERED BEARING; version without speed reducer
-
251TAPERED BEARING; optional, version with speed reducer
-
252TAPERED BEARING; optional, version without speed reducer
-
261COUNTERSHAFT; version without speed reducer
-
261COUNTERSHAFT; version with speed reducer 20%, models 743XL and 844XL
-
261COUNTERSHAFT; version with speed reducer 70%
-
271PINION; GEAR, 35 teeth
-
281BEARING, ROLLER;
-
281ROLLER BEARING; roller, optional
-
291WASHER;
-
301SHAFT; reverse, idler
-
311ROLLER CAGE BEARING 40.5 mm ID x 62.5 mm OD x 26 mm;
-
311BEARING; roller, optional
-
311BEARING, ROLLER, CYL 47 mm ID x 62.5 mm OD x 26 mm; roller, optional
-
321PINION; GEAR, reverse, idler, 27 teeth
-
331WASHER;
-
341WASHER;
-
351LOCK WASHER 3/8'';
-
361BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
371BUSHING; version without speed reducer, models 743XL amd 745XL
-
381CIRCLIP; RING retaining, version without speed reducer, models 743XL and 745XL
-
39ARSHIM; 2.0 mm, models 743XL and 745XL
-
39ARSHIM; 2.1 mm, models 743XL and 745XL
-
39ARSHIM; 2.2 mm, models 743XL and 745XL
-
39ARSHIM; 2.3 mm, models 743XL and 745XL
-
39ARSHIM; 2.4 mm, models 743XL and 745XL
-
39ARSHIM; 2.5 mm, models 743XL and 745XL
-
39ARSHIM; 2.6 mm, models 743XL and 745XL
-
39ARSHIM; 2.7 mm, models 743XL and 745XL
-
39ARSHIM; 2.8 mm, models 743XL and 745XL
-
39ARSHIM; 2.9 mm, models 743XL and 745XL
-
401TAPERED BEARING; version without speed reducer
Select All
Select
Ref.
1Qty
1Availability
Part #
83216C1Description
GEAR, BEVEL; BEVEL GEAR SHAFT, with drive bevel gearImg
Alts
Select
Ref.
4Qty
1Availability
Part #
83002C1Description
SPACER; version without speed reducerImg
Alts
Select
Ref.
5Qty
1Availability
Part #

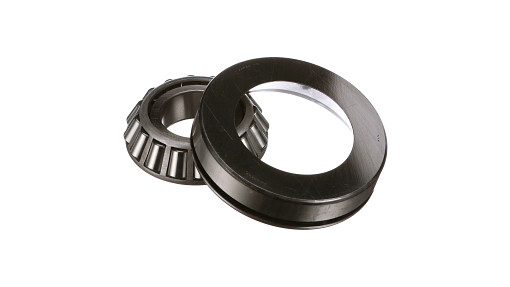

3221424R91Description
TAPERED BEARING; version with speed reducer 20%Img
Alts
Select
Ref.
7Qty
1Availability
Part #
933946R1Description
SNAP RING; RING SNAP retainingImg
Alts
Select
Ref.
10Qty
4Availability
Part #

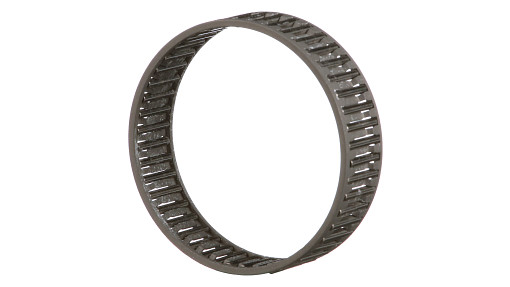

3221400R92Description
NEEDLE BEARING 65mm ID x 70mm OD x 19.8mm W;Img
Alts
Select
Ref.
12Qty
1Availability
Part #
83167C1Description
PINION; GEAR, road range, 27 teethImg
Alts
Select
Ref.
13Qty
1Availability
Part #
1964026C2Description
SYNCHRONIZER; Graziani, models 743XL and 745XLImg
Alts
Select
Ref.
15Qty
1Availability
Part #
83168C1Description
PINION; GEAR, field range, 50 teethImg
Alts
Select
Ref.
16Qty
1Availability
Part #
1964027C1Description
SYNCHRONIZER; Graziani, optionalImg
Alts
Select
Ref.
17Qty
1Availability
Part #
3223127R91Description
NEEDLE BEARING 65mm ID x 70mm OD x 29.8mm W;Img
Alts
Select
Ref.
18Qty
1Availability
Part #
1289974C1Description
PINION; GEAR, reverse range, 37 teethImg
Alts
Select
Ref.
19Qty
1Availability
Part #
3221420R2Description
BUSHING; SLEEVE, version without ground speed PTOImg
Alts
Select
Ref.
20Qty
1Availability
Part #
3221291R2Description
GEAR; ground speed PTO, for 4 wheel drive tractors, 54 teethImg
Alts
Select
Ref.
22Qty
1Availability
Part #
3147787R91Description
BEARING, ROLLER, CYL 55 mm ID x 127 mm OD x 45.5 mm;Img
Alts
Select
Ref.
22Qty
1Availability
Part #
3147786R91Description
BEARING, ROLLER, CYL 55 mm ID x 127 mm OD x 45.5 mm; roller, optionalImg
Alts
Select
Ref.
23Qty
2Availability
Part #
3146814R1Description
SNAP RING; RING SNAP retainingImg
Alts
Select
Ref.
25Qty
1Availability
Part #
3003911R1Description
TAPERED BEARING; version with speed reducerImg
Alts
Select
Ref.
25Qty
2Availability
Part #
3003911R1Description
TAPERED BEARING; version without speed reducerImg
Alts
Select
Ref.
25Qty
1Availability
Part #
3142488R91Description
TAPERED BEARING; optional, version with speed reducerImg
Alts
Select
Ref.
25Qty
2Availability
Part #
3142488R91Description
TAPERED BEARING; optional, version without speed reducerImg
Alts
Select
Ref.
26Qty
1Availability
Part #
83165C1Description
COUNTERSHAFT; version without speed reducerImg
Alts
Select
Ref.
26Qty
1Availability
Part #
83166C1Description
COUNTERSHAFT; version with speed reducer 20%, models 743XL and 844XLImg
Alts
Select
Ref.
26Qty
1Availability
Part #
83169C1Description
COUNTERSHAFT; version with speed reducer 70%Img
Alts
Select
Ref.
28Qty
1Availability
Part #
3148593R91Description
ROLLER BEARING; roller, optionalImg
Alts
Select
Ref.
31Qty
1Availability
Part #
3146315R91Description
ROLLER CAGE BEARING 40.5 mm ID x 62.5 mm OD x 26 mm;Img
Alts
Select
Ref.
31Qty
1Availability
Part #
3142450R91Description
BEARING, ROLLER, CYL 47 mm ID x 62.5 mm OD x 26 mm; roller, optionalImg
Alts
Select
Ref.
32Qty
1Availability
Part #
3221404R3Description
PINION; GEAR, reverse, idler, 27 teethImg
Alts
Select
Ref.
36Qty
1Availability
Part #
413-616Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5;Img
Alts
Select
Ref.
37Qty
1Availability
Part #
3221691R1Description
BUSHING; version without speed reducer, models 743XL amd 745XLImg
Alts
Select
Ref.
38Qty
1Availability
Part #
3137156R1Description
CIRCLIP; RING retaining, version without speed reducer, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137095R1Description
SHIM; 2.0 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137096R1Description
SHIM; 2.1 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137097R1Description
SHIM; 2.2 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137098R1Description
SHIM; 2.3 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137099R1Description
SHIM; 2.4 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137100R1Description
SHIM; 2.5 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137101R1Description
SHIM; 2.6 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137102R1Description
SHIM; 2.7 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137103R1Description
SHIM; 2.8 mm, models 743XL and 745XLImg
Alts
Select
Ref.
39Qty
ARAvailability
Part #
3137104R1Description
SHIM; 2.9 mm, models 743XL and 745XLImg
Alts
Select
Ref.
40Qty
1Availability
Part #
3057266R92Description
TAPERED BEARING; version without speed reducerImg
Alts
