D-14 - D206 DIESEL ENGINE, LUBRICATING OIL PUMP AND FILTER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    3136431R91
    PUMP; ASSY, oil (engine serial No. DF2D020005 and since) (includes all parts listed unless otherwise noted)
  • 4
    138222
    BOLT Skt Hd, 5/16'' - 18 x 1''; 5/16 x 1'' soc-hd;Not part of oil pump assembly.
  • 4
    80681

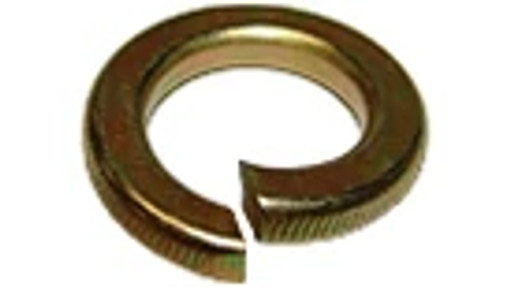

    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16'';Not part of oil pump assembly.
  • 1
    1
    933155R1
    SEALING RING M16 x 20 x 1.5; Packing M16 x 20 x 1.5;Not part of oil pump assembly.
  • 2
    1
    3132209R1
    PEDESTAL; SOCKET, oil filter;Not part of oil pump assembly.
  • 2
    180122
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5; 3/8 x 1'';Not part of oil pump assembly.
  • 2
    120382
    LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8'';Not part of oil pump assembly.
  • 3
    1
    3055237R1
    GASKET; oil filter socket;Not part of oil pump assembly.
  • 4
    1
    398080R2
    ENGINE OIL FILTER; FILTER, oil (engine serial No. 33R200 and since);Not part of oil pump assembly.
  • 5
    1
    3139620R1
    SPRING WASHER;
  • 6
    1
    3136264R1
    SPRING; pressure relief valve
  • 7
    1
    3055202R2
    VALVE; piston relief
  • 4
    413-536
    BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5; 5/16 x 2-1/4''
  • 4
    120376
    NUT 5/16''-18, G5;
  • 4
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
  • 1
    103387
    COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1 1/2''
  • 9
    1
    933081R1
    SNAP RING M19, Ext; CIRCLIP, (prior to engine serial No. DF2D020005)
  • 10
    1
    3055205R1
    RING; distance (prior to engine serial No. DF2D020005)
  • 11
    1
    3132328R1
    GEAR; idler
  • 12
    1
    3132502R1
    GEAR; oil pump
  • 14
    1
    3136441R91
    ENGINE OIL PUMP; CARRIER ASSY, oil, composed of, (3) pin 932597R1, (NSS) (1) case, (NSS) (1) carrier, (NSS) (1) cover, (1) pin 103387, (1) washer 3139620R1, (1) spring 3136264R1, (1) valve 3055202R2, (NSS) (2) bushing
  • 15
    1
    3056852R11
    IDLER GEAR; GEAR ASSY, idler oil pump, composed of, (1) ring 933579R1, (NSS) (1) gear, (1) washer 3055292R1, (2) bearing 3055293R91
  • 16
    2
    3055293R91
    TAPERED BEARING; BEARING, taper roller (opt w/3055294R91 BEARING)
  • 16
    2
    3055294R91
    TAPERED BEARING; BEARING, taper roller (opt w/3055293R91 BEARING)
  • 17
    1
    933579R1
    SNAP RING M35, Int;
  • 18
    1
    3055292R1
    WASHER; WASHER
  • 19
    1
    3055371R1
    WASHER; keyed
  • 20
    1
    3055296R1
    WASHER; PLATE, locking
  • 21
    1
    3055295R1
    NUT; shaft
  • 22
    1
    3136444R91
    GEAR; drive
  • 23
    1
    717222R1
    O-RING; Not part of oil pump assembly.
  • 24
    3
    3055199R1
    O-RING; Not part of oil pump assembly.
  • 25
    1
    3132781R92
    PIPE; oil pressure and suction;Not part of oil pump assembly.
  • 1
    24933R1
    HEX SOC SCREW 7/16''-14 x 3 3/4''; Not part of oil pump assembly.
  • 1
    120383
    LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16'';Not part of oil pump assembly.
  • 26
    1
    3136308R1
    ELEC CONNECTOR; CONNECTOR, 1'' filter (engine serial No. 33R200 and since);Not part of oil pump assembly.
  • 27
    1
    3051784R1
    PLUG; closing;Not part of oil pump assembly.
  • 28
    1
    3132503R91
    GEAR-SET; SET, oil pump gears, composed of, (1) gear 3132328R1, (1) gear 3132502R1;KNIFE, 14 ft single & dual platform cr-pltd smooth section (special) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (102) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823712R1, (51) SECTION 457605R1;Not part of oil pump assembly.
  • 30
    3
    932597R1
