Ref.
Qty
Part #
Alts
Description
-
11SUPPORT LUG SUPPORT; SUPPORT LUG
-
21SHAFT SHAFT FAST LOCK; RAM - FASTLOCK T400 - D12 X 20 C60
-
31BUSHING BUSHING; BUSH - D12X15 LG.35
-
41ADHESIVE ADHESIVE STRIP FAST LOCK; FAST-LOCK ADHESIVE
-
51BOLT Hex, M10 x 1.5 x 50mm, Cl 8.8; SCREW - HM10 X 50 P:1.5 8.8 ZBJ
-
64LOCK NUT Hex, M10 x 1.5, Cl 8, ZND; LOCK NUT - HFR M10
-
71SOLENOID VALVE VALVE SOLENOID FAST LOCK; SOLENOID VALVE (FAST-LOCK, T LOADER)
-
81NUT; NUT + SEAL FOR SOLENOID VALVE - 2/2
-
92UNION UNION; UNION - UM / 12 - 3/8 G + JOINT
-
101ELBOW; ELBOW - CET / M12 - ET12 (90)
-
111COVER COVER; PROTECTIVE CASING
-
125CABLE TIE BLACK PLASTIC STRAP 178 X 4.8; PLASTIC STRAP - 178 X 4.8
-
132LOCK NUT Hex, M8 x 1.25, Cl 8, ZND; LOCK NUT - HFR M8 P:1.25 8.8 ZBJ
-
142BOLT Hex, M8 x 1.25 x 50mm, Cl 8.8; SCREW - HM8 X 50 P:1.25 8.8 ZBJ
-
152UNION UNION UM/8-1/8G D0.8; UNION - UM/8-1/8G D0.8
-
162HOSE HOSE 1/4 1T ET8 (90) / ET12 / 450; HOSE - 1/4 1T ET8 (90') / ET12 / 450
-
171BOLT M10 x 1.5, 25mm L Cl8.8 Full Thread; SCREW - HM 10 X 25 P:1.5 8.8 ZBJ
-
182BOLT Hex, M6 x 1 x 50mm, Cl 8.8; SCREW - HM6 X 50 P:1 8.8 ZBJ
-
192NUT Hex, M6 x 1, Cl 8, ZND; NUT - HM6 P:1 8.8 ZBJ
-
202LOCK NUT M6 x 1, Cl 8; LOCK NUT - HFR M6 P:1
-
212FITTING; TEE-FITTING - TR / ET15 - M12 - M15
-
221HOSE HOSE 3/8 / ET12 - ET12(135) / 380; HOSE - 3/8 / ET12 - ET12(135) / 380
-
231ELBOW ELBOW CET / M12 - ET12 (135); ELBOW - CET / M12 - ET12 (135')
-
241BOLT Hex, M10 x 1.5 x 90mm, Cl 8.8; SCREW - HM10 X 90 P:1.5 8.8 ZBJ
-
251WASHER 10.5mm ID x 18mm OD x 1.6mm Thk, CST, ZND; FLAT WASHER - D20 X 10,5 X 2
-
261WIRE HARNESS HARNESS WIRE ACS FAST-LOCK; 3RD FUNCTION, 4TH FUNCTION, ACS, FAST-LOCK, SPEED-LINK HARNESS
-
271WIRE HARNESS HARNESS WIRE ASSY COIL LC RANGE; WIRING LOOM
-
281SEAL KIT SEAL KIT; SEAL SET - D12X20
Select All
Select
Ref.
1Qty
1Availability
Part #
44923118Description
SUPPORT LUG SUPPORT; SUPPORT LUGImg
Alts
Select
Ref.
2Qty
1Availability
Part #
44923119Description
SHAFT SHAFT FAST LOCK; RAM - FASTLOCK T400 - D12 X 20 C60Img
Alts
Select
Ref.
3Qty
1Availability
Part #
44923120Description
BUSHING BUSHING; BUSH - D12X15 LG.35Img
Alts
Select
Ref.
4Qty
1Availability
Part #
44923121Description
ADHESIVE ADHESIVE STRIP FAST LOCK; FAST-LOCK ADHESIVEImg
Alts
Select
Ref.
5Qty
1Availability
Part #
120069Description
BOLT Hex, M10 x 1.5 x 50mm, Cl 8.8; SCREW - HM10 X 50 P:1.5 8.8 ZBJImg
Alts
Select
Ref.
6Qty
4Availability
Part #
100037Description
LOCK NUT Hex, M10 x 1.5, Cl 8, ZND; LOCK NUT - HFR M10Img
Alts
Select
Ref.
7Qty
1Availability
Part #
44923122Description
SOLENOID VALVE VALVE SOLENOID FAST LOCK; SOLENOID VALVE (FAST-LOCK, T LOADER)Img
Alts
Select
Ref.
8Qty
1Availability
Part #
44923123Description
NUT; NUT + SEAL FOR SOLENOID VALVE - 2/2Img
Alts
Select
Ref.
9Qty
2Availability
Part #
44923124Description
UNION UNION; UNION - UM / 12 - 3/8 G + JOINTImg
Alts
Select
Ref.
10Qty
1Availability
Part #
47742161Description
ELBOW; ELBOW - CET / M12 - ET12 (90)Img
Alts
Select
Ref.
11Qty
1Availability
Part #
44923125Description
COVER COVER; PROTECTIVE CASINGImg
Alts
Select
Ref.
12Qty
5Availability
Part #
82001040Description
CABLE TIE BLACK PLASTIC STRAP 178 X 4.8; PLASTIC STRAP - 178 X 4.8Img
Alts
Select
Ref.
13Qty
2Availability
Part #
68841Description
LOCK NUT Hex, M8 x 1.25, Cl 8, ZND; LOCK NUT - HFR M8 P:1.25 8.8 ZBJImg
Alts
Select
Ref.
14Qty
2Availability
Part #
43130Description
BOLT Hex, M8 x 1.25 x 50mm, Cl 8.8; SCREW - HM8 X 50 P:1.25 8.8 ZBJImg
Alts
Select
Ref.
15Qty
2Availability
Part #
44923126Description
UNION UNION UM/8-1/8G D0.8; UNION - UM/8-1/8G D0.8Img
Alts
Select
Ref.
16Qty
2Availability
Part #
44923127Description
HOSE HOSE 1/4 1T ET8 (90) / ET12 / 450; HOSE - 1/4 1T ET8 (90') / ET12 / 450Img
Alts
Select
Ref.
17Qty
1Availability
Part #
43139Description
BOLT M10 x 1.5, 25mm L Cl8.8 Full Thread; SCREW - HM 10 X 25 P:1.5 8.8 ZBJImg
Alts
Select
Ref.
18Qty
2Availability
Part #
120056Description
BOLT Hex, M6 x 1 x 50mm, Cl 8.8; SCREW - HM6 X 50 P:1 8.8 ZBJImg
Alts
Select
Ref.
19Qty
2Availability
Part #
15896211Description
NUT Hex, M6 x 1, Cl 8, ZND; NUT - HM6 P:1 8.8 ZBJImg
Alts
Select
Ref.
20Qty
2Availability
Part #
12574215Description

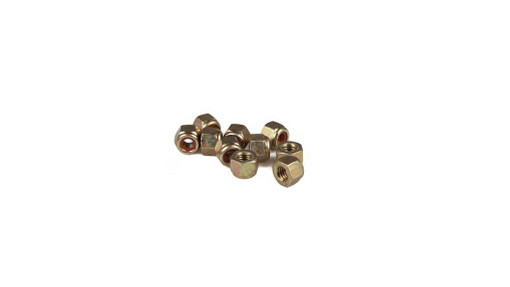

LOCK NUT M6 x 1, Cl 8; LOCK NUT - HFR M6 P:1Img
