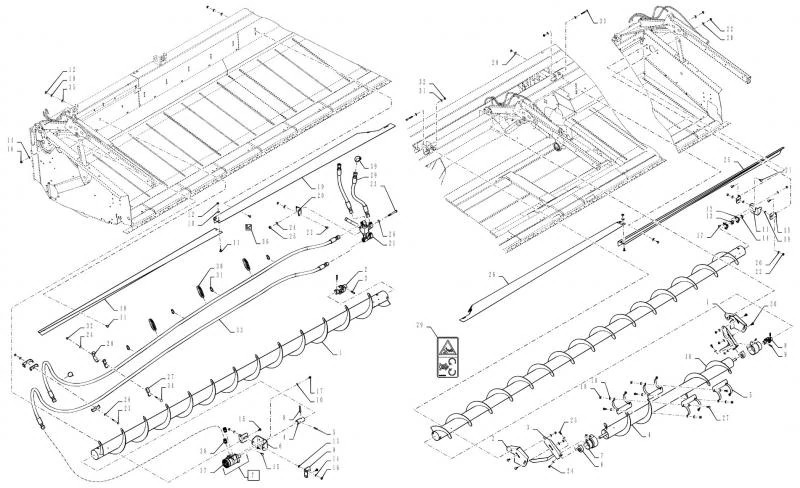

84599538 - Kit do sem-fim transversal superior - CASE IH

This part is used in the following kits and product bundles:

• Part Number
  140045
  Description
  Arruela de pressão Belleville - 10mm DI x 22mm DE x 1,6mm espessura.
  Quantity
  16
• Part Number
  140046
  Description
  Anilha Belleville - 27 mm DE x 1,8 mm Esp.
  Quantity
  8
• Part Number
  16043624
  Description
  Parafuso de Aço.
  Quantity
  8
• Part Number
  100037
  Description
  Porca de pressão - Classe 8 - M10 x 1.5.
  Quantity
  12
• Part Number
  247829
  Description
  Rolamento de Esferas.
  Quantity
  1
• Part Number
  120044
  Description
  Carriage Bolt - Cl 8.8 - M12 x 1.75 x 30.
  Quantity
  4
• Part Number
  120104
  Description
  Hex Bolt - Full Thread - M8 x 20 mm L.
  Quantity
  4
• Part Number
  300383
  Description
  Hex Bolt - Full Thread - Cl 8.8 - M10 x 16.
  Quantity
  4
• Part Number
  86507486
  Description
  Carriage Bolt - M8 x 1.25.
  Quantity
  21
• Part Number
  86512439
  Description
  CARRIAGE BOLT.
  Quantity
  2
• Part Number
  9706685
  Description
  Hex Nut - 12 mm D.
  Quantity
  6
• Part Number
  322357
  Description
  Belleville Washer - 14 mm OD x 1.3 mm Thk.
  Quantity
  5
• Part Number
  322358
  Description
  Belleville Lock Washer - M8 Bolt Size x 18mm OD x 1.4mm Thick.
  Quantity
  45
• Part Number
  9840570
  Description
  Elbow.
  Quantity
  1
• Part Number
  86566989
  Description
  Cable Tie - Black - 208 mm L x 4.8 mm W.
  Quantity
  5
• Part Number
  86588450
  Description
  Washer - 6.6 mm ID x 12 mm OD x 1.6 mm Thk.
  Quantity
  3
• Part Number
  47577183
  Description
  Set Screw Collar - Zinc-Plated - 25 mm ID x 37 mm OD x 13 mm W.
  Quantity
  1
• Part Number
  84373793
  Description
  Bearing Flange - Zinc-Plated - 52 mm ID x 80 mm L x 94 mm W x 7 mm Thk.
  Quantity
  2
• Part Number
  86624089
  Description
  PIN.
  Quantity
  1
• Part Number
  353308
  Description
  Hex Lock Nut - M6 x 1.
  Quantity
  1
• Part Number
  84378035
  Description
  AUGER.
  Quantity
  1
• Part Number
  86625263
  Description
  Washer.
  Quantity
  14
• Part Number
  86633356
  Description
  CARRIAGE BOLT.
  Quantity
  12
• Part Number
  374887
  Description
  Bolt - Cl 8.8 - M12 x 100.
  Quantity
  2
• Part Number
  47655612
  Description
  SUPPORT.
  Quantity
  1
• Part Number
  84427586
  Description
  HYDRAULIC MOTOR.
  Quantity
  1
• Part Number
  87023162
  Description
  PIN.
  Quantity
  4
• Part Number
  84465805
  Description
  BRACKET.
  Quantity
  1
• Part Number
  84465810
  Description
  Right-Hand Bracket - Dark Gray.
  Quantity
  1
• Part Number
  84465815
  Description
  Mechanical Cables and Controls - Dark Gray.
  Quantity
  1
• Part Number
  84465818
  Description
  BRACKET.
  Quantity
  1
• Part Number
  84465819
  Description
  SHIELD.
  Quantity
  2
• Part Number
  84465831
  Description
  BRACKET.
  Quantity
  2
• Part Number
  84465871
  Description
  BRACKET.
  Quantity
  4
• Part Number
  84466056
  Description
  PADDLE.
  Quantity
  4
• Part Number
  84469627
  Description
  Spacer.
  Quantity
  4
• Part Number
  84004736
  Description
  Danger Decal - Auger Entanglement.
  Quantity
  2
• Part Number
  84470849
  Description
  BRACKET.
  Quantity
  1
• Part Number
  84470851
  Description
  Upper Cross Hose - SAE 100R16 - 12.7 mm ID x 480 mm L.
  Quantity
  2
• Part Number
  84473444
  Description
  JOINT.
  Quantity
  2
• Part Number
  84475030
  Description
  AUGER.
  Quantity
  1
• Part Number
  84475055
  Description
  AUGER.
  Quantity
  1
• Part Number
  84475096
  Description
  STRIPPER.
  Quantity
  1
• Part Number
  84475111
  Description
  STRIPPER.
  Quantity
  1
• Part Number
  84475128
  Description
  STRIPPER.
  Quantity
  1
• Part Number
  84475170
  Description
  STRIPPER.
  Quantity
  1
• Part Number
  84475428
  Description
  VALVE.
  Quantity
  1
• Part Number
  84477950
  Description
  HYDRAULIC HOSE.
  Quantity
  2
• Part Number
  84486088
  Description
  DECAL.
  Quantity
  1
• Part Number
  43138
  Description
  Hex Bolt - Full Thread - M10 x 1.75 x 20 mm L.
  Quantity
  4
• Part Number
  43362
  Description
  Hex Nut - Cl 10 - M8 x 1.25.
  Quantity
  33
• Part Number
  47801186
  Description
  BRACKET.
  Quantity
  1
• Part Number
  84158586
  Description
  Coiled Pin - 3/8" x 2 1/2".
  Quantity
  1
• Part Number
  87686044
  Description
  PILLOW BLOCK.
  Quantity
  2
• Part Number
  457547
  Description
  Tube Clamp - 84 mm L x 21 mm H x 20 mm W.
  Quantity
  2
• Part Number
  766535
  Description
  BOLT.
  Quantity
  3
• Part Number
  86500688
  Description
  Hex Nut - M6 x 1.
  Quantity
  4
• Part Number
  9850033
  Description
  SEAL.
  Quantity
  1
• Part Number
  84599559
  Description
  INSTRUCTION.
  Quantity
  1
