37.120.020 - TOP LINK, TURNBUCKLE, CLAW END, CAT 4
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

2

Availability

Part #

844-8020

Description

FLANGE BOLT Hvy Hex, M8 x 20mm, Cl 8.8;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

48115240

Description

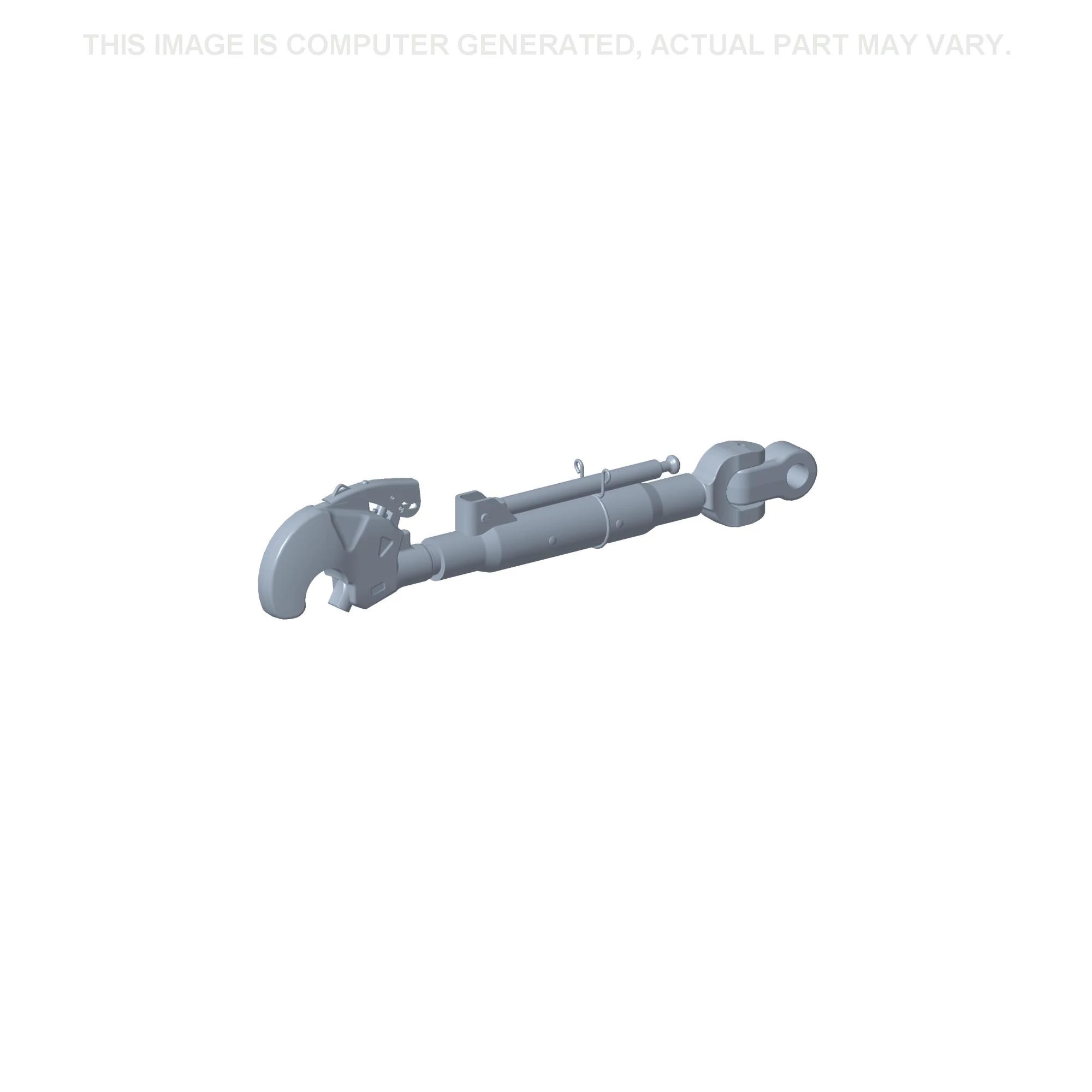

UPPER LINK; Cat 4 Claw, Incl 3 - 17


Alts

Select

Ref.

3

Qty

1

Availability

Part #

319585A1

Description

YOKE YOKE ASSEMBLY; Upper Link, Incl 4


Alts

Select

Ref.

4

Qty

1

Availability

Part #

800-2128

Description

SNAP RING M28, Int;


Alts

Select

Ref.

5

Qty

2

Availability

Part #

378716A1

Description

LUBE NIPPLE Hex, M10 x 1 x 17.5mm L;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

315912A1

Description

SPRING; Link Handle Retainer


Alts

Select

Ref.

7

Qty

1

Availability

Part #

48060601

Description

HANDLE; Top Link


Alts

Select

Ref.

8

Qty

2

Availability

Part #

738-5645

Description

LOCK PIN M6 x 45, Slotted;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

47386180

Description

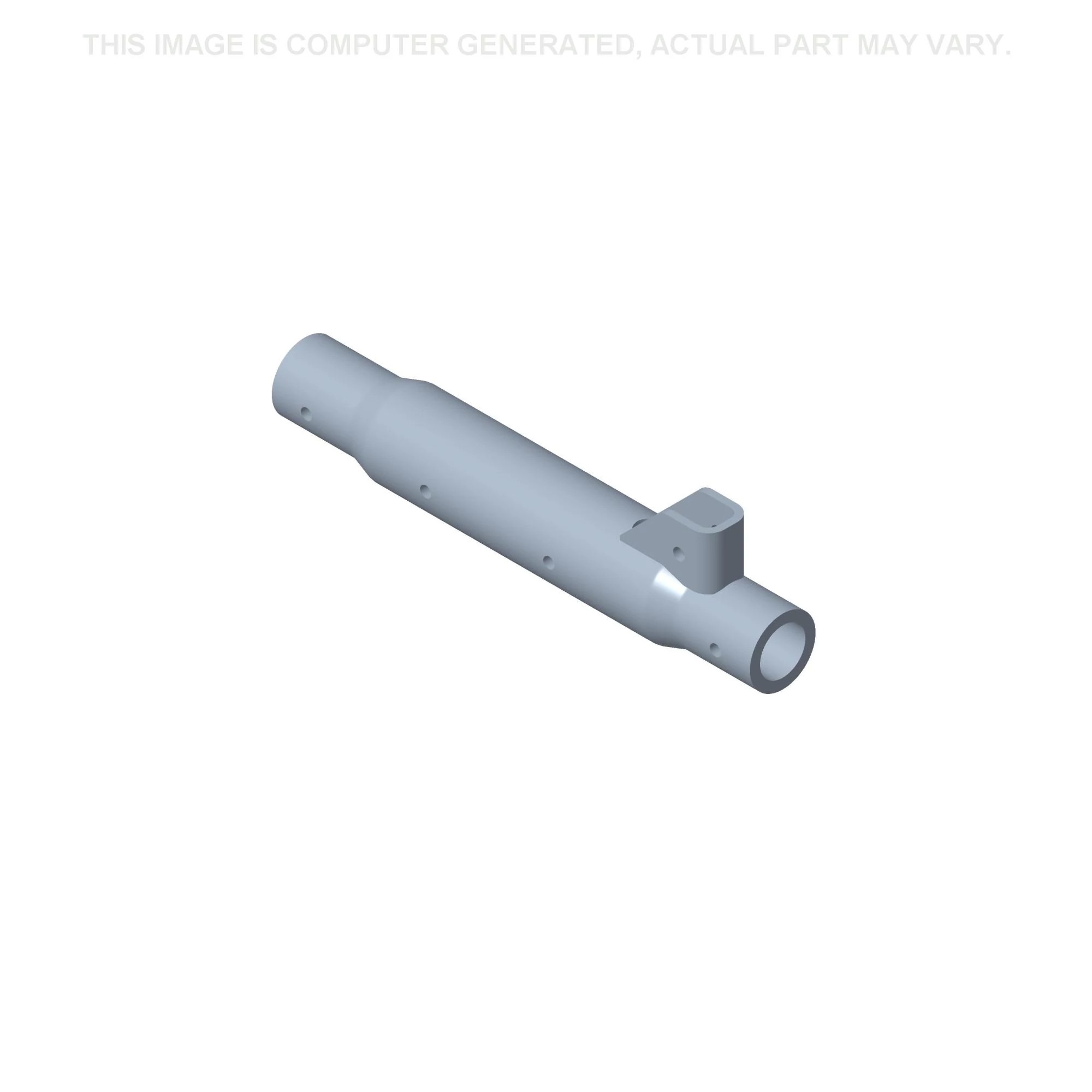

TURNBUCKLE 1-3/4'' - 5;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

432-610

Description

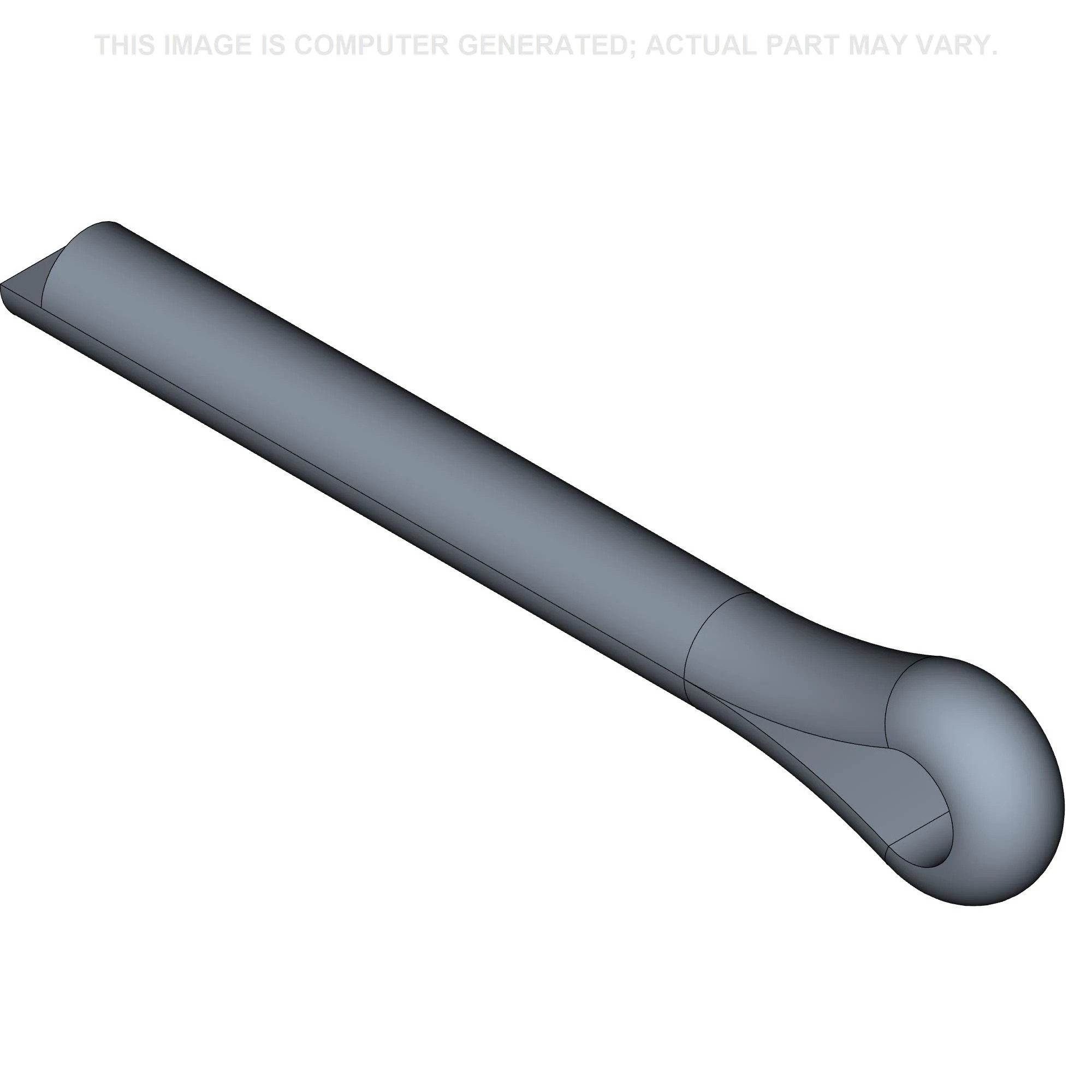

COTTER PIN 3/32'' x 5/8'';


Alts

Select

Ref.

11

Qty

1

Availability

Part #

47358237

Description

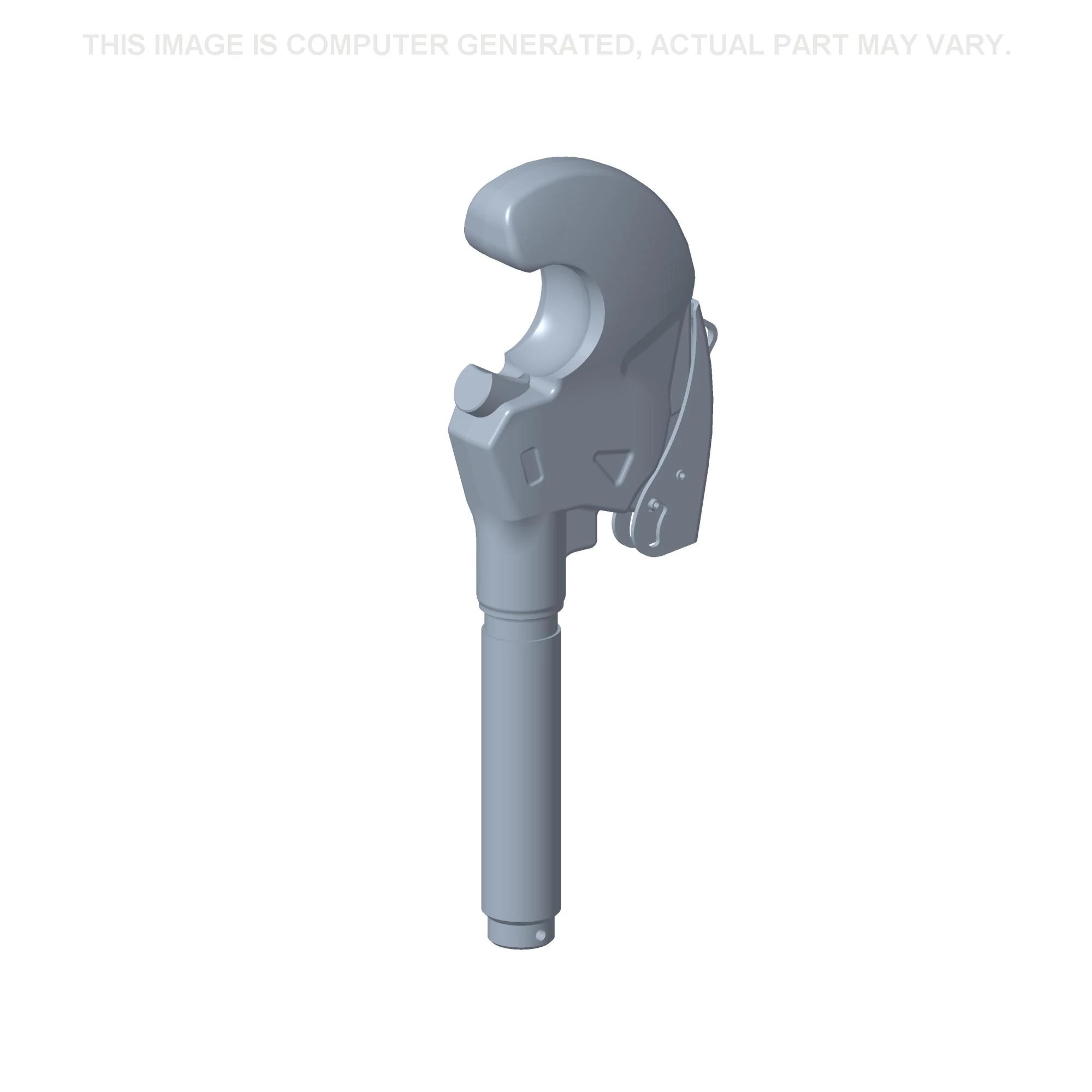

LINK; Hook Assy, Incl 12 - 16


Alts

Select

Ref.

12

Qty

1

Availability

Part #

47394225

Description

LEVER; Cat 4 Claw Top Link Latch


Alts

Select

Ref.

13

Qty

1

Availability

Part #

47394242

Description

SPRING; Cat 4 Claw Top Link Latch, Not Illustrated


Alts

Select

Ref.

14

Qty

3

Availability

Part #

838-5624

Description

LOCK PIN M6 x 24, Slotted; Not Illustrated


Alts

Select

Ref.

15

Qty

1

Availability

Part #

47394231

Description

PIN; Cat 4 Claw Top Link Latch


Alts

Select

Ref.

16

Qty

1

Availability

Part #

47394213

Description

SCREW; Not Illustrated


Alts

Select

Ref.

17

Qty

1

Availability

Part #

427-6200

Description

CLEVIS PIN 3/8'' x 2'', HDN;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

87574422

Description

BRACKET; Anti-Sway


Alts

Select

Ref.

19

Qty

1

Availability

Part #

1348080C1

Description

CABLE 1500mm L; Upper Link Release


Alts

Select

Ref.

20

Qty

1

Availability

Part #

47393854

Description

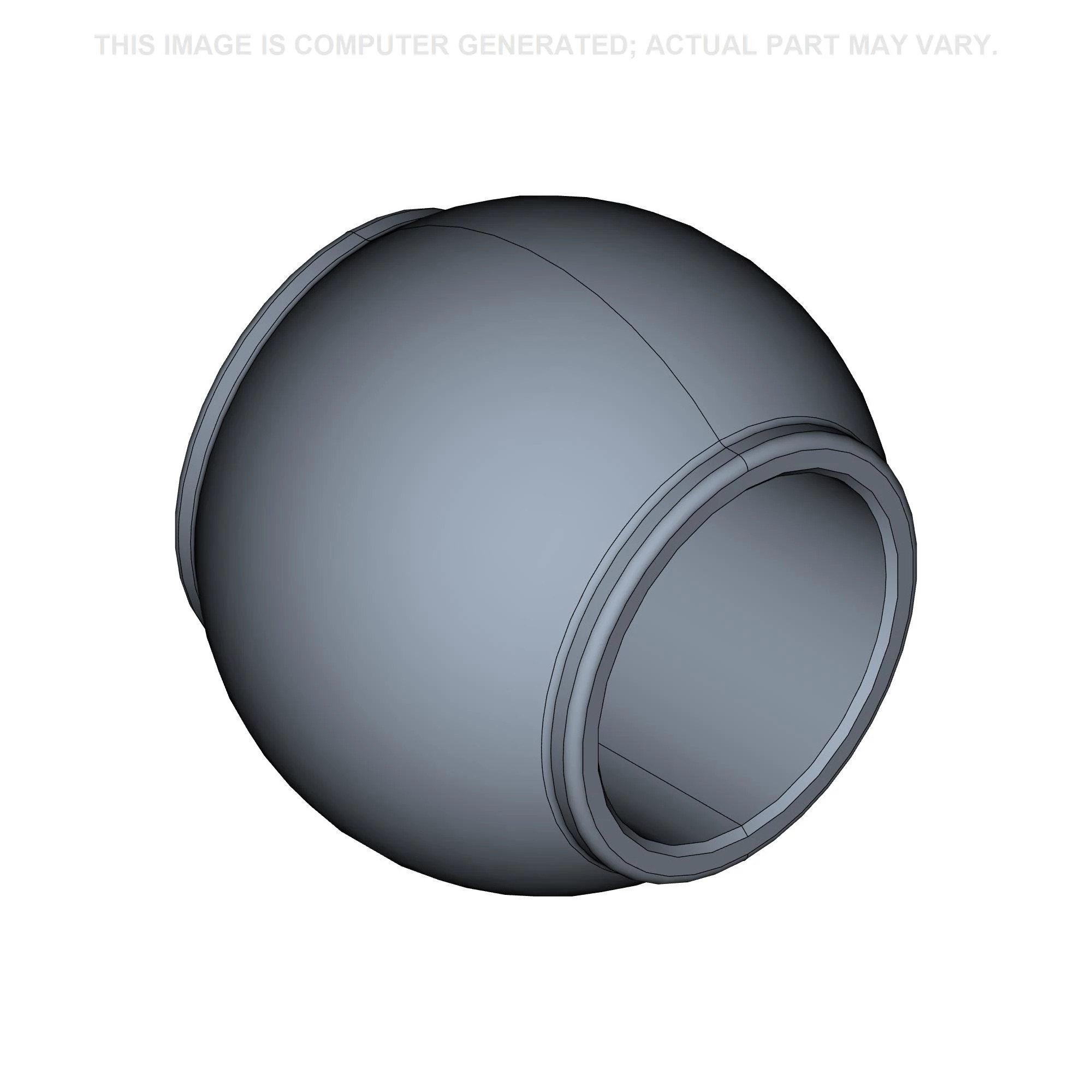

BALL; Cat 4 Claw Top Link


Alts

Select

Ref.

21

Qty

1

Availability

Part #

87708029

Description

BUSHING 32.7mm ID x 44.34mm OD x 60mm L; Cat 3 to Cat 4 Adapter


Alts
