05F08 - JEU D'ACCOUPLEMENT
TABLE OF CONTENTS
DIAGRAM
PART LIST
EFFACER TOUT
Fenêtre N° de série
Date de construction
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
  • AR
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Coupling, RH, Includes: Ref. 1 & 5;For Leverless Coupler See 05F07A.
  • AR
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Coupling, LH, Includes: Ref. 1 & 5;R/B Kit, F1NNS938AB (81875781), Fig. 05F08.;For Leverless Coupler See 05F07A.
  • 1
    1
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Coupling, Includes: Ref. 2 thru 4;To Convert To Lever Less Coupler Order F1NNS938AA (81872427).;R/B Kit, F1NNS938AB (81875781), Fig. 05F08.
  • 2
    AR
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Sleeve, Includes: (2) Ref. 7, (2) Ref. 8 & (1) Ref. 9;R/B Kit, F1NNS938AB (81875781), Fig. 05F08.
  • 3
    AR
    E2NNS938HA
    KIT; Sleeve, Outer
  • 4
    AR
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Body
  • 5
    AR
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Handle, RH;Replaces Old Style Handles.
  • 5
    AR
    F1NNS938AB
    QUICK FEMALE COUPLING Hydraulic Remote Control Valve Coupler; Handle, LH;R/B Kit, F1NNS938AB (81875781), Fig. 05F08.
  • 6
    AR
    E2NNS938CA
    KIT; Manifold, RH, Includes: (2) Ref. 7 & (2) Ref. 8
  • 6
    AR
    E9NNR963AB
    PUSH-PULL COUPLING; Kit, Manifold, LH, Includes: (2) Ref. 7 & (2) Ref. 8
  • 7
    AR

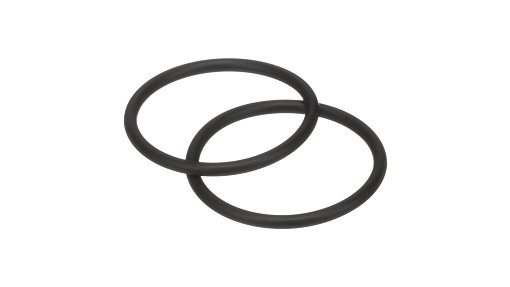

    9845951
    O-RING 0.103'' Thk x 1.237'' ID, -124, Cl 5, 75 Duro; 1.237'' ID x .103'' Thk
  • 8
    AR
    E0NNR996CA
    SEAL 29.84mm ID x 31.39mm OD x 2.92mm Thk; Slipper
  • 9
    AR

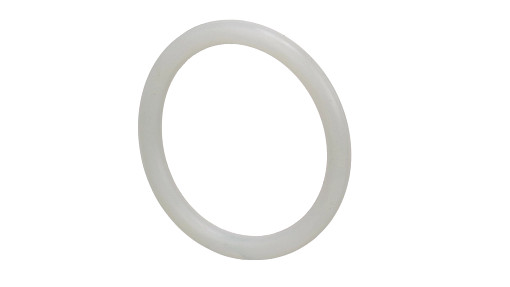

    9861431
    O-RING 0.103'' Thk x 0.799'' ID, -117, Cl 6, 90 Duro; 90 Duro, .799'' ID x .103'' Thk
  • 10
    1
    E0NNR997BA
    WASHER; Used W/Old Style Handles, No Longer Serviced, See Item 5.
  • 11
    1
    E0NNR997AA
    RONDELLE; Used W/Old Style Handles, No Longer Serviced, See Item 5.
  • 12
    1
    NSS
    PAS VENDU SÉPARÉMENT; Washer;Used W/Old Style Handles, No Longer Serviced, See Item 5.
  • 13
    1
    E0NNR993AA
    BROCHE; Roll;Used W/Old Style Handles, No Longer Serviced, See Item 5.
