06G04 - TURBOCHARGER ASSEMBLY, AIRESEARCH DESIGN (2-78/) - 9700, (79/) - TW20, TW30
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    D8NN6K682AA
    TURBOCHARGER; Turbocharger Assy., 9700, Includes: Ref. 1 thru 21;May Substitute W/ E2NN6K682BB, Using the Cast Iron Turbine Housing from the Old Turbocharger.
  • 1
    E2NN6K682BC
    TURBOCHARGER; Turbocharger Assy., TW20, Includes: Ref. 1 thru 21
  • 1

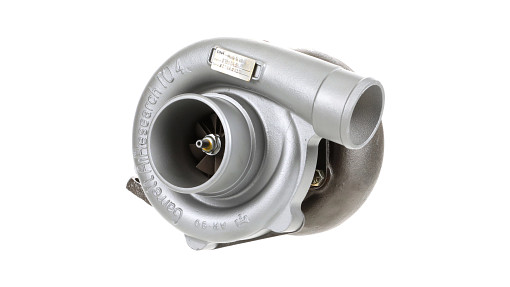

    81868484R
    REMAN-TURBOCHARGER TURBOCHARGER; Reman for New PN E2NN6K682BC
  • 1
    81868484C
    CORE-TURBOCHARGER TURBOCHARGER; Return Number
  • 1
    81868484C
    CORE-TURBOCHARGER TURBOCHARGER; Return Number, Turbocharger Assy., TW20, N.A. Only
  • 1
    D8NN6K682FB
    TURBOCHARGER; Turbocharger Assy., TW30, Includes: Ref. 1 thru 21
  • 1
    83955946R
    REMAN-TURBOCHARGER TURBOCHARGER; Turbocharger
  • 1
    83955946C
    CORE-TURBOCHARGER TURBOCHARGER; Return Number, Turbocharger Assy., TW30
  • 1
    1
    D8NN6N661AA
    COVER; Cover, Compressor, Except TW30
  • 1
    1
    D8NN6N661BA
    COVER; Cover, Compressor, TW30
  • 2
    1
    D8NN6N684AA
    MAGNETIC CORE; Core Assy., Replacement, Except TW30, Includes: Ref. 3 thru 14
  • 2
    1
    E2NN6N684AA
    CONSOLE; Core Assy., Replacement, TW20, Includes: Ref. 3 thru 14
  • 2
    1
    D8NN6N684BA
    MAGNETIC CORE; Core Assy., Replacement, TW30, Includes: Ref. 3 thru 14
  • 3
    1
    E0NN6N679AA
    LOCK NUT; Nut, Lock, Turbine Shaft
  • 4
    1
    D8NN6N662AA
    WHEEL; SPARE PART Wheel, Compressor, Except TW30
  • 4
    1
    D8NN6N662BA
    WHEEL; Wheel, Compressor, TW30
  • 5
    1
    D7NN6N682A
    RING; Piston, Ring, Front
  • 6
    1
    D7NN6N764A
    PLATE; Back Plate Assy.
  • 7
    1
    D7NN6N663A
    O-RING 2.33'' ID; O-Ring, Bearing Insert
  • 8
    1
    EEPN6K682AA
    KIT; Plate, Bearing Thrust
  • 9
    1
    D7NN6N761A
    SEALING RING COLLAR; Collar, Thrust
  • 10
    4
    D7NN6N665A
    RETAINER; Retainer, Bearing Insert
  • 11
    2
    EEPN6K682AA
    KIT; Bearing, Turbine
  • 12
    1
    D7NN6N763A
    SHROUD; Shroud, Turbine Wheel
  • 13
    1
    D7NN6N683A
    RING; Ring, Piston, Rear
  • 14
    1
    D8NN6N678AA
    SHAFT; Wheel & Shaft Assy., Turbine
  • 15
    1
    D8NN6N677AA
    HOUSING; Housing, Turbine, 9700
  • 15
    1
    D8NN6N677BA
    HOUSING; Housing, Turbine, Except 9700
  • 16
    3
    EEPN6K682AA
    KIT; Plate, Cover Clamp
  • 17
    3
    EEPN6K682AA
    KIT; Plate, Cover Clamp Lock
  • 18
    3
    D8NN6N669AA
    PLATE; Plate, Cover Clamp
  • 19
    3
    EEPN6K682AA
    KIT; Plate, Cover Clamp Lock
  • 20
    12
    58616S36
    SCREW; Screw, Cap, HH, G8, 5/16''-18 x 1/2'', Core to Cover & Housing
  • 21
    1
    83911642
    GASKET; Gasket
  • AR
    EEPN6K682AA
    KIT; Kit, Turbocharger, Includes: Ref. 3, 5, 7, 8, 10, 11, 13 & 16 thru 19
