TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-

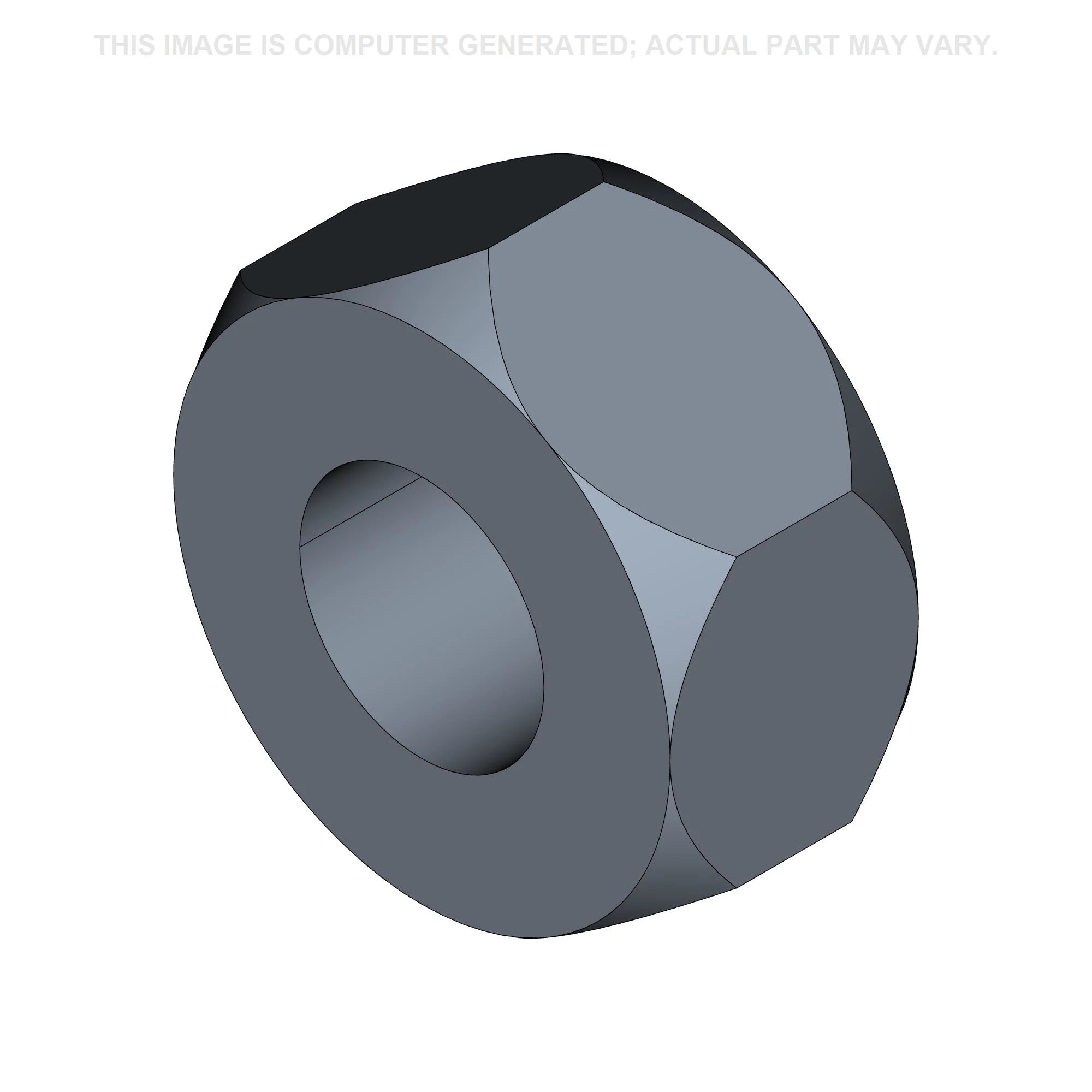

11LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;
-
22WASHER 8.4mm ID x 21mm OD x 1.6mm Thk;
-

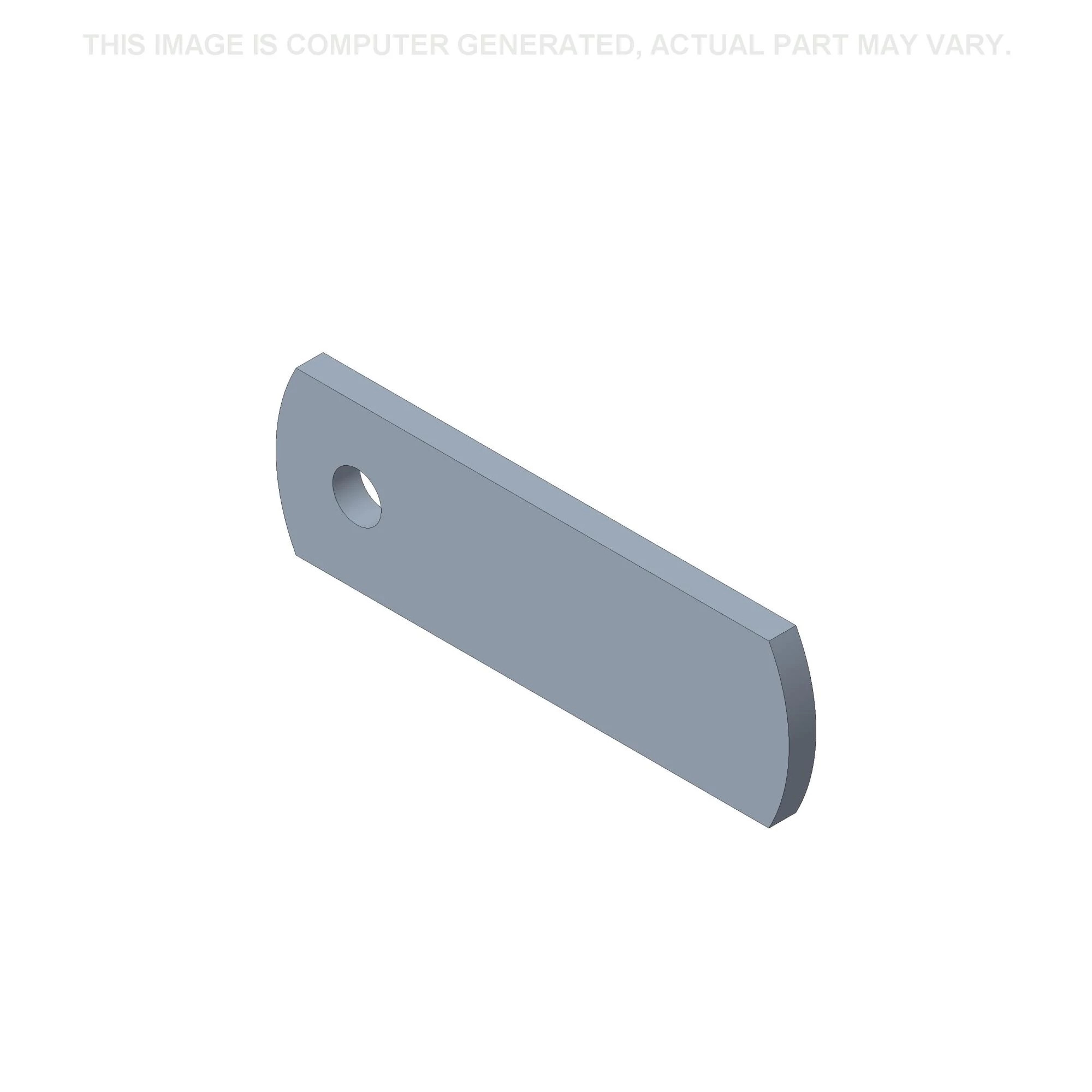

31PLATE;
-
42SPRING 8.199mm ID x 16mm OD x 0.9mm Thk;
-
51PEDAL; RH
-
61SCREW Phillips Drive, Flat HD, M8 x 1.25 x 40mm, Cl 4.8;
-
72PIN;
-
82PIN 5mm OD x 26mm L, Slotted;
-
91PEDAL; LH
-
101HOSE 102.00 mm; Rubber
-
111HOSE CLAMP;
-
121BRAKE LINING;
-
131TUBE;
-
141BRAKE LINING;
-
151FITTING;
-
161BRAKE LINING;
-
171TUBE;
-
182LOCK PIN;
-
194COTTER PIN M2 x 20mm OAL;
-
201TUBE 0.187'' DIA;
-
211TUBE;
-
221HYDRAULIC VALVE;
-
232BOLT Hex, M6 x 1 x 35mm, Cl 8.8;
-
244BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
-
254NUT Hex, M6 x 1, Cl 10, ZND;
-
262SPRING;
-
272LEVER;
-
284BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd;
-
298BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
-
308NUT Hex, M8 x 1.25, Cl 8, ZND;
-
314WASHER M8 x 16mm OD x 1.6mm Thk;
-
324BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd;
-
336HYD CONNECTOR 3/8'' - 24 JIC x 3/8'' - 24 JIC;
-
341TUBE; For SL only
-
351TUBE; For SL only
-
362CAP;
-
372BLEEDER;
-
382HYD CONNECTOR 3/8'' - 24 x M10 x 1;
-
391HYD TUBE; RH
-
401HYD TUBE; RH
-
411HYD TUBE; LH
-
421HYD TUBE; LH
-
432TUBE;
-
448FITTING;
-
458SEALING WASHER 15.5mm OD x 12mm ID x 1.5mm Thk; SEALRING DIA.:12MM
-
468BANJO BOLT M10 x 1 x 19.50mm;
-
478WASHER 10mm ID x 14mm OD x 1.5mm Thk;
-
482CYLINDER; Incl. Seal repair kit 80418011
-
492CLAMP 5mm ID, 4.8mm Bolt Hole, J Type;
-
501SCREW Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8;
-
516CLAMP;
-
521BELLEVILLE WASHER M4 Bolt Size x 10mm OD x 0.9mm Thk;
-
531NUT Hex, M4 x 0.7, Cl 8, ZND;
-

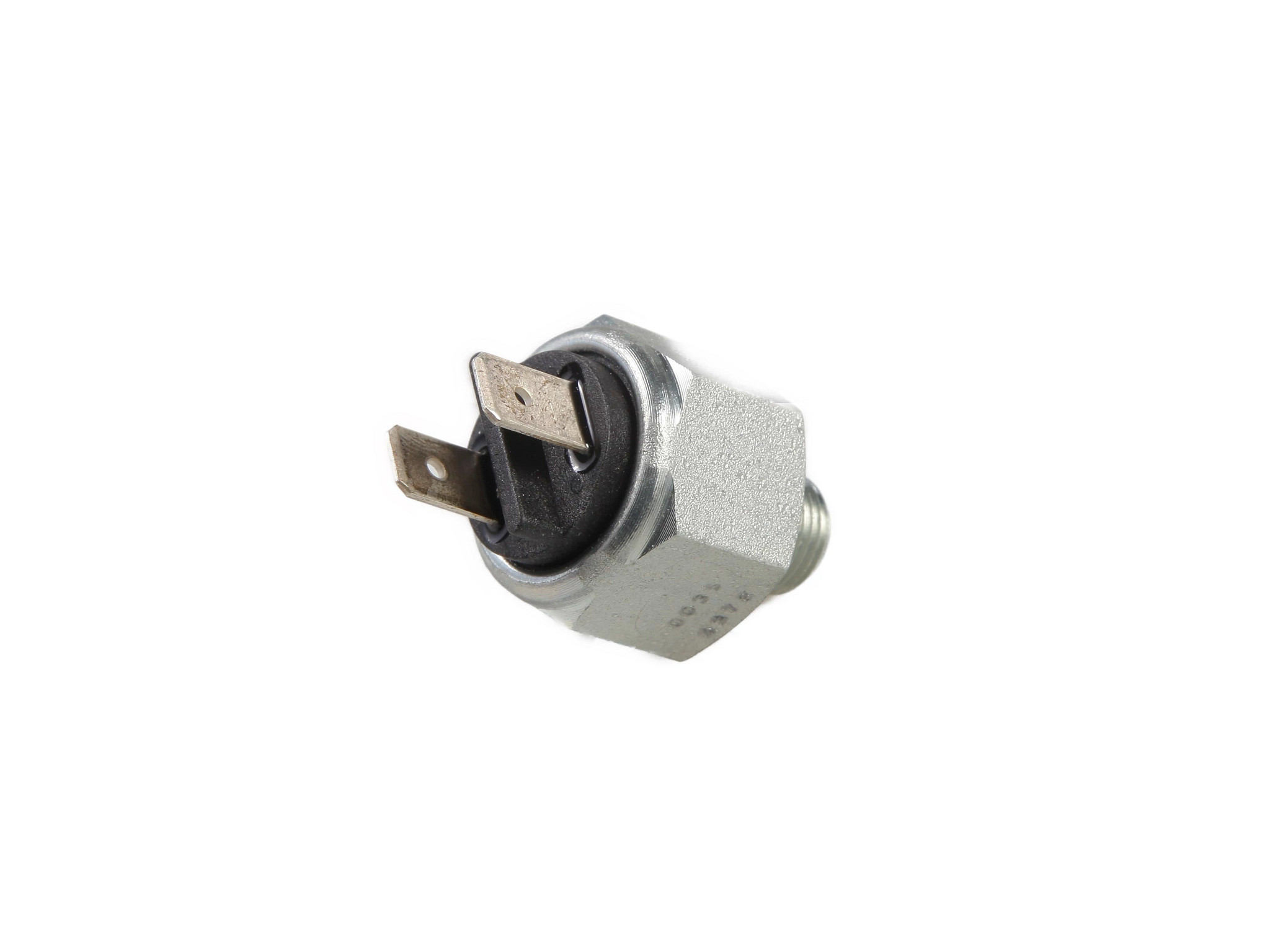

541PRESSURE SWITCH;
-
551TUBE 0.187'' DIA;
-
561TUBE 0.187'' DIA;
-
9992REPAIR KIT;
Select All
Ref.
4Qty
2Availability
Part #
397881Description
SPRING 8.199mm ID x 16mm OD x 0.9mm Thk;Img
Alts
Ref.
6Qty
1Availability
Part #
300352Description
SCREW Phillips Drive, Flat HD, M8 x 1.25 x 40mm, Cl 4.8;Img
Alts
Ref.
24Qty
4Availability
Part #
322357Description
BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;Img
Alts
Ref.
28Qty
4Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd;Img
Alts
Ref.
29Qty
8Availability
Part #
322358Description
BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;Img
Alts
Ref.
32Qty
4Availability
Part #
43128Description
BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd;Img
Alts
Ref.
33Qty
6Availability
Part #
336722Description

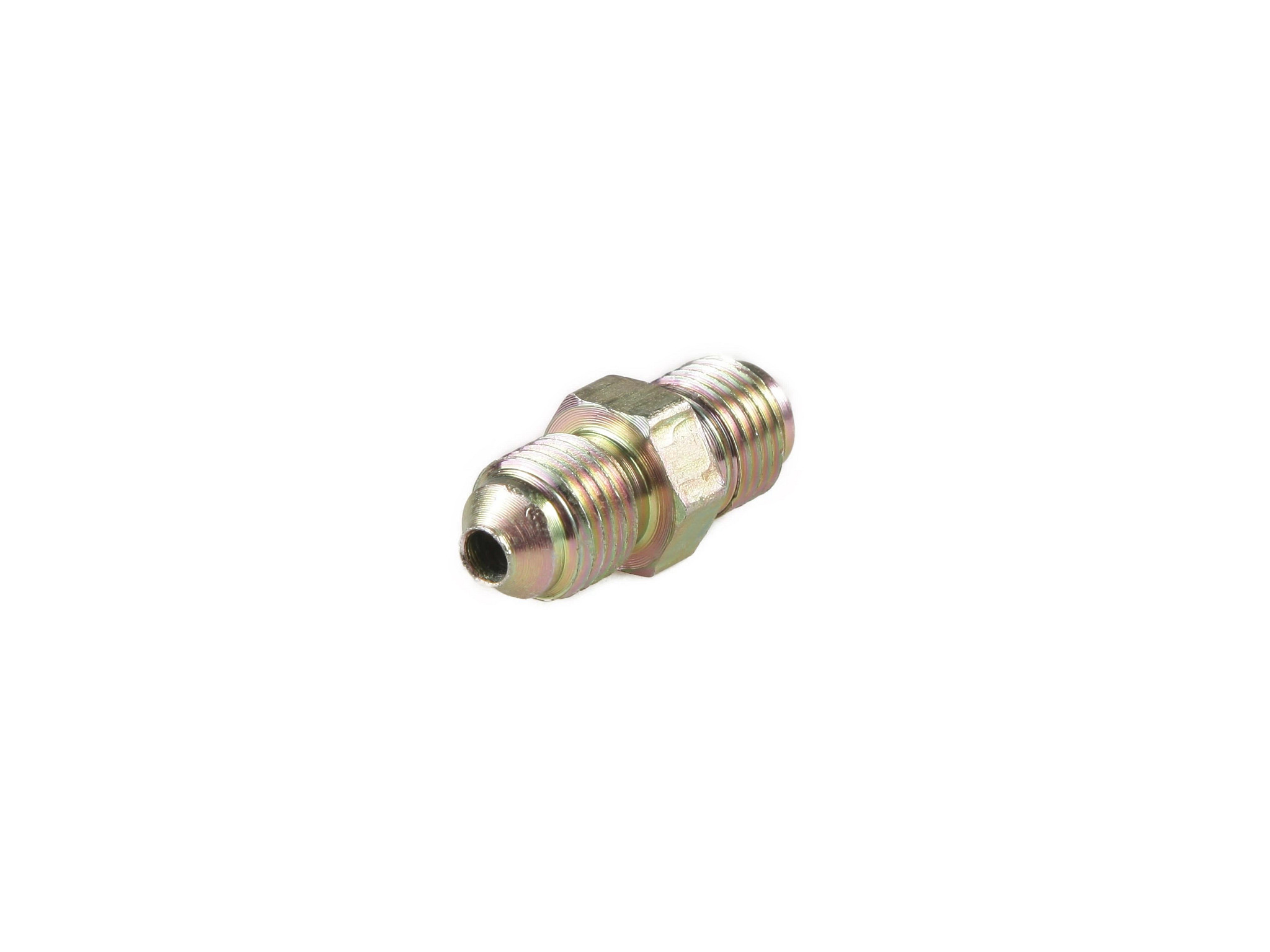

HYD CONNECTOR 3/8'' - 24 JIC x 3/8'' - 24 JIC;Img
Alts
Ref.
45Qty
8Availability
Part #
355607Description

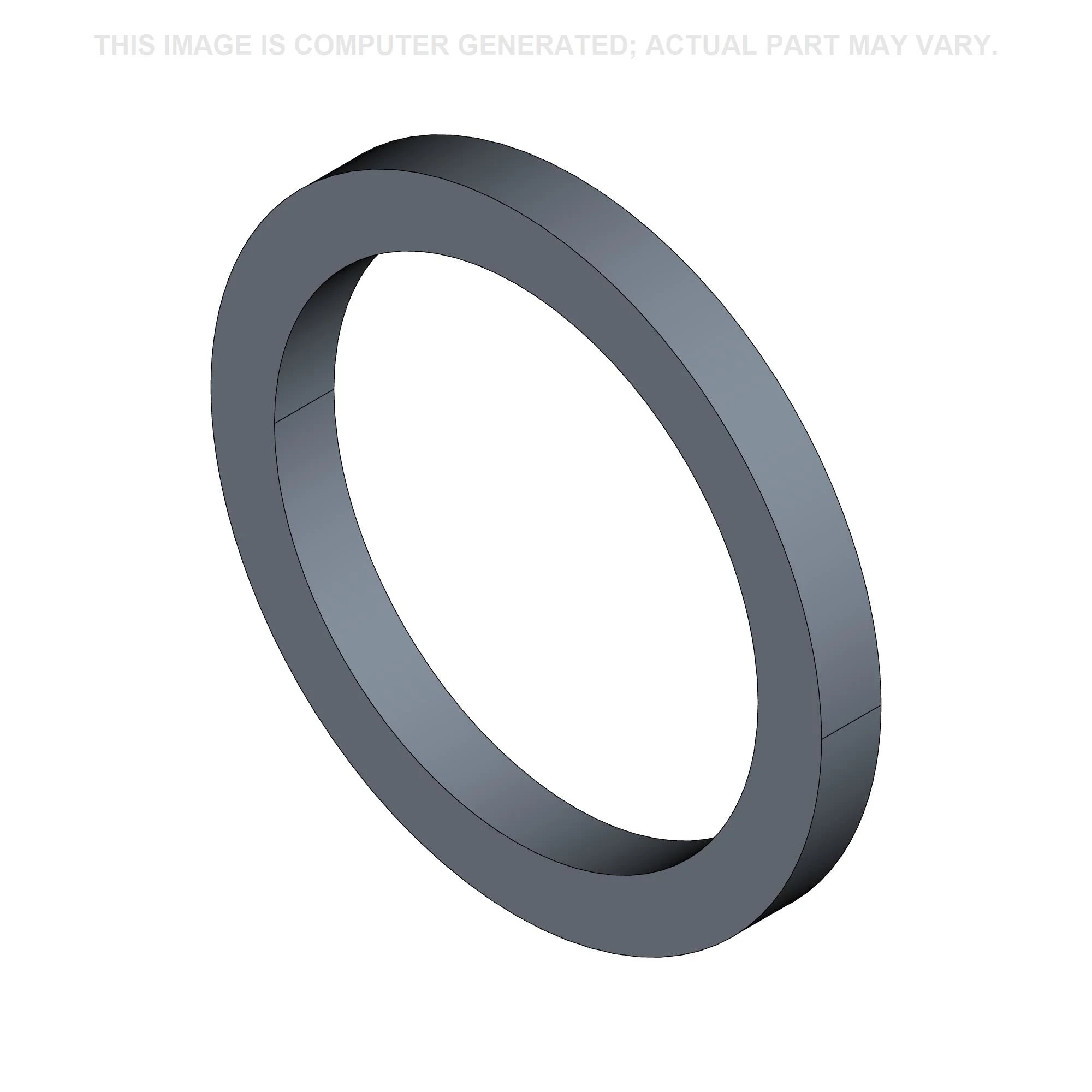

SEALING WASHER 15.5mm OD x 12mm ID x 1.5mm Thk; SEALRING DIA.:12MMImg
Alts
Ref.
47Qty
8Availability
Part #
9832305Description

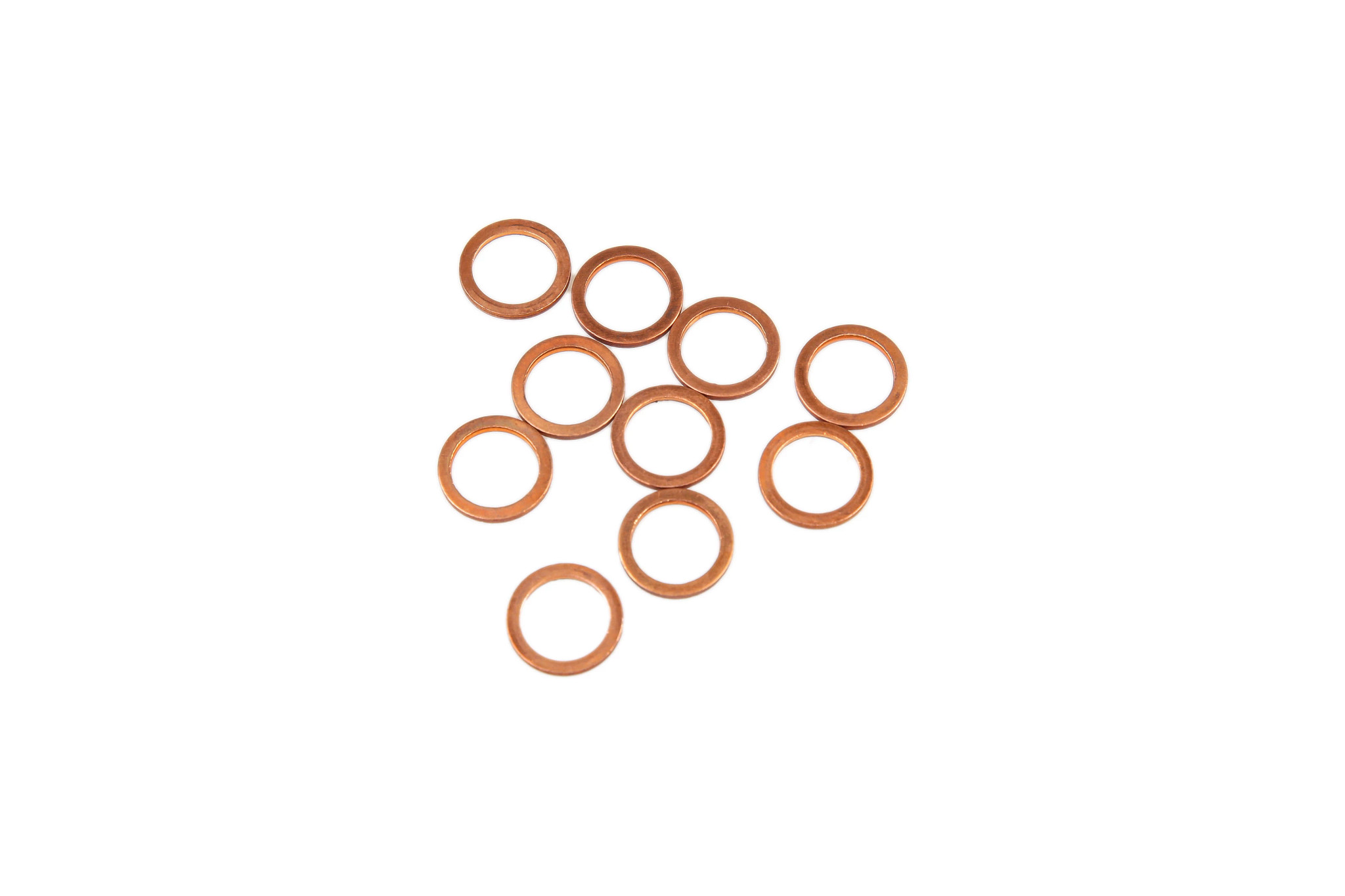

WASHER 10mm ID x 14mm OD x 1.5mm Thk;Img
Alts
Ref.
48Qty
2Availability
Part #
396929Description
CYLINDER; Incl. Seal repair kit 80418011Img
Alts
Ref.
49Qty
2Availability
Part #
84814932Description
CLAMP 5mm ID, 4.8mm Bolt Hole, J Type;Img
Alts
Ref.
50Qty
1Availability
Part #
86511824Description
SCREW Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8;Img
Alts
Ref.
52Qty
1Availability
Part #
322355Description
BELLEVILLE WASHER M4 Bolt Size x 10mm OD x 0.9mm Thk;Img
Alts
