50.100.AP[01] - AIR CONDITIONER ASSY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84267544
    UNIT HEATER; With A/C, Incl 2 - 48
  • 2
    1
    84376814
    CAB FILTER 430mm L x 110mm W x 30mm Thk; Cab Air, Service
  • 2
    1
    84376815
    CAB FILTER 430mm L x 110mm W x 30mm Thk, Charcoal; Service, Optional
  • 3
    1
    84381035
    BOX; Bottom
  • 4
    1
    84380586
    HOUSING; Filter
  • 5
    1
    84380587
    BLOWER 12V; Motor; (Prod Date) Up to 31-Oct-2014
  • 5
    1
    47860616
    BLOWER 12V, 32A; Blower; (Prod Date) Between 01-Nov-2014 and 09-Oct-2016
  • 5
    1
    47984176
    BLOWER 12V, 32A; Motor
  • 5
    1
    47984176C
    CORE-ELECTRIC MOTOR 12V, 32A; Motor
  • 6
    1
    84380588
    GASKET; Blower
  • 7
    2
    84380589
    CABLE CLIP; Blower
  • 8
    1
    84380590
    RESISTOR 12V, 4 Tab; 4 Tab
  • 9
    1
    47456096
    WIRE HARNESS; A/C; (Prod Date) Up to 31-Oct-2014
  • 9
    1
    47860611
    WIRE HARNESS; A/C; (Prod Date) From 01-Nov-2014
  • 10
    3
    84380593
    CABLE CLIP; Harness
  • 11
    1
    84380594
    BRACKET; Relay
  • 12
    23
    84380596
    SCREW M4 x 16mm;
  • 13
    11
    84380597
    CLIP; Condensate Cup
  • 14
    2
    84380598
    LATCH HOOK; Filter
  • 15
    2
    84380599
    KNOB; Closing
  • 16
    8
    5192101
    BLOCK; Silent
  • 17
    4
    84380601
    SPACER 9mm ID x 11mm OD x 16mm L; Silent Block
  • 18
    1
    84380602
    GASKET LEFT AIR OUTLET; Left Air Outlet
  • 19
    1
    84380603
    GASKET AIR OUTLET RIGHT; Right Air Outlet
  • 20
    1
    84380604
    GASKET; Air Inlet
  • 21
    1
    84380608
    GASKET; Hose Interface
  • 22
    1
    84380609
    PLATE; Water Condensate
  • 23
    2
    84380610
    VALVE; Water Condensate
  • 24
    4
    84380611
    SPRING CLIP M6 x 22.3mm L;
  • 25
    1
    84380612
    GASKET; Harness
  • 26
    1
    47456099
    HEAT EXCHANGER; Incl 27, 28
  • 27
    1
    84380614
    SEALING STRIP 30mm W x 330mm L x 5mm Thk; Heater Core
  • 28
    1
    84380615
    INSULATION 10mm W x 391mm L x 10mm Thk; Heater Lateral
  • 29
    1
    84380616
    THERMOSTAT; Electronic
  • 30
    1
    47456100
    EVAPORATOR 85mm W x 150mm H x 440mm L; 440mm L, Assy, Incl 31, 34
  • 30
    1
    84380619
    GASKET 60mm W x 438mm L x 3mm Thk;
  • 30
    1
    84380620
    GASKET 10mm W x 391mm L x 10mm Thk;
  • 31
    1
    84380618
    PIPE; Inlet/Outlet, Incl in 30
  • 32
    1
    NSS
    NOT SOLD SEPARAT; Expansion Valve O-Ring, Incl in 54
  • 33
    1
    NSS
    NOT SOLD SEPARAT; Expansion Valve O-Ring, Incl in 54
  • 34
    1
    84380621
    VALVE, THERMAL EXPAN; Expansion, Incl in 30
  • 35
    1
    84380622
    SCREW M6 x 55mm;
  • 36
    1
    84380623
    CAP 5/8'' - 18;
  • 37
    1
    84380624
    CAP 7/8'' - 14;
  • 38
    1
    84380625
    TUBE 12mm ID x 17mm OD x 87mm L; Condensate
  • 39
    1
    84381032
    BOX; Lower
  • 40
    1
    84381034
    BOX; Upper
  • 41
    2
    47511332
    THREADED INSERT M6 x 76mm;
  • 42
    2
    47511333
    RUBBER WASHER; Heater A/C Assembly
  • 43
    5
    47511327
    CLIP; Wire, Safety Block
  • 44
    2
    47511330
    SCREW M4 x 20mm; Screw, M4 x 20mm
  • 45
    2
    47511331
    GASKET 16'' W x 38'' L; Filter 38 x 16''
  • 46
    1
    9825770
    O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 6, 90 Duro;
  • 47
    1

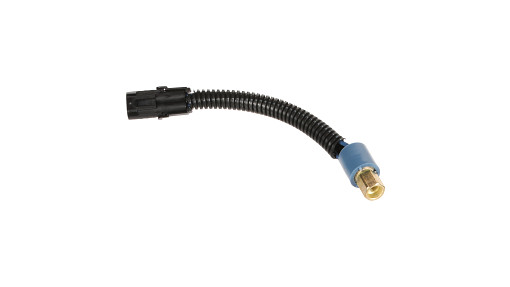

    47511326
    VALVE, PRESSURE CONT; Low;Used with Heater A/C Assembly 84267544; (Prod Date) Up to 02-Mar-2014
  • 47
    1
    84419250
    SWITCH, A/C LOW PRES; Low;Used with Heater A/C Assembly 47636556; (Prod Date) From 03-Mar-2014
  • 48
    3
    87604032
    RELAY 12V, 30A, Micro; A/C Compressor, Blower Fan, Condenser Fan
  • 49
    1
    47635222
    KIT; Bottom Box, Incl 3, 22
  • 50
    1
    47635221
    GASKET KIT HVAC; Incl 6, 18, 19, 21, 25, 27, 28, 32
  • 51
    1
    47635220
    KIT; Evap Tubes Service Parts, Incl 31, 36, 37
  • 52
    1
    47635213
    KIT MOUNT; Mount, Incl 16, 17
  • 53
    1
    47635219
    SERVICE KIT HVAC BOX; Box, Incl 39 - 41
  • 54
    1
    47635217
    SERVICE KIT EXPANSION VALVE; Expansion Valve, Incl 32 - 34
  • 55
    1
    47635216
    KIT; Knob, Incl 12, 14, 15, 41, 42
  • 56
    1
    47635215
    SERVICE KIT CHARCOAL FILTER, GASKET; Charcoal Filter, Incl 2, 45
  • 57
    1
    47635214
    KIT; Std Filter, Incl 2, 45
  • 58
    1
    47635212
    KIT; HVAC Harness, Incl 8 - 12, 25, 29, 32, 48; (Prod Date) Up to 31-Aug-2014
  • 58
    1
    47860976
    KIT; HVAC Harness, Incl 8 - 12, 25, 29, 32, 48; (Prod Date) From 01-Sep-2014
