05.100.04[02] - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87705737
    BELT V-Belt, 28.48mm W x 1398.2mm L, 8 Ribs; Main Drive;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 2
    1
    87399980
    BELT 924mm L, 4 Ribs; A/C Compressor;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 3
    1
    84208918R
    REMAN-STARTER 12V, 3.2kW; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 3
    1
    84208918C
    CORE-STARTER 12V, 3.2kW; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 3
    1
    87398251C
    CORE-STARTER STARTER; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 3
    1
    84208918
    STARTER MOTOR 12V, 3.2kW; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 4
    1
    87311822
    ALTERNATOR 120A, W/ Pulley; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 4
    1
    87311822C
    CORE-ALTERNATOR 120A, W/ Pulley; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
  • 4
    1
    87311822R
    REMAN-ALTERNATOR 120A, W/ Pulley; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87705737

Description

BELT V-Belt, 28.48mm W x 1398.2mm L, 8 Ribs; Main Drive;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87399980

Description

BELT 924mm L, 4 Ribs; A/C Compressor;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

3

Qty

1

Availability

Part #

84208918R

Description

REMAN-STARTER 12V, 3.2kW; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

3

Qty

1

Availability

Part #

84208918C

Description

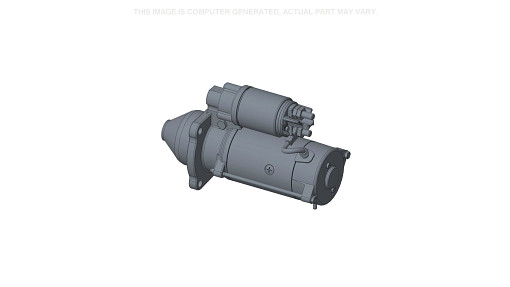

CORE-STARTER 12V, 3.2kW; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87398251C

Description

CORE-STARTER STARTER; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

3

Qty

1

Availability

Part #

84208918

Description

STARTER MOTOR 12V, 3.2kW; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87311822

Description

ALTERNATOR 120A, W/ Pulley; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87311822C

Description

CORE-ALTERNATOR 120A, W/ Pulley; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87311822R

Description

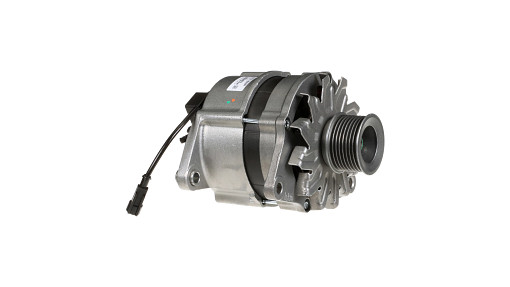

REMAN-ALTERNATOR 120A, W/ Pulley; On Engine;Valid with 4055S KOMPAKT-TRACTOR, 4065S KOMPAKT-TRACTOR Models


Alts
