18.104.040 - VAR - 759018, 759019 - PTO CLUTCH, CONTROL, LINES, W/O MID MOUNT VALVES, W/O FRONT PTO
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    48159688
    PIPE; Return PTO Control, ASSY, Incl 2
  • 2
    1
    9992298
    O-RING 12.4mm ID x 1.78mm Thk, HNBR;
  • 3
    1
    48087390
    PIPE; PTO Lines, ASSY, Incl 4
  • 4
    1
    9993141
    O-RING 9.2mm ID x 1.78mm Thk, HNBR;
  • 5
    1
    10184311
    BANJO BOLT M14 x 1.5 x 27mm;
  • 6
    2
    10261160
    SEALING WASHER M14.2 x 18 x 1.5, Copper;
  • 7
    1

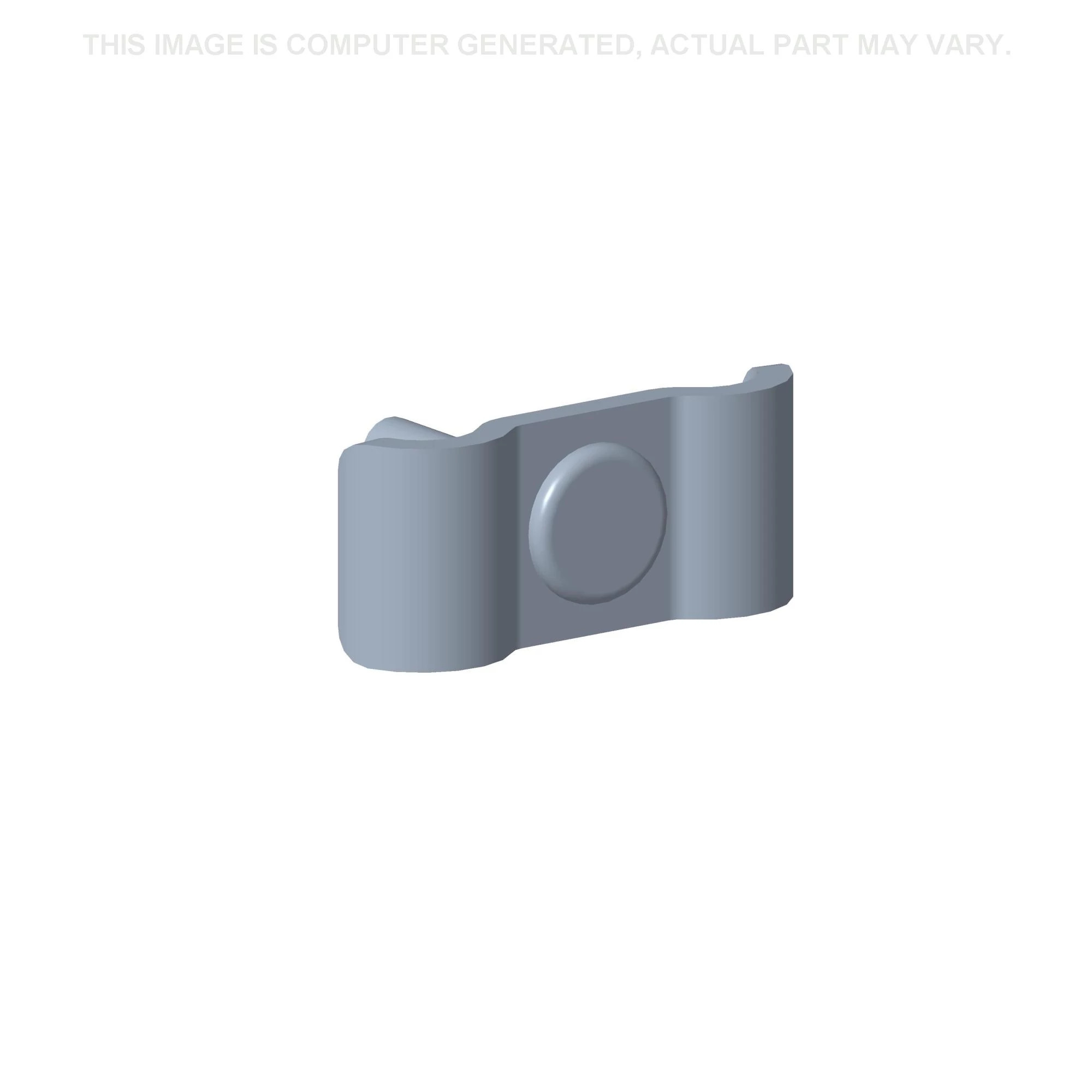

    48087392
    BRACKET;
  • 8
    1
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND;
  • 9
    2
    14331124
    HEX SOC SCREW M12 x 1.25 x 30mm, Cl 8.8, Full DAC;
  • 10
    1

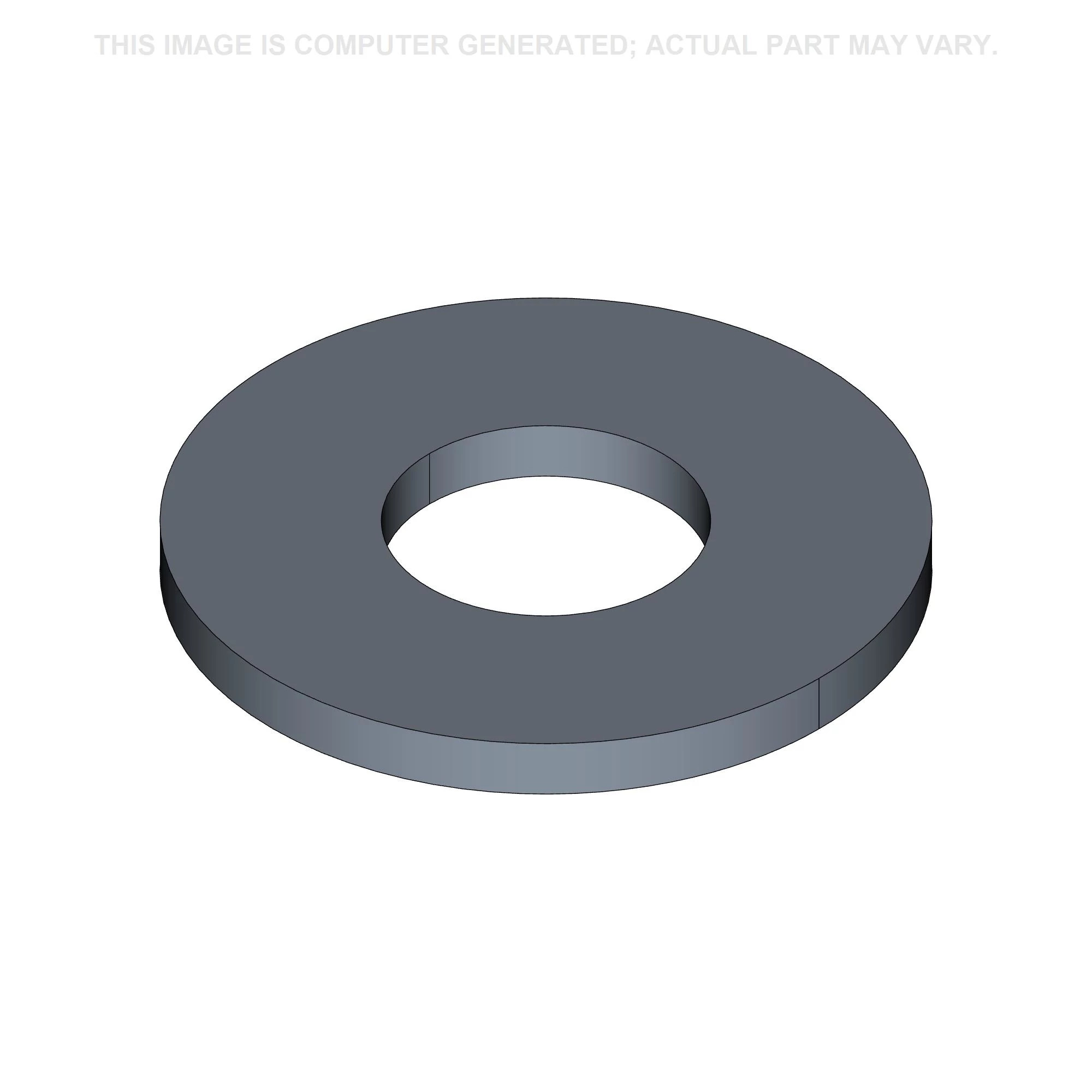

    11193274
    BELLEVILLE WASHER M6 Bolt Size x 15mm OD x 1.2mm Thk;
Select All

Select

Ref.

1

Qty

1

Availability

Part #

48159688

Description

PIPE; Return PTO Control, ASSY, Incl 2


Alts

Select

Ref.

2

Qty

1

Availability

Part #

9992298

Description

O-RING 12.4mm ID x 1.78mm Thk, HNBR;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

48087390

Description

PIPE; PTO Lines, ASSY, Incl 4


Alts

Select

Ref.

4

Qty

1

Availability

Part #

9993141

Description

O-RING 9.2mm ID x 1.78mm Thk, HNBR;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

10184311

Description

BANJO BOLT M14 x 1.5 x 27mm;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

10261160

Description

SEALING WASHER M14.2 x 18 x 1.5, Copper;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

48087392

Description

BRACKET;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

15896221

Description

NUT Hex, M6 x 1, Cl 10, ZND;


Alts

Select

Ref.

9

Qty

2

Availability

Part #

14331124

Description

HEX SOC SCREW M12 x 1.25 x 30mm, Cl 8.8, Full DAC;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

11193274

Description

BELLEVILLE WASHER M6 Bolt Size x 15mm OD x 1.2mm Thk;


Alts
