19A[01] - ALTERNATOR, STARTER MOTOR AND FLYWHEEL ASSY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    E6NN6375AB
    ENGINE FLYWHEEL; (Incl. fig.2);FOR TC54 HYDROSTATIC ONLY;FOR TC52-54-56 ONLY
  • 1
    1
    9825192
    ENGINE FLYWHEEL; (Incl. fig.2);FOR TC56 HYDROSTATIC ONLY
  • 2
    1
    83949153
    RING GEAR; FOR TC54 HYDROSTATIC ONLY;FOR TC52-54-56 ONLY
  • 2
    1
    83949153
    RING GEAR; FOR TC56 HYDROSTATIC ONLY
  • 3
    6
    D9NN6379AB
    SCREW;
  • 4
    1
    89512997
    PLATE;
  • 4
    1
    89835634
    PLATE; FOR TC56 HYDROSTATIC ONLY
  • 5
    1
    9513759
    PLUG;
  • 6
    1
    NS
    NOT SERVICED; STARTER MOTOR;FOR BREAKDOWN SEE GROUP 19D
  • 6
    1
    NS
    NOT SERVICED; STARTER MOTOR;FOR BREAKDOWN SEE GROUP 19E
  • 6
    1
    NS
    NOT SERVICED; STARTER MOTOR;FOR TC56 HYDROSTATIC ONLY;FOR BREAKDOWN SEE GROUP 19F
  • 7
    AR
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 8
    3
    120112
    BOLT Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd;
  • 8
    3
    81869630
    HEX SOC SCREW M10 x 35mm, Cl 8.8;
  • 8
    3

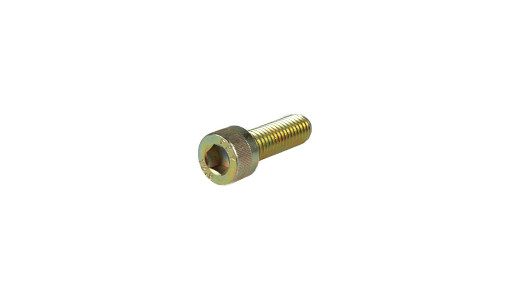

    300442
    HEX SOC SCREW M10 x 30mm, Cl 8.8;
  • 9
    1
    F0NN10B376CA
    ALTERNATOR; (Incl. fig.15)
  • 9
    1
    9813835C
    CORE-ALTERNATOR ALTERNATOR; (Incl. fig.15)
  • 9
    1
    9813835
    ALTERNATOR; (Incl. fig.15)
  • 9
    1
    9813835R
    REMAN-ALTERNATOR ALTERNATOR; (Incl. fig.15)
  • 9
    1
    84011143
    ALTERNATOR;
  • 9
    1
    9824834
    ALTERNATOR; (Incl. fig.15, 130A);FOR TC56 HYDROSTATIC ONLY
  • 9
    1
    9833744
    ALTERNATOR; (Incl. fig.15, 135A);FOR TC56 HYDROSTATIC ONLY
  • 10
    2
    43127
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;
  • 11
    2
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 12
    1
    86629542
    LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 13
    1
    378243
    WASHER 8.4mm ID x 21mm OD x 1.6mm Thk;
  • 14
    1
    381522
    BOLT Hex, M8 x 1.25 x 130mm, Cl 8.8;
  • 15
    1
    E7NN10380AA
    FAN;
  • 15
    1
    86507634
    BLOWER; FOR TC56 HYDROSTATIC ONLY
  • 16
    1
    89513928
    VALVE SEAT;
  • 16
    1
    89835465
    BELT, TRANSMISSION;
  • 16
    1
    84000101
    BRACKET;
  • 16
    1
    84017264
    BRACKET;
  • 17
    AR
    F0NN8A613AA
    SPACER;
  • 18
    AR
    F0NN8N635CA
    DUST CAP;
  • 19
    AR
    83995241
    PULLEY;
  • 20
    1
    84005860
    BELT 2217.00 mm L, 6 Ribs; Alternator and Waterpump Drive
  • 20
    1
    9835683
    BELT V-Belt, 28.48mm W x 2286mm L, 8 Ribs; Alternator & waterpump drive;FOR TC56 HYDROSTATIC ONLY
  • 21
    AR
    F0NN8N635DA
    COVER;
  • 22
    AR
    9706702
    BOLT Hex, M12 x 1.75 x 50mm, Cl 8.8, ZND;
  • 23
    1
    F1NN6B209AA
    ADJUSTER;
  • 23
    1
    86013886
    BELT TENSIONER; FOR TC56 HYDROSTATIC ONLY
  • 23
    1
    86013886
    BELT TENSIONER; FOR TC56 HYDROSTATIC ONLY
  • 23
    1

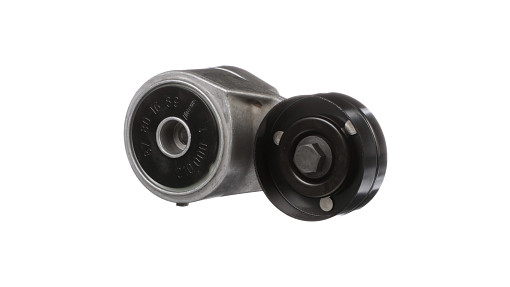

    87801689
    IDLER; FOR TC54-TC56 WITH ENGINE 675 TA/HJ
  • 24
    1
    412595
    SCREW Pan Hd, M12 x 70mm, Cl 8.8;
  • 25
    1
    80444344
    CONDENSER; (only with straw chopper)
  • 26
    1
    89835875
    GUIDE; FOR TC54-56 ONLY
  • 27
    1
    9706687
    BOLT Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd; FOR TC54-56-56 HYDRO ONLY
  • 28
    1
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; FOR TC54-56 ONLY
  • 29
    1
    89835964
    BRACKET; FOR TC56 HYDROSTATIC ONLY
  • 30
    1
    89833546
    BRACKET; FOR TC56 HYDROSTATIC ONLY
  • 31
    1
    87909
    BOLT Hex, 1/2'' - 13 x 1'', Gr 5; FOR TC56 HYDROSTATIC ONLY
  • 32
    2
    80679
    LOCK WASHER 1/20.507 CST ZND; FOR TC56 HYDROSTATIC ONLY
  • 33
    1
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd; FOR TC56 HYDROSTATIC ONLY
  • 34
    1
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND; FOR TC56 HYDROSTATIC ONLY
  • 35
    1
    9833558
    PULLEY; FOR TC56 HYDROSTATIC ONLY
  • 35
    1
    9833540
    PULLEY; FOR TC56 HYDROSTATIC ONLY
  • 36
    1
    9833548
    SPACER; FOR TC56 HYDROSTATIC ONLY
  • 37
    2
    210043
    BALL BEARING 30mm ID x 62mm OD x 16mm W; FOR TC56 HYDROSTATIC ONLY
  • 38
    1
    140085
    WASHER 13mm ID x 38mm OD x 6.35mm Thk; FOR TC56 HYDROSTATIC ONLY
  • 39
    1
    9833851
    WASHER; FOR TC56 HYDROSTATIC ONLY
  • 40
    1
    9833536
    SUPPORT; FOR TC56 HYDROSTATIC ONLY
  • 40
    1
    84017193
    SUPPORT; FOR TC56 HYDROSTATIC ONLY
  • 40
    1
    9833536
    SUPPORT; FOR TC56 HYDROSTATIC ONLY
  • 41
    3
    81547
    LOCK WASHER 7/16''; FOR TC56 HYDROSTATIC ONLY
  • 42
    3
    88754
    BOLT Hex, 7/16'' - 14 x 1.50, Gr 8; FOR TC56 HYDROSTATIC ONLY
  • 43
    1
    89835966
    BRACKET; FOR TC56 HYDROSTATIC ONLY
  • 44
    1
    9828373
    PULLEY 82.2mm OD;
