01.10[01] - ENGINE: SUPPORTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

4

Availability

Part #

43140

Description

BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

2

Qty

4

Availability

Part #

140045

Description

BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;


Alts

Select

Ref.

3

Qty

4

Availability

Part #

481489

Description

ADJUSTING PLATE;


Alts

Select

Ref.

4

Qty

4

Availability

Part #

100016

Description

NUT Hex, M10 x 1.5, Cl 8, ZND;


Alts

Select

Ref.

5

Qty

8

Availability

Part #

330327

Description

NUT Hex, M12 x 1.5, Cl 8, ZND;


Alts

Select

Ref.

6

Qty

10

Availability

Part #

140046

Description

BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;


Alts

Select

Ref.

7

Qty

4

Availability

Part #

89850749

Description

FLANGE COVER CAP;


Alts

Select

Ref.

8

Qty

4

Availability

Part #

89850744

Description

DAMPER;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

84045062

Description

SUPPORT; LH


Alts

Select

Ref.

9

Qty

1

Availability

Part #

89835262

Description

SUPPORT; LH


Alts

Select

Ref.

10

Qty

1

Availability

Part #

89835263

Description

SUPPORT; RH


Alts

Select

Ref.

11

Qty

6

Availability

Part #

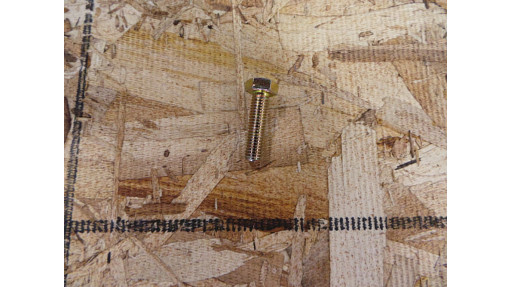

120090

Description

BOLT Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

12

Qty

17

Availability

Part #

394631

Description

WASHER 17mm ID x 34mm OD x 4mm Thk;


Alts

Select

Ref.

13

Qty

10

Availability

Part #

140048

Description

BELLEVILLE WASHER M16 Bolt Size x 32mm OD x 2.8mm Thk;


Alts

Select

Ref.

14

Qty

6

Availability

Part #

100020

Description

NUT Hex, M16 x 2, Cl 8, ZND;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

89835256

Description

SUPPORT; RH


Alts

Select

Ref.

16

Qty

1

Availability

Part #

84014769

Description

SUPPORT;


Alts

Select

Ref.

17

Qty

6

Availability

Part #

84015623

Description

BUSHING;


Alts

Select

Ref.

18

Qty

6

Availability

Part #

140047

Description

LOCK WASHER;


Alts

Select

Ref.

19

Qty

6

Availability

Part #

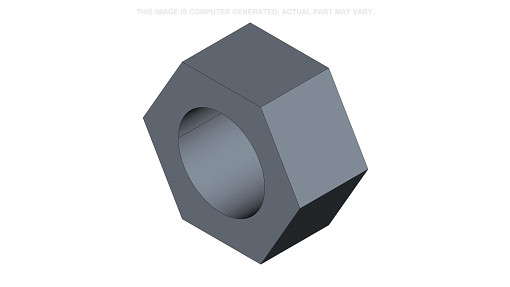

86508817

Description

NUT Hex, M14 x 2, Cl 8, ZND; M14


Alts

Select

Ref.

20

Qty

6

Availability

Part #

80412212

Description

BOLT; M16X1.5X35


Alts

Select

Ref.

21

Qty

1

Availability

Part #

84053454

Description

BRACKET;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

120104

Description

BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

23

Qty

1

Availability

Part #

322358

Description

BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

9706690

Description

NUT Hex, M8 x 1.25, Cl 8, ZND;


Alts
