TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1CLUTCH; ASSEMBLY, Includes: Ref. 1 - 28
-
11TRANSMISSION; DRIVEN PLATE, with 11'' F30C facings
-
1FACING; S, 11'' F30/c (2) and rivets (40)
-
21CLUTCH; COVER ASSEMBLY
-
1COVER;
-
32PIN; DOWEL
-
46SCREW; SETSCREW, 5/16 UNF x 3/4''
-
6SPRING WASHER; SPRING WASHER, 5/16''
-
51PLATE; PRESSURE PLATE
-
6A12SPRING; THRUST SPRING, light green/black, Includes: Ref. 6C
-
6B1SPRING; THRUST SPRING, buff/black set of 12 (heavy duty), Includes: Ref. 6C
-
6C12COMPRESSION SPRING; THRUST SPRING, buff/black (heavy duty)
-
712CUP; spring
-
83PIN; release lever
-
3PIN; SPLIT PIN, 3/32 x 3/4''
-
93LEVER; RELEASE LEVER
-
103SPRING; release lever
-
111SCREW; ADJUSTING SCREW, set of 3, replaces K923990
-
3NUT; LOCKNUT, 3/8 UNF
-
121PLATE; release lever
-
3PIN; SPLIT PIN, 3/32 x 1''
-
1SPRING; plate to release lever (set of 3)
-
133PIN; PTO pressure plate
-
143SCREW; EYE BOLT, 3/8 UNF, right-hand thread
-
3SPECIAL NUT; LOCKNUT, 3/8 UNF, right-hand thread
-
153TURNBUCKLE;
-
163SCREW; EYE BOLT, 3/8 UNF, left-hand thread
-
173SPECIAL NUT; LOCKNUT, 3/8 UNF, left-hand thread
-
183LEVER; RELEASE LEVER (with bush)
-
191SPRING; anti-rattle, PTO, replaces K919859 set of 3
-
203PIN; release lever
-
3PIN; SPLIT PIN, 3/32 x 3/8''
-
211PLATE; release lever
-
3PIN; SPLIT PIN, 5/32 x 1-3/8''
-
223PIN; release lever
-
3WASHER; 5/16''
-
6PIN; SPLIT PIN, 3/32 x 1/2''
-
231PLATE; PRESSURE PLATE, PTO
-
2412SPRING; THRUST SPRING, PTO, red
-
2512WASHER; INSULATING WASHER;Ref #1 - K961832 subs to K942507. 10/12/95;Ref #9 not illustrated correctly, see B16;Ref #12 K962956. the set of three springs is not illustrated.
-
261HOUSING; SEPARATOR HOUSING
-
271BEARING ASSY; BALL BEARING
-
281SNAP RING; CIRCLIP, 72 mm internal
-
299BOLT; 5/16 UNC x 3-3/4''
-
9SPRING WASHER; SPRING WASHER, 5/16''
-
301CLUTCH & DISC ASSY; DRIVEN PLATE, PTO, with 11'' F30C facings
-
1CLUTCH; FACINGS, F30C (2) and rivets (24)
-
311CLUTCH; DRIVESHAFT (1212)
-
31A1DRIVE SHAFT; CLUTCH DRIVESHAFT, (1210)
-
31B1CLUTCH; DRIVESHAFT (996)
-
32A1FLEXIBLE COUPLING; MUFF COUPLING, 12 speed (1210)
-
32B1COUPLING, BREAK AWAY; MUFF COUPLING, 6 speed (1210)
-
332SNAP RING; CIRCLIP, 1-3/4'' external
-
341RING; 1-1/8'' internal, replaces K623634 (Nu-lip)
-
35*SHIM .032'' Thk;
-
36A1BRACKET; SUPPORT SNOUT, thrust bearing carrier (1210)
-
36B1SUPPORT; SNOUT, thrust bearing carrier (996)
-
373BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; SETSCREW, 5/16 UNC x 1''
-
3SPRING WASHER; SPRING WASHER, 5/16''
-
381BALL BEARING;
-
391O-RING; 'O' RING, 1-1/2'' internal dia., replaces K623697
-
401CIRCLIP; 75mm internal
-
411O-RING 0.139'' Thk x 2.984'' ID, -234, Cl 5, 75 Duro; 'O' RING, 3'' internal dia.;Ref #41 - K623545 subs to A30095. 10/12/95
-
421BEARING CARRIER Clutch; THRUST BEARING CARRIER
-
431THRUST BEARING 69.84mm ID x 103.17mm OD x 21.59mm W; replaces K620112
-
441BEARING HOUSING; HOUSING, release bearing
-
1FITTING; ELBOW, 1/8 BSF, 3/8 UNF
-
1TUBE 0.122'' ID x 0.187'' OD; PLASTIC TUBE, 1/8 x 14-1/2 in., release bearing lubrication
-
2NUT; UNION NUT, 3/8 UNF, release bearing lubrication
-
2FERRULE; OLIVE, 1/4 in., release bearing lubrication
-
1FITTING; UNION, 3/8 UNF, release bearing lubrication
-
1FERRULE; OLIVE, 3/16 in., release bearing lubrication
-
1NUT; TUBING NUT, 3/8 UNF, release bearing lubrication
-
1TUBE 0.187'' OD x 2.625'' L; PIPE, 3/16 x 2-7/8 in., main frame, release bearing lubrication
-
451BALL BEARING 76.2mm ID x 114.3mm OD x 19.05mm W;
-
461SEAL 88.01mm ID x 114.17mm OD x 0.56mm Thk; SHIELD
-
471SNAP RING; CIRCLIP, 4-1/2 in internal
-
481THRUST PLATE; PTO
Select All
Ref.
1Qty
1Availability
Part #
K919861Description
TRANSMISSION; DRIVEN PLATE, with 11'' F30C facingsImg
Alts
Ref.
Qty
1Availability
Part #
K961832Description
FACING; S, 11'' F30/c (2) and rivets (40)Img
Alts
Ref.
6AQty
12Availability
Part #
K625262Description
SPRING; THRUST SPRING, light green/black, Includes: Ref. 6CImg
Alts
Ref.
6BQty
1Availability
Part #
K964700Description
SPRING; THRUST SPRING, buff/black set of 12 (heavy duty), Includes: Ref. 6CImg
Alts
Ref.
6CQty
12Availability
Part #
K625211Description
COMPRESSION SPRING; THRUST SPRING, buff/black (heavy duty)Img
Alts
Ref.
11Qty
1Availability
Part #
K962597Description
SCREW; ADJUSTING SCREW, set of 3, replaces K923990Img
Alts
Ref.
Qty
1Availability
Part #
K962956Description
SPRING; plate to release lever (set of 3)Img
Alts
Ref.
14Qty
3Availability
Part #
K923843Description
SCREW; EYE BOLT, 3/8 UNF, right-hand threadImg
Alts
Ref.
Qty
3Availability
Part #
K617588Description
SPECIAL NUT; LOCKNUT, 3/8 UNF, right-hand threadImg
Alts
Ref.
16Qty
3Availability
Part #
K923842Description
SCREW; EYE BOLT, 3/8 UNF, left-hand threadImg
Alts
Ref.
17Qty
3Availability
Part #
K617282Description
SPECIAL NUT; LOCKNUT, 3/8 UNF, left-hand threadImg
Alts
Ref.
19Qty
1Availability
Part #
K962587Description
SPRING; anti-rattle, PTO, replaces K919859 set of 3Img
Alts
Ref.
25Qty
12Availability
Part #
K626735Description
WASHER; INSULATING WASHER;Ref #1 - K961832 subs to K942507. 10/12/95;Ref #9 not illustrated correctly, see B16;Ref #12 K962956. the set of three springs is not illustrated.Img
Alts
Ref.
30Qty
1Availability
Part #
K915827Description
CLUTCH & DISC ASSY; DRIVEN PLATE, PTO, with 11'' F30C facingsImg
Alts
Ref.
Qty
1Availability
Part #
K962052Description
CLUTCH; FACINGS, F30C (2) and rivets (24)Img
Alts
Ref.
31AQty
1Availability
Part #
K940999Description
DRIVE SHAFT; CLUTCH DRIVESHAFT, (1210)Img
Alts
Ref.
32AQty
1Availability
Part #
K945961Description
FLEXIBLE COUPLING; MUFF COUPLING, 12 speed (1210)Img
Alts
Ref.
32BQty
1Availability
Part #
K943033Description
COUPLING, BREAK AWAY; MUFF COUPLING, 6 speed (1210)Img
Alts
Ref.
34Qty
1Availability
Part #
K628123Description
RING; 1-1/8'' internal, replaces K623634 (Nu-lip)Img
Alts
Ref.
36AQty
1Availability
Part #
K947903Description
BRACKET; SUPPORT SNOUT, thrust bearing carrier (1210)Img
Alts
Ref.
36BQty
1Availability
Part #
K943383Description
SUPPORT; SNOUT, thrust bearing carrier (996)Img
Alts
Ref.
37Qty
3Availability
Part #
9635884Description
BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; SETSCREW, 5/16 UNC x 1''Img
Alts
Ref.
39Qty
1Availability
Part #
K628864Description
O-RING; 'O' RING, 1-1/2'' internal dia., replaces K623697Img
Alts
Ref.
41Qty
1Availability
Part #
K623545Description
O-RING 0.139'' Thk x 2.984'' ID, -234, Cl 5, 75 Duro; 'O' RING, 3'' internal dia.;Ref #41 - K623545 subs to A30095. 10/12/95Img
Alts
Ref.
42Qty
1Availability
Part #

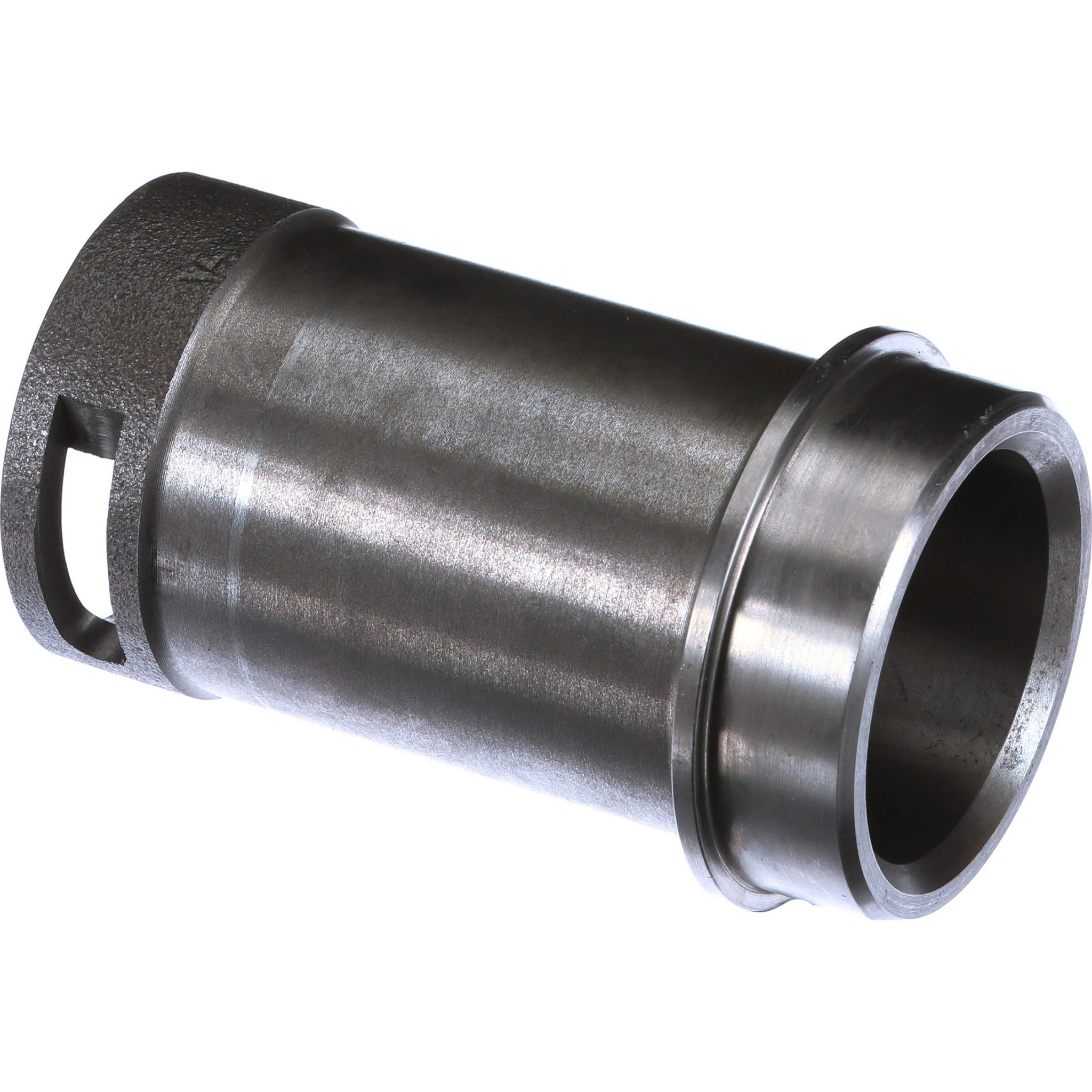

K915836Description
BEARING CARRIER Clutch; THRUST BEARING CARRIERImg
Alts
Ref.
43Qty
1Availability
Part #
K620153Description
THRUST BEARING 69.84mm ID x 103.17mm OD x 21.59mm W; replaces K620112Img
Alts
Ref.
44Qty
1Availability
Part #
K915837Description
BEARING HOUSING; HOUSING, release bearingImg
Alts
Ref.
Qty
1Availability
Part #
K926410Description
TUBE 0.122'' ID x 0.187'' OD; PLASTIC TUBE, 1/8 x 14-1/2 in., release bearing lubricationImg
Alts
Ref.
Qty
2Availability
Part #
K617956Description
NUT; UNION NUT, 3/8 UNF, release bearing lubricationImg
Alts
Ref.
Qty
2Availability
Part #
K622407Description
FERRULE; OLIVE, 1/4 in., release bearing lubricationImg
Alts
Ref.
Qty
1Availability
Part #
K626045Description
FITTING; UNION, 3/8 UNF, release bearing lubricationImg
Alts
Ref.
Qty
1Availability
Part #
K19588Description
FERRULE; OLIVE, 3/16 in., release bearing lubricationImg
Alts
Ref.
Qty
1Availability
Part #
K617956Description
NUT; TUBING NUT, 3/8 UNF, release bearing lubricationImg
Alts
Ref.
Qty
1Availability
Part #
K926411Description
TUBE 0.187'' OD x 2.625'' L; PIPE, 3/16 x 2-7/8 in., main frame, release bearing lubricationImg
Alts
Ref.
45Qty
1Availability
Part #
K19177Description
BALL BEARING 76.2mm ID x 114.3mm OD x 19.05mm W;Img
Alts
Ref.
46Qty
1Availability
Part #
K84745Description
SEAL 88.01mm ID x 114.17mm OD x 0.56mm Thk; SHIELDImg
Alts
Ref.
47Qty
1Availability
Part #
K621431Description
SNAP RING; CIRCLIP, 4-1/2 in internalImg
Alts
