ÍNDICE
DIAGRAMA
LISTA DE PIEZAS
BORRAR TODO
Seleccionar todo
Ref.
Ctd
N.º de pieza
Alts
Descripción
Imagen
-

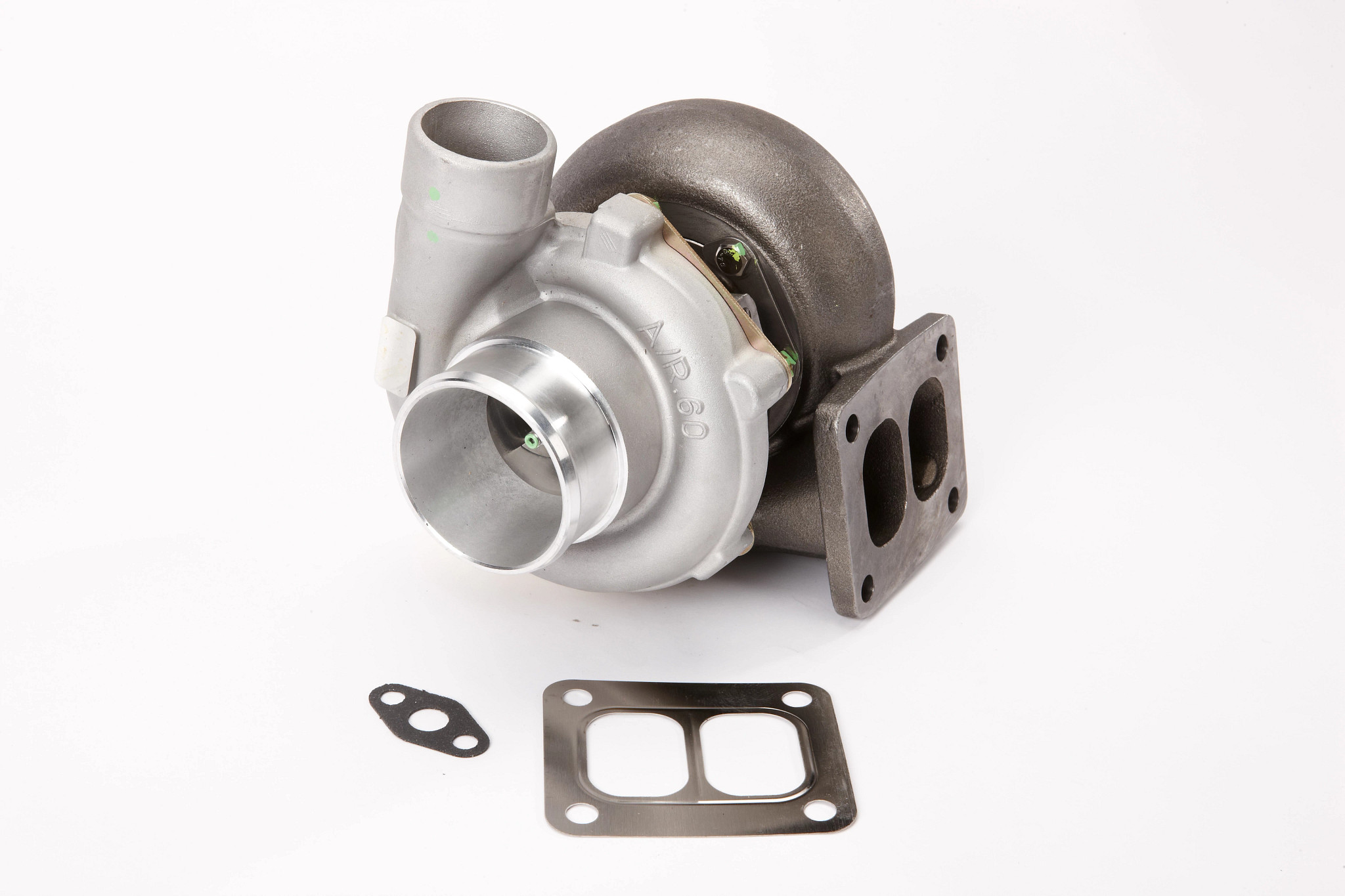

1REMAN-TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22
-
1TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22
-
1ORIG-TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22
-
1TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - used with 915 combines, no longer available, order turbocharger assemblies A184785 or 749267C92, Includes: Ref. 1 - 22
-
11ABRAZADERA; CLAMP - used with assemblies 672729C91 and 675795C91 only
-
21ALOJAMIENTO; HOUSING - compressor, used only with turbocharger assembly 675795C91, no longer available
-
21ALOJAMIENTO; HOUSING - compressor, used only with turbocharger assembly 684240C92, no longer available, order turbocharger assembly
-
3PERNO; PLATE - housing lock (Replaces plate 630609C1)
-
3ABRAZADERA; CLAMP - housing plate (Replaces clamp 630610C1)
-
6PERNO Hex, 5/16'' - 18 x 1/2'', Gr 2; BOLT - hex, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18763R1)
-
31PIEZA DE REPUESTO; DIFFUSER - compressor, used only with turbocharger assemblies 675795C91 and 680098C91
-
41ALOJAMIENTO; SPARE PART HOUSING - turbine, used only with turbocharger assembly 672729C91
-
51ALOJAMIENTO; HOUSING - turbine, used only with turbocharger assembly A184785
-
53ABRAZADERA; CLAMP - housing plate, clamp
-
63PLACA DE BLOQUEO; PLATE - housing lock
-
76PERNO; BOLT - housing lock plate, hex, 5/16 NC x 1/2 inch
-
1ALOJAMIENTO; HOUSING ASSEMBLY - new, used with turbocharger assembly 672629C91, Includes: A44829 Piston Ring & Ref. 8 - 22, no longer used, order remanufactured assembly 627913C92
-
1CUBIERTA; HOUSING ASSEMBLY - remanufactured for turbocharger assembly 627769C92
-
1ALOJAMIENTO; HOUSING ASSEMBLY - new, used with turbocharger assembly 675795C91, Includes: A44829 Piston Ring & Ref. 8 - 22
-
1PAQUETE; HOUSING ASSEMBLY - remanufactured for turbocharger assembly 680087C92, no longer available
-
1TURBOCOMPRESOR; HOUSING ASSEMBLY - new, used with turbocharger assembly A184785, Includes: A44829 Piston Ring & Ref. 8 - 22
-
1ANILLO; RING - piston (Replaces ring 684359C1)
-
81ARANDELA DE RESORTE; SPRING - collar
-
91PLACA; BACKPLATE - impeller, used with turbocharger assemblies 672729C91 and 672795C91
-
91PLACA; PLATE - impeller back, used only with turbocharger 684240C92
-
101KIT; HOUSING - center
-
111DEFENSA; SHROUD - turbine wheel, no longer available (Replaces shroud 627771C1)
-
124PERNO Hex, 1/4'' - 20 x 5/8'', Gr 8; BOLT - hex, 1/4 NC x 5/8 inch, grade 8
-
132PERNO Hex, 1/4'' x 5/8'', Gr 8; PLATE - backplate lock (Replaces plate 625675C1)
-
141RUEDA; SHAFT - turbine, includes wheel (Replaces shaft 702625C2)
-
151COJINETE DE EMPUJE 0.172''; BEARING - thrust (Replaces bearing 627773C1)
-
161COLLAR; COLLAR - thrust (Replaces collar 615745C1)
-
171ANILLO; RING - piston (Replaces ring 615746C1)
-
182COJINETE; BEARING - housing journal (Replaces bearing 687965C1)
-
194ANILLO; RING - bearing retainer (Replaces ring 627774C1)
-
201ANILLO; RING - seal (Replaces ring 343847R1)
-
211IMPULSOR; WHEEL - impeller, used only with turbocharger assembly 675795C91, no longer available
-
211TURBINA; SHAFT - impeller, used only with turbocharger assembly 684240C92, no longer available, order turbocharger assembly
-
221TUERCA; NUT - impeller lock
Seleccionar todo
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Ref.
Ctd
1Disponibilidad
N.º de pieza
749267C92Descripción
REMAN-TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
A184785Descripción
TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
1928007C1Descripción
ORIG-TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
675795C91Descripción
TURBOCOMPRESOR; TURBOCHARGER ASSEMBLY - used with 915 combines, no longer available, order turbocharger assemblies A184785 or 749267C92, Includes: Ref. 1 - 22Img
Alts
Ref.
1Ctd
1Disponibilidad
N.º de pieza
702327C91Descripción
ABRAZADERA; CLAMP - used with assemblies 672729C91 and 675795C91 onlyImg
Alts
Ref.
2Ctd
1Disponibilidad
N.º de pieza
619377C1Descripción
ALOJAMIENTO; HOUSING - compressor, used only with turbocharger assembly 675795C91, no longer availableImg
Alts
Ref.
2Ctd
1Disponibilidad
N.º de pieza
684248C1Descripción
ALOJAMIENTO; HOUSING - compressor, used only with turbocharger assembly 684240C92, no longer available, order turbocharger assemblyImg
Alts
Ref.
Ctd
3Disponibilidad
N.º de pieza
1809618C1Descripción
PERNO; PLATE - housing lock (Replaces plate 630609C1)Img
Alts
Ref.
Ctd
3Disponibilidad
N.º de pieza
A44838Descripción
ABRAZADERA; CLAMP - housing plate (Replaces clamp 630610C1)Img
Alts
Ref.
Ctd
6Disponibilidad
N.º de pieza
424-58Descripción
PERNO Hex, 5/16'' - 18 x 1/2'', Gr 2; BOLT - hex, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18763R1)Img
Alts
Ref.
3Ctd
1Disponibilidad
N.º de pieza
619378C1Descripción
PIEZA DE REPUESTO; DIFFUSER - compressor, used only with turbocharger assemblies 675795C91 and 680098C91Img
Alts
Ref.
4Ctd
1Disponibilidad
N.º de pieza
627768C1Descripción
ALOJAMIENTO; SPARE PART HOUSING - turbine, used only with turbocharger assembly 672729C91Img
Alts
Ref.
5Ctd
1Disponibilidad
N.º de pieza
A44846Descripción
ALOJAMIENTO; HOUSING - turbine, used only with turbocharger assembly A184785Img
Alts
Ref.
5Ctd
3Disponibilidad
N.º de pieza
684245C1Descripción
ABRAZADERA; CLAMP - housing plate, clampImg
Alts
Ref.
6Ctd
3Disponibilidad
N.º de pieza
615739C1Descripción
PLACA DE BLOQUEO; PLATE - housing lockImg
Alts
Ref.
7Ctd
6Disponibilidad
N.º de pieza
684246C1Descripción
PERNO; BOLT - housing lock plate, hex, 5/16 NC x 1/2 inchImg
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
627769C92Descripción
ALOJAMIENTO; HOUSING ASSEMBLY - new, used with turbocharger assembly 672629C91, Includes: A44829 Piston Ring & Ref. 8 - 22, no longer used, order remanufactured assembly 627913C92Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
627913C92Descripción
CUBIERTA; HOUSING ASSEMBLY - remanufactured for turbocharger assembly 627769C92Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
680087C92Descripción
ALOJAMIENTO; HOUSING ASSEMBLY - new, used with turbocharger assembly 675795C91, Includes: A44829 Piston Ring & Ref. 8 - 22Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
627912C91Descripción
PAQUETE; HOUSING ASSEMBLY - remanufactured for turbocharger assembly 680087C92, no longer availableImg
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
A184782Descripción
TURBOCOMPRESOR; HOUSING ASSEMBLY - new, used with turbocharger assembly A184785, Includes: A44829 Piston Ring & Ref. 8 - 22Img
Alts
Ref.
Ctd
1Disponibilidad
N.º de pieza
A44829Descripción
ANILLO; RING - piston (Replaces ring 684359C1)Img
Alts
Ref.
8Ctd
1Disponibilidad
N.º de pieza
615747C1Descripción
ARANDELA DE RESORTE; SPRING - collarImg
Alts
Ref.
9Ctd
1Disponibilidad
N.º de pieza
627772C91Descripción
PLACA; BACKPLATE - impeller, used with turbocharger assemblies 672729C91 and 672795C91Img
Alts
Ref.
9Ctd
1Disponibilidad
N.º de pieza
630614C91Descripción
PLACA; PLATE - impeller back, used only with turbocharger 684240C92Img
Alts
Ref.
11Ctd
1Disponibilidad
N.º de pieza
A45091Descripción
DEFENSA; SHROUD - turbine wheel, no longer available (Replaces shroud 627771C1)Img
Alts
Ref.
12Ctd
4Disponibilidad
N.º de pieza
25480R1Descripción
PERNO Hex, 1/4'' - 20 x 5/8'', Gr 8; BOLT - hex, 1/4 NC x 5/8 inch, grade 8Img
Alts
Ref.
13Ctd
2Disponibilidad
N.º de pieza
1809617C1Descripción
PERNO Hex, 1/4'' x 5/8'', Gr 8; PLATE - backplate lock (Replaces plate 625675C1)Img
Alts
Ref.
14Ctd
1Disponibilidad
N.º de pieza
A44841Descripción
RUEDA; SHAFT - turbine, includes wheel (Replaces shaft 702625C2)Img
Alts
Ref.
15Ctd
1Disponibilidad
N.º de pieza
A44832Descripción
COJINETE DE EMPUJE 0.172''; BEARING - thrust (Replaces bearing 627773C1)Img
Alts
Ref.
16Ctd
1Disponibilidad
N.º de pieza
615745C2Descripción
COLLAR; COLLAR - thrust (Replaces collar 615745C1)Img
Alts
Ref.
17Ctd
1Disponibilidad
N.º de pieza
A44828Descripción
ANILLO; RING - piston (Replaces ring 615746C1)Img
Alts
Ref.
18Ctd
2Disponibilidad
N.º de pieza
A44826Descripción
COJINETE; BEARING - housing journal (Replaces bearing 687965C1)Img
Alts
Ref.
19Ctd
4Disponibilidad
N.º de pieza
A44827Descripción
ANILLO; RING - bearing retainer (Replaces ring 627774C1)Img
Alts
Ref.
20Ctd
1Disponibilidad
N.º de pieza
A44833Descripción
ANILLO; RING - seal (Replaces ring 343847R1)Img
Alts
Ref.
21Ctd
1Disponibilidad
N.º de pieza
619376C1Descripción
IMPULSOR; WHEEL - impeller, used only with turbocharger assembly 675795C91, no longer availableImg
Alts
Ref.
21Ctd
1Disponibilidad
N.º de pieza
1806082C1Descripción
TURBINA; SHAFT - impeller, used only with turbocharger assembly 684240C92, no longer available, order turbocharger assemblyImg
