9E-078 - FUEL INJECTION PUMP, ROBERT BOSCH MODEL MW
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    735189C91
    REMAN-FUEL INJ PUMP; 1470 Chasis SN 12001 & Aft., 1480 w/Eng. SN 103042 & Aft., Both w/DTI-466C Eng., Reman For New P/N 1802612C93
  • 1
    1934141C1
    CORE-INJECTION PUMP; Retturn Number
  • 1
    1802612C93
    PUMP; ASSEMBLY - fuel injection, new, Includes: Ref. 1 - 89
  • 1
    1934206C1
    REMAN-FUEL INJ PUMP REMAN-INJECTION PUMP; DT-466, DT-466B, Both TURBO, DTI-466, DTI-466B, DTI-466C, D-466, All TURBO INTERCOOLED, All 6 CYLINDER DIESEL ENGINE, PUMP ASSEMBLY - fuel injection, new
  • 1
    1934207C1
    CORE-INJECTION PUMP; Return Number
  • 1
    1
    1806293C1
    PLUG; - housing screw
  • 2
    18
    1806270C1
    SPACER; - housing stud and plunger plate lock
  • 3
    18
    691265C1
    NUT; - hex, special, pump housing stud and plunger plate lock
  • 4
    18
    892-11006

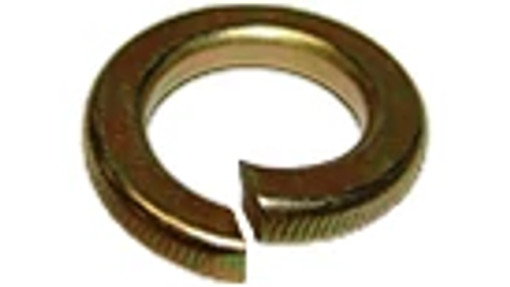

    LOCK WASHER M6; WASHER, LOCK, , Housing Stud and Plunger Plate M6
  • 7
    1
    1802256C1
    SHIM; - 1.0 mm
  • 7
    1
    1802257C1
    SHIM; - 1.05 mm
  • 7
    1
    1802258C1
    SHIM; - 1.1 mm
  • 7
    1
    1802259C1
    SHIM; - 1.15 mm
  • 7
    1
    1802260C1
    SHIM; - 1.2 mm
  • 7
    1
    1802261C1
    SHIM; - 1.25 mm
  • 7
    1
    1802262C1
    SHIM; - 1.3 mm
  • 7
    1
    1802263C1
    SHIM; - 1.35 mm
  • 7
    1
    1802264C1
    SHIM; - 1.4 mm
  • 7
    1
    1802265C1
    SHIM; - 1.45 mm
  • 7
    1
    1802266C1
    SHIM; - 1.5 mm
  • 7
    1
    1802267C1
    SHIM; - 1.55 mm
  • 7
    1
    691315C1
    SHIM; - 1.6 mm
  • 7
    1
    691316C1
    SHIM; - 1.65 mm
  • 7
    1
    691317C1
    SHIM; - 1.7 mm
  • 7
    1
    691318C1
    SHIM; - 1.75 mm
  • 7
    1
    691319C1
    SHIM; - 1.8 mm
  • 7
    1
    691320C1
    SHIM; - 1.85 mm
  • 7
    1
    691321C1
    SHIM; - 1.9 mm
  • 7
    1
    691322C1
    SHIM; - 1.95 mm
  • 7
    1
    691323C1
    SHIM; - 2.0 mm
  • 7
    1
    691324C1
    SHIM; - 2.05 mm
  • 7
    1
    691325C1
    SHIM; - 2.1 mm
  • 7
    1
    691326C1
    SHIM; - 2.15 mm
  • 7
    1
    691327C1
    SHIM; - 2.2 mm
  • 7
    1
    691328C1
    SHIM; - 2.25 mm
  • 7
    1
    691329C1
    SHIM; - 2.3 mm
  • 7
    1
    691330C1
    SHIM; - 2.35 mm
  • 7
    1
    691331C1
    SHIM; - 2.4 mm
  • 7
    1
    691332C1
    SHIM; - 2.45 mm
  • 7
    1
    691333C1
    SHIM; - 2.5 mm
  • 1
    1808651C91
    HOUSING; ASSEMBLY - pump, Includes: Ref. 8 - 11
  • 8
    12
    1806269C1
    PLUG; STUD - pump housing
  • 8A
    6
    691261C1
    SPACER; - housing plunger
  • 9
    6
    691262C1
    O-RING; - housing plunger
  • 9A
    1
    933608R1
    SEALING RING M26 x 31 x 2; WASHER, SEALING, , Housing plug M26 x 31 x 2
  • 10
    1
    NSS
    NOT SOLD SEPARAT; HOUSING - pump, order housing assembly 1808651C91
  • 10A
    1
    691260C1
    PLUG; - housing screw, no longer available
  • 1
    691563C1
    PLUG; - housing, no longer available
  • 11
    3
    397624C1
    STUD; - pump housing, fuel supply
  • 1
    670889C91
    TEE; VALVE ASSEMBLY - check, overflow, no longer available, order valve assembly 1809795C91, see Figure 9E-82, Includes: Ref. 11A - 16A
  • 11A
    1
    625601C1
    PLUG; - hex, no longer available
  • 12
    1
    933610R1
    SEALING RING M14 x 18 x 1.8; Piston plug, Used with check valve assembly 670889C91 M14 x 18 x 1.8
  • 12A
    1
    625600C1
    WASHER; - 0.3 mm, no longer available
  • 13
    1
    625598C1
    VALVE SPRING; SPRING - piston, no longer available
  • 14
    1
    NSS
    NOT SOLD SEPARAT; VALVE - stem, no longer available
  • 15
    1
    NSS
    NOT SOLD SEPARAT; BODY - valve, no longer available
  • 16
    1
    1806417C1
    PLUG; - piston, used with check valve assembly 670889C91
  • 16A
    1
    933697R1
    SEALING RING M10 x 13.5 x 1; WASHER - valve sealing, copper, used with metric plug 1809794C1
  • 17
    1
    625924C1
    FITTING; - fuel inlet
  • 18
    2
    397630C1
    PACKING RING; GASKET - fuel inlet and outlet fitting
  • 19
    6
    1806294C1
    PLATE ASSY.; PLATE - plunger lock
  • 20
    1
    691263C1
    PLUG; - housing rack
  • 23
    1
    1806505C1
    CRANKSHAFT; CAMSHAFT - injection pump
  • 24
    1
    3056409R1
    KEY; - Woodruff, camshaft
  • 26
    1
    691252C1
    SUPPORT ASSY.; SUPPORT - camshaft
  • 27
    2
    1806284C1
    WASHER; - lock, support, no longer available
  • 28
    2
    1811729C1
    SCREW; - camshaft support (Replaces screw 1806285C1)
  • 29
    4
    892-11006
    LOCK WASHER M6; WASHER, LOCK, , Front Bearing Housing (Replaces washer 1806276C1) M6
  • 30
    4
    1806918C1
    SCREW Torx, M6 x 15mm; - front bearing housing
  • 31
    1
    1806273C91
    BEARING; - camshaft front, no longer available
  • 32
    1
    1806274C1
    GASKET; - front bearing housing, no longer available
  • 33
    1
    1806275C1
    HOUSING; - front bearing
  • 34
    1
    670875C1
    O-RING 88mm ID x 3mm Width; RING - front bearing housing
  • 36
    4
    625566C1
    WASHER; - adapter stud, no longer available
  • 1
    1811726C91
    ADAPTER; ASSEMBLY - injection pump mounting (Replaces adapter assembly 1802642C91), Includes: Ref. 37 - 40
  • 37
    1
    691349C1
    POINTER; - timing
  • 38
    4
    691313C1
    STUD; - adapter
  • 39
    2
    680481C1
    PIN; - dowel, 1/4 x 5/8 inch
  • 40
    1
    NSS
    NOT SOLD SEPARAT; ADAPTER - injection pump, order adapter assembly 1811726C91
  • 41
    1
    1802649C1
    HUB CAP; HUB - injection pump
  • 42
    1
    691243C1
    WASHER; - lock, pump drive hub
  • 43
    1
    1802705C1
    NUT; - pump drive hub
  • 44
    2
    P32514
    SCREW; - control rack (Replaces screws 931393R1 and 684732C1)
  • 45
    2
    492-11006
    LOCK WASHER #6; Washer, Lock, , Control rack (Replaces washer 933987R1) #6
  • 46
    1
    1808710C1
    RACK; - plunger control
  • 47
    1
    691254C1
    AXLE PIN; PIN - pump back
  • 48
    1
    691256C1
    AXLE PIN; PIN - stop plate
  • 49
    1
    691257C1
    PLATE ASSY.; PLATE - stop, no longer available
  • 50
    1
    691251C1
    NUT; - camshaft rear
  • 51
    1
    691250C1
    WASHER; - lock, camshaft rear
  • 52
    1
    691249C91
    BEARING; - camshaft rear
  • 53
    1
    444041
    ELBOW; - street, 90 degree x 1/4 inch NPT, used with check valve assembly 670889C91
  • 55
    6
    691236C91
    TAPPET; - bushing, pin and ring
  • 57
    1
    1819008C1
    GASKET; - fuel supply pump (Replaces gasket 1802931C1)
  • 58
    3
    492-11006
    LOCK WASHER #6; Washer, Lock, (Replaces washer 933987R1) #6
  • 59
    3
    825-1406
    NUT M6, Cl 8; WASHER - supply pump stud, hex, 6 mm - 1 (Replaces washer 933988R1)
  • 60
    3
    1806278C1
    SPACER; - camshaft
  • 61
    3
    691270C1
    PLUG; - camshaft
  • 62
    1
    3051337R1
    SEALING RING M18 x 24mm OD x 1.5mm Thk; Plug, Port closure (Replaces washer 933222R1) M18 x 24 x 1.5
  • 63
    1
    691271C1
    PLUG; - port closure
  • 64
    1
    1806504C1
    GASKET; - bottom cover
  • 65
    1
    1806416C1
    COVER ASSY; COVER - housing bottom
  • 66
    6
    691268C1
    WASHER; - lock, cover screw
  • 67
    6
    1806919C1
    SCREW Torx, M6 x 10mm; - bottom cover
  • 68
    6
    1806288C1
    FITTING; HOLDER - deliver valve
  • 69
    6
    3079241R1
    WASHER; - valve spring
  • 70
    6
    3132382R1
    SPRING; - delivery valve
  • 71
    6
    1806833C91
    LOCK VALVE; VALVE ASSEMBLY - delivery, Includes: Ref. 71A
  • 71A
    6
    1806328C1
    GASKET; - delivery valve sealing, cup shaped
  • 72
    6
    1806292C1
    SEAL ASSY.; SEAL - delivery valve holder dust, no longer available
  • 73
    6
    1808709C1
    PLUNGER; - includes barrel
  • 74
    6
    691235C1
    SEAT; - lower spring
  • 75
    6
    1806290C1
    O-RING; - impact cap
  • 76
    6
    691233C1
    SLEEVE CYLINDER; SLEEVE - control
  • 77
    6
    691234C1
    SEAT; - upper spring
  • 78
    6
    1806291C1
    BUSHING; CAP - impact
  • 79
    6
    691232C1
    RING; - cap retainer snap
  • 80
    6
    1809798C1
    VALVE SPRING; SPRING - tappet roller (Replaces spring 691226C1)
  • 81
    1
    691273C1
    GASKET 14.2mm ID x 19.9mm OD x 1.5mm Thk; - vent screw, plug
  • 82
    1
    1808712C1
    SCREW Screw, Hex, M14 x 1.5 x 10mm; PLUG - screw
  • 83
    1
    625924C1
    FITTING; - fuel outlet, used with check valve assembly 670889C91
  • 1
    1809795C91
    LOCK VALVE; VALVE ASSEMBLY - check, overflow, no longer available as a unit, order components (Replaces valve assembly 670889C91), Includes: Ref. 85 - 88
  • 85
    1
    710098R2
    BANJO BOLT M14 x 1.5 x 32mm; SCREW - hollow
  • 86
    1
    933610R1
    SEALING RING M14 x 18 x 1.8; Banjo fitting M14 x 18 x 1.8
  • 87
    1
    1809797C1
    FITTING; - fuel tube, banjo
  • 88
    1
    1809796C1
    VALVE; - overflow
  • 89
    1
    444944
    PLUG; - hex, 3/4 inch, for timing hole, not illustrated
  • 35
    4
    829-1410
    NUT M10 x 1.5, Cl 10.9; Adapter Stud M10, Cl 10
