9E-110 - FUEL INJECTION PUMP AND CONNECTIONS, AMBAC MODEL 100
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    CAP; - fuel return injector no. 1 (Replaces cap 676547C1)
  • 2
    13
    CLAMP 10.29mm - 12.32mm; - leakoff hose (Replaces clamps 677129C1 and 1802453C1)
  • 3
    5
    INSTRUCTION; HOSE - fuel return injector to injector, 5 inch (127 mm) long, cut from bulk hose 680246CX below
  • 4
    1
    INSTRUCTION; HOSE - no. 6 injector to leakoff tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below
  • UAR
    HOSE; HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot
  • 5
    6
    CLAMP; CRAB - injection nozzle
  • 6
    BOLT; - hex, 5/16 NC x 1-1/16 inch (Together with crab 675479C2, replaces bolt 684497C1 and washer 675677C1)
  • 6
    1
    INSTRUCTION; NOZZLE ASSEMBLY - fuel injection, parts list page 9E-107
  • 6
    SEAL; GROMMET - injection dust cover (Replaces grommet 682810C1)
  • 7
    1
    INJECTION PIPE; - injection, cylinder no. 6, used with 4366 tractors
  • 7
    1
    PIPE; - injection, cylinder no. 6, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300
  • 7
    1
    PIPE; - injection, cylinder no. 6, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors
  • 7
    1
    PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 6, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines
  • 7
    1
    PIPE; - injection, cylinder no. 6, used with 3488 tractors
  • 8
    1
    PIPE; - injection, cylinder no. 5, used with 4366 tractors
  • 8
    1
    PIPE CLAMP; PIPE - injection, cylinder no. 5, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300
  • 8
    1
    PIPE; - injection, cylinder no. 5, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors
  • 8
    1
    PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 5, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines
  • 8
    1
    PIPE; - injection, cylinder no. 5, used with 3488 tractors
  • 9
    1
    PIPE; - injection, cylinder no. 4, used with 4366 tractors
  • 9
    1
    PIPE; - injection, cylinder no. 4, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300
  • 9
    1
    PIPE; - injection, cylinder no. 4, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors.
  • 9
    1
    PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 4, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines
  • 9
    1
    PIPE; - injection, cylinder no. 4, used with 3488 tractors
  • 10
    1
    PIPE; - injection, cylinder no. 3, used with 4366 tractors, for A series engine
  • 10
    1
    PIPE CLAMP; PIPE - injection, cylinder no. 3, has 8 bends, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300
  • 10
    1
    PIPE; - injection, cylinder no. 3, has 8 bends, used with 4386 tractors with engine serial numbers 77300 and after, 5488 tractors
  • 10
    1
    PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; - injection, cylinder no. 3, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines
  • 10
    1
    PIPE; - injection, cylinder no. 3, used with 3488 tractors
  • 11
    1
    PIPE; - injection, cylinder no. 2, used with 4366 tractors
  • 11
    1
    PIPE; - injection, cylinder no.2, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300
  • 11
    1
    PIPE; - injection, cylinder no. 2, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors
  • 11
    1
    PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 2, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines
  • 11
    1
    PIPE; - injection, cylinder no. 2, used with 3488 tractors
  • 12
    1
    PIPE; - injection, cylinder no. 1, used with 4366 tractors
  • 12
    1
    TUBE; PIPE - injection, cylinder no. 1, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300
  • 12
    1
    PIPE; - injection, cylinder no. 1, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors
  • 12
    1
    PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 1, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines
  • 12
    1
    PIPE; - injection, cylinder no. 1, used with 3488 tractors
  • 13
    2
    CLAMP; - fuel line tube
  • 1

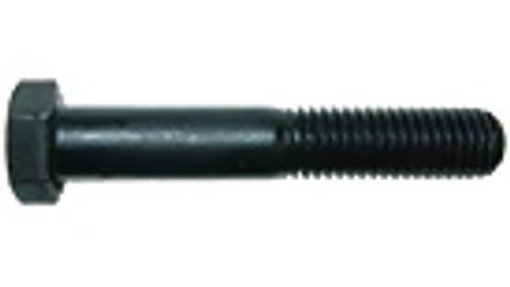

    BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd
  • 1

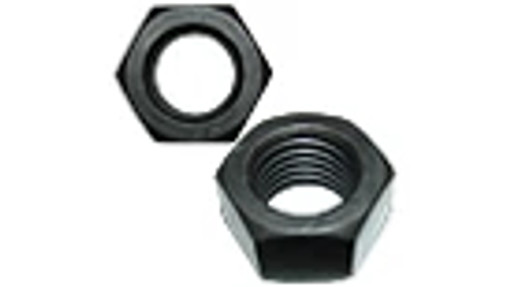

    NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GB
  • 14
    UAR
    GROMMET; - injection line, thirteen used on 4386 and 5488 tractors, fourteen used on 3588, 3788, 3488 and 5288 tractors, 1480 combines and 1470 hillside combines
  • 15
    3
    CLAMP; - duplex tube
  • 16
    4
    CLAMP; - fuel tube, injection pipe, used with 4366 and 5488 tractors
  • 4
    SCREW Cross Pan Hd, 1/4''-20 x 3/4''; - machine, pan Phillips, 1/4 NC x 3/4 inch (Replaces screw 113957)
  • 16
    8
    CLAMP; - fuel tube, all machines except 4366 and 5488 tractors
  • 4
    BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; Used with 4386 tractors only Hex, 1/4''-20 x 1/2'', G8, Full Thd
  • 1
    SCREW Cross Pan Hd, 1/4''-20 x 3/4''; - machine, pan Phillips, 1/4 NC x 3/4 inch, used with 3488, 3588, 3788, 5288, 6588 and 1480 combines (Replaces screw 113957)
  • 3
    SELF-TAP SCREW Cross Pan Hd, 1/4'' x 1 1/4''; SCREW - slotted head 1/4 NC x 1-1/4 inch, used with 3488, 3588, 3788, 5288, 6588 and 6788 tractors, 1470 hillside and 1480 combines
  • 17
    1
    HYD CONNECTOR 5/8''-24 x 1/4'' NPTF W/Nut; ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)
  • 18
    2

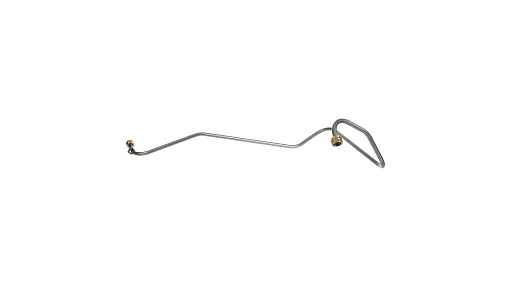

    TUBE 0.375'' OD, 28.88'' Length; ASSEMBLY - fuel return, Includes: Ref. 18A & 18B
  • 18A
    2
    SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated
  • 18B
    -
    NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated
  • 19
    1
    TEE; - fuel leakoff, used with 4366 tractors, no longer available
  • 19
    1
    TEE; - fuel leakoff, used with 3588, 3788, 3488, 5288, 5488, 6588 and 6788 tractors
  • 19
    1
    TEE; - fuel leakoff, used with 1470 hillside and 1480 combines, 4386 tractor s
  • 20
    2
    CLIP; - fuel return tube
  • 2
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 8; (Replaces bolt 24839R1) Hex, 3/8''-16 x 3/4'', G8, Full Thd
  • 2
    WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 21
    1
    TUBE 0.375'' OD, 15.75'' Length; ASSEMBLY - primary pump to final filter, used with all machines except 5288 and 5488 tractors, Includes: Ref. 21A & 21B
  • 21
    1
    TUBE 0.375'' OD; ASSEMBLY - primary pump to final filter, used with 5288 and 5488 tractors (Replaces tube 691887C91), Includes: Ref. 21A & 21B;P/N 691887C91 subs to 1806487C91 tube and 1802981C1 clamp. P/N 1806487C91 is the correct part number to be used for 5288 and 5488.
  • 21A
    2
    SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated
  • 21B
    2
    NUT 5/8''-24; NUT - hex, 3/8 tube OD x 5/8 inch (Replaces nut 265205R1), not illustrated
  • 1
    CLAMP 3/8'', Insul, 3/8'' Bolt; Closed tube, for use with tube 691887C91 (Replaces clamp 299404C1) 3/8'', Insul, 3/8'' Bolt
  • 1
    CLAMP; - tube, for use with tube assembly 1806473C91)
  • 22
    4
    CLAMP; - primary pump to final filter and primary filter to primary pump tube, used with 5488 tractors
  • 1
    BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; (Replaces bolt 25752R1) Hex, 1/4''-20 x 1/2'', G8, Full Thd
  • 1
    NUT; - speed
  • 23
    2
    RUBBER BUSHING; SLEEVE - rubber, fuel pipe, 3/8 inch diameter
  • 23
    1
    GROMMET; - injection tube, fuel pipe, 1/4 inch diameter
  • 23
    2
    GROMMET; CUSHION - fuel pipe, 7/8 inch diameter (Replaces cushion 536410R1)
  • 24
    2
    ELBOW; - primary filter outlet and final filter inlet, 90 degree compression, 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)
  • 25
    1
    TUBE 0.375'' OD, 22.25'' Length; ASSEMBLY - primary filter to primary pump, used with all machines except 5288 and 5488 tractors, Includes: Ref. 25A & 25B
  • 25
    1
    TUBE; ASSEMBLY - primary filter to primary pump, used with 5288 and 5488 tractors, Includes: Ref. 25A & 25B
  • 25A
    2
    SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated
  • 25B
    2
    NUT 5/8''-24; NUT - hex, 3/8 tube OD x 5/8 inch (Replaces nut 265205R1), not illustrated
  • 26
    UAR
    VALVE; - bleeder
  • 27
    1
    ELBOW 90 Degree, 5/8''-18, 45 Degree Fl x 1/4'' NPT; - 90 degree x 5/8 inch x 1/4 inch PT, final filter outlet, used with all machines except 6588 and 6788 tractors (Replaces elbow 118755)
  • 27
    1
    FITTING; TEE - final filter outlet, no longer used, order elbow 222-768
  • 1

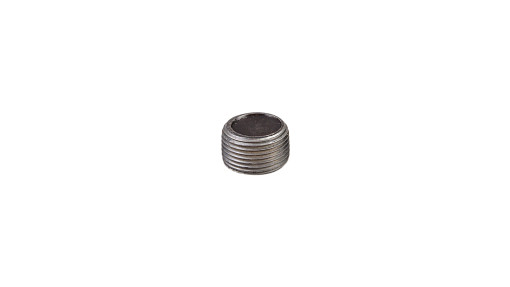

    PLUG Hex Hd, 1/8''-27, Brass; - hex, 1/8 inch PT (Replaces plug 444614)
  • 28
    1
    HEAD ASSY.; HEADER - fuel filter, used with all machines except 5288 and 5488 tractors (Replaces header 676143C2)
  • 3
    BOLT Hex, 3/8'' - 16 x 4-1/4'', Gr 8; (Replaces bolt 25784R1) Hex, 3/8''-16 x 4 1/4'', G8
  • 3
    WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 28
    1
    HEAD; ER - filter, used with 5288 and 5488 tractors
  • 2
    PLUG Hex Soc, 1/4''-18, Brass; - hex socket, 1/4 inch PT
  • 2
    BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 8; (Replaces bolt 25500R1) Hex, 3/8''-16 x 3 1/4'', G8
  • 2
    WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 29
    1
    SEPARATOR; FILTER - primary fuel (Replaces filter 625627C1)
  • 30
    1
    FUEL FILTER; FILTER - final fuel (Replaces filter 672603C2)
  • 31
    1
    HOSE; ASSEMBLY - final filter to injection pump (Replaces hose 684167C1 by also ordering elbow 118755)
  • 32
    4
    CLAMP; - hose, final filter to injection pump hose and primary filter to primary pump tube
  • 2
    BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd
  • 2
    NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GB
  • 33
    1

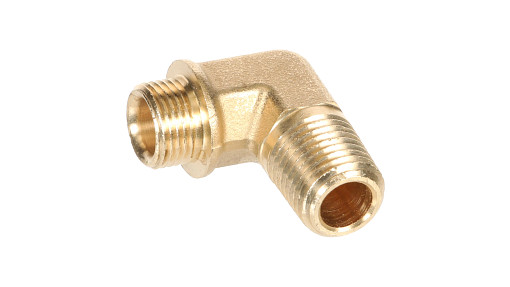

    ELBOW; - male, 1/8 inch x 90 degree, used with 4366 tractors;This is really a tee with three openings. One is 1/8-27 NPTF female. The second one is 1/8-28 NPTF male. The third one is 1/2-24 NS-2A.
  • 33
    1
    ELBOW; - flex, side outlet, 90 degree x 1/4 tube x 1/8 NPT, used with all machines except 4366 tractors;This is really a tee with three openings. One is 1/8-27 NPTF female. The second one is 1/8-28 NPTF male. The third one is 1/2-24 NS-2A.
  • 34
    1
    TUBE 1'' OD; ASSEMBLY - lubricating oil, used with 4366 tractors, Includes: Ref. 34A & 34B
  • 34
    1
    TUBE; ASSEMBLY - lubricating oil, all machines except 4366 tractors, Includes: Ref. 34A & 34B
  • 34A
    2
    CHEMISE 1/4'' Tube; (Replaces sleeve 915500R1), Not illustrated 1/4'' Tube
  • 34B
    2
    TUBE NUT 1/2''-24; NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated
  • 35
    1
    INSTRUCTION; ELBOW - injection pump hose, furnished as part of injection pump
  • 36
    1
    INSTRUCTION; PUMP ASSEMBLY - fuel injection, parts list Figures 9E-44, 9E-56, 9E-68 or 9E-78
  • 2
    NUT 3/8''-24, G8; (Replaces nut 25523R1) 3/8''-24, G8
  • 2
    WASHER 10.31mm ID x 20.63mm OD x 3.4mm Thk;
  • 1
    BOLT Hex, 5/16'' - 18 x 2'', Gr 8; (Replaces bolt 25232R1) Hex, 5/16''-18 x 2'', G8
  • 1
    WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened
  • 37
    1
    COUDE; - male, 1/8 inch x 90 degree, used with 4386 tractors only
  • 37
    1
    COUDE A 90°; - flex lube oil inlet, 1/4 inch x 1/4 inch x 90 degree, used with all machines except 4386 tractors
  • 38
    1
    HUB; - injection pump gear
  • 39
    1
    PLATE; - gear retainer
  • 3
    BOLT Hex, 5/16'' - 24 x 1 1/2'', Gr 8; SCREW - hex, 5/16 NF x 1-1/2 inch (Replaces screw 21512R1)
  • 40
    1
    GASKET; - injection pump mounting adapter
  • 1
    ADAPTATEUR; ASSEMBLY - injection pump mounting, 4366 tractors, Includes: Ref. 42 - 45
  • 1
    ADAPTER; ASSEMBLY - injection pump mounting, used with all machines except 4366 tractors, Includes: Ref. 42 - 45
  • 42
    2
    PIN; - dowel, 1/4 x 5/8 inch
  • 43
    1
    NOT SOLD SEPARAT; ADAPTER - injection pump, order adapter assembly
  • 1
    BOUCHON; REDUCER - pipe (Replaces plug 9409949)
  • 44
    2
    STUD; - pump mounting
  • 45
    1
    DOWEL 3/4'' x 1 3/4''; PIN - dowel, 3/4 x 1-3/4 inch, used with assembly 676942C93
  • 2
    BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 8; (Replaces bolt 25235R1) Hex, 5/16''-18 x 2 1/2'', G8;Used to attach injection pump adapter, Ref. 43.
  • 2
    WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened;Used to attach injection pump adapter, Ref. 43.
  • 2
    NUT 3/8''-24, G8; Used to attach injection pump adapter, Ref. 43.
  • 1
    BOLT Hex, 5/16'' - 18 x 1'', Gr 8; Used to attach injection pump adapter, Ref. 43.
  • 2
    VIS Hex, 5/16'' - 18 x 2-1/4'', Gr 8; Adapter to front cover, used with pump assembly 749025C91 Hex, 5/16''-18 x 2 1/4'', G8;Used to attach injection pump adapter, Ref. 43.
  • 2
    BOLT Hex, 5/16'' - 24 x 2 1/4'', Gr 8; SCREW - hex, 5/16 NC x 2-1/4 inch;Used to attach injection pump adapter, Ref. 43.
  • 3

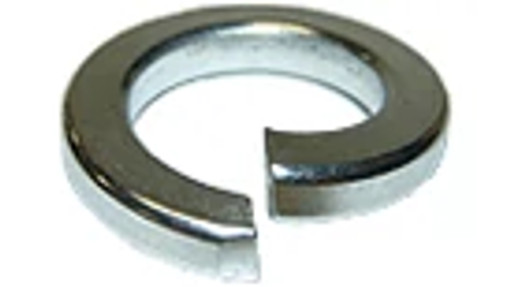

    LOCK WASHER 5/16''; WASHER, LOCK, 5/16'';Used to attach injection pump adapter, Ref. 43.
  • 2
    RONDELLE FREIN 3/8''; WASHER, LOCK, 3/8'';Used to attach injection pump adapter, Ref. 43.
  • 1
    RONDELLE 1/4''; - flat, 11/32 x 11/16 x 1/16 inch;Used to attach injection pump adapter, Ref. 43.
  • 2
    RONDELLE 13/32'' x 13/16'' x .089'', HDN; - flat, 13/32 x 13/16 x 3/32'', hardened;Used to attach injection pump adapter, Ref. 43.
  • 2
    RONDELLE CUIVRE 8.33mm ID x 14.28mm OD x 1.58mm Thk; - flat, copper
  • 46
    2
    ENTRETOISE; - tachometer plate
  • 47
    1
    PIGNON; - tachometer drive, 32 teeth, used with 4366 tractors
  • 48
    1
    PLATE; - tachometer thrust drive, used with 4366 tractors
  • 2
    LOCK NUT 5/16''-24, GC; NUT, LOCK, (Replaces nut 273767) 5/16''-24, GC
  • 49
    1
    GEAR; - injection pump, 33 teeth
  • 50
    1
    CLIP; - electrical cable
  • 50
    1
    CLIP; - cable harness, used with 3588, 3788, 6588 and 6788 tractors, 1480 combines
  • 1
    VIS Hex, 3/8'' - 16 x 1/2'', Gr 8; - hex lock, 3/8 NC x 1/2 inch, grade 8
  • 1
    RONDELLE 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 51
    1
    PLAQUE; - injection pipe block, used with 4386 and 5488 tractors
  • 52
    2
    CLAMP; - used with 4386 and 5488 tractors
  • 1
    BOLT Hex, 5/16'' - 18 x 1'', Gr 8;
  • 2
    BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 8; (Replaces bolt 25751R1) Hex, 5/16''-18 x 1 1/4'', G8
  • 3
    WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)
  • 53
    1
    BRACKET; - injection line clamp, used with 4386 and 5488 tractors
  • 1
    CLAMP 1/2'', Insul, 3/8'' Bolt; Harness, Injection line (Replaces clamp 299407C1) 1/2'', Insul, 3/8'' Bolt
  • 1
    GROMMET; - injection tube
  • 2
    WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)
  • 1
    NUT 5/16''-18, G8; (Replaces nut 25520R1) 5/16''-18, G8
  • 1
    LOCK WASHER 5/16''; (Replaces washer 116120) 5/16''
  • 1
    BOLT Hex, 5/16'' - 18 x 1'', Gr 8;
  • 54
    1
    ADAPTER 1/4'' NPT x 5/8'' - 24 NPT; FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 444040)
Select All

Select

Ref.

1

Qty

1

Availability

Part #

1802452C1

Description

CAP; - fuel return injector no. 1 (Replaces cap 676547C1)


Alts

Select

Ref.

2

Qty

13

Availability

Part #

A180159

Description

CLAMP 10.29mm - 12.32mm; - leakoff hose (Replaces clamps 677129C1 and 1802453C1)


Alts

Select

Ref.

3

Qty

5

Availability

Part #

REF

Description

INSTRUCTION; HOSE - fuel return injector to injector, 5 inch (127 mm) long, cut from bulk hose 680246CX below


Alts

Select

Ref.

4

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; HOSE - no. 6 injector to leakoff tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below


Alts

Select

Ref.

Qty

UAR

Availability

Part #

680246CX

Description

HOSE; HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot


Alts

Select

Ref.

5

Qty

6

Availability

Part #

675479C2

Description

CLAMP; CRAB - injection nozzle


Alts

Select

Ref.

Qty

6

Availability

Part #

691105C1

Description

BOLT; - hex, 5/16 NC x 1-1/16 inch (Together with crab 675479C2, replaces bolt 684497C1 and washer 675677C1)


Alts

Select

Ref.

6

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; NOZZLE ASSEMBLY - fuel injection, parts list page 9E-107


Alts

Select

Ref.

Qty

6

Availability

Part #

1342831C1

Description

SEAL; GROMMET - injection dust cover (Replaces grommet 682810C1)


Alts

Select

Ref.

7

Qty

1

Availability

Part #

680126C1

Description

INJECTION PIPE; - injection, cylinder no. 6, used with 4366 tractors


Alts

Select

Ref.

7

Qty

1

Availability

Part #

687046C1

Description

PIPE; - injection, cylinder no. 6, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300


Alts

Select

Ref.

7

Qty

1

Availability

Part #

684976C1

Description

PIPE; - injection, cylinder no. 6, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors


Alts

Select

Ref.

7

Qty

1

Availability

Part #

688856C1

Description

PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 6, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines


Alts

Select

Ref.

7

Qty

1

Availability

Part #

684516C1

Description

PIPE; - injection, cylinder no. 6, used with 3488 tractors


Alts

Select

Ref.

8

Qty

1

Availability

Part #

680125C1

Description

PIPE; - injection, cylinder no. 5, used with 4366 tractors


Alts

Select

Ref.

8

Qty

1

Availability

Part #

687045C1

Description

PIPE CLAMP; PIPE - injection, cylinder no. 5, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300


Alts

Select

Ref.

8

Qty

1

Availability

Part #

684975C1

Description

PIPE; - injection, cylinder no. 5, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors


Alts

Select

Ref.

8

Qty

1

Availability

Part #

688855C1

Description

PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 5, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines


Alts

Select

Ref.

8

Qty

1

Availability

Part #

684515C1

Description

PIPE; - injection, cylinder no. 5, used with 3488 tractors


Alts

Select

Ref.

9

Qty

1

Availability

Part #

680124C1

Description

PIPE; - injection, cylinder no. 4, used with 4366 tractors


Alts

Select

Ref.

9

Qty

1

Availability

Part #

687044C1

Description

PIPE; - injection, cylinder no. 4, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300


Alts

Select

Ref.

9

Qty

1

Availability

Part #

684974C1

Description

PIPE; - injection, cylinder no. 4, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors.


Alts

Select

Ref.

9

Qty

1

Availability

Part #

688854C1

Description

PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 4, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines


Alts

Select

Ref.

9

Qty

1

Availability

Part #

684514C1

Description

PIPE; - injection, cylinder no. 4, used with 3488 tractors


Alts

Select

Ref.

10

Qty

1

Availability

Part #

680123C1

Description

PIPE; - injection, cylinder no. 3, used with 4366 tractors, for A series engine


Alts

Select

Ref.

10

Qty

1

Availability

Part #

687043C1

Description

PIPE CLAMP; PIPE - injection, cylinder no. 3, has 8 bends, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300


Alts

Select

Ref.

10

Qty

1

Availability

Part #

684973C2

Description

PIPE; - injection, cylinder no. 3, has 8 bends, used with 4386 tractors with engine serial numbers 77300 and after, 5488 tractors


Alts

Select

Ref.

10

Qty

1

Availability

Part #

688853C1

Description

PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; - injection, cylinder no. 3, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines


Alts

Select

Ref.

10

Qty

1

Availability

Part #

684513C1

Description

PIPE; - injection, cylinder no. 3, used with 3488 tractors


Alts

Select

Ref.

11

Qty

1

Availability

Part #

680122C1

Description

PIPE; - injection, cylinder no. 2, used with 4366 tractors


Alts

Select

Ref.

11

Qty

1

Availability

Part #

687042C1

Description

PIPE; - injection, cylinder no.2, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300


Alts

Select

Ref.

11

Qty

1

Availability

Part #

684972C2

Description

PIPE; - injection, cylinder no. 2, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors


Alts

Select

Ref.

11

Qty

1

Availability

Part #

688852C1

Description

PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 2, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines


Alts

Select

Ref.

11

Qty

1

Availability

Part #

684512C1

Description

PIPE; - injection, cylinder no. 2, used with 3488 tractors


Alts

Select

Ref.

12

Qty

1

Availability

Part #

680121C1

Description

PIPE; - injection, cylinder no. 1, used with 4366 tractors


Alts

Select

Ref.

12

Qty

1

Availability

Part #

687041C1

Description

TUBE; PIPE - injection, cylinder no. 1, used with 4386 tractors with engine serial numbers; (SN Break) Between prior and 77300


Alts

Select

Ref.

12

Qty

1

Availability

Part #

684971C2

Description

PIPE; - injection, cylinder no. 1, used with 4386 tractors with engine serial number 77300 and after, 5488 tractors


Alts

Select

Ref.

12

Qty

1

Availability

Part #

688851C1

Description

PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection, cylinder no. 1, used with 3588, 3788, 5288, 6588 and 6788 tractors, 1480 combines, 1470 hillside combines


Alts

Select

Ref.

12

Qty

1

Availability

Part #

684511C1

Description

PIPE; - injection, cylinder no. 1, used with 3488 tractors


Alts

Select

Ref.

13

Qty

2

Availability

Part #

673527C1

Description

CLAMP; - fuel line tube


Alts

Select

Ref.

Qty

1

Availability

Part #

326-412

Description

BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd


Alts

Select

Ref.

Qty

1

Availability

Part #

231-1444

Description

NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GB


Alts

Select

Ref.

14

Qty

UAR

Availability

Part #

258079C1

Description

GROMMET; - injection line, thirteen used on 4386 and 5488 tractors, fourteen used on 3588, 3788, 3488 and 5288 tractors, 1480 combines and 1470 hillside combines


Alts

Select

Ref.

15

Qty

3

Availability

Part #

673577C1

Description

CLAMP; - duplex tube


Alts

Select

Ref.

16

Qty

4

Availability

Part #

673527C1

Description

CLAMP; - fuel tube, injection pipe, used with 4366 and 5488 tractors


Alts

Select

Ref.

Qty

4

Availability

Part #

340-12512

Description

SCREW Cross Pan Hd, 1/4''-20 x 3/4''; - machine, pan Phillips, 1/4 NC x 3/4 inch (Replaces screw 113957)


Alts

Select

Ref.

16

Qty

8

Availability

Part #

673527C1

Description

CLAMP; - fuel tube, all machines except 4366 and 5488 tractors


Alts

Select

Ref.

Qty

4

Availability

Part #

326-48

Description

BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; Used with 4386 tractors only Hex, 1/4''-20 x 1/2'', G8, Full Thd


Alts

Select

Ref.

Qty

1

Availability

Part #

340-12512

Description

SCREW Cross Pan Hd, 1/4''-20 x 3/4''; - machine, pan Phillips, 1/4 NC x 3/4 inch, used with 3488, 3588, 3788, 5288, 6588 and 1480 combines (Replaces screw 113957)


Alts

Select

Ref.

Qty

3

Availability

Part #

1276056C1

Description

SELF-TAP SCREW Cross Pan Hd, 1/4'' x 1 1/4''; SCREW - slotted head 1/4 NC x 1-1/4 inch, used with 3488, 3588, 3788, 5288, 6588 and 6788 tractors, 1470 hillside and 1480 combines


Alts

Select

Ref.

17

Qty

1

Availability

Part #

222-27

Description

HYD CONNECTOR 5/8''-24 x 1/4'' NPTF W/Nut; ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)


Alts

Select

Ref.

18

Qty

2

Availability

Part #

680316C91

Description

TUBE 0.375'' OD, 28.88'' Length; ASSEMBLY - fuel return, Includes: Ref. 18A & 18B


Alts

Select

Ref.

18A

Qty

2

Availability

Part #

222-104

Description

SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated


Alts

Select

Ref.

18B

Qty

-

Availability

Part #

222-114

Description

NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated


Alts

Select

Ref.

19

Qty

1

Availability

Part #

680120C1

Description

TEE; - fuel leakoff, used with 4366 tractors, no longer available


Alts

Select

Ref.

19

Qty

1

Availability

Part #

689382C1

Description

TEE; - fuel leakoff, used with 3588, 3788, 3488, 5288, 5488, 6588 and 6788 tractors


Alts

Select

Ref.

19

Qty

1

Availability

Part #

673196C1

Description

TEE; - fuel leakoff, used with 1470 hillside and 1480 combines, 4386 tractor s


Alts

Select

Ref.

20

Qty

2

Availability

Part #

673193C1

Description

CLIP; - fuel return tube


Alts

Select

Ref.

Qty

2

Availability

Part #

326-612

Description

BOLT Hex, 3/8'' - 16 x 3/4'', Gr 8; (Replaces bolt 24839R1) Hex, 3/8''-16 x 3/4'', G8, Full Thd


Alts

Select

Ref.

Qty

2

Availability

Part #

396-21041

Description

WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened


Alts

Select

Ref.

21

Qty

1

Availability

Part #

684077C91

Description

TUBE 0.375'' OD, 15.75'' Length; ASSEMBLY - primary pump to final filter, used with all machines except 5288 and 5488 tractors, Includes: Ref. 21A & 21B


Alts

Select

Ref.

21

Qty

1

Availability

Part #

1806473C92

Description

TUBE 0.375'' OD; ASSEMBLY - primary pump to final filter, used with 5288 and 5488 tractors (Replaces tube 691887C91), Includes: Ref. 21A & 21B;P/N 691887C91 subs to 1806487C91 tube and 1802981C1 clamp. P/N 1806487C91 is the correct part number to be used for 5288 and 5488.


Alts

Select

Ref.

21A

Qty

2

Availability

Part #

222-104

Description

SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated


Alts

Select

Ref.

21B

Qty

2

Availability

Part #

222-114

Description

NUT 5/8''-24; NUT - hex, 3/8 tube OD x 5/8 inch (Replaces nut 265205R1), not illustrated


Alts

Select

Ref.

Qty

1

Availability

Part #

515-2395

Description

CLAMP 3/8'', Insul, 3/8'' Bolt; Closed tube, for use with tube 691887C91 (Replaces clamp 299404C1) 3/8'', Insul, 3/8'' Bolt


Alts

Select

Ref.

Qty

1

Availability

Part #

1802981C1

Description

CLAMP; - tube, for use with tube assembly 1806473C91)


Alts

Select

Ref.

22

Qty

4

Availability

Part #

279830R1

Description

CLAMP; - primary pump to final filter and primary filter to primary pump tube, used with 5488 tractors


Alts

Select

Ref.

Qty

1

Availability

Part #

326-48

Description

BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; (Replaces bolt 25752R1) Hex, 1/4''-20 x 1/2'', G8, Full Thd


Alts

Select

Ref.

Qty

1

Availability

Part #

262038R1

Description

NUT; - speed


Alts

Select

Ref.

23

Qty

2

Availability

Part #

673171C1

Description

RUBBER BUSHING; SLEEVE - rubber, fuel pipe, 3/8 inch diameter


Alts

Select

Ref.

23

Qty

1

Availability

Part #

258079C1

Description

GROMMET; - injection tube, fuel pipe, 1/4 inch diameter


Alts

Select

Ref.

23

Qty

2

Availability

Part #

397483R1

Description

GROMMET; CUSHION - fuel pipe, 7/8 inch diameter (Replaces cushion 536410R1)


Alts

Select

Ref.

24

Qty

2

Availability

Part #

222-4047

Description

ELBOW; - primary filter outlet and final filter inlet, 90 degree compression, 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)


Alts

Select

Ref.

25

Qty

1

Availability

Part #

684075C91

Description

TUBE 0.375'' OD, 22.25'' Length; ASSEMBLY - primary filter to primary pump, used with all machines except 5288 and 5488 tractors, Includes: Ref. 25A & 25B


Alts

Select

Ref.

25

Qty

1

Availability

Part #

691885C91

Description

TUBE; ASSEMBLY - primary filter to primary pump, used with 5288 and 5488 tractors, Includes: Ref. 25A & 25B


Alts

Select

Ref.

25A

Qty

2

Availability

Part #

222-104

Description

SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated


Alts

Select

Ref.

25B

Qty

2

Availability

Part #

222-114

Description

NUT 5/8''-24; NUT - hex, 3/8 tube OD x 5/8 inch (Replaces nut 265205R1), not illustrated


Alts

Select

Ref.

26

Qty

UAR

Availability

Part #

39677DA

Description

VALVE; - bleeder


Alts

Select

Ref.

27

Qty

1

Availability

Part #

222-768

Description

ELBOW 90 Degree, 5/8''-18, 45 Degree Fl x 1/4'' NPT; - 90 degree x 5/8 inch x 1/4 inch PT, final filter outlet, used with all machines except 6588 and 6788 tractors (Replaces elbow 118755)


Alts

Select

Ref.

27

Qty

1

Availability

Part #

1800602C1

Description

FITTING; TEE - final filter outlet, no longer used, order elbow 222-768


Alts

Select

Ref.

Qty

1

Availability

Part #

217-84

Description

PLUG Hex Hd, 1/8''-27, Brass; - hex, 1/8 inch PT (Replaces plug 444614)


Alts

Select

Ref.

28

Qty

1

Availability

Part #

1809590C91

Description

HEAD ASSY.; HEADER - fuel filter, used with all machines except 5288 and 5488 tractors (Replaces header 676143C2)


Alts

Select

Ref.

Qty

3

Availability

Part #

326-668

Description

BOLT Hex, 3/8'' - 16 x 4-1/4'', Gr 8; (Replaces bolt 25784R1) Hex, 3/8''-16 x 4 1/4'', G8


Alts

Select

Ref.

Qty

3

Availability

Part #

396-21041

Description

WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened


Alts

Select

Ref.

28

Qty

1

Availability

Part #

688266C1

Description

HEAD; ER - filter, used with 5288 and 5488 tractors


Alts

Select

Ref.

Qty

2

Availability

Part #

444693

Description

PLUG Hex Soc, 1/4''-18, Brass; - hex socket, 1/4 inch PT


Alts

Select

Ref.

Qty

2

Availability

Part #

326-652

Description

BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 8; (Replaces bolt 25500R1) Hex, 3/8''-16 x 3 1/4'', G8


Alts

Select

Ref.

Qty

2

Availability

Part #

396-21041

Description

WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened


Alts

Select

Ref.

29

Qty

1

Availability

Part #

A184773

Description

SEPARATOR; FILTER - primary fuel (Replaces filter 625627C1)


Alts

Select

Ref.

30

Qty

1

Availability

Part #

A184774

Description

FUEL FILTER; FILTER - final fuel (Replaces filter 672603C2)


Alts

Select

Ref.

31

Qty

1

Availability

Part #

688190C1

Description

HOSE; ASSEMBLY - final filter to injection pump (Replaces hose 684167C1 by also ordering elbow 118755)


Alts

Select

Ref.

32

Qty

4

Availability

Part #

684899C1

Description

CLAMP; - hose, final filter to injection pump hose and primary filter to primary pump tube


Alts

Select

Ref.

Qty

2

Availability

Part #

326-412

Description

BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd


Alts

Select

Ref.

Qty

2

Availability

Part #

231-1444

Description

NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GB


Alts

Select

Ref.

33

Qty

1

Availability

Part #

319615R1

Description

ELBOW; - male, 1/8 inch x 90 degree, used with 4366 tractors;This is really a tee with three openings. One is 1/8-27 NPTF female. The second one is 1/8-28 NPTF male. The third one is 1/2-24 NS-2A.


Alts

Select

Ref.

33

Qty

1

Availability

Part #

686839C1

Description

ELBOW; - flex, side outlet, 90 degree x 1/4 tube x 1/8 NPT, used with all machines except 4366 tractors;This is really a tee with three openings. One is 1/8-27 NPTF female. The second one is 1/8-28 NPTF male. The third one is 1/2-24 NS-2A.


Alts

Select

Ref.

34

Qty

1

Availability

Part #

673165C91

Description

TUBE 1'' OD; ASSEMBLY - lubricating oil, used with 4366 tractors, Includes: Ref. 34A & 34B


Alts

Select

Ref.

34

Qty

1

Availability

Part #

688301C91

Description

TUBE; ASSEMBLY - lubricating oil, all machines except 4366 tractors, Includes: Ref. 34A & 34B


Alts

Select

Ref.

34A

Qty

2

Availability

Part #

222-102

Description

CHEMISE 1/4'' Tube; (Replaces sleeve 915500R1), Not illustrated 1/4'' Tube


Alts

Select

Ref.

34B

Qty

2

Availability

Part #

87017024

Description

TUBE NUT 1/2''-24; NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated


Alts

Select

Ref.

35

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; ELBOW - injection pump hose, furnished as part of injection pump


Alts

Select

Ref.

36

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; PUMP ASSEMBLY - fuel injection, parts list Figures 9E-44, 9E-56, 9E-68 or 9E-78


Alts

Select

Ref.

Qty

2

Availability

Part #

329-116

Description

NUT 3/8''-24, G8; (Replaces nut 25523R1) 3/8''-24, G8


Alts

Select

Ref.

Qty

2

Availability

Part #

396-31041

Description

WASHER 10.31mm ID x 20.63mm OD x 3.4mm Thk;


Alts

Select

Ref.

Qty

1

Availability

Part #

326-532

Description

BOLT Hex, 5/16'' - 18 x 2'', Gr 8; (Replaces bolt 25232R1) Hex, 5/16''-18 x 2'', G8


Alts

Select

Ref.

Qty

1

Availability

Part #

396-21034

Description

WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened


Alts

Select

Ref.

37

Qty

1

Availability

Part #

319615R1

Description

COUDE; - male, 1/8 inch x 90 degree, used with 4386 tractors only


Alts

Select

Ref.

37

Qty

1

Availability

Part #

606296C1

Description

COUDE A 90°; - flex lube oil inlet, 1/4 inch x 1/4 inch x 90 degree, used with all machines except 4386 tractors


Alts

Select

Ref.

38

Qty

1

Availability

Part #

676925C1

Description

HUB; - injection pump gear


Alts

Select

Ref.

39

Qty

1

Availability

Part #

676926C1

Description

PLATE; - gear retainer


Alts

Select

Ref.

Qty

3

Availability

Part #

27366R1

Description

BOLT Hex, 5/16'' - 24 x 1 1/2'', Gr 8; SCREW - hex, 5/16 NF x 1-1/2 inch (Replaces screw 21512R1)


Alts

Select

Ref.

40

Qty

1

Availability

Part #

675609C2

Description

GASKET; - injection pump mounting adapter


Alts

Select

Ref.

Qty

1

Availability

Part #

676942C93

Description

ADAPTATEUR; ASSEMBLY - injection pump mounting, 4366 tractors, Includes: Ref. 42 - 45


Alts

Select

Ref.

Qty

1

Availability

Part #

689146C91

Description

ADAPTER; ASSEMBLY - injection pump mounting, used with all machines except 4366 tractors, Includes: Ref. 42 - 45


Alts

Select

Ref.

42

Qty

2

Availability

Part #

680481C1

Description

PIN; - dowel, 1/4 x 5/8 inch


Alts

Select

Ref.

43

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; ADAPTER - injection pump, order adapter assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

221-887

Description

BOUCHON; REDUCER - pipe (Replaces plug 9409949)


Alts

Select

Ref.

44

Qty

2

Availability

Part #

256333R1

Description

STUD; - pump mounting


Alts

Select

Ref.

45

Qty

1

Availability

Part #

19968R1

Description

DOWEL 3/4'' x 1 3/4''; PIN - dowel, 3/4 x 1-3/4 inch, used with assembly 676942C93


Alts

Select

Ref.

Qty

2

Availability

Part #

326-540

Description

BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 8; (Replaces bolt 25235R1) Hex, 5/16''-18 x 2 1/2'', G8;Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

396-21034

Description

WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened;Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

329-116

Description

NUT 3/8''-24, G8; Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

1

Availability

Part #

326-516

Description

BOLT Hex, 5/16'' - 18 x 1'', Gr 8; Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

326-536

Description

VIS Hex, 5/16'' - 18 x 2-1/4'', Gr 8; Adapter to front cover, used with pump assembly 749025C91 Hex, 5/16''-18 x 2 1/4'', G8;Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

27292R1

Description

BOLT Hex, 5/16'' - 24 x 2 1/4'', Gr 8; SCREW - hex, 5/16 NC x 2-1/4 inch;Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

3

Availability

Part #

492-11031

Description

LOCK WASHER 5/16''; WASHER, LOCK, 5/16'';Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

92-11038

Description

RONDELLE FREIN 3/8''; WASHER, LOCK, 3/8'';Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

1

Availability

Part #

95-11034

Description

RONDELLE 1/4''; - flat, 11/32 x 11/16 x 1/16 inch;Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

496-21041

Description

RONDELLE 13/32'' x 13/16'' x .089'', HDN; - flat, 13/32 x 13/16 x 3/32'', hardened;Used to attach injection pump adapter, Ref. 43.


Alts

Select

Ref.

Qty

2

Availability

Part #

302861R1

Description

RONDELLE CUIVRE 8.33mm ID x 14.28mm OD x 1.58mm Thk; - flat, copper


Alts

Select

Ref.

46

Qty

2

Availability

Part #

676936C1

Description

ENTRETOISE; - tachometer plate


Alts

Select

Ref.

47

Qty

1

Availability

Part #

676938C1

Description

PIGNON; - tachometer drive, 32 teeth, used with 4366 tractors


Alts

Select

Ref.

48

Qty

1

Availability

Part #

676937C1

Description

PLATE; - tachometer thrust drive, used with 4366 tractors


Alts

Select

Ref.

Qty

2

Availability

Part #

232-4615

Description

LOCK NUT 5/16''-24, GC; NUT, LOCK, (Replaces nut 273767) 5/16''-24, GC


Alts

Select

Ref.

49

Qty

1

Availability

Part #

676922C2

Description

GEAR; - injection pump, 33 teeth


Alts

Select

Ref.

50

Qty

1

Availability

Part #

388922R2

Description

CLIP; - electrical cable


Alts

Select

Ref.

50

Qty

1

Availability

Part #

362123R1

Description

CLIP; - cable harness, used with 3588, 3788, 6588 and 6788 tractors, 1480 combines


Alts

Select

Ref.

Qty

1

Availability

Part #

27431R1

Description

VIS Hex, 3/8'' - 16 x 1/2'', Gr 8; - hex lock, 3/8 NC x 1/2 inch, grade 8


Alts

Select

Ref.

Qty

1

Availability

Part #

396-21041

Description

RONDELLE 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened


Alts

Select

Ref.

51

Qty

1

Availability

Part #

687658C1

Description

PLAQUE; - injection pipe block, used with 4386 and 5488 tractors


Alts

Select

Ref.

52

Qty

2

Availability

Part #

687657C1

Description

CLAMP; - used with 4386 and 5488 tractors


Alts

Select

Ref.

Qty

1

Availability

Part #

326-516

Description

BOLT Hex, 5/16'' - 18 x 1'', Gr 8;


Alts

Select

Ref.

Qty

2

Availability

Part #

326-520

Description

BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 8; (Replaces bolt 25751R1) Hex, 5/16''-18 x 1 1/4'', G8


Alts

Select

Ref.

Qty

3

Availability

Part #

396-21034

Description

WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)


Alts

Select

Ref.

53

Qty

1

Availability

Part #

1802171C1

Description

BRACKET; - injection line clamp, used with 4386 and 5488 tractors


Alts

Select

Ref.

Qty

1

Availability

Part #

515-23127

Description

CLAMP 1/2'', Insul, 3/8'' Bolt; Harness, Injection line (Replaces clamp 299407C1) 1/2'', Insul, 3/8'' Bolt


Alts

Select

Ref.

Qty

1

Availability

Part #

258079C1

Description

GROMMET; - injection tube


Alts

Select

Ref.

Qty

2

Availability

Part #

396-21034

Description

WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)


Alts

Select

Ref.

Qty

1

Availability

Part #

329-105

Description

NUT 5/16''-18, G8; (Replaces nut 25520R1) 5/16''-18, G8


Alts

Select

Ref.

Qty

1

Availability

Part #

392-11031

Description

LOCK WASHER 5/16''; (Replaces washer 116120) 5/16''


Alts

Select

Ref.

Qty

1

Availability

Part #

326-516

Description

BOLT Hex, 5/16'' - 18 x 1'', Gr 8;


Alts

Select

Ref.

54

Qty

1

Availability

Part #

687426C1

Description

ADAPTER 1/4'' NPT x 5/8'' - 24 NPT; FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 444040)


Alts
