TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
-
11INSTRUCTION; FILTER ASSEMBLY - fuel (See page 45)
-
23BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5;
-
33LOCK WASHER 5/16'';
-
41TUBE; LINE - fuel filter to pump (replaces A36566)
-
52GOMITO 90 Degree, 5/8''-24 Fem x 1/4''-27 NPTF; ASSEMBLY - 3/8'' x 1/4'' P.T.
-
61MANICOTTO 3/8'' Tube; - 3/8'' Tube
-
71NUT 5/8''-24; NUT - 3/8'' tube
-
81LOCK NUT; - sealing type, 1/4'' P.T.
-
101PUMP; ASSEMBLY - fuel injection (See Page 47) (Used prior to engine 2716460)
-
101PUMP; ASSEMBLY - fuel injection (See Page 49) (Used on engine 2716460 and later)
-
111TUBE; ASSEMBLY - pump to number 1 injector (includes items 15, 16 and 17)
-
121TUBE; ASSEMBLY - pump to number 2 injector (includes items 15, 16 and 17)
-
131TUBE; ASSEMBLY - pump to number 3 injector (includes items 15, 16 and 17)
-
141TUBE; ASSEMBLY - pump to number 4 injector (includes items 15, 16 and 17);Ref 14 A41394 not illustrated properly the part pictured is a35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99
-
151PIPE FITTING; SLEEVE - tube
-
161NUT; - tube
-
172WASHER 9.63mm ID x 12.83mm OD x 1.65mm Thk; WASHER - screw connector
-
184BRACKET; CLAMP - fuel injection line
-
192SCREW Sl Rnd Hd, #10 - 24 x 1''; BOLT - number 10 x 1'' round head machinery
-
202SPRING NUT Flat, #10 - 24, 0.022'' Thk; NUT - number 10 flat Tinnerman
-
234INSTRUCTION; NOZZLE ASSEMBLY - fuel injector (See page 43)
-
354CLAMP; ASSEMBLY - injector nozzle
-
364SPACER; - nozzle clamp
-
391TUBE; - leak-off, injection pump to tee (replaces A38158)
-
404TEE 1/2'' - 25 NPT x 1/2'' - 25 NPT x 9/16'' - 24 NPT; TEE - nozzle leak-off (metal)
-
413TUBE; - leak-off (3-7/8'' long) (used with A58960 tee)
-
428TUBE NUT 1/2''-24; NUT - leak-off tube (for 1/4'' O.D. tube)
-
438SLEEVE 1/4'' Tube; Leak off tube 1/4'' Tube
-
444GROMMET 9.14mm ID x 12.82mm OD x 5.28mm Thk; - nozzle cap (rubber) (used with A58961 nut)
-
454NUT; - nozzle (used with A58960 tee)
-
464BOOT; - nozzle leak-off (nylon) Order 3-A38644, 4-A58960, 4-A58961, 4-A58962, 8-222-102 & 8-222-112)
-
473TUBE; - leak-off, (4-3/16'' long) (used with A37838 boot)
-
484HOSE CLAMP #10, 0.56'' - 1.06'', Type F Worm; CLAMP - 9/16'' x 1-1/16'' (used with A37838 boot)
-
491TEE 1/4'' Flex Tube Run x 1/8'' NPTF Br; ASSEMBLY - injection pump leak-off, 1/4'' tube
-
502SLEEVE 1/4'' Tube;
-
512TUBE NUT 1/2''-24; NUT - for 1/4'' tube
-
521LOCK NUT; - sealing type, 1/8'' P.T.
-
531RIVET FH, 1/4'' x 7/16''; PLUG - leak-off tee, rear
Sélectionner Tout
Select
Ref.
1Qté
1Disponibilité
N° de pièce
REFDescription
INSTRUCTION; FILTER ASSEMBLY - fuel (See page 45)Img
Alts
Select
Ref.
2Qté
3Disponibilité
N° de pièce
13-514Description
BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5;Img
Alts
Select
Ref.
4Qté
1Disponibilité
N° de pièce
A51784Description
TUBE; LINE - fuel filter to pump (replaces A36566)Img
Alts
Select
Ref.
5Qté
2Disponibilité
N° de pièce
222-47Description
GOMITO 90 Degree, 5/8''-24 Fem x 1/4''-27 NPTF; ASSEMBLY - 3/8'' x 1/4'' P.T.Img
Alts
Select
Ref.
6Qté
1Disponibilité
N° de pièce
222-104Description
MANICOTTO 3/8'' Tube; - 3/8'' TubeImg
Alts
Select
Ref.
7Qté
1Disponibilité
N° de pièce
222-114Description
NUT 5/8''-24; NUT - 3/8'' tubeImg
Alts
Select
Ref.
8Qté
1Disponibilité
N° de pièce
A38161Description
LOCK NUT; - sealing type, 1/4'' P.T.Img
Alts
Select
Ref.
10Qté
1Disponibilité
N° de pièce
A35775Description
PUMP; ASSEMBLY - fuel injection (See Page 47) (Used prior to engine 2716460)Img
Alts
Select
Ref.
10Qté
1Disponibilité
N° de pièce
A51047Description
PUMP; ASSEMBLY - fuel injection (See Page 49) (Used on engine 2716460 and later)Img
Alts
Select
Ref.
11Qté
1Disponibilité
N° de pièce
A41391Description
TUBE; ASSEMBLY - pump to number 1 injector (includes items 15, 16 and 17)Img
Alts
Select
Ref.
12Qté
1Disponibilité
N° de pièce
A41392Description
TUBE; ASSEMBLY - pump to number 2 injector (includes items 15, 16 and 17)Img
Alts
Select
Ref.
13Qté
1Disponibilité
N° de pièce
A41393Description
TUBE; ASSEMBLY - pump to number 3 injector (includes items 15, 16 and 17)Img
Alts
Select
Ref.
14Qté
1Disponibilité
N° de pièce
A41394Description
TUBE; ASSEMBLY - pump to number 4 injector (includes items 15, 16 and 17);Ref 14 A41394 not illustrated properly the part pictured is a35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99Img
Alts
Select
Ref.
15Qté
1Disponibilité
N° de pièce
A37850Description
PIPE FITTING; SLEEVE - tubeImg
Alts
Select
Ref.
17Qté
2Disponibilité
N° de pièce
G49407Description
WASHER 9.63mm ID x 12.83mm OD x 1.65mm Thk; WASHER - screw connectorImg
Alts
Select
Ref.
18Qté
4Disponibilité
N° de pièce
A58709Description

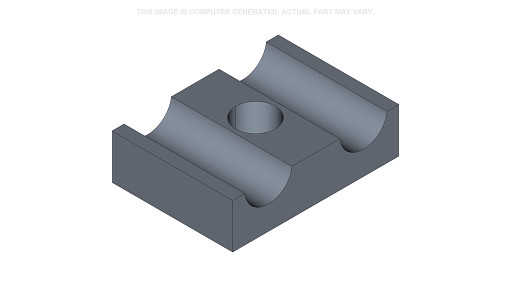

BRACKET; CLAMP - fuel injection lineImg
Alts
Select
Ref.
19Qté
2Disponibilité
N° de pièce
173-102Description
SCREW Sl Rnd Hd, #10 - 24 x 1''; BOLT - number 10 x 1'' round head machineryImg
Alts
Select
Ref.
20Qté
2Disponibilité
N° de pièce
131-612Description

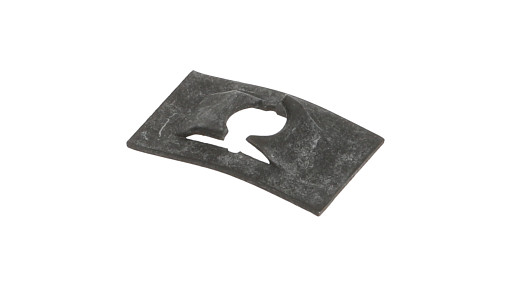

SPRING NUT Flat, #10 - 24, 0.022'' Thk; NUT - number 10 flat TinnermanImg
Alts
Select
Ref.
23Qté
4Disponibilité
N° de pièce
REFDescription
INSTRUCTION; NOZZLE ASSEMBLY - fuel injector (See page 43)Img
Alts
Select
Ref.
35Qté
4Disponibilité
N° de pièce
A37837Description
CLAMP; ASSEMBLY - injector nozzleImg
Alts
Select
Ref.
39Qté
1Disponibilité
N° de pièce
A51658Description
TUBE; - leak-off, injection pump to tee (replaces A38158)Img
Alts
Select
Ref.
40Qté
4Disponibilité
N° de pièce
A58960Description
TEE 1/2'' - 25 NPT x 1/2'' - 25 NPT x 9/16'' - 24 NPT; TEE - nozzle leak-off (metal)Img
Alts
Select
Ref.
41Qté
3Disponibilité
N° de pièce
A38644Description
TUBE; - leak-off (3-7/8'' long) (used with A58960 tee)Img
Alts
Select
Ref.
42Qté
8Disponibilité
N° de pièce
87017024Description

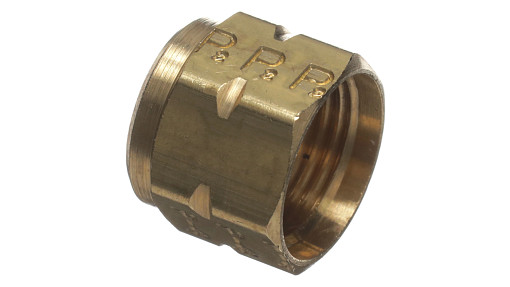

TUBE NUT 1/2''-24; NUT - leak-off tube (for 1/4'' O.D. tube)Img
Alts
Select
Ref.
43Qté
8Disponibilité
N° de pièce
222-102Description
SLEEVE 1/4'' Tube; Leak off tube 1/4'' TubeImg
Alts
Select
Ref.
44Qté
4Disponibilité
N° de pièce
A58962Description

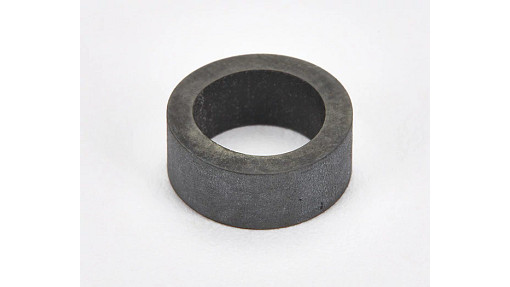

GROMMET 9.14mm ID x 12.82mm OD x 5.28mm Thk; - nozzle cap (rubber) (used with A58961 nut)Img
Alts
Select
Ref.
45Qté
4Disponibilité
N° de pièce
A58961Description

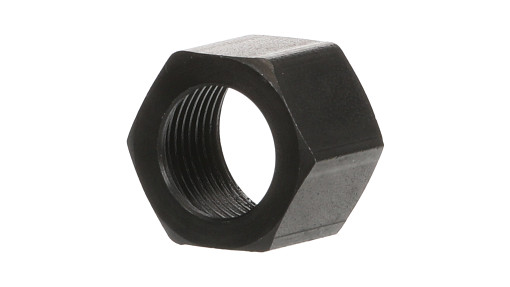

NUT; - nozzle (used with A58960 tee)Img
Alts
Select
Ref.
46Qté
4Disponibilité
N° de pièce
A37838Description
BOOT; - nozzle leak-off (nylon) Order 3-A38644, 4-A58960, 4-A58961, 4-A58962, 8-222-102 & 8-222-112)Img
Alts
Select
Ref.
47Qté
3Disponibilité
N° de pièce
A37840Description
TUBE; - leak-off, (4-3/16'' long) (used with A37838 boot)Img
Alts
Select
Ref.
48Qté
4Disponibilité
N° de pièce
214-253Description
HOSE CLAMP #10, 0.56'' - 1.06'', Type F Worm; CLAMP - 9/16'' x 1-1/16'' (used with A37838 boot)Img
Alts
Select
Ref.
49Qté
1Disponibilité
N° de pièce
222-72Description

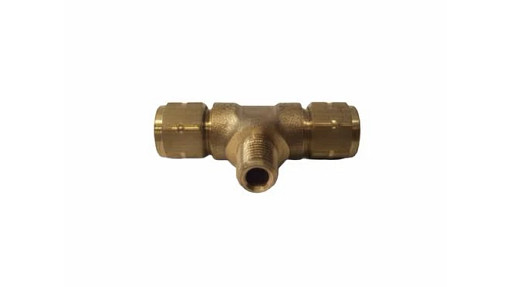

TEE 1/4'' Flex Tube Run x 1/8'' NPTF Br; ASSEMBLY - injection pump leak-off, 1/4'' tubeImg
Alts
Select
Ref.
51Qté
2Disponibilité
N° de pièce
87017024Description
TUBE NUT 1/2''-24; NUT - for 1/4'' tubeImg
Alts
Select
Ref.
52Qté
1Disponibilité
N° de pièce
A38160Description
LOCK NUT; - sealing type, 1/8'' P.T.Img
Alts
Select
Ref.
53Qté
1Disponibilité
N° de pièce
47-47Description

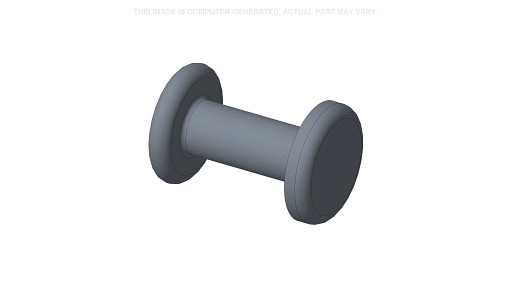

RIVET FH, 1/4'' x 7/16''; PLUG - leak-off tee, rearImg
Alts
