N844LT - ENGINE (03/11 - ... 10 - ENGINE 10.402.01 - WATER PUMP
10.402.01 - WATER PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

SBA145017730C

Description

CORE-WATER PUMP WATER PUMP; Incl. Ref 2 - 5


Alts

Select

Ref.

1

Qty

1

Availability

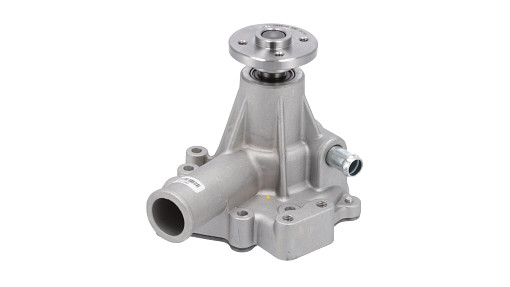

Part #

SBA145017730R

Description

REMAN-WATER PUMP WATER PUMP; Incl. Ref 2 - 5


Alts

Select

Ref.

1

Qty

1

Availability

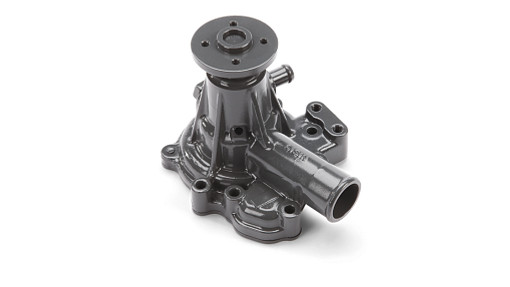

Part #

SBA145017730

Description

WATER PUMP; Incl. Ref 2 - 5


Alts

Select

Ref.

2

Qty

1

Availability

Part #

SBA145146320

Description

PLATE; Set


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA145996680

Description

GASKET;


Alts

Select

Ref.

4

Qty

5

Availability

Part #

SBA015300614

Description

SCREW;


Alts

Select

Ref.

5

Qty

4

Availability

Part #

SBA064500030

Description

PLUG 3/8'';


Alts

Select

Ref.

6

Qty

1

Availability

Part #

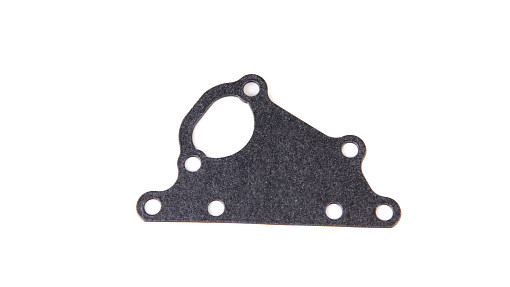

SBA145996670

Description

GASKET; Water Pump, Before Engine Serial Number 101384


Alts

Select

Ref.

6

Qty

1

Availability

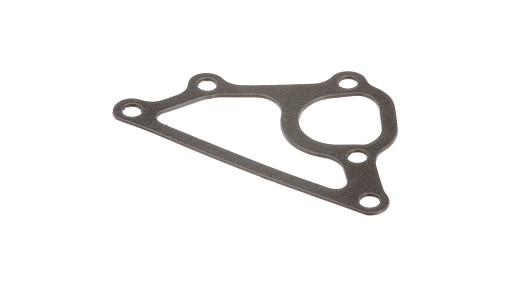

Part #

SBA145996990

Description

GASKET; Water Pump, After Engine Serial Number 101384


Alts

Select

Ref.

7

Qty

4

Availability

Part #

SBA012110635

Description

STUD;


Alts

Select

Ref.

8

Qty

7

Availability

Part #

9804276

Description

FLANGE NUT Hex, M6 x 1, Cl 8;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

SBA145216640

Description

HOUSING; Thermostat


Alts

Select

Ref.

10

Qty

1

Availability

Part #

SBA145996710

Description

GASKET;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

SBA145226340

Description

COVER; Thermostat


Alts

Select

Ref.

12

Qty

1

Availability

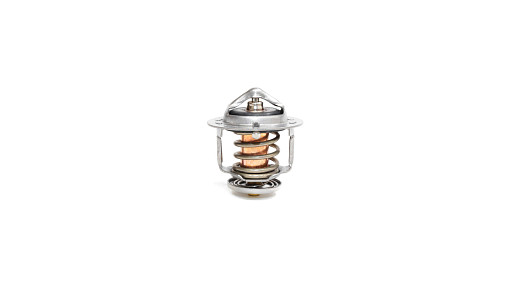

Part #

SBA145206220

Description

THERMOSTAT 71 Degrees C (160 Degrees F); 1.875'' OD x 2.2'' H


Alts

Select

Ref.

13

Qty

1

Availability

Part #

SBA145996051

Description

GASKET;


Alts

Select

Ref.

14

Qty

2

Availability

Part #

SBA010800820

Description

BOLT;


Alts

Select

Ref.

15

Qty

3

Availability

Part #

SBA064500030

Description

PLUG 3/8'';


Alts

Select

Ref.

16

Qty

2

Availability

Part #

SBA012100655

Description

STUD;


Alts

Select

Ref.

17

Qty

2

Availability

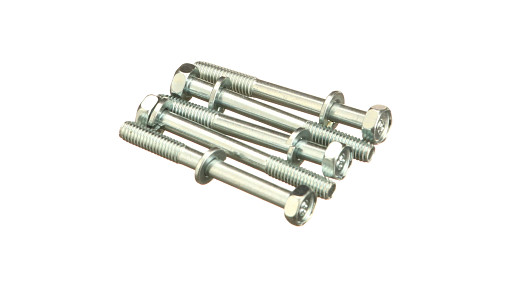

Part #

SBA011310655

Description

BOLT Hex, M6 x 55, Cl 8.8;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

SBA145336051

Description

HOSE;


Alts

Select

Ref.

19

Qty

2

Availability

Part #

SBA067100022

Description

HOSE CLAMP;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

SBA198487870

Description

NIPPLE;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

84298023

Description

PULLEY 135mm OD;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

47408215

Description

FAN 5 Blades, 440mm OD;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

47426353

Description

FAN 9 Blades, 450mm OD;


Alts

Select

Ref.

23

Qty

1

Availability

Part #

47402648

Description

SPACER 47.5mm W;


Alts

Select

Ref.

24

Qty

4

Availability

Part #

87023526

Description

FLANGE BOLT M6 x 1.0 x 76.6mm, Cl 8.8;


Alts
