25.100.120 - VAR - 759946, 759947 - 4WD FRONT AXLE, AXLE SUPPORT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    5140452

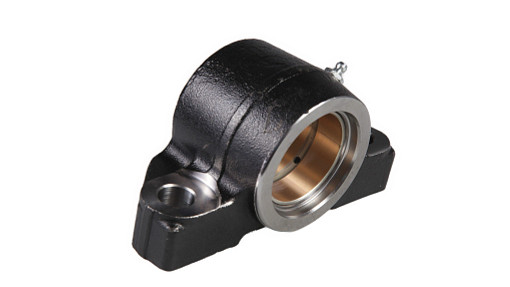

    SUPPORT; ASSY, Incl 2-6
  • 2
    1
    5101112
    BUSHING 52.72mm ID x 57.16mm OD x 42mm L;
  • 3
    2
    10837710
    DOWEL M10 x 25;
  • 4
    1
    5140451
    SUPPORT;
  • 5
    1
    13411117
    VALVE PRESSURE RELIE M10, Black;
  • 6
    1
    13407211
    LUBE NIPPLE Straight Con. Head, M10 x 1 x 18mm L;
  • 7
    1
    5140456

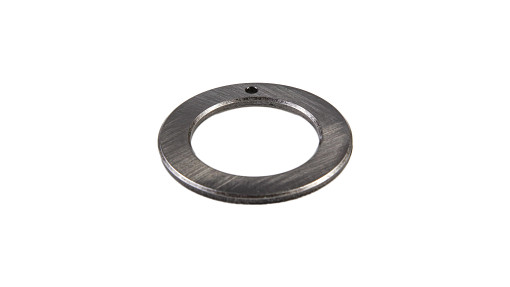

    RING 52.8mm ID x 80mm OD x 5mm Thk;
  • 8
    1
    14471380
    O-RING 0.21'' Thk x 2.1'' ID, -330, Cl 5, 75 Duro;
  • 9
    2
    14272034
    LOCK BOLT Hex, M18 x 1.5 x 65mm, Cl 10.9;
  • 10
    1
    47131328
    SUPPORT; ASSY, Incl 11, 13-14
  • 11
    2
    10837810

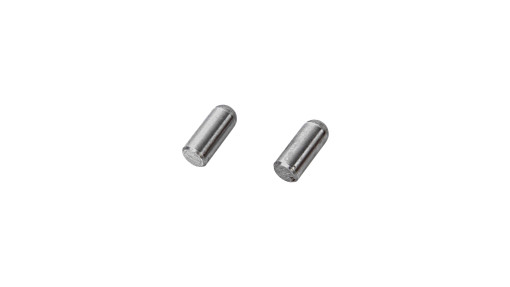

    DOWEL M12 x 30.00mm;
  • 12
    2
    47983406
    PLUG Greasing Point Protection;
  • 13
    1
    5129385
    BUSHING 99.15mm ID x 103.7mm OD x 52mm L;
  • 14
    1
    13407811
    LUBE NIPPLE Angled Con. Head, 45?, M10 x 1 x 27mm L;
  • 15
    2
    5188609

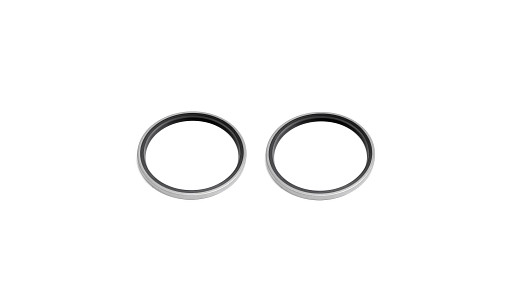

    SEALING RING 99.04mm ID x 115mm OD x 7.5mm Thk;
  • 16
    2
    14272934

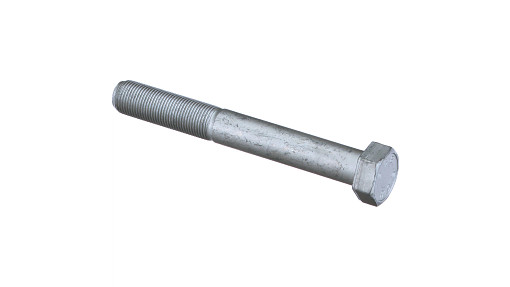

    BOLT Hex, M18 x 1.5 x 140mm, Cl 10.9;
