1.82.7/01 - 4 REMOTE VALVE & RELATED PARTS (VAR.330873)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

2

Availability

Part #

87538602

Description

HYD CONNECTOR; L28 / M33x2


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87316436

Description

END PLATE;


Alts

Select

Ref.

3

Qty

3

Availability

Part #

190003120908

Description

O-RING;


Alts

Select

Ref.

4

Qty

2

Availability

Part #

87332790

Description

O-RING 15mm ID x 1.5mm, Nbr 70;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

1288 350165

Description

O-RING;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

87305836

Description

CHECK VALVE;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87306057

Description

HYDRAULIC VALVE; ASSY


Alts

Select

Ref.

8

Qty

4

Availability

Part #

87305400

Description

HYD VALVE SECTION; ASSY


Alts

Select

Ref.

9

Qty

1

Availability

Part #

87368041

Description

JUNCTION BOX;


Alts

Select

Ref.

10

Qty

3

Availability

Part #

87374940

Description

TIE-ROD;


Alts

Select

Ref.

11

Qty

6

Availability

Part #

14059311

Description

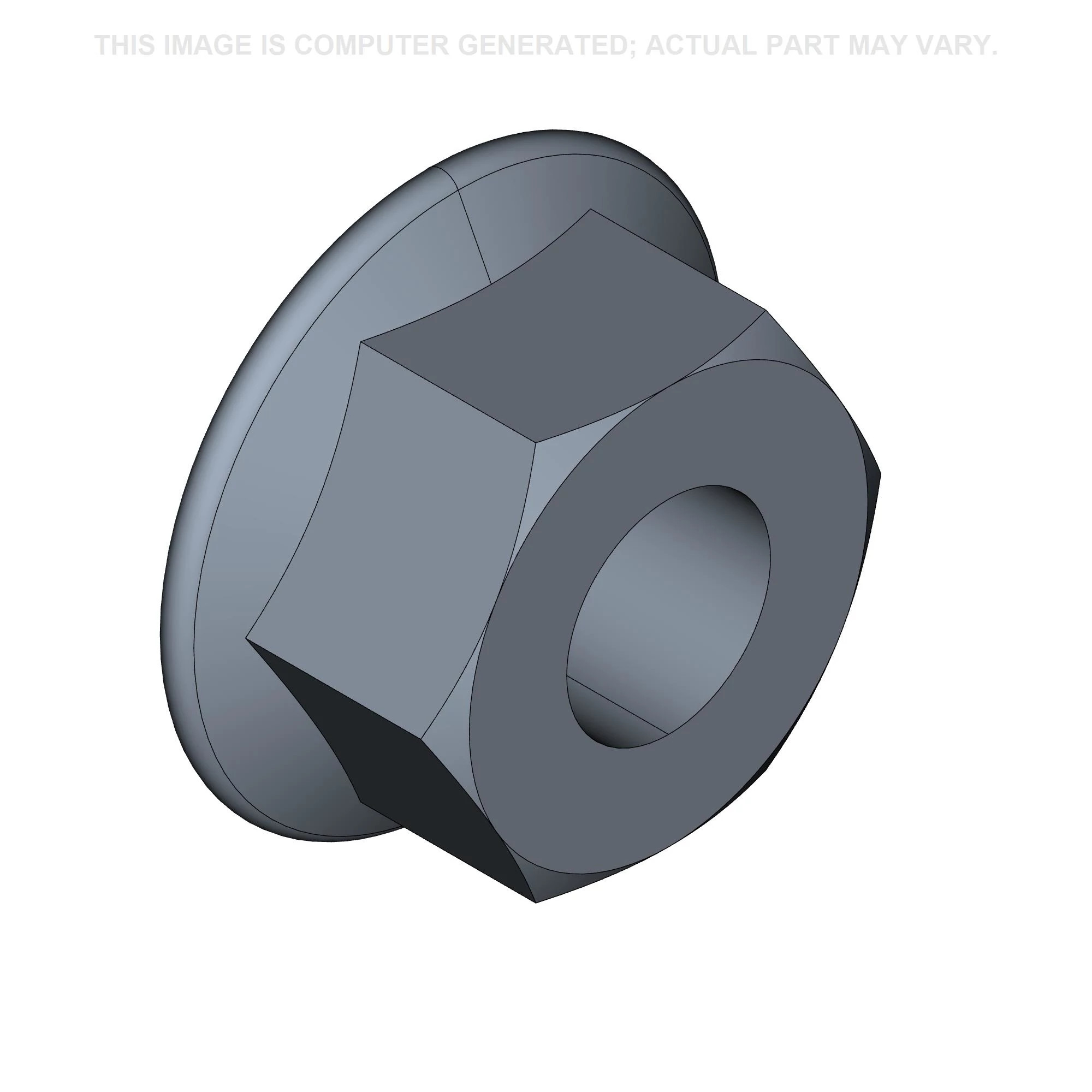

FLANGE NUT M8 x 1.25, Flg, Cl 8;


Alts

Select

Ref.

12

Qty

4

Availability

Part #

190003802515

Description

SCREW M10 x 20mm, Cl 8.8;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

1-32-573-655

Description

CHECK VALVE;


Alts

Select

Ref.

14

Qty

3

Availability

Part #

87538608

Description

HYD CONNECTOR; L10/ M14x1.5


Alts

Select

Ref.

15

Qty

1

Availability

Part #

1-32-573-396

Description

HYD CONNECTOR; L15 / M22x1,5


Alts

Select

Ref.

16

Qty

10

Availability

Part #

87538605

Description

HYD CONNECTOR;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

87332789

Description

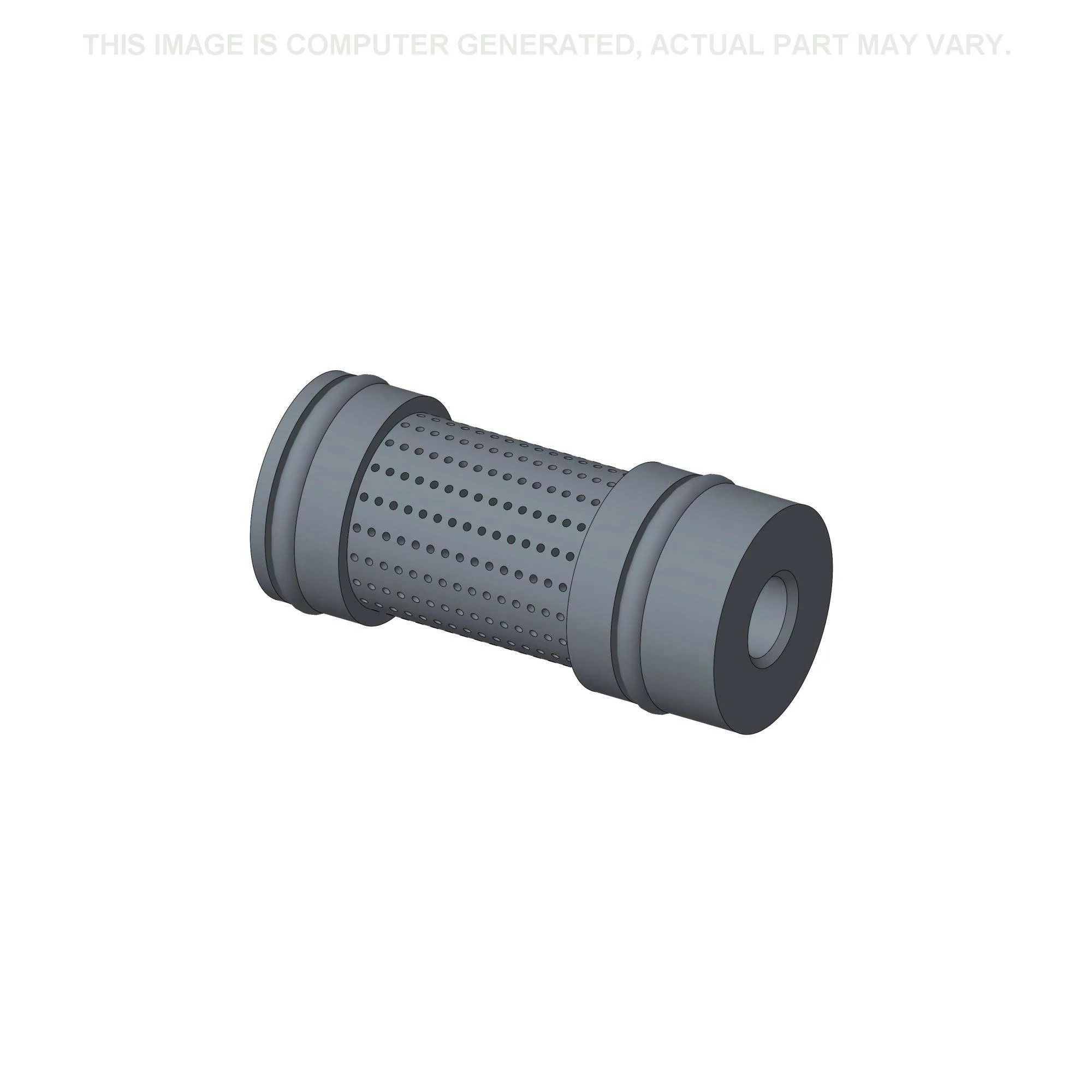

FILTER;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

10553778

Description

WASHER;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

10902021

Description

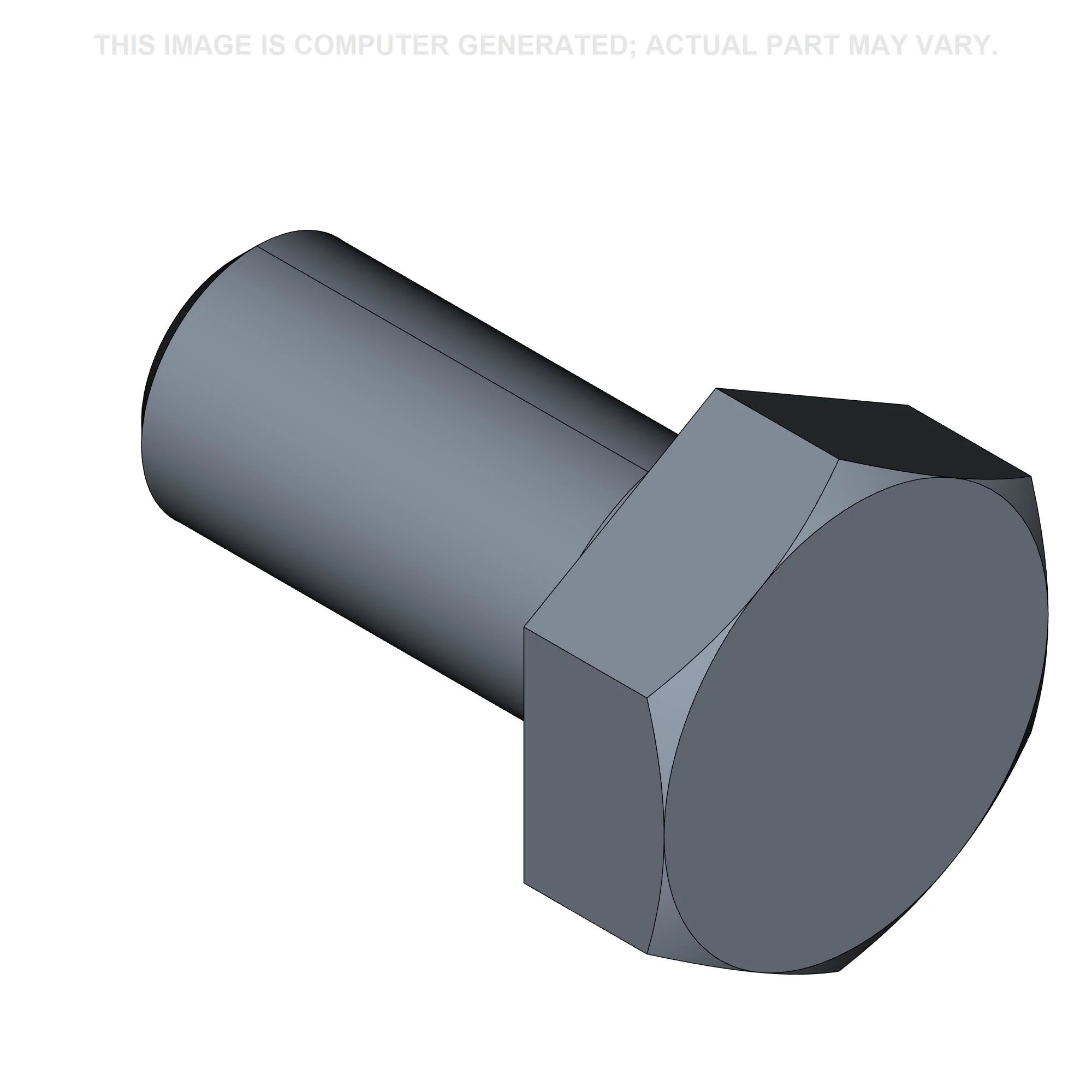

SCREW Hex, M6 x 12mm, Cl 8.8;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

87332788

Description

ACCUMULATEUR 80 Bar, 0.16L;


Alts
