0.05.4[03] - MAINTENANCE PARTS - FUSES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    AR
    5155318
    RELAY 12V, 20A; 12V, 20A, Microrelay;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models;Valid with STD;D4742 Serial N. 1268756 L/CAB
  • 1
    AR
    5155882
    SWITCH; Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models;Valid with STD
  • 1
    AR

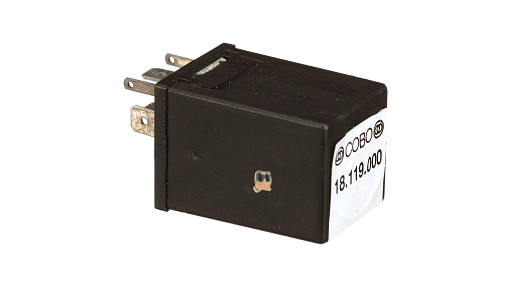

    5186264
    RELAY; 12V, 10mA, Time Delay;Valid with VAR. 007, VAR. 007/1;D4742 SERIAL N.1268756 L/CAB;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
  • 1
    AR

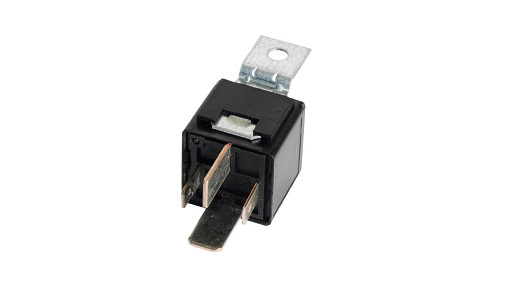

    82012872
    RELAY 70A; 12V, 70A;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models;Valid with VAR. 275, 279;D4850 Serial N.1317962
  • 2
    AR

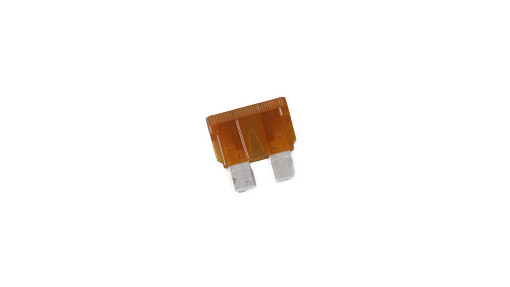

    87693742
    FUSE 5A; 5A, Minival;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
  • 3
    AR

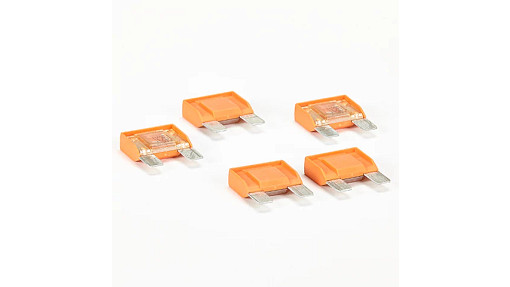

    5190333
    FUSE 40A, Blade Type, Maxi, Orange; 40A, Maxival, Orange;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
  • 4
    AR
    11051690
    FUSE 25 Amp, Type B; 25A;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
  • 4
    AR

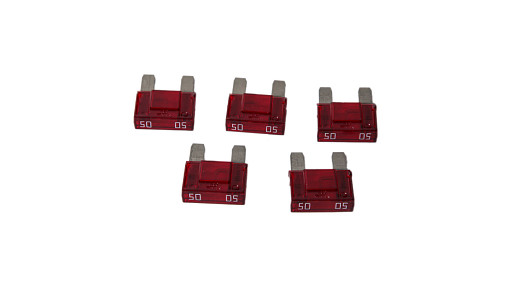

    5173263
    FUSE 50A, Maxi, Red; 32V, 50A, Maxival, Red;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
  • 4
    AR
    84090658
    FUSE Lt Blue, 15 Amp; 10A, Micro, Red;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models;Valid with STD;D4742 Serial N. 1268756 L/CAB
  • 4
    AR
    D9ZB14A094FA
    FUSE; 10A, Microval, Red;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models;Valid with STD;D4742 Serial N. 1268756 L/CAB
  • 4
    AR

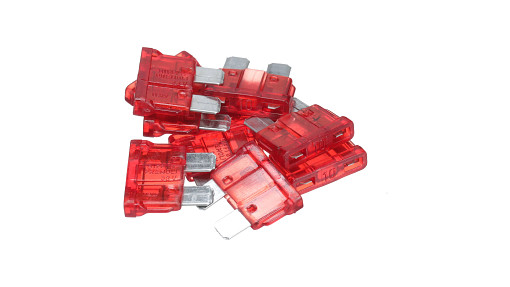

    9811773
    FUSE 10A, Micro, Red; 10A, Microval, Red;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models;Valid with STD;D4742 Serial N. 1268756 L/CAB
  • 5
    AR

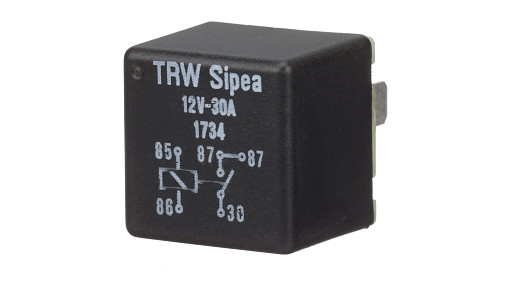

    5155317
    RELAY 12V, 30A; 12V, 30A, Microrelay;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
  • 5
    AR

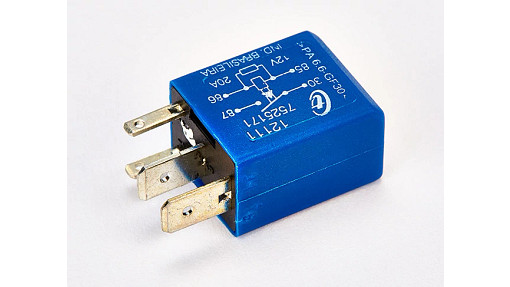

    7525171
    RELAY Mini, 12V, 20A; 12V, 20A;Valid with TL70-TRACTOR, TL80-TRACTOR, TL90-TRACTOR, TL100-TRACTOR Models
