039 - MOWER DECK & LIFT CONTROLS, 09SA1448, 48'' U.S., 09SA4888, 48'' U.K., 9607256, 44'' , 9607257, 48'' (ON & BSN TM-01913)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

SBA638101080

Description

MOWER DECK; HOUSING, 44'' Mower


Alts

Select

Ref.

1

Qty

1

Availability

Part #

SBA638101030

Description

COUVERCLE; HOUSING, 48'' Mower


Alts

Select

Ref.

2

Qty

1

Availability

Part #

TR43D8480

Description

DECAL; Caution


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA690260300

Description

DECAL; Height Guide


Alts

Select

Ref.

4

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; PLATE, Name


Alts

Select

Ref.

5

Qty

3

Availability

Part #

SBA650150020

Description

SHAFT;


Alts

Select

Ref.

6

Qty

4

Availability

Part #

SBA652110080

Description

ROLLER;


Alts

Select

Ref.

7

Qty

8

Availability

Part #

140028

Description

LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10


Alts

Select

Ref.

8

Qty

4

Availability

Part #

SBA024509801

Description

NUT; Cap M10


Alts

Select

Ref.

9

Qty

1

Availability

Part #

SBA650150010

Description

SHAFT;


Alts

Select

Ref.

10

Qty

2

Availability

Part #

SBA499234010

Description

COLLAR;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

SBA652260320

Description

BRACKET;


Alts

Select

Ref.

12

Qty

4

Availability

Part #

43139

Description

BOLT M10 x 1.5, 25mm L Cl8.8 Full Thread; HH, CL 8.8, M10 x 1.5 x 25


Alts

Select

Ref.

13

Qty

2

Availability

Part #

SBA642250011

Description

PIN;


Alts

Select

Ref.

14

Qty

2

Availability

Part #

SBA498211360

Description

SPRING;


Alts

Select

Ref.

15

Qty

2

Availability

Part #

9510330

Description

PIN 4mm OD x 36mm L, Slotted; PIN, Spring 4 x 35


Alts

Select

Ref.

16

Qty

1

Availability

Part #

SBA638150340

Description

COVER; ASSEMBLY, Side;When Replacing Old Cover, P/N SBA-638150321, w/New Cover, P/N SBA-638150340, You Must Also Order New Shaft, P/N SBA-638370011, Ref. 19 And New Spring, P/N SBA-498221250.


Alts

Select

Ref.

17

Qty

2

Availability

Part #

LB701204

Description

DECAL; Caution


Alts

Select

Ref.

18

Qty

1

Availability

Part #

SBA498221030

Description

SPRING;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

SBA638370011

Description

SHAFT;


Alts

Select

Ref.

20

Qty

2

Availability

Part #

9511933

Description

SLOTTED PIN 10mm OD x 30mm L, Slotted; PIN, SLOTTED, M4 x 20


Alts

Select

Ref.

21

Qty

1

Availability

Part #

SBA652250530

Description

ARM; Gauge Wheel - R.H.


Alts

Select

Ref.

22

Qty

2

Availability

Part #

SBA652150110

Description

WHEEL; Gauge


Alts

Select

Ref.

23

Qty

2

Availability

Part #

SBA060610000

Description

LUBE NIPPLE M6 x .075; NIPPLE, LUBE, M6 x .075


Alts

Select

Ref.

24

Qty

3

Availability

Part #

SBA499211560

Description

SPACER;


Alts

Select

Ref.

25

Qty

4

Availability

Part #

80681

Description

LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''


Alts

Select

Ref.

26

Qty

4

Availability

Part #

120104

Description

BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20


Alts

Select

Ref.

27

Qty

2

Availability

Part #

SBA031319827

Description

COTTER PIN; PIN, Flat Hd. 8 x 41


Alts

Select

Ref.

28

Qty

2

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; HAIRPIN


Alts

Select

Ref.

29

Qty

1

Availability

Part #

SBA652250540

Description

SUPPORT; ARM, Gauge Wheel - L.H.


Alts

Select

Ref.

30

Qty

1

Availability

Part #

SBA632020030

Description

ARM; ASSEMBLY, 44'' Mower


Alts

Select

Ref.

30

Qty

1

Availability

Part #

SBA632020010

Description

SUPPORT; ARM ASSEMBLY, 48'' Mower Includes: Ref. 31


Alts

Select

Ref.

31

Qty

2

Availability

Part #

SBA498510380

Description

BUSHING;


Alts

Select

Ref.

32

Qty

1

Availability

Part #

SBA632260080

Description

PULLEY; Tension


Alts

Select

Ref.

33

Qty

2

Availability

Part #

362804

Description

BALL BEARING 17mm ID x 40mm OD x 12mm W; BEARING, BALL


Alts

Select

Ref.

34

Qty

1

Availability

Part #

300644

Description

CIRCLIP M40, Int, PHC;


Alts

Select

Ref.

35

Qty

1

Availability

Part #

370016

Description

SNAP RING M17, Ext, PHC; Ring, Snap, Ext, M17


Alts

Select

Ref.

36

Qty

1

Availability

Part #

SBA498221020

Description

SPRING;


Alts

Select

Ref.

37

Qty

1

Availability

Part #

SBA632320020

Description

ROD;


Alts

Select

Ref.

38

Qty

2

Availability

Part #

SBA021010010

Description

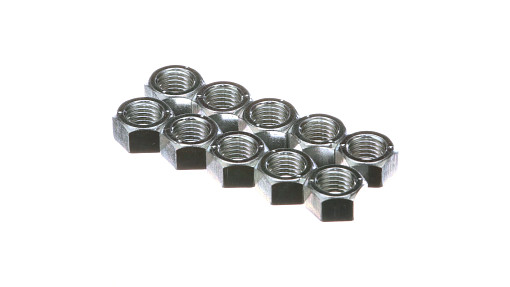

NUT M10 x 1.25; Lock, CL 8, M10 x 1.0


Alts

Select

Ref.

39

Qty

1

Availability

Part #

SBA642500020

Description

UNIVERSAL JOINT; LINK, Rear Lift - R.H.


Alts

Select

Ref.

40

Qty

2

Availability

Part #

SBA642260020

Description

PIN;


Alts

Select

Ref.

41

Qty

2

Availability

Part #

SBA498211370

Description

SPRING;


Alts

Select

Ref.

42

Qty

2

Availability

Part #

SBA030309010

Description

SPINDLE M5 x 40; PIN, ROLL, M5 x 40


Alts

Select

Ref.

43

Qty

2

Availability

Part #

SBA642570020

Description

CLEVIS;


Alts

Select

Ref.

44

Qty

2

Availability

Part #

SBA031311030

Description

PIN; Flat Hd. 10 x 30


Alts

Select

Ref.

45

Qty

2

Availability

Part #

SBA026200010

Description

WASHER; 10


Alts

Select

Ref.

46

Qty

2

Availability

Part #

PL

Description

PROCURE LOCALLY; HAIRPIN


Alts

Select

Ref.

47

Qty

2

Availability

Part #

379752

Description

NUT Hex, M12 x 1.25, Cl 10, ZND; CL 12, M12 x 1.25


Alts

Select

Ref.

48

Qty

2

Availability

Part #

SBA642550030

Description

ROD;


Alts

Select

Ref.

49

Qty

1

Availability

Part #

SBA642560020

Description

SHAFT;


Alts

Select

Ref.

50

Qty

4

Availability

Part #

393871

Description

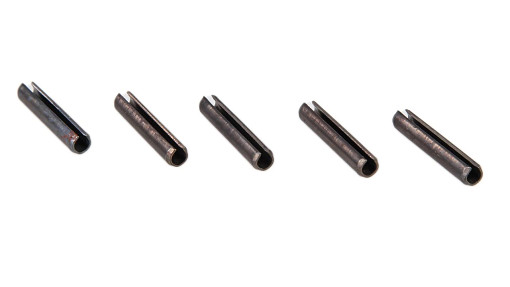

LOCK PIN 5mm OD x 30mm L, Slotted; Pin, Roll, M5 x 30


Alts

Select

Ref.

51

Qty

4

Availability

Part #

SBA026200016

Description

WASHER; 16


Alts

Select

Ref.

52

Qty

2

Availability

Part #

SBA031311240

Description

PIN; 12 x 40


Alts

Select

Ref.

53

Qty

4

Availability

Part #

SBA026200012

Description

WASHER; 12


Alts

Select

Ref.

54

Qty

4

Availability

Part #

SBA030103220

Description

COTTER PIN; PIN, Split 3 x 20


Alts

Select

Ref.

55

Qty

1

Availability

Part #

SBA642500010

Description

UNIVERSAL JOINT; LINK, Rear Lift - L.H.


Alts

Select

Ref.

56

Qty

1

Availability

Part #

SBA642550010

Description

ROD; Lift


Alts

Select

Ref.

57

Qty

2

Availability

Part #

320771

Description

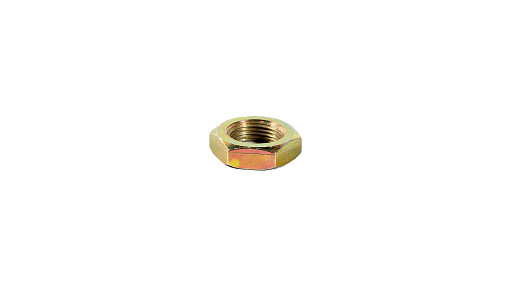

THIN NUT Hex, M20 x 1.5, Cl 8, ZND; Jam, CL 8, M20 x 1.5


Alts

Select

Ref.

58

Qty

2

Availability

Part #

SBA642610010

Description

BUCKLE; TURNBUCKLE


Alts

Select

Ref.

59

Qty

1

Availability

Part #

SBA642550020

Description

ROD; Lift


Alts

Select

Ref.

60

Qty

2

Availability

Part #

AUB160122

Description

DECAL;


Alts

Select

Ref.

61

Qty

2

Availability

Part #

SBA690270030

Description

DECAL;


Alts

Select

Ref.

62

Qty

2

Availability

Part #

SBA031319832

Description

PIN; Flat Hd. 12 x 35


Alts

Select

Ref.

63

Qty

1

Availability

Part #

89706690

Description

NUT M8 x 1.25, Cl 8;


Alts
