10.103.AH[010] - ENGINE FLYWHEEL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84393159

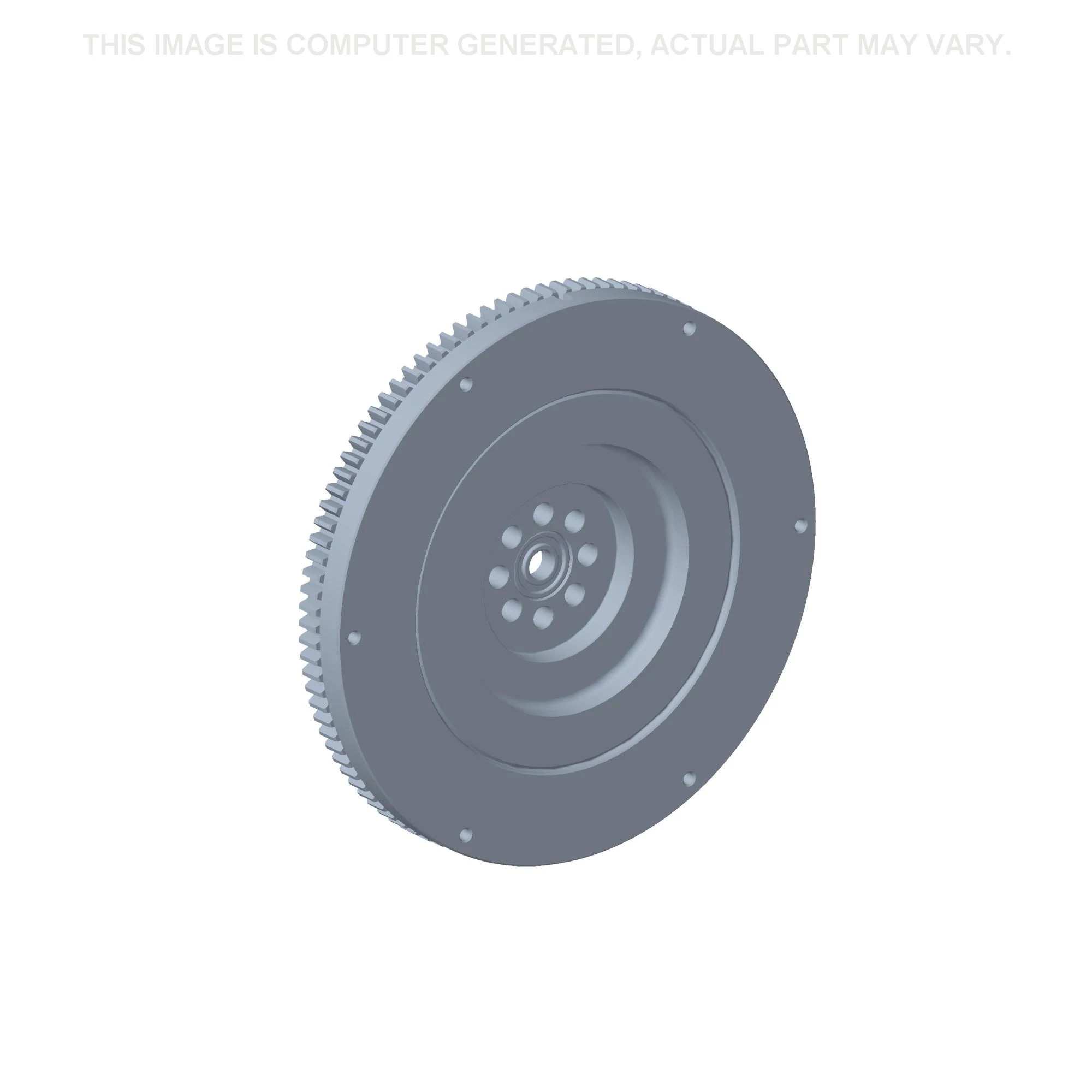

    ENGINE FLYWHEEL 334mm OD, W/ Ring Gear; W/ Ring Gear ASSY, Incl 2 - 5
  • 2
    1
    47133696
    RING GEAR 104T;
  • 3
    1
    NSS
    NOT SOLD SEPARAT; Flywheel, Incl in 1
  • 4
    1
    10839610
    DOWEL M8 x 12mm;
  • 5
    1
    87729147
    SPHERICAL BEARING Ball, 17mm ID x 40mm OD x 12mm W;
  • 6
    8
    87686924
    WHEEL BOLT Hex Serr Flg , M12 x 1.25 x 42.50mm, Cl 10.9;
Select All

Select

Ref.

1

Qty

1

Availability

Part #

84393159

Description

ENGINE FLYWHEEL 334mm OD, W/ Ring Gear; W/ Ring Gear ASSY, Incl 2 - 5


Alts

Select

Ref.

2

Qty

1

Availability

Part #

47133696

Description

RING GEAR 104T;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Flywheel, Incl in 1


Alts

Select

Ref.

4

Qty

1

Availability

Part #

10839610

Description

DOWEL M8 x 12mm;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

87729147

Description

SPHERICAL BEARING Ball, 17mm ID x 40mm OD x 12mm W;


Alts

Select

Ref.

6

Qty

8

Availability

Part #

87686924

Description

WHEEL BOLT Hex Serr Flg , M12 x 1.25 x 42.50mm, Cl 10.9;


Alts
