TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11GLASS;
-
11GLASS; ASSY., with 2 - 11
-
21HOLDER;
-
1SCREW; M8 x 18 mm, for ref. 2
-
1LOCK WASHER M8; 8 mm, for ref. 2
-
3THIN NUT Thin, M8 x 1.25, Cl 04; M8, for ref. 2
-
31PROTECTOR;
-
43GROMMET;
-
52HINGE;
-
4SCREW Hex Flat Hd, M6 x 16, 4.8; M6 x 16 mm, for ref. 5
-
4WASHER Csk, M6; lock, 6 mm, for ref. 5
-
62GROMMET;
-
74WASHER M8.4 x 25 x 2; 8 mm
-
84NUT; M8
-
91HANDLE;
-
2SCREW; M8 x 18 mm, for ref. 9
-
4SCREW Cross Pan Hd, M8 x 20; M8 x 20 mm, for ref. 9
-
1SCREW; PIN, for ref. 9
-
1LOCK NUT M5 x .8, Thin; For Ref 9
-
101SEAL; SEAL
-
114PAD; rubber
-
121CLAMP BRACKET; PLATE locking
-
2SCREW Hex Flat Hd, M6 x 16, 4.8; M6 x 16 mm, for ref. 12
-
131GAS STRUT 549mm Extended, 329mm Compressed; CYLINDER gas
-
2BALL STUD; for ref. 13
-
141SEAL 840mm L;
-
151FIXING STRIP; left
-
151FIXING STRIP; right
-
4BOLT Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd; M6 x 12 mm, for ref. 15
-
4LOCK WASHER M6; lock, for ref. 15
-
4WASHER; for ref. 15
-
162GROMMET;
-
172PLATE;
-
182SEAL; 1040 mm
-
191CAB GLASS; left
-
191CAB GLASS ASSY; right
-
201SEAL, GLASS; 385 mm
-
211SEAL, GLASS; 505 mm
-
221SEAL;
-
231SUPPORT; BRACKET
-
2SCREW Hex Flat Hd, M6 x 16, 4.8; M6 x 16 mm, for ref. 23
-
241GLASS;
-
241GLASS; with 24 - 32
-
1HANDLE; ASSY., with 25 and 27
-
251HANDLE;
-
261SNAP RING; RING retaining
-
271SUPPORT;
-
281GROMMET;
-
291WASHER M6.34 x 18 x 1.6; 6 mm
-
301CROWN NUT; M6
-
312HINGE;
-
4WASHER M8.4 x 25 x 2; 8 mm, for ref. 31
-
4NUT; M8, for ref. 31
-
322PLATE; GASKET
-
331SEAL, RUBBER; RUBBER SEAL BUMPER
-
ARFLUID; ADHESIVE
-
341PRODUCT GRAPHIC; SPARE PART Sensodraulic
Select All
Select
Ref.
Qty
1Availability
Part #
3233415R1Description
LOCK WASHER M8; 8 mm, for ref. 2Img
Alts
Select
Ref.
Qty
3Availability
Part #
3233416R1Description
THIN NUT Thin, M8 x 1.25, Cl 04; M8, for ref. 2Img
Alts
Select
Ref.
Qty
4Availability
Part #
3233287R1Description
SCREW Hex Flat Hd, M6 x 16, 4.8; M6 x 16 mm, for ref. 5Img
Alts
Select
Ref.
Qty
4Availability
Part #
3233414R1Description
WASHER Csk, M6; lock, 6 mm, for ref. 5Img
Alts
Select
Ref.
Qty
4Availability
Part #
30301R1Description
SCREW Cross Pan Hd, M8 x 20; M8 x 20 mm, for ref. 9Img
Alts
Select
Ref.
Qty
1Availability
Part #
934306R1Description
LOCK NUT M5 x .8, Thin; For Ref 9Img
Alts
Select
Ref.
12Qty
1Availability
Part #
3233691R1Description
CLAMP BRACKET; PLATE lockingImg
Alts
Select
Ref.
Qty
2Availability
Part #
3233287R1Description
SCREW Hex Flat Hd, M6 x 16, 4.8; M6 x 16 mm, for ref. 12Img
Alts
Select
Ref.
13Qty
1Availability
Part #
3234163R1Description

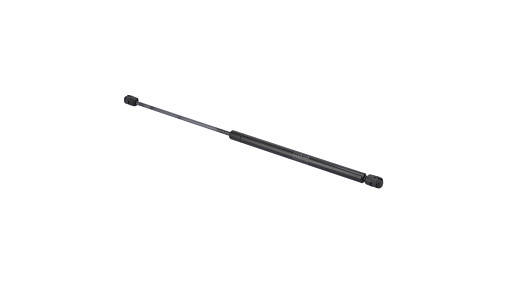

GAS STRUT 549mm Extended, 329mm Compressed; CYLINDER gasImg
Alts
Select
Ref.
Qty
4Availability
Part #
3229125R1Description
BOLT Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd; M6 x 12 mm, for ref. 15Img
Alts
Select
Ref.
Qty
4Availability
Part #
3233411R1Description
LOCK WASHER M6; lock, for ref. 15Img
Alts
Select
Ref.
Qty
2Availability
Part #
3233287R1Description
SCREW Hex Flat Hd, M6 x 16, 4.8; M6 x 16 mm, for ref. 23Img
Alts
Select
Ref.
29Qty
1Availability
Part #
3233293R1Description
WASHER M6.34 x 18 x 1.6; 6 mmImg
Alts
Select
Ref.
Qty
4Availability
Part #
3233292R1Description
WASHER M8.4 x 25 x 2; 8 mm, for ref. 31Img
Alts
Select
Ref.
33Qty
1Availability
Part #
3404439R1Description
SEAL, RUBBER; RUBBER SEAL BUMPERImg
Alts
Select
Ref.
34Qty
1Availability
Part #
1282588C1Description
PRODUCT GRAPHIC; SPARE PART SensodraulicImg
Alts
