Ref.
Qty
Part #
Alts
Description
-
11HYD TUBE; Tube Assy., Hydraulic, 74-3/8'' Lg. (B.C.B. Bucket;7106; (SN Break) Between Cyl and Base)
-
11HYD TUBE; Tube Assy., Hydraulic, 85-1/4'' Lg. (B.C.B.Bucket;7108; (SN Break) Between Cyl and Base)
-
21HYD TUBE; Tube Assy., Hydraulic, 75-1/2'' Lg. (B.C.R. Bucket;7106; (SN Break) Between Cyl and Rod)
-
21HYD TUBE; Tube Assy., Hydraulic, 85-1/2'' Lg. (B.C.R. Bucket;7108; (SN Break) Between Cyl and Rod)
-
31HYD TUBE; Tube Assy., Hydraulic, 73-1/2'' Lg. (L.C.R. Lift;7106; (SN Break) Between Cyl and Rod)
-
31HYD TUBE; Tube Assy., Hydraulic, 82-7/8'' Lg. (L.C.R. Lift;7108; (SN Break) Between Cyl and Rod)
-
41HYD TUBE; Tube Assy., Hydrualic, 74-5/8'' Lg. (L.C.B. Lift;7106; (SN Break) Between Cyl and Base)
-
41HYD TUBE; Tube Assy., Hydraulic, 83-1/8'' Lg. (L.C.B. Lift; (SN Break) Between Cyl and Base)
-
52CHANNEL; Clamp, Hose
-
62CLAMP; Hose;7108
-
74PROCURE LOCALLY; Screw, Self-Tapping, HH, 5/16'' x 1-1/4'', Clamps &;7108; (SN Break) Between Tubes and Boom
-
7A2SPACER; .34 I.D. x .50 O.D. x .312 Lg.;7108
-
84HOSE 6.35 mm ID x 1397.00 mm, SAE 100 R1; 6.35 mm ID x 1397.00 mm, SAE 100R1, 9/16''-18 Male Flare x 3/8'' NPT;7106
-
84HOSE 9.53mm ID x 1778mm L, SAE 100R1; Assy., 70'' Lg., 3/4''-16 Male Flare x 3/8'' NPT, 3/8'' I.D.;7108
-
92SLEEVE; Protective, Cut to Required Length
-
104CABLE TIE 292.1mm L, Nylon, Black; Strap, Cable, .14 x 11 1/2'' L
-
112HOSE 6.35 mm ID x 571.50 mm, SAE 100 R1; 6.35 mm ID x 571.50 mm, SAE 100R1, Female Swivel Flare
-
112HOSE 9.53mm ID x 609.6mm L, SAE 100R1;
-
122HOSE 6.35 mm ID x 381.00 mm, SAE 100 R1; 6.35 mm ID x 381.00 mm, SAE 100R1, Female Swivel Flare;7106
-
122HOSE; Hose Assy., 16'' Lg., 3/4''-16 Female Swivel Flare, 3/8'' I.D.;7108
-
132HOSE 6.35 mm ID x 1016.00; mm, Female Swivel Flare 6.35 mm ID x 1016.00;7106
-
132HOSE 9.53mm ID x 1016mm L, SAE 100R1; 7108
-
142HOSE 6.35 mm ID x 1016.00; mm, Female Swivel Flare 6.35 mm ID x 1016.00;7106
-
142HOSE 9.53mm ID x 1371.6mm L, SAE 100R1; 9.65 mm ID x 1371.60 mm, SAE 100R1, Female Swivel Flare;7108
-
15890 ELBOW 9/16'' - 18 JIC x 9/16'' - 18 ORB; 90?, Male 37? FL - Male, W/O-Ring, 3/8'' Tube;7106
-
15890 ELBOW 90 DEGREE, 3/4'' - 16 JIC x 3/4'' - 16 ORB; 90?, 3/4''-16, 37? x 3/4''-16, O-Ring;7108
-
168O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 7106
-
168O-RING; .644'' ID x .087'' Thk;7108
-
174SEAT CUSHION; Clamp, Cushion;7106
-
174SEAT CUSHION; Clamp, Cushion;7108
-
182HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F Worm;7106
-
182HOSE CLAMP 68mm - 85mm, Worm Gear; Clamp, Hose;7108
-
ARBAND; Spiral ID, Blue
-
ARBAND; Spiral ID, Red
-
ARBAND; Spiral, Plastic, Yellow, 5/8''
-
ARBAND; Spiral I.D., Green
Select All
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Ref.
1Qty
1Availability
Part #
9600311Description
HYD TUBE; Tube Assy., Hydraulic, 74-3/8'' Lg. (B.C.B. Bucket;7106; (SN Break) Between Cyl and Base)Img
Alts
Ref.
1Qty
1Availability
Part #
9600463Description
HYD TUBE; Tube Assy., Hydraulic, 85-1/4'' Lg. (B.C.B.Bucket;7108; (SN Break) Between Cyl and Base)Img
Alts
Ref.
2Qty
1Availability
Part #
9600312Description
HYD TUBE; Tube Assy., Hydraulic, 75-1/2'' Lg. (B.C.R. Bucket;7106; (SN Break) Between Cyl and Rod)Img
Alts
Ref.
2Qty
1Availability
Part #
9600462Description
HYD TUBE; Tube Assy., Hydraulic, 85-1/2'' Lg. (B.C.R. Bucket;7108; (SN Break) Between Cyl and Rod)Img
Alts
Ref.
3Qty
1Availability
Part #
9600313Description
HYD TUBE; Tube Assy., Hydraulic, 73-1/2'' Lg. (L.C.R. Lift;7106; (SN Break) Between Cyl and Rod)Img
Alts
Ref.
3Qty
1Availability
Part #
9600461Description
HYD TUBE; Tube Assy., Hydraulic, 82-7/8'' Lg. (L.C.R. Lift;7108; (SN Break) Between Cyl and Rod)Img
Alts
Ref.
4Qty
1Availability
Part #
9600314Description
HYD TUBE; Tube Assy., Hydrualic, 74-5/8'' Lg. (L.C.B. Lift;7106; (SN Break) Between Cyl and Base)Img
Alts
Ref.
4Qty
1Availability
Part #
9600460Description
HYD TUBE; Tube Assy., Hydraulic, 83-1/8'' Lg. (L.C.B. Lift; (SN Break) Between Cyl and Base)Img
Alts
Ref.
7Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Screw, Self-Tapping, HH, 5/16'' x 1-1/4'', Clamps &;7108; (SN Break) Between Tubes and BoomImg
Alts
Ref.
7AQty
2Availability
Part #
622263Description

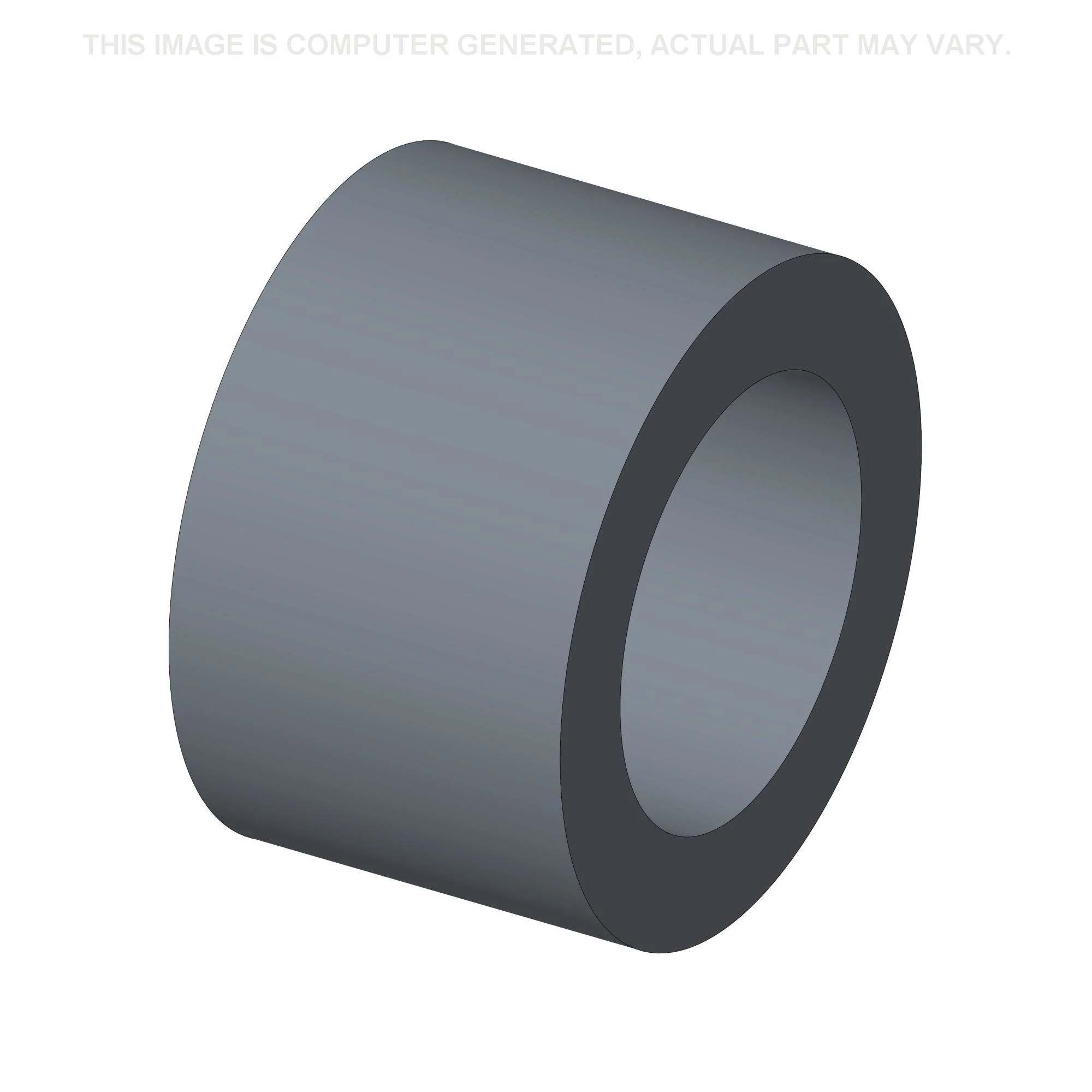

SPACER; .34 I.D. x .50 O.D. x .312 Lg.;7108Img
Alts
Ref.
8Qty
4Availability
Part #
9600465Description
HOSE 6.35 mm ID x 1397.00 mm, SAE 100 R1; 6.35 mm ID x 1397.00 mm, SAE 100R1, 9/16''-18 Male Flare x 3/8'' NPT;7106Img
Alts
Ref.
8Qty
4Availability
Part #
86591224Description
HOSE 9.53mm ID x 1778mm L, SAE 100R1; Assy., 70'' Lg., 3/4''-16 Male Flare x 3/8'' NPT, 3/8'' I.D.;7108Img
Alts
Ref.
9Qty
2Availability
Part #
9600709Description

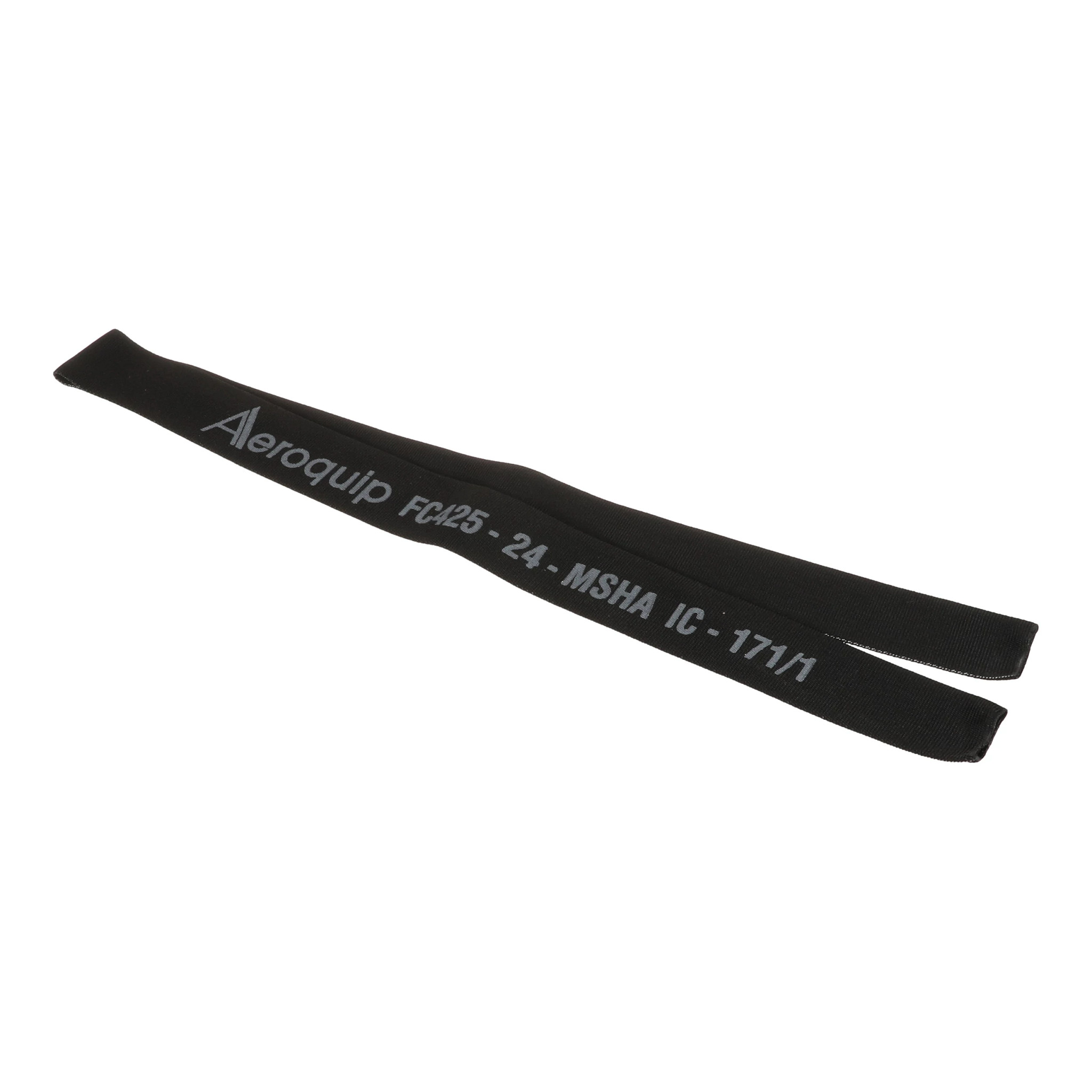

SLEEVE; Protective, Cut to Required LengthImg
Alts
Ref.
10Qty
4Availability
Part #
263117Description
CABLE TIE 292.1mm L, Nylon, Black; Strap, Cable, .14 x 11 1/2'' LImg
Alts
Ref.
11Qty
2Availability
Part #
9600394Description
HOSE 6.35 mm ID x 571.50 mm, SAE 100 R1; 6.35 mm ID x 571.50 mm, SAE 100R1, Female Swivel FlareImg
Alts
Ref.
11Qty
2Availability
Part #
9600468Description
HOSE 9.53mm ID x 609.6mm L, SAE 100R1;Img
Alts
Ref.
12Qty
2Availability
Part #
9600395Description
HOSE 6.35 mm ID x 381.00 mm, SAE 100 R1; 6.35 mm ID x 381.00 mm, SAE 100R1, Female Swivel Flare;7106Img
Alts
Ref.
12Qty
2Availability
Part #
SML368441Description
HOSE; Hose Assy., 16'' Lg., 3/4''-16 Female Swivel Flare, 3/8'' I.D.;7108Img
Alts
Ref.
13Qty
2Availability
Part #
9600393Description
HOSE 6.35 mm ID x 1016.00; mm, Female Swivel Flare 6.35 mm ID x 1016.00;7106Img
Alts
Ref.
13Qty
2Availability
Part #
9600469Description
HOSE 9.53mm ID x 1016mm L, SAE 100R1; 7108Img
Alts
Ref.
14Qty
2Availability
Part #
9600393Description
HOSE 6.35 mm ID x 1016.00; mm, Female Swivel Flare 6.35 mm ID x 1016.00;7106Img
Alts
Ref.
14Qty
2Availability
Part #
9600467Description
HOSE 9.53mm ID x 1371.6mm L, SAE 100R1; 9.65 mm ID x 1371.60 mm, SAE 100R1, Female Swivel Flare;7108Img
Alts
Ref.
15Qty
8Availability
Part #
76344Description
90 ELBOW 9/16'' - 18 JIC x 9/16'' - 18 ORB; 90?, Male 37? FL - Male, W/O-Ring, 3/8'' Tube;7106Img
Alts
Ref.
15Qty
8Availability
Part #
128830Description
90 ELBOW 90 DEGREE, 3/4'' - 16 JIC x 3/4'' - 16 ORB; 90?, 3/4''-16, 37? x 3/4''-16, O-Ring;7108Img
Alts
Ref.
16Qty
8Availability
Part #
9617873Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 7106Img
Alts
Ref.
18Qty
2Availability
Part #
82012728Description
HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F Worm;7106Img
Alts
Ref.
18Qty
2Availability
Part #
82012730Description
HOSE CLAMP 68mm - 85mm, Worm Gear; Clamp, Hose;7108Img
Alts
