0.14.0/01[01] - KRAFTSTOFFANLAGE - EINSPRITZPUMPE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

4

Availability

Part #

4780612

Description

BRACKET;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

10205810

Description

CLAVETTE SPECIALE 4mm x 6.5mm x 15.72mm;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

4851923

Description

GASKET 0.8mm Thk;


Alts

Select

Ref.

4

Qty

1

Availability

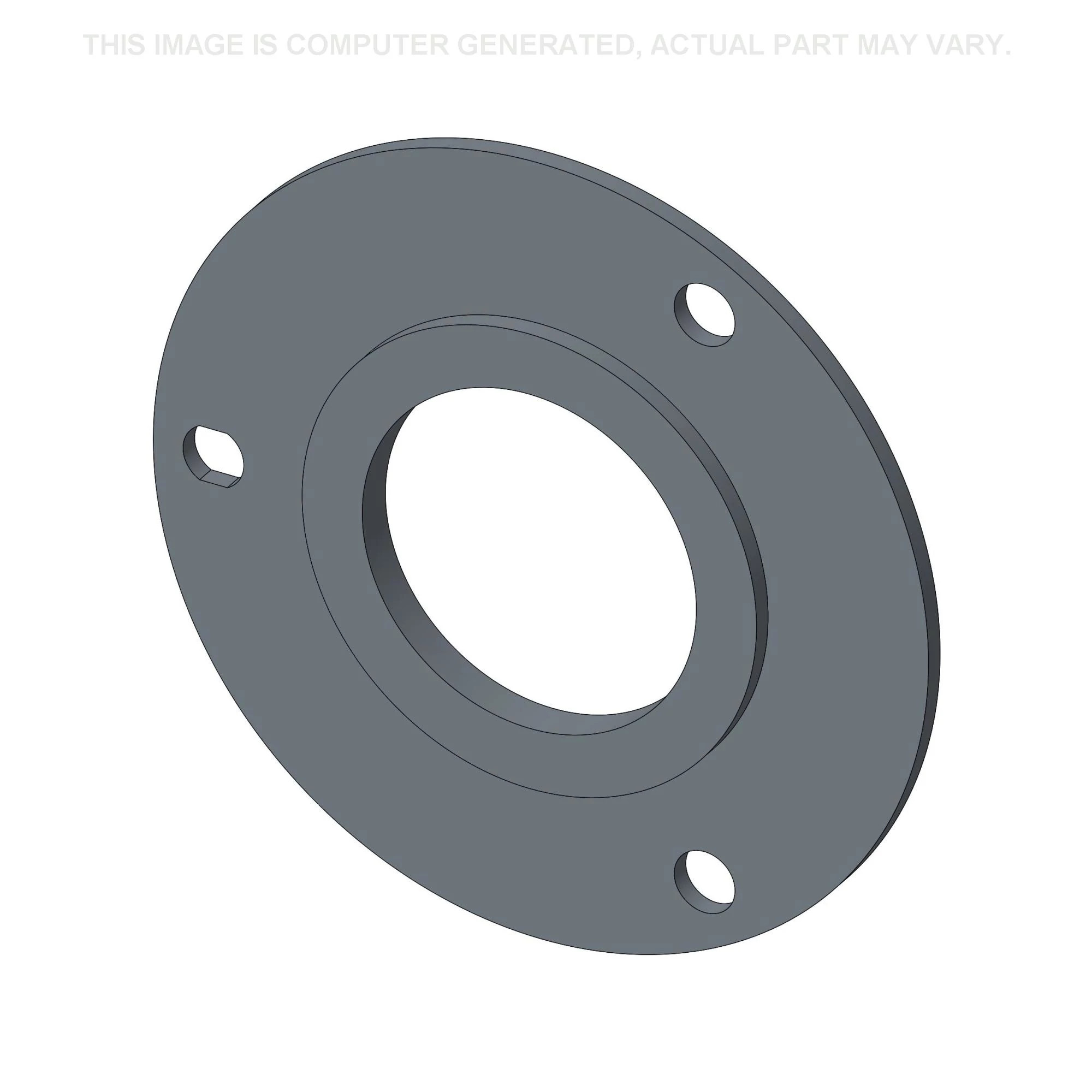

Part #

4607646

Description

SPACER 50mm ID x 116.05mm OD x 6mm L;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

98400782

Description

GASKET 0.8mm Thk;


Alts

Select

Ref.

6

Qty

3

Availability

Part #

12647121

Description

RONDELLE 8.15mm ID x 20mm OD x 3mm Thk;


Alts

Select

Ref.

7

Qty

3

Availability

Part #

11193874

Description

RONDELLE M8 Bolt Size x 16mm OD x 1.4mm Thk;


Alts

Select

Ref.

8

Qty

3

Availability

Part #

43362

Description

ECROU Hex, M8 x 1.25, Cl 10, ZND;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

17037721

Description

ECROU; M5


Alts

Select

Ref.

10

Qty

1

Availability

Part #

11199271

Description

RONDELLE FREIN; D=5mm


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504041416C

Description

POMPE INJ A RENOVER CORE-INJECTION PUMP;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504041416R

Description

POMPE INJECTION RENO REMAN-INJECTION PUMP;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504041416

Description

POMPE INJECT. CARBUR;


Alts

Select

Ref.

12

Qty

4

Availability

Part #

504054021

Description

INJECTEUR; - AssY


Alts

Select

Ref.

13

Qty

4

Availability

Part #

504051747

Description

GICLEUR;


Alts

Select

Ref.

14

Qty

4

Availability

Part #

66297

Description

ANELLO TOROIDALE 18.8mm ID x 1.78mm Thk, NBR;


Alts

Select

Ref.

15

Qty

1

Availability

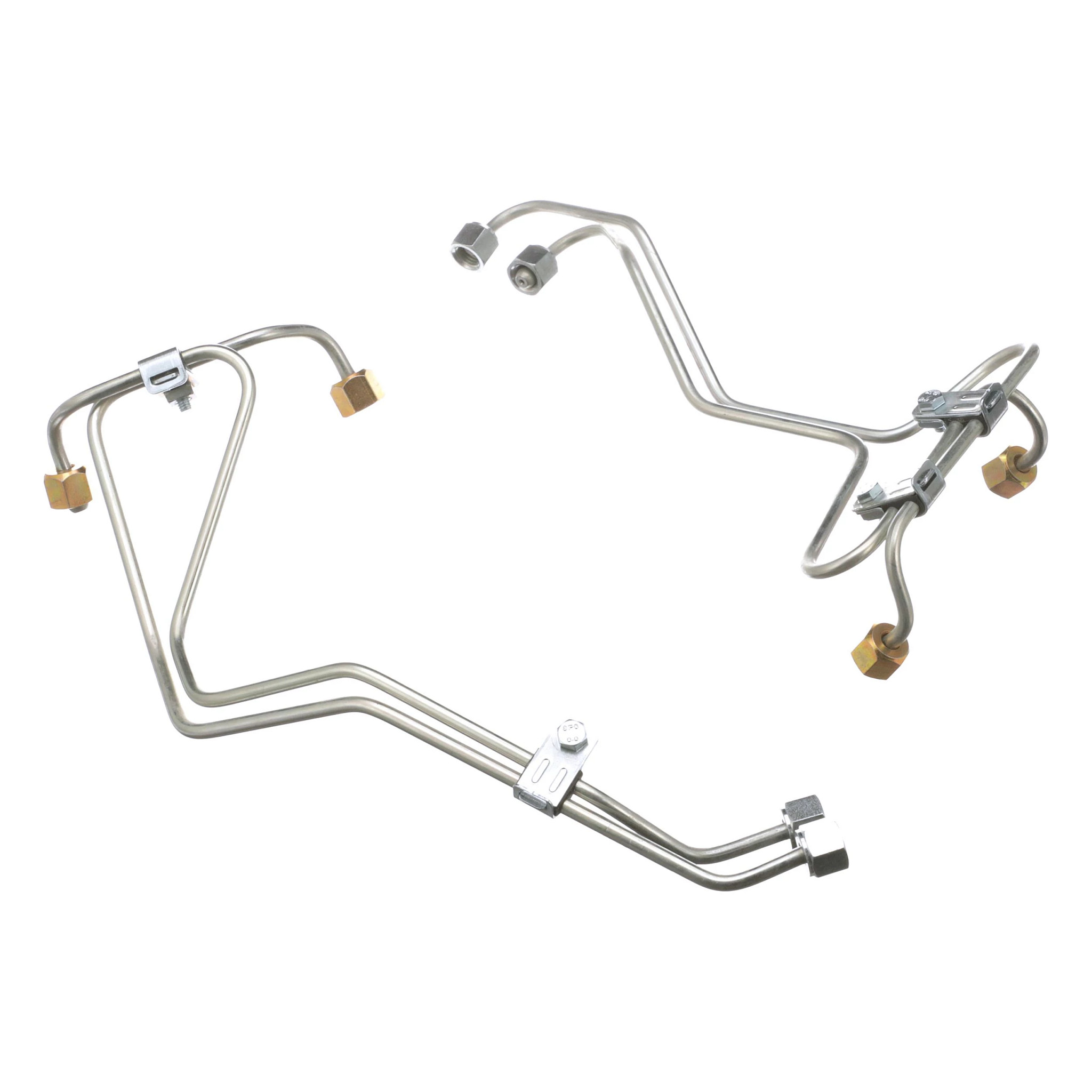

Part #

99449006

Description

KIT TUBO FLESSIBILE;


Alts

Select

Ref.

16

Qty

8

Availability

Part #

17042531

Description

DADO;


Alts

Select

Ref.

17

Qty

8

Availability

Part #

771326

Description

WASHER 8.40mm ID; D=8mm


Alts

Select

Ref.

Qty

1

Availability

Part #

9971792

Description

SOLENOID; Fuel shut-off


Alts
