21.504.00[03] - SERVICE KIT, TRANSMISSION, LUBRICATION LINE, CVT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    48152538
    TRANSMISSION; CCM LWB CVT 4X2, ASSY, Incl 2 - 24;See all the Included Components by searching for the PN 48152538

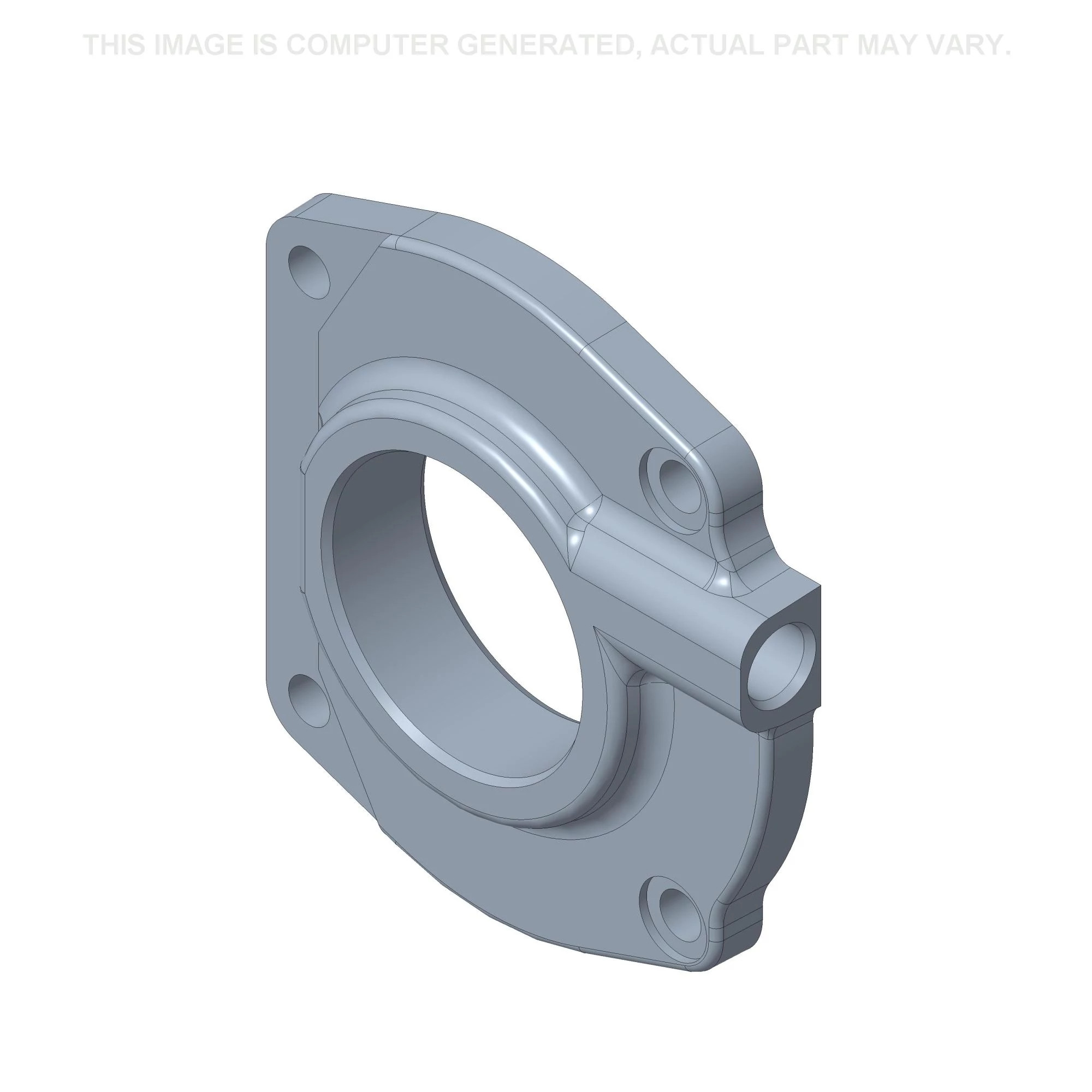

  • 2
    1
    87589206
    MANIFOLD;
  • 3
    4
    14307421
    HEX SOC SCREW M10 x 1.25 x 25mm, Cl 8.8;
  • 4
    1
    87676058
    MANIFOLD; Solenoid Valve, ASSY;See also Manifold Components in Figure 21.504.00 (04), 21.504.00 (05)
  • 5
    1
    87676073
    HYD TUBE 16 mm OD x 301.5, 75.5 mm L; Transmission Lube

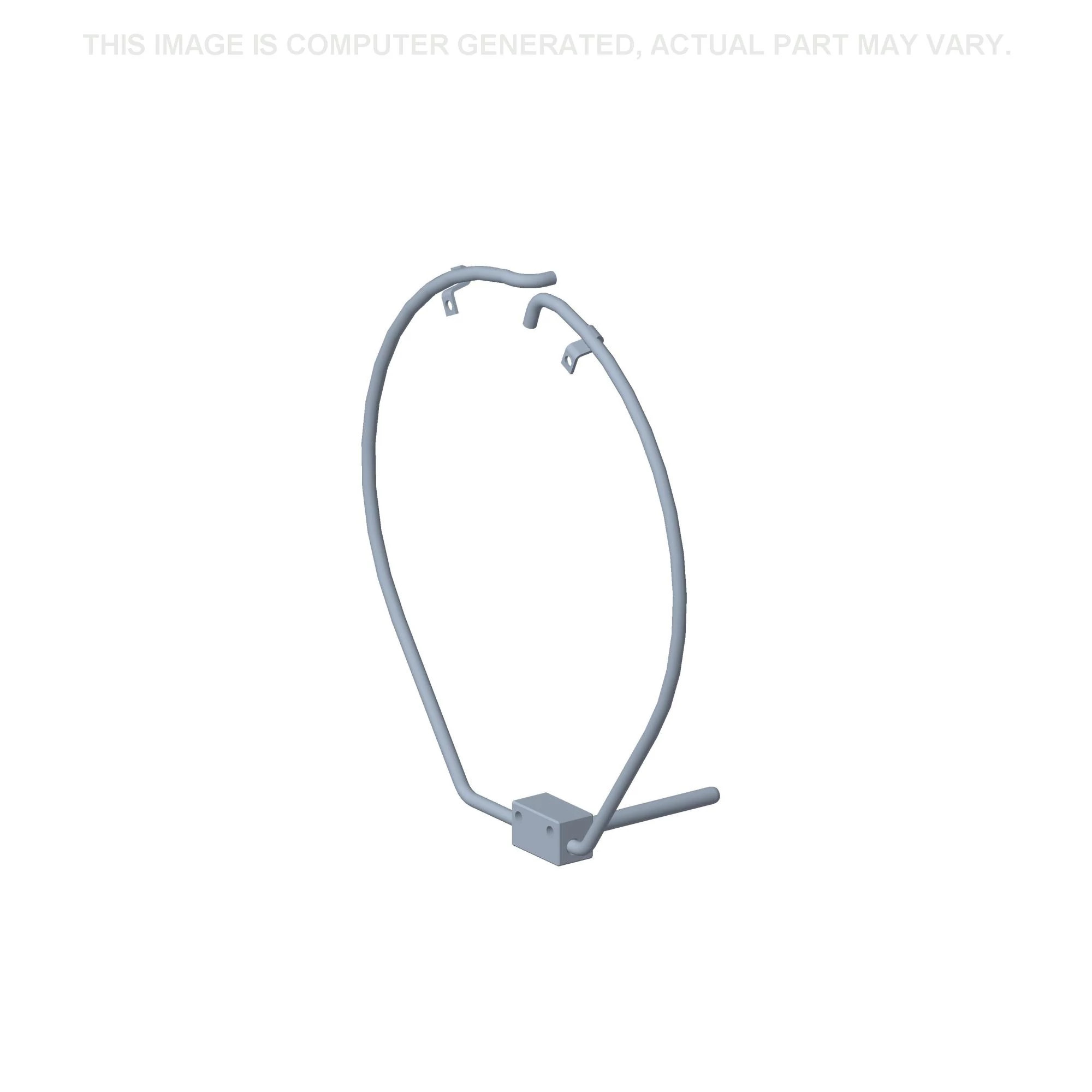

  • 6
    1
    87556073
    TUBE; Lubrification
  • 7
    2
    14305524
    HEX SOC SCREW M6 x 30mm, Cl 8.8, Full Thd;
  • 8
    2
    14305124
    HEX SOC SCREW M6 x 12mm, Cl 8.8, Full Thd;

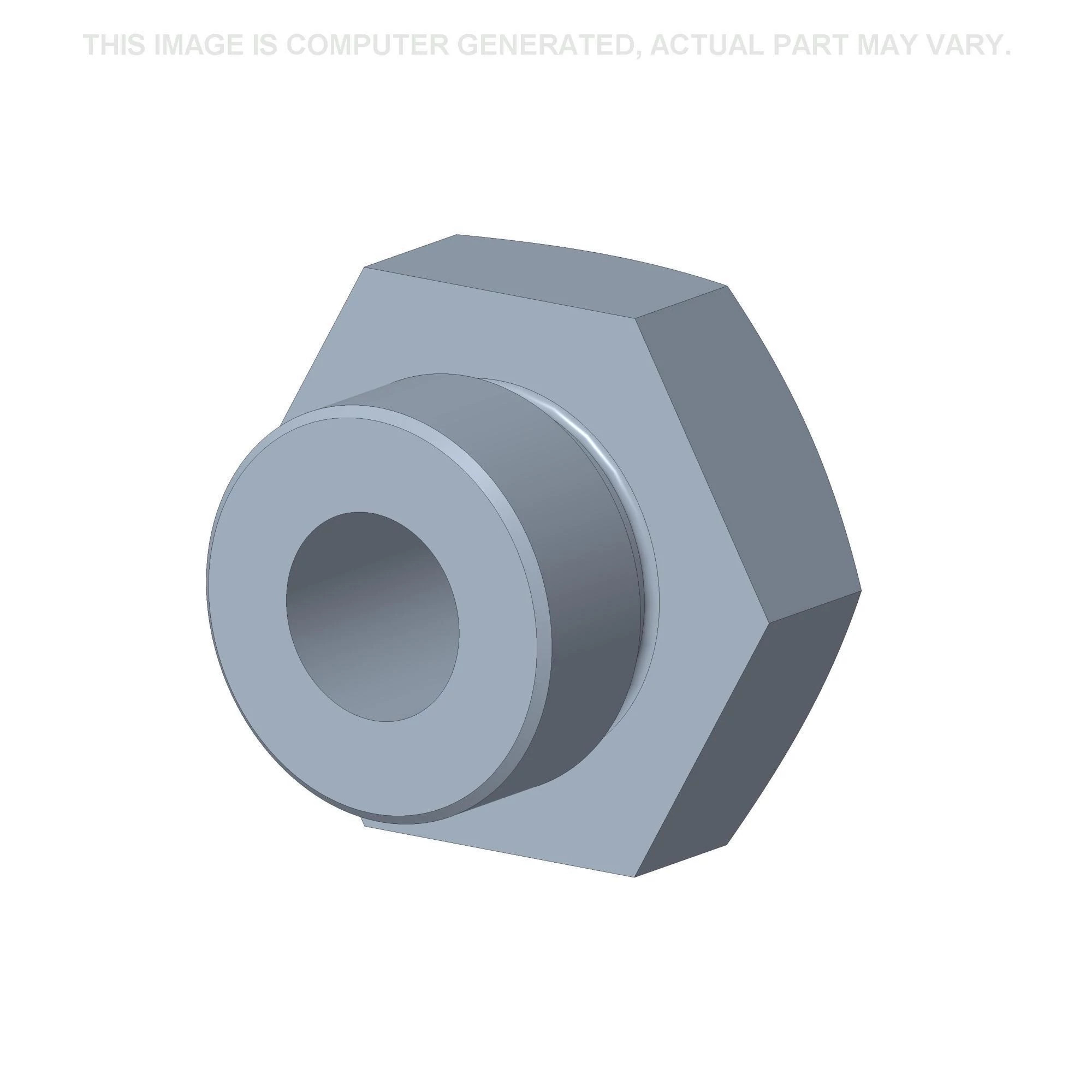

  • 9
    1
    87545638
    LUBE OIL NOZZLE;
  • 10
    13
    87561328
    BUSHING 11mm ID x 13mm OD x 14mm L;
  • 11
    26
    14453080
    O-RING 10.8mm ID x 1.78mm Thk, NBR;
  • 12
    6
    87534205

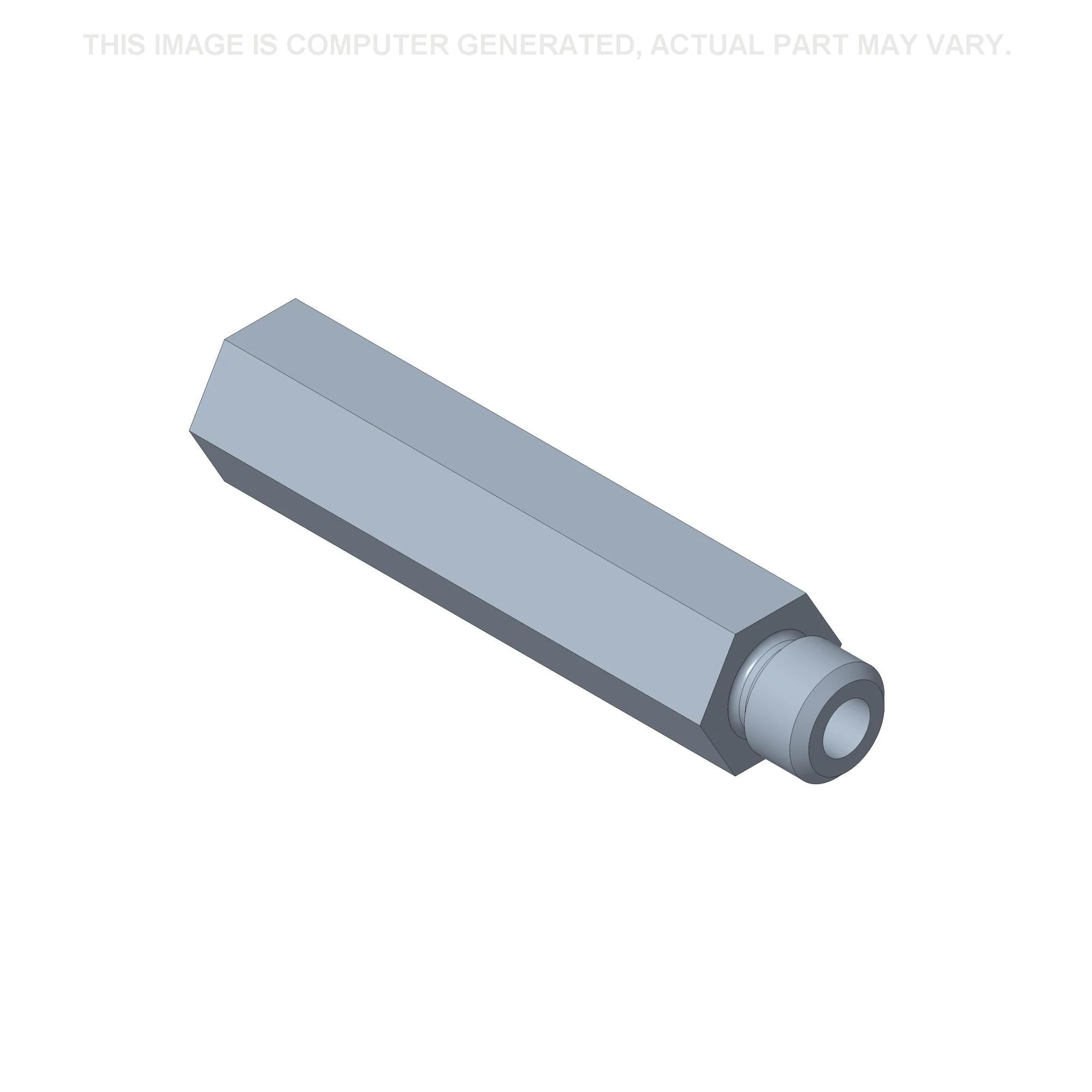

    NOZZLE M10 x 1.25 x 62mm L;

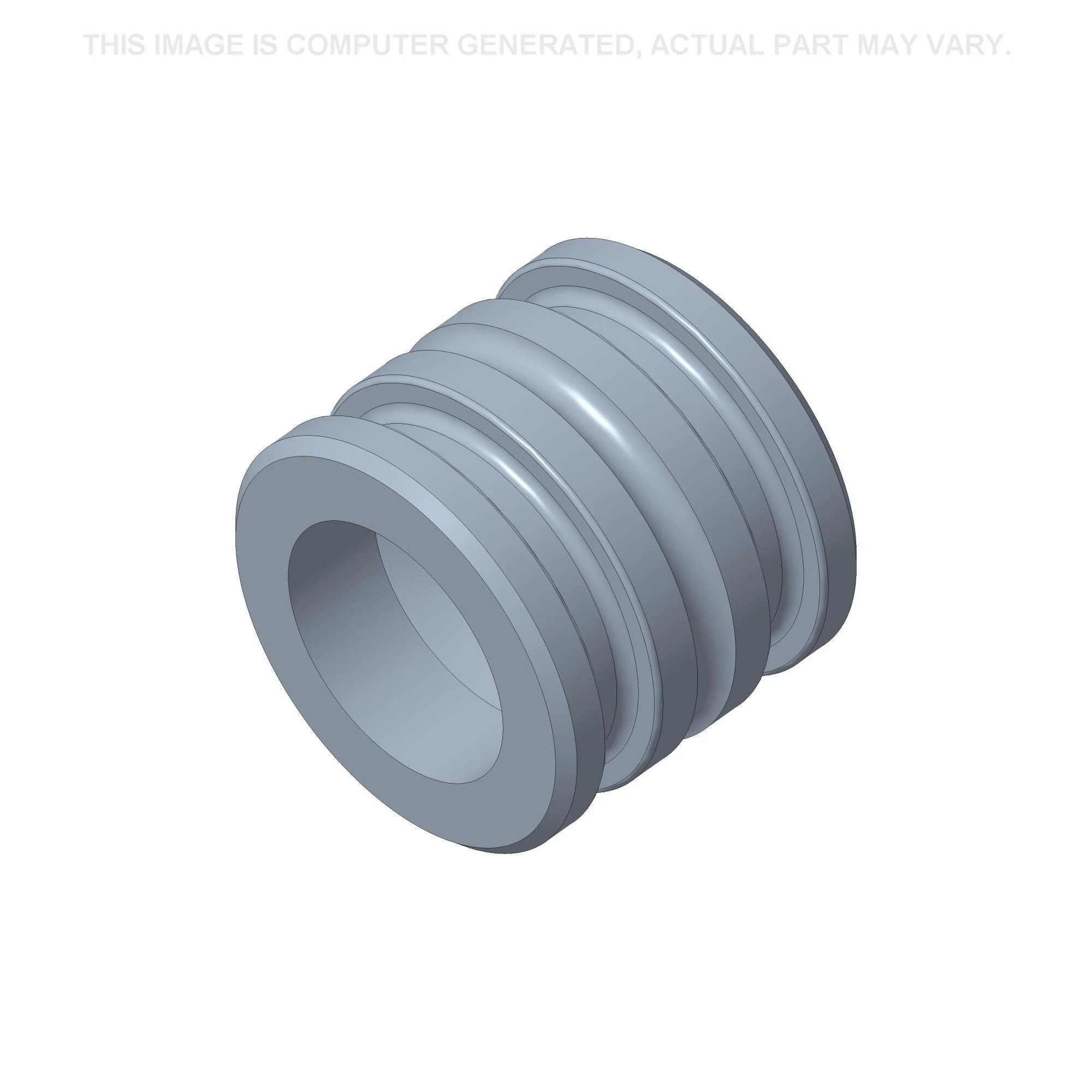

  • 13
    1
    87567456
    BUSHING 6.5mm ID x 14.4mm OD x 14mm L;

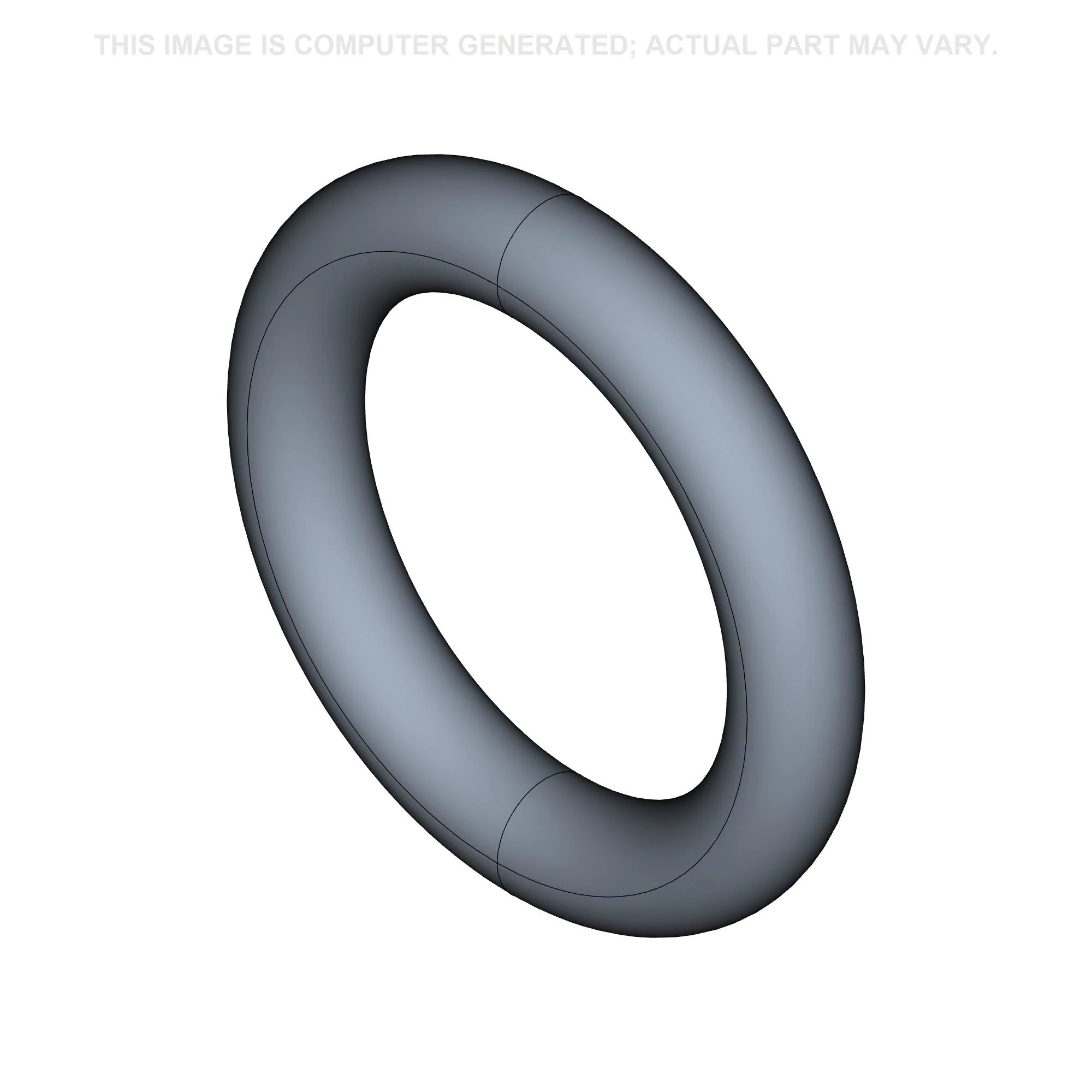

  • 14
    1
    14456980
    O-RING 10.77mm ID x 2.62mm;
  • 15
    1
    5165897
    SEALING WASHER 22.7mm ID x 30mm OD x 2mm Thk;
  • 16
    1
    87671358
    BANJO BOLT Hex, M22 x 1.5 x 109;
  • 17
    1
    87564417
    HYD TUBE 14 mm ID x 20 mm OD x 253 mm L; Transmission Lube, ASSY, Incl 18, 19

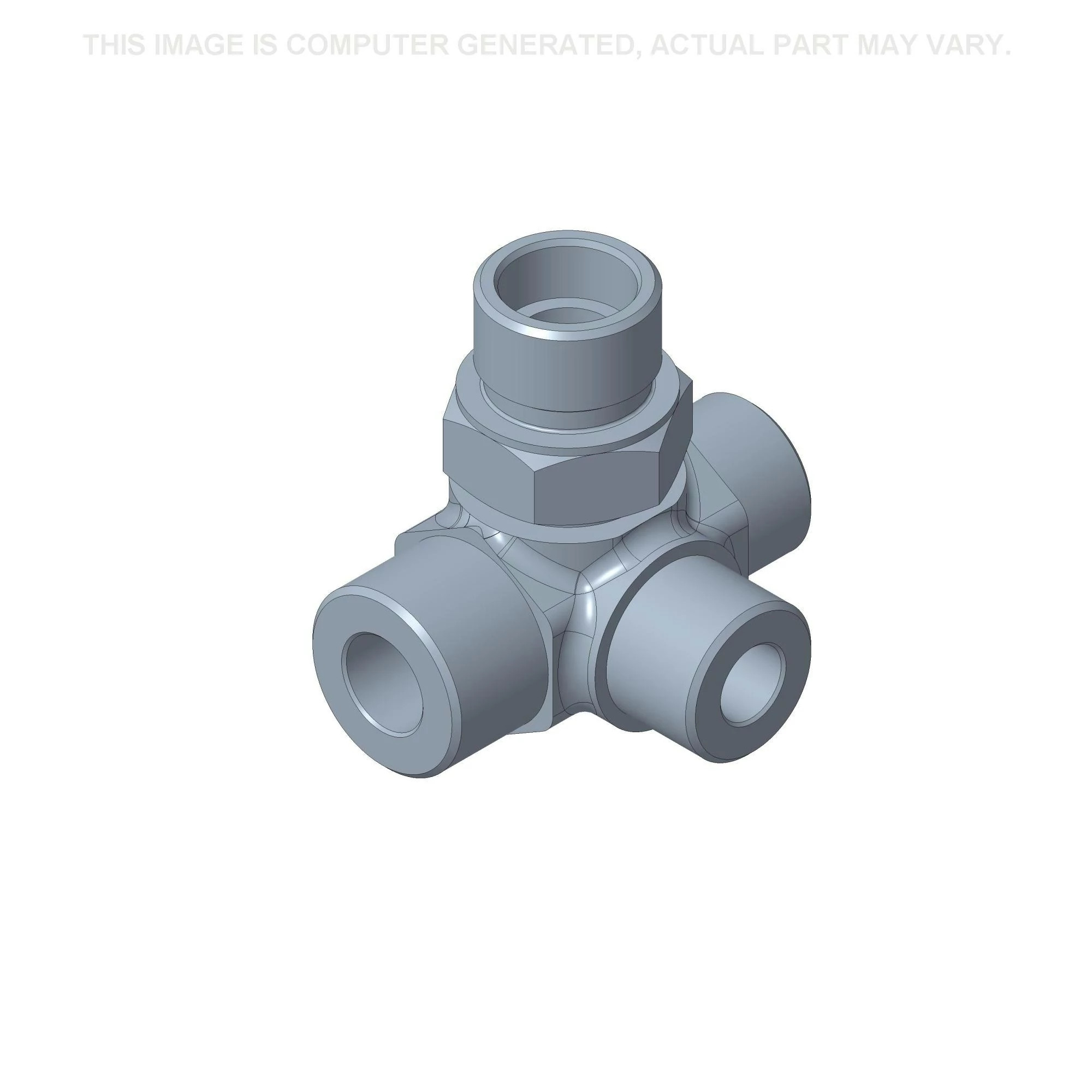

  • 18
    1
    87732510
    HYD CONNECTOR;
  • 19
    1
    84166282
    TUBE;
  • 20
    1
    9840576
    CAP 1'' - 14 ORFS;

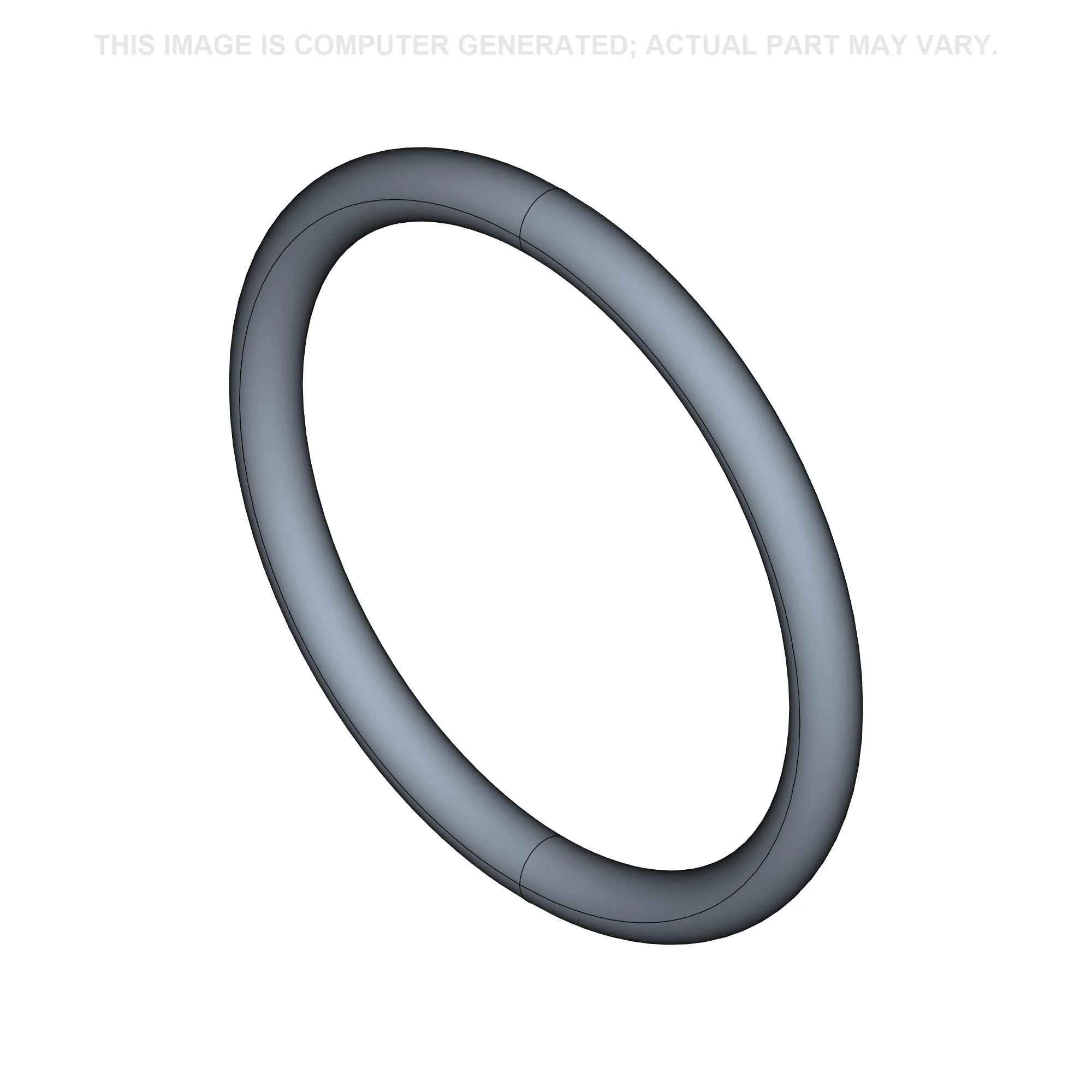

  • 21
    1
    14453480
    O-RING 17.17mm ID x 1.78mm;

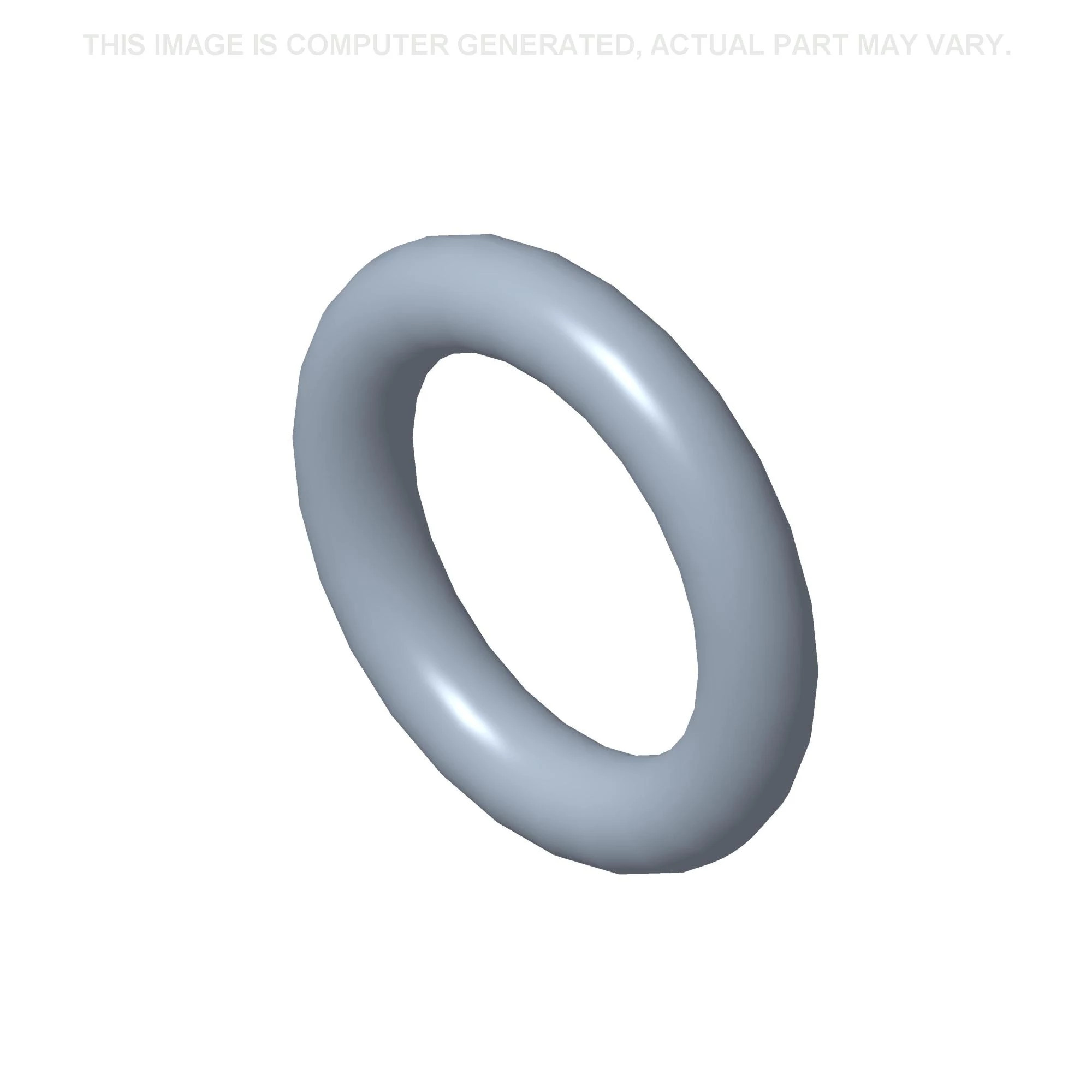

  • 22
    1
    577567
    O-RING 9.92mm ID x 15.16mm OD x 2.62mm;
  • 23
    2
    14453180
    O-RING 12.42mm ID x 1.78mm;
  • 24
    1
    87541312
    PLUG;
