Ref.
Qty
Part #
Alts
Description
-
11COVER; Case Assy. Includes: Ref. 2
-
21SEAL; Oil
-
31BOLT; Stud
-
41COVER;
-
51GASKET;
-
51GASKET;
-
66BOLT;
-
71INDICATOR;
-
81VIS AVEC RONDELLE Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5
-
91GASKET;
-
91GASKET;
-
101VIS;
-
111WASHER 8.4mm ID x 16mm OD x 1.8mm Thk;
-
124BOLT Hex, M8 x 1.25 x 60mm, Cl 8.8;
-
1314LOCK WASHER M8; Washer, Spring
-
1411NUT M8 x 1.25, Cl 8;
-
151SMALL PUMP; Water Pump Assy. Includes: Ref. 16 thru 25
-

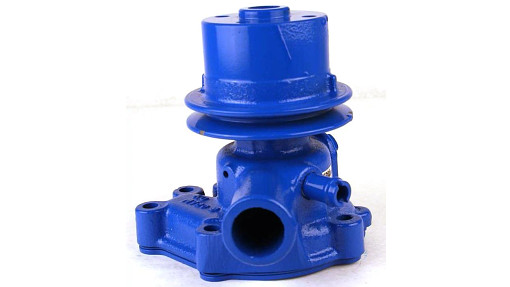

151REMAN-WATER PUMP WATER PUMP; 1710 3 CYL COMPACT TRACTOR (1/83-12/86), 1710O 3 CYL COMPACT TRACTOR OFFSET (1/85-12/87)
-
151CORE-WATER PUMP WATER PUMP; Retur Number
-
161BEARING ASSY; Shaft, W/Bearings
-
171PULLEY; Assy. Includes: Ref. 39;When Replacing Old Pulley (145336500) with New Style Pulley (145336540), You Do not need Holder (145386250) Ref. #28.
-
181SEAL 14.2mm ID x 31.7mm OD x 8mm Thk;
-
191IMPELLER;
-
201GASKET; W/ASBESTOS
-
201GASKET;
-
211COUVERCLE;
-
222VIS; M6 x 16
-
231VIS; Set
-
241TUBE; Pipe
-
251PLUG 3/8''; PT 3/8''
-
263BOLT Hex, M8 x 1.25 x 80mm, Cl 8.8; Screw, Hex, M8 x 80, 8.8
-
272STUD;
-
281FAN; Assy.
-
294BOLT;
-
294CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5
-
301O-RING;
-
311ALTERNATOR; Assy.
-
311ALTERNATOR; Value
-
311REMAN-ALTERNATOR ALTERNATOR; 1710 3 Cyl. Compact Tractor 1/83 - 12/86
-
311CORE-ALTERNATOR ALTERNATOR; Return Number
-
322BRACKET; Stay
-
331BRACKET; Plate
-
342BOLT Hex, M8 x 1.25 x 100mm, Cl 8.8; BOLT, Hex, M8 x 100, 8.8
-
352BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd; BOLT, Hex, M8 x 30, 8.8
-
361BOLT;
-
371CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5
-
382BOLT Hex, M8 x 1.25 x 80mm, Cl 8.8; Screw, Hex, M8 x 80, 8.8
-
391TANK; Holder;When Replacing Old Pulley (145336500) with New Style Pulley (145336540), You Do not need Holder (145386250) Ref. #28.
-
401GUARD; Alternator
-
411FLEXIBLE;
-
422CLAMP;
