020[A] - AUB497080 SPACER KIT W/R4 TIRES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    AUB497080
    KIT; Spacer Kit Includes: Ref. 3,6,8,8A & 12
  • 2
    1
    AUB163145
    FRAME; Mounting Frame, Rear
  • 3
    4
    AUB961128
    BOLT; M14-1.5 x 45 HH
  • 4
    4
    PL
    PROCURE LOCALLY; Lockwasher, 14mm
  • 5
    4
    PL
    PROCURE LOCALLY; Washer, Flat, 14mm
  • 6
    2

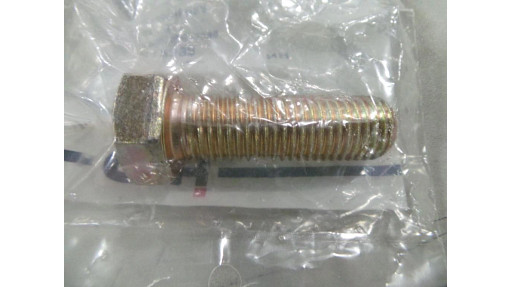

    412398
    BOLT Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd;
  • 7
    2
    E630176S71
    LOCK WASHER; Washer, Lock, M16
  • 8
    2
    AUB163140
    LIFT ARM; Arm, Lift
  • 8A
    2
    AUB163298
    BEARING LINER; Bushing;Not Illustrated
  • 9
    2
    AUB964514
    WASHER OD 47.6mm X ID 32.6mm; Washer, OD 47.60mm x ID 32.60mm
  • 10
    2
    80754

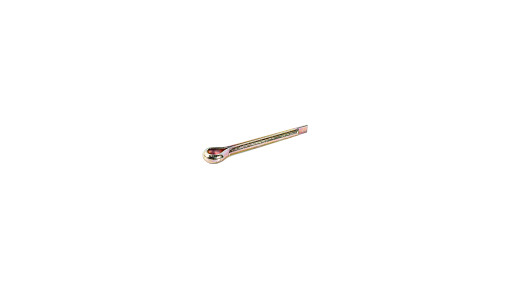

    COTTER PIN 3/16'' OD x 1-1/2'' OAL;
  • 11
    6
    AUB221809
    SPACER; s
  • 12
    2
    80751
    FITTING; 1/4-28 Grease Fittings;Not Illustrated
